FREE Encyclopedia of Building & Environmental Construction, Diagnosis, Maintenance & Repair The accuracy & trustworthiness of every article or Q&A is researched by human experts. See WHO ARE WE?
HVAC Manuals, Parts Lists, Wiring Diagrams Brands A - E
POST a QUESTION or COMMENT about where to find furnace or boiler installation and service or maintenance manuals and guides
Manuals, parts lists, wiring diagrams for HVAC equipment:
Free downloadable manuals for Air Conditioners, Boilers, Furnaces, Heat Pumps. Here we provide free downloadable copies of installation and service manuals for heating, heat pump, and air conditioning equipment, or contact information for the manufacturers who can provide that information for nearly all major brands of HVAC equipment.
We include links to contact information for each manufacturer or producer of these air conditioners, heat pumps, furnaces, boilers and related equipment, parts, and installation, repair, wiring diagrams, manuals.
We include immediate downloads of example installation & repair manuals and wiring diagrams for air conditioners, heat pumps, and heating equipment from a variety of manufacturers as well as contact information to obtain the exact manual or wiring diagram for your unit.
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
- Daniel Friedman, Publisher/Editor/Author - See WHO ARE WE?
Free Furnace, Heat Pump, Air Conditioner Installation & Service Manuals, Wiring Diagrams, Parts Lists
Below we provide HVAC manufacturer contact information and direct links to free downloadable installation, service, and users manuals, focusing on hard-to-find manuals for older models or discontinued equipment. We also provide links to the manufacturer's current model lists and literature.
Note: for page loading, speed this index to HVAC manuals is spread across several pages, but all of the individual companies are listed in
this HVAC MANUALS MASTER INDEX
Aaon, from John Zink/Sunbeam packaged rooftop HVAC equipment
Admiral Corp. air conditioners (illustrated above) founded in the U.S. as Continental Radio and Television (CRTC) produce radios, air conditioners, home appliances, from the mid to late 1930s into the 1950s. The company's Chicago-produced Admiral TVs were among the early boxes found in U.S. homes.
The company's products were sold in department stores and later in Home Depot and Montgomery Wards stores until 2001 when the company ceased operation.
Arkla HVAC, sold to Preway, sold as Servel gas-powerd air conditioning to Dometic Corp., subsequently marketed by Robur; Arkla- high efficiency furnace division purchased by Trane.
DELCO Brand Appliances, General Motors appliance division to 1964. Illustrated above, a data tag from a GM Delcoheat boiler DSW 580 WP courtesy of InspectApedia reader Sean.
Ewart & Son New Crown Boiler, U.K. [Illustrated above]
AAF International - Contact Information & Manuals
Photo above is of the data tag for 1980s or 1990s AAF American Air Filter HVAC Unit from Snyder General.
Contact: AAF International, AAF International
Asia Headquarters
American Air Filter Manufacturing Sdn Bhd.
Lot 6, Jalan Pengapit, 15/19, Seksyen 15
40000 Shah Alam, Selangor Darul Ehsan, Malaysia
Tel: +603 5039 7777
Fax: +603 5511 8633
Email: customerservice@aafmal.com Web: aafintl.com/
Website excerpt: While AAF is an international company, our global headquarters remain in Louisville, where it was founded in the 1920s. Bill Reed, a skilled engineer and entrepreneur, developed the Reed Air Filter in 1921.
This creative filter solution for the automobile industry established the foundation for what is today a global leader in air filtration. His concept was so successful, Reed joined forces with seven other firms to create American Air Filter Co. in 1929.
AAF has offices in the U.S., Canada, Mexico,
and worldwide in Europe, Africa, Asia, Middle East & Australia
American Air Filter products have also been manufactured by Snyder General - see
Outdoor fan motor serial # 28307175397 Mode Number SF93C-1 Fan Motor 1.3 amps Horse Power 1/6 is the unit we have dated 1970 but the house was built in 1984. Well we can hear humming and was wondering if you have a manual to this unit? Thanks!
We have an ADDISON SPLIT SYSTEM (1970) AND we get only humming from the outside unit. We can be reached at 845 856 0381 Thanks!
Reply: where to find Addison HVAC parts & manuals
Addison is an international company producing cooling systems, dehumidification equipment, heating systems, and related parts & components, including semi-custom designs and commercial equipment. The company's products include rooftop units and split systems.
Addison is a division of Heat Controller. [Citation needed].
Contact Information for Addison: Addison HVAC Systems
7050 Overland Road,
Orlando, FL 32810 Telephone: 407.292.4400 Fax: 407.290.1329 Email: info@addison-hvac.com Website: http://www.addison-hvac.com
Rafferty, Kevin, P.E., AN INFORMATION SURVIVAL KIT
FOR THE PROSPECTIVE
GEOTHERMAL HEAT PUMP OWNER [PDF] (2001) Geo-Heat Center
Oregon Institute of Technology
3201 Campus Drive
Klamath Falls, OR 97601 prepared for U.S. Department of Energy
Office of Geothermal Technologies
1000 Independence Avenue SW
Washington, DC 20585
Administered by Idaho Operations Office - retrived 2022/07/16, original source: https://www.osti.gov/etdeweb/servlets/purl/892019
Includes the Addison VGY/HGY and many other brands
On 2020-08-11 by Tim Gibbons - Addison WeatherKing Furnace
I bought a house with an old Addison WeatherKing forced air heater. The model and serial numbers on the sticker inside are: Model: GUWC080AD4 / SN: GN3D202 F4586 9722.
I believe it might have been installed around 1983, possibly later. I called Rheem first but they have no information from when Addison sold them.
I called Addison in Florida but they have no infomration about it either. I'm looking for a manual for it.
Also, the filter (that apparently was not changed for at least 25 years, per the previous owner) is the strangest I've ever seen. It was made by GT Industries, who no longer make a filter and don't know about it.
It looks to be made from a brown fiber of some kind (looks like horsehair, almost), possibly plant-based. I'm looking to at least install a new filter, am thinking that a MERV 3 is probably the highest rating I'd use, because of airflow. Any thoughts? Thanks!
ADP Advanced Distributor Products Air Handlers, Heating & Cooling Systems
Contact: ADP Advanced Distributor Products
1995 Air Industrial Park Road Grenada, MS 38901
USA E-mail: adp.feedback@adpnow.com Website: www.adpnow.com
ADP EVAPORATOR COIL INSTALLATION MANUAL [PDF] (2010) for A-coils, multi-position coils, slab coils, horizontal A-coil top connection, & Horizontal A-coil side connection.
Excerpt:
ADP evaporator coils are designed for use with condensing units or heat pump units.
These instructions are intended as a general guide and do not supersede local codes in any way. Consult with local authorities having jurisdiction before installation. Read this installation manual and all “Warning” statements prior to installing the evaporator coil.
Advanced Thermal Hydronics ATH
ATH or Advanced Thermal Hydronics is a Mestek company.
Contact: Advanced Thermal Hydronics ATH
USA:Advanced Thermal Hydronics ATH, 260 North Elm St., Westfield MA 01085 USA Tel: 413-564-5515
ALPINE STANDARD AC FURNACE CONTROL WIRING [PDF] Alpine Home Air Products, TEl: 1-800-865-5931 Website: www.alpinehomeair.com retrieved 2019/11/13 original source: https://www.alpinehomeair.com/related/Standard%20AC%20Wiring%20Diagrams%20.pdf
American Boiler Association
American Boiler Manufacturers Association - ABMA - is another source for locating heating equipment manufacturers - there are hundreds of large, medium, and smaller manufacturers
8221 Old Courthouse Road, Suite 207, Vienna, Virginia 22182, 703/356-7171; Fax 703/356-4543 Website: http://www.abma.com/
The American Boiler Manufacturers Association (ABMA) is the national, nonprofit trade association of commercial, institutional, industrial and electricity-generating boiler system manufacturing companies (> 400,000 Btuh heat input), dedicated to the advancement and growth of the boiler and combustion equipment industry.
Founded in 1888 by boiler manufacturers in search of safe boiler design techniques and materials, the organization today provides a common ground for information sharing and to achieve better understanding and communication between manufacturers, their customers, government and the public.
ABMA’s community of focused interest and problem solving brings the technical and production expertise of an entire industry to bear on a range of energy and environmental policy issues.
American Furnace Co - AFCO
In 1968 AFCO became part of the climate control division of the Singer Co. In 1970 became Singer American Furnace.
Don't confuse model number with serial number. The serial number, not the model number, will give the equipment's date of manufacture. The serial number is given on the Ameristar equipment data tag, typically below the larger-font Model Number.
Ameristar 10 digit Alphanumeric Serial Number Age Decoder: YYWWDAB12C where YY and WW give the numeric year and week and D the week day of manufacture .
ARCO was bought by SnyderGeneral in 1984 from oil company Atlantic Richfield (ARCO) and was added to Snyder General's Climate Control unit as Arcoaire.
In 1991 Arcoaire became part of Inter-City Products (name later changed to International Comfort Products). In 1999, ICP was in turn acquired by United Technologies, the parent of Carrier Corporation. - see CARRIER AIR CONDITIONERS, BOILERS FURNACES
Arcoleader heating boilers were produced up to the late 1960s.
Arcoflame boilers typically are dated to the 1950s.
Also see AMERICAN STANDARD boilers & furnaces - as that company produced Arcoliner boilers.
Arcoaire Air Conditioning & Heating
Contact: Arcoaire Air Conditioning & Heating P.O. Box 3005 1136 Heil-Quaker Blvd. City, state: LaVergne, TN 37086-1985 USA, Website: http://www.arcoaire.com/ The company does not give a physical address at that web page but provides a contact form. The company also provides geothermal systems.
The company's web page describes the various products in its product line. Regrettably the company's website does not provide downloadable manuals, product specification sheets or other details. The website gives no contact information for the company except for this contact address regarding the company's privacy information policy:
UTC Climate, Controls & Security [United Technologies Corporation]
One Carrier Place
Farmington, CT 06032
ICP HVAC equipment manufacturing date is usually encoded in the serial number
YYWW567890
or in the serial number format
XYYWW56790
(ignore the first alphabetic character, pick up the first four numeric digits, and decode them as YYWW as we illustrate here.
Use the first four numeric digits that form YYWW where YY is year of manufacture and WW is week of manufacture in that year.
The remaining numeric digits, usually 5, form a unique serial number or manufacturing sequence number of the equipment.
This same manufacturing date encoding appears in most HVAC equipment distributed under the ICP brands of:
Arcoaire, Comfortmaker, Heil, ICP, International Comfort Products, Inter-City Products, Keeprite, Tempstar, and UTC, United Technologies Inc.,
Axeman Anderson Boilers
Axeman Anderson, founded in 1944, produces coal boilers, electric boilers, gas fired boilers, and oil fired boilers.
The company's original product was the Axeman-Anderson Anthratube, an anthracite coal burning boiler that is still in production. Other models include the Axeman Anderson Centaurus (heat and domestic hot water) and the OHM outside heating boiler.
Contact: Axeman-Anderson, Company
300 East Mountain Avenue
South Williamsport, PA 17702
ph. 570-326-9114
fx. 326-2152
email: info@axeman-anderson.com
Axeman-Anderson Company, Website: http://www.axeman-anderson.com/ Peter H. Axeman, Jr. General Manager
AXEMAN ANDERSON ENERSTOR ELECTRIC THERMAL STORAGE SPECIFICATIONS [PDF] Op. Cit. used to store energy at night using off-peak lower-cost electricity for night and next-day heating; used with central hot water heating system, forced warm air heat, and auxiliary or backup heat for heat pump systems.
Excerpt: The Beckett GeniSysTM Advanced Burner Control is a
120 Vac primary safety control for residential and light
commercial oil burners used in boiler, furnace, and
water heater applications having firing rates less than
20 GPH.
The GeniSys is used with a suitable cad cell
flame sensor to control the oil burner motor, igniter,
and optional solenoid valve. It has 24 Vac thermostat
terminals (if applicable) compatible with both mechanical
and many power stealing thermostats. It can also provide
interrupted or intermittent duty ignition.
Watch out: See this important BLUERAY RECALL NOTICE about older Blueray furnaces and boilers.
Later models of the Blueray heating boiler (Blueray furnaces were also manufactured) attempted to correct these safety concerns but the company did not survive its image as dangerous.
The Thermodynamics Boiler Company purchased the remains of the defunct "Blueray Systems", redesigned the heating equipment, and marketed it under several names which included the "Blueray" appellation.
Those service people "in the know" realized that the Thermodynamics version of Blueray was a different animal and did not have the same safety concerns as the original.
Bond Manufacturing Fire Pits & Fire Tables, LP & Gas Heaters, Outdoor & Other
Contact Bond Manufacturing LLC: Bond Manufacturing
1700 West 4th Street,
Antioch, CA 94509 USA, Tel:
1-866-771-BOND (2663) Website: http://outdoorheating.bondmfg.com/ Bond produces outdoor gas heating products and other outdoor products under these brands: Bond Corporate Website
Bond Garden
Stanley
Black+Decker
Bloom
Bond Furniture
Bond Fountains
Miracle-Gro
Island Lights
The Carlyle Compressor Company was founded by Willis H. Carrier & J. Irvine Lyle (Hence Car-Lyle) between 1900 and 1910 to produce compressor motors used in heating and air conditioning systems such as marketed by Carrier.
Contact: Carlyle Compressor, Web: https://www.carlylecompressor.com/ where you'll find a contact form - no mail address, no telephone, no email.
CARLYLE IDENTIFYING COMPRESSOR FAILURE MODES [PDF] Indicators, Symptoms, and Corrections, this quick guide describes the symptoms of and corrective steps for refrigerant floodback, flooded starts, liquid slugging, high discharge temperature, loss of oil, electrical failure, general or uniform motor winding burnout, single phase motor burnout, half-winding single phase burnout, half winding burnout, primary single phase burnout, start winding burnout, run winding burnout
CARLYLE COMPRESSOR SERVICE GUIDE [PDF] Carlyle 06D/06E/06CC Compressors
Excerpt: Carlyle Compressor Company provides this guide to aid the service specialist
in proper installation, service, and maintenance of 06D, E, CC compressors.
Following the procedures in this guide will extend the life of the system and
improve performance.
Chappée S.A
157, avenue Charles Floquet - 93158 LE BLANC MESNIL Cedex
Tel: 0 825 950 909
Or possibly
SGF / AEMA
4642 Crossroads Park Drive
Liverpool NY 13088
Chrysler Airtemp
On 2015-03-27 by Chris
Can anybody please help me find out what year my Chrysler Airtemp gas furnace is? The model#42123C1421,serial#BN352020 I would like to know how efficient it is 56%,65% or 70%. I think its a 1963 or 1964 furnace,it was in the house when i bought It and the house was build in 1964 and there is no signs or paper work that it was replaced at anytime, just paper work on when it was tuned up or serviced.
On 2015-03-16 by (mod) -
Patrick it's a reasonable question to ask but not one that can be answered with not a shred of information about the home, heat loss rate, number of heating or cooling degree days, etc. IN other words the decision on economy needs to include the heating load.

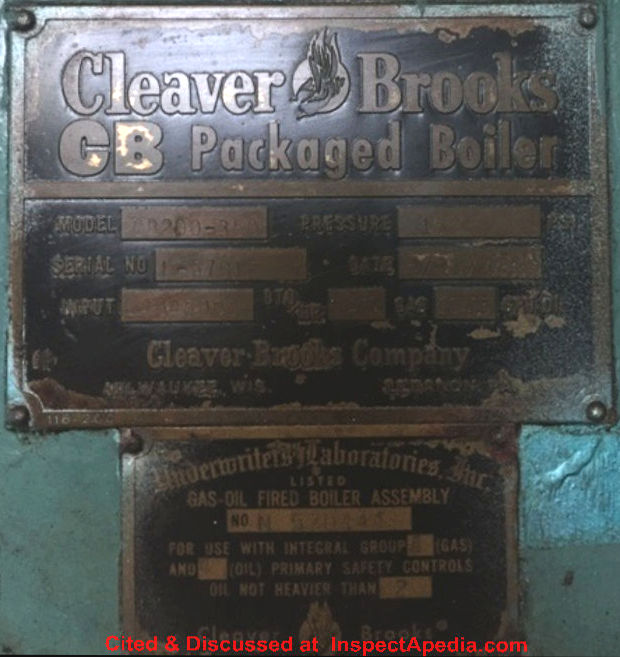

CleaverBrooks Boiler Co.
Contact: CleaverBrooks Co., 221 Law St
Thomasville, GA 31792
USA Customer Service Tel: 800-259-5883 Website: https://cleaverbrooks.com/
CleaverBrooks was founded in 1929 and delivers integrated heating equipment, service, consulting.
Firetube boilers are available for low or high pressure steam, or for hot water applications. Firetube boilers are typically used for applications ranging from 15 to 800 horsepower. A firetube boiler is a cylindrical vessel, with horizontal tubes passing through and connected to the front and rear tube sheets.
The vessel contains the water and absorbs the energy generated from the flame. The front door and rear door provide the seal to contain the hot combustion gases. Baffles designed into the doors serve to redirect the combustion gases through the fire- tubes.
The flame originates in the furnace. As the combustion gases travel down the furnace and through the fire- tubes, heat from the flame and combustion gases is transferred to the water. The swirling action caused by the rifled firetubes provides a much more efficient heat transfer capability. Transferred energy develops into the required steam or hot water. The primary purpose of the boiler is to supply energy to the facility's operations - for heat, manufacturing process, laundry, kitchen, etc.
Comfort Aire portable air conditioners by Mars®
Contact information for Comfort Aire portable air conditioners:
Mars is an HVAC/R supplier whose brands include Comfort Air and Heat Controller. ComfortAire is a trademark owned by Heat Controller (Century).
According to the company's website:
MARS Motors and Components Division operates from Hauppauge, New York, with distribution facilities in Earth City (St. Louis), MO and Halton Hills, Ontario, Canada. The MARS Equipment Division operates out of Jackson, Michigan.
Mars®, Comfort Aire Century Corporation, 1900 Wellworth Ave., Jackson MI 49203, USA, Tel: +1 517-787-2100 Website: www.marsdelivers.com or www.heatcontroller.com
or see this
Customer Service Contact web page https://www.marsdelivers.com/wps/portal/c/customer-service/contact-us
I can't find a manual or any specs for this dam furnace and I caNT AFFORD A NEW ONE PLEASE HELP ME
I have a comfort aire hot air oil furnace that also has a heat controller oil furnace tag as well. One model no. is OIU-112DH serial no. ED114- m4984-4274. and then there is a tag that says underwriters lab oil furnace no. V744 535
On 2015-02-21 by (mod) - comfort aire hot air oil furnace
Alex
In the links in our ARTICLE INDEX check out the link titled
MANUALS AND PARTS GUIDES
And you'll see contact info for Comfort Aire
Most manufacturers are happy to provide downloads of equipment installation and operation manuals at no cost.
ComfortMaker Air Conditioning & Heating
Snyder General Comfortmaker: Snyder General originally sold both Arcoair and Comfortmaker brands. Comfortmaker was originally an AFCO brand. The brand is currently owned by Inter-City Products (ICP) that was in turn purchased by United Technologies in 1999.
Contact Information for Comfortmaker Air Conditioning & Heating Products, International Comfort Products LLC, P.O. Box
Website: https://www.comfortmaker.com or http://www.gocomfortmaker.com/go/index.asp
Comfort Products, part of UTC Climate Controls (http://www.ccs.utc.com/) is in turn owned by UTC United Technologies Corporation http://www.utc.com/ and if that's not confusing enough, UTC incorporates (now) Arcoaire, Comfortmaker, Carrier, Day and Night, ICP Commercial, Keeprite, Lincoln, and Tempstar brands.
Comfortmaker HVAC Age Decoder
Comfortmaker HVAC equipment manufacturing date is usually encoded in the serial number
YYWW567890
or in the serial number format
XYYWW56790
(ignore the first alphabetic character, pick up the first four numeric digits, and decode them as YYWW as we illustrate here.
Use the first four numeric digits that form YYWW where YY is year of manufacture and WW is week of manufacture in that year.
The remaining numeric digits, usually 5, form a unique serial number or manufacturing sequence number of the equipment.
This same manufacturing date encoding appears in most HVAC equipment distributed under the ICP brands of:
Arcoaire, Comfortmaker, Heil, ICP, International Comfort Products, Inter-City Products, Keeprite, Tempstar, and UTC, United Technologies Inc.,
Comfortmaker HVAC Manuals
This third party vendor stocks Snyder General parts (probably not manuals)
Other Comfortmaker split system evaporator coil installation instruction manuals are found at http://www.gocomfortmaker.com/go/index.asp?NID=0:9:23&getItems=129&t=86&s=477
Consolidated Industries, Furnaces originally in Greenville NC, USA, Lafayette Indiana manufacturing plant ceased operations in 2000, purchased by Texas Furnace in 2000. Related HVAC brand names include
AirStar®, AllStyler®, American Bestr®, ARKLAr®, Heatmaster®r, P.F.C.r®, and Premier®.
Texas Furnace, Gas Furnaces, PO Box 40696, Houston TX 77240, USA, Fax: 713-466-6363, Website: http://texasfurnace.com/gas-furnaces.html
Also see TEXAS FURNACE COMPANY (a subsidiary of AllStyle Coil Company),
Watch out: see the US CPSC recall notice below as it involves 140,000 horizontal furnaces manufactured by Consolidated Industries - and reports of 50 fires. Note that there is no PSC has received more than 50 reports of fires associated with the 140,000 horizontal furnaces manufactured by Consolidated Industries Inc.
US CPSC FURNACE RECALL: CONSOLIDATED INDUSTRIES HORIZONTAL FURNACES [PDF] (July 2001) [Note that there is currently (2022) no remedy available to consumers and the company that announced the recall is out of business.
Excerpts WASHINGTON, D.C. - The U.S. Consumer Product Safety Commission (CPSC) is announcing a recall of about 30,000 furnaces sold in California. Seven firms are offering to repair or replace certain furnaces, which were sold under their own labels, but were manufactured by Consolidated Industries Inc.
The units involved are gas-fired horizontal furnaces equipped with steel "NOx" rods installed above the burners and are commonly called NOx rod furnaces. These furnaces pose a substantial risk of fire.
All the furnaces can be identified by the steel rods installed above the burners. The firms participating in this recall are Amana Company, L.P., of Amana, Iowa; Bard Manufacturing, of Bryan, Ohio; Carrier Corporation, of Syracuse, N.Y.; Goettl Air Conditioning Inc., of Phoenix, Ariz.; Goodman Manufacturing Company L.P., of Houston, Texas; Heat Controller Inc., of Jackson, Mich.; and The Trane Company, a division of American Standard Inc., of Tyler, Texas.
Contact: Cosmogas R.R.L., Via L. da Vinci 16 - 47014 Medola (FC) Italy, Email: info@cosmogas.com Website: www.cosmogas.com
U.S. Distributor for Cosmogas boilers: EI, Embassy Industries Inc., 300 Smith Street, Farmingdale NY 11735, Tel: 631-694-1800, Website: www.embassyind.com Email: sales@embassyind.com
Also see
TPR LEAK DIAGNOSIS DUE TO EXPANSION TANK where we diagnose a leaky TPR valve installed on a Cosmogas boiler heating a radiant heat floor and domestic hot water via a tankless coil
ZONE CONTROLLER TACO ZVC403 - troubleshooting a zone control problem on a system heated by a Cosmogas boiler
Cox HVAC Equipment Age, Manuals, Contact Information
... FrigorTec has been producing crane air-conditioning devices for crane cooling and crane cabin cooling in hot operating environments like smelting works, foundries, and mills. Air-conditioning and air-purifying conform to the regulations of the relevant authorities, ensuring that the crane driver enjoys optimal work conditions.
Additionally, the sensitive power and control systems are cooled so that they function reliably. The devices, which have been put to the test world-wide, are available in many installation variations and with various output stages. The series of crane cooling devices (AC devices T) and crane cabin cooling devices (operator cooler OC) cover a wide range of types.
Termoelektricheskie sistemy 125040 Moscow, Russia Website: thermoelectric-cool.narod.ru
Separate "Crane" air conditioning companies in New York and Ohio and possibly other U.S. states and other countries include Crane Air Conditioning Inc., in New York City (established 1971) and Crane Heating & Air Conditioning Co., is a Cincinnati Ohio USA HVAC building contractor, HVAC installer established in 1953. Website: www.crane-htg-air.com Tel: 513-641-4700
On 2014-09-22 by Kimberly or Reed Wendel
I have a house that was built in 1950, it has a Crane cast iron gas baseboard heater. It has been leaking, I think a pipe bursted in it last winter, I cannot find the manufacturer. My question is how do you take off the cover, are there screws or do you have to pry it off the wall?
On 2014-09-25 by (mod) - Crane cast iron gas baseboard heater
Kimberly
I don't know the specific cast iron baseboard heater you mention but it would be odd to have to physically pry one from a wall; rather it most likely must be disconnected at either end of its piping and then screws or bolts are found that secure the unit in place. They may be painted over or behind a removable cover.
Creda Comfortaire Creda Electricaire Heaters
...
Creda Storage Heaters, including Creda, Creda Electricaire, Creda Comfortaire heaters, are a U.K. heating system. The Creda storage radiator data tag shown above is for a Creda different model.
Night storage heaters use lower-rate night-time electricity to store heat in the unit to deliver to the occupied space when needed including during daylight hours; Some but not all night-storage heaters can also provide heat using additional heating elements during the day.
Contact: Creda Works - Grindley Lane - Blythe Bridge, ST11 9LJ Stoke-on-trent, Staffordshire England U.K Tel: 017823883 Website: https://www.credaheating.co.uk also identified as GlenDimplex Heating & Ventilation.
Also see OLSEN AIRCO HVAC Olsen / Air Co Boilers, Canadian DMO Industries using Olsen & Airco brands.
Question: Need a rating plate for a CWF Duo-Matic Forced Air Coal & Wood Furnace
I have a CWF duo matic forced air coal and wood furnace. I have a serial number but I need a rating plate number for insurance purposes and the numbers are no longer legable. How can I get this? - Jen 10/29/11
Reply:
Jen,
Yours is probably an Olsen Coal/Wood - Oil forced warm air system. The CWF is more likely a model number.
But I think if your equipment is old, you may be out of luck finding anyone at the present company who knows a thing about it. Just look at the brand name history given below.
You might get some help from wood heat suppliers who I found still sell spare parts for Olsen coal/wood furnaces, such as at woodmanspartsplus.com though the parts I saw looked a bit generic. You will find help with estimating BTU output of wood fired heaters and furnaces at a variety of wood heat organizations.
It's no surprise that tracking down the current company selling or servicing older HVAC equipment is difficult. Look at this example: Olsen's product line originated in the 1940's. Olsen's combination heater line was purchased by DMO Industries (previously known as Duomatic-Olsen, then as Olsen Technology).
DMO Industries manufactured two brands of furnaces, Olsen and Airco. Those were sold in 2001 to ECR International (formed in 1999) who now owns Olsen, Airco as well as the Oneida Royal furnace brands, Utica and Dunkirk boilers as well as Enviromaster International central air conditioners.
You wont' find information about any combination fuel heaters in their current product line, though for Olsen products more information may be available from Olsen/Airco at Olsen/Airco Heating & Cooling Products - USA
P.O. Box 4729
2201 Dwyer Ave., Utica, NY 13504, Website: www.olsenhvac.com/ Their customer service number is 866-847-6656.
DAYTON ELECTRIC MOTOR WIRING DIAGRAM [PDF], Dayton Electric Mfg. Co., 5959 W. Howard St., Niles IL 60714 USA, retrieved 2017/07/09, original source: Grainger.com
Dettson Industries was purchased by the Ouellet Group in 2010. The company specializes in "oil-fired and electric warm air as well as hydronic heating systems for residential and light commercial applications."
Dettson brands include Alizé cooling units, AMP & AMT series commercial oil fired furnaces, Chinook Compact Gas Furnace, Right-Sized®, Supreme warm air electric furnaces, HVAC in A Box®, Hydra electric boilers, Hydra Compact, Clare Platform (a refractory oil furnace), Dual Energy units, AME series oil fired forced air heaters, HME boilers, HGRC gas boilers, HGC commercial gas boilers, HYDRA III boiler marketed under FP or Franks Piping boiler brand (since 1983), and a Hydra electric heater.
Enjoy this remarkable Dettson website excerpt retrieved 2020/06/27 - https://www.dettson.com/historic/
Since 1952, Dettson Industries has worked relentlessly to develop innovative products adapted to the needs of the North American population with a particular focus on the Canadian market and its different climate zone requirements.
Throughout the years, Dettson Industries has evolved from being a major manufacturer of heating appliances to the development of sustainable space conditioning solutions. Going forward, the development of finer controls coupled with a growing knowledge of thermodynamic applications will offer residential competitive systems with increased comfort.
It will allow Dettson Industries to become the key manufacturer of the HVAC (Heating, Ventilation, Air conditioning) industry in North America, or even the emerging large dwarf.
... October 5th 2010, Ouellet Group, which is headquartered in L’Islet, Quebec, had acquired Dettson Industries Inc.
In our many years in business, we have found that two things alone greatly impact the dependable operation and long life of our Equipment:
• operator responsibility and knowledge
• consistent preventive maintenance
Operator Responsibility
It is the operator’s responsibility to provide the daily care and attention required to properly maintaining your EASCO boiler room equipment. This Manual is intended to act as a guide and reference source for those operations, but it cannot replace the keen eye and experienced touch of a trained boiler room operator. It is recommended that a boiler room log be maintained to record daily, weekly, monthly and yearly activities as well as any unusual occurrences.
| Consistent Preventive Maintenance
Regular effective maintenance is the best way to obtain the most efficient operation of your EASCO boiler room equipment. We have found that the life and efficiency of Equipment are dependent upon the consistency of care it receives.
Often efficient operation is a matter of keeping the Boiler clean and the firing equipment property regulated. With proper installation, regular care and the use of genuine EASCO renewal parts, your quality EASCO equipment will last indefinitely.
Electro-Steam produces steam generators used in food safety, sanitation, dry cleaning, steam rooms, sterilizing, winemaking, medical applications, and many other uses.
Energy Kinetics High Efficiency & Condensing Heating Boilers
Contact: Energy Kinetics, Inc., 51 Molasses Hill Road Lebanon, NJ 08833 USA Tel: (908) 735-2066 Website: www.energykinetics.com
ENERGY KINETICS SYSTEM 2000 BOILER MANUAL [PDF] (2005) Oil Boiler, [illustrated above]
Excerpt: SYSTEM 2000 comprises a heat source, the energy converter, circulating water, a heavily insulated hot water storage tank and five (or more) zones controlled by an electronic control, the Digital Manager.
The Boiler sits cold until a thermostat calls for heat. The Digital Manager receives the call for heat and turns on the main circulator and burner. Water circulates within the boiler as it warms up to operating temperature.
When ready, the zone valves open and deliver heat to the zones calling for heat. When the thermostats are satisfied, the Digital Manager turns off the burner and enters the energy recovery stage.
The circulator and zone valve stay energized to deliver the heat remaining in the boiler to your home or to the domestic hot water storage tank.
When energy recovery is complete and the Boiler has been cooled off, the Digital Manager turns off the system and waits for another thermostat (or tank thermostat) to call for heat. SYSTEM 2000 runs the burner only when you need heat and delivers that heat only where you need heat.
Contact: Enertech Geothermal, Enertech Global, LLC
2506 South Elm Street
Greenville, IL 62246 & Mitchell SD, Tel: (618) 664-9010 Email: info@denertechgo.com Website: enertechgeo.com Geothermal and PV Solar products
Contact: Evcon™ Brand Unitary Products, 5005 York Dr. Norman, OK 73069 USA Tel: 877-874-7378 Email: cg-upgconsumerrelations@jci.com Website: http://www.evconhomecomfort.com/
Gas furnaces, split system air conditioners, split system heat pumps, residential packaged units for heating & cooling, manufactured housing furnaces & air conditioners,
Apologies but I'm not quite sure what part you're referring to. Do you mean a combustion chamber liner? If so, there are plenty of retrofit kits on the market.
On 2020-11-08
by Jim B.
I am looking for the parts Number for an Climatol gas furnace #1740-200-51-10 "Burner box" and if it still available ?? JIM.b.
On 2020-07-08 - by (mod) -
George
AUDnn are an American Standard product - please see the manuals listed at
AMERICAN STANDARD AGE MANUALS & PARTS GUIDES boilers & furnaces
AUD100 series I need a service Manuel. I need to adjust the dip switches for a five ton air conditioning system (2,000 cfm)
On 2020-05-25 - by (mod) - need brand, not just model number to find manual or instructions
Thomas
I'll be glad to see if we have or can find the service manual you need, but we'll have a better time of it if you can tell me the brand that goes with that model number; a photo of the unit would be great too.
On 2020-05-25 by Thomas Metcalf
Need owners manual HVAC model # PGMD24G0602 Forced Air Furnace with Cooling Unit, outdoor only
Or use the SEARCH BOX found below to Ask a Question or Search InspectApedia
Ask a Question or Search InspectApedia
Try the search box just below, or if you prefer, post a question or comment in the Comments box below and we will respond promptly.
Search the InspectApedia website
Comments & Questions are Welcome Here
If you posted comments here and no longer see what you wrote, please check for your comment in the Reader Q&A found above on this page.
Citations & References
In addition to any citations in the article above, a full list is available on request.
In addition to citations & references found in this article, see the research citations given at the end of the related articles found at our suggested
Carson, Dunlop & Associates Ltd., 120 Carlton Street Suite 407, Toronto ON M5A 4K2. Tel: (416) 964-9415 1-800-268-7070 Email: info@carsondunlop.com. Alan Carson is a past president of ASHI, the American Society of Home Inspectors.
Carson Dunlop Associates provides extensive home inspection education and report writing material. In gratitude we provide links to tsome Carson Dunlop Associates products and services.
