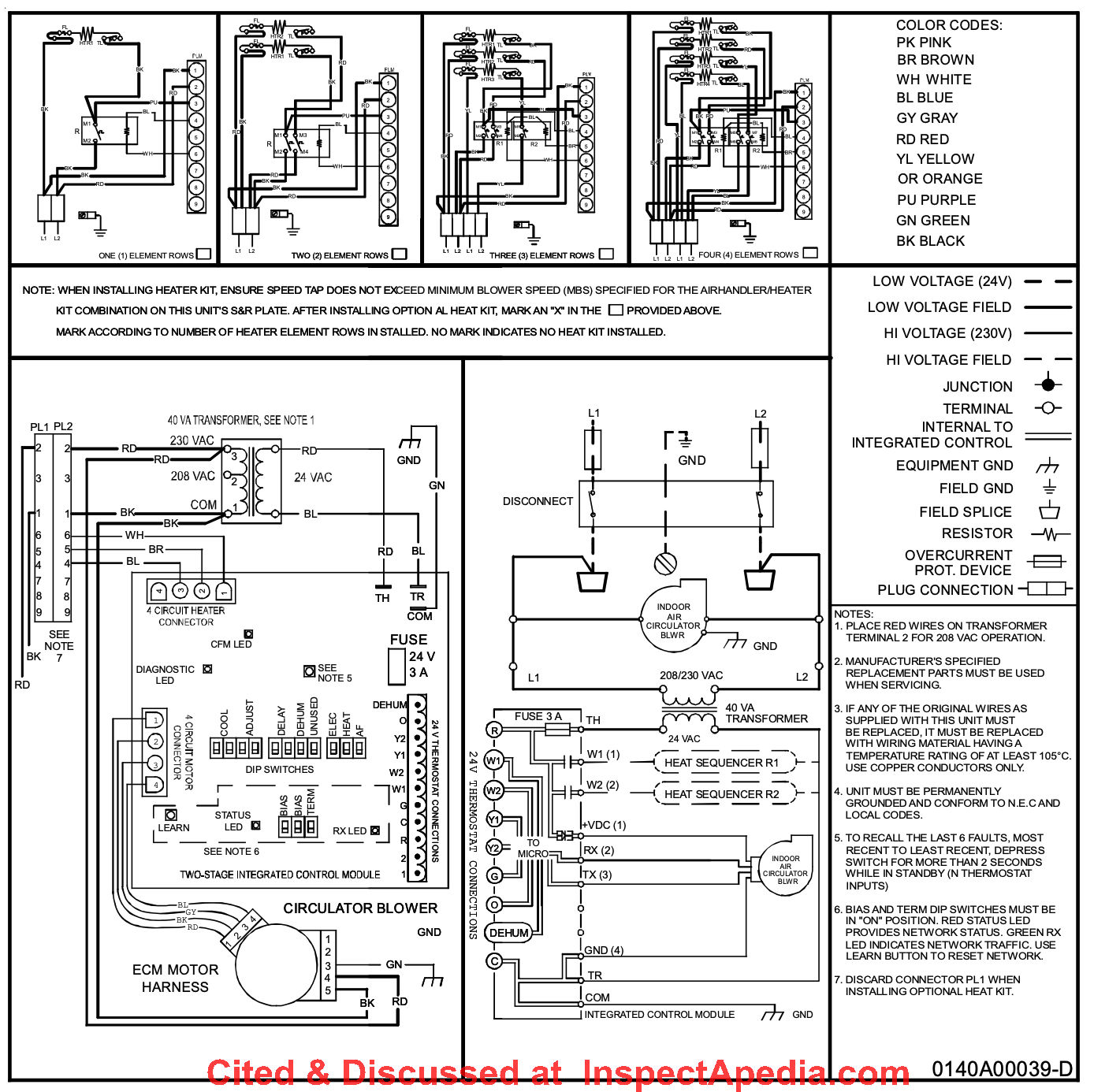

Amana AVPTC49C14 Unit Wiring Diagram

[Click to enlarge any image]





Amana / Goodman Gas Furnace Manuals, Service Manuals & Recall Notices



...

Franklin HVAC Equipment Manuals & Contact Info

Franklin brand HVAC equipment, are Goodman products, so we include that information here on our Goodman HVAC page. Current as of 2024, the Franklin HVAC equipment brand includes the following equipment and models:

  • Franklin air conditioners (models ASXV9 GSXV9 ASXC7 GSXC7 GXV6S GLXS5B GLXS4M GLXS4B GLXS3B) ,
  • Franklin air handlers (models 230V AHVE/ 230V AHVE*13 Multi-Position 115V AHVE/ 115V AHVE*03 Multi-Position AMVT/ AMVT*13 Multi-Position AMST/AMST*13 Multi-Position AWST / AWST*13 WALL MOUNT ACSF / ACST*13 Ceiling-Mount AMVE Multi-Position MBVB MODULAR BLOWER MBVK MODULAR BLOWER)
  • Franklin coils (models CAPEA/CAPE** / CAPEA*3** CAPFA/CAPF / CAPFA*3 CHPTA/CHPT / CHPTA*3 CAPTA/CAPT / CAPTA*3 CHPE** / CHPEA*3** CHPF Cased CAUFA/CAUF Uncased CSCF Slab)
  • Franklin gas furnaces (models AMVM97** ACVM97** GMVM97 GCVM97 GMVC96 GCVC96 GMVS96-U† GM9S96-U† GR9T96 GD9T96 GR9S96 GD9S96 GR9S92) and (models GMVC80 GCVC80 GMVS80-U GM9S80-U GR9T80 GD9T80 GR9S80 GD9S80)
  • Franklin heat pumps (models ASZV9 ASZC7 GSZV9 GSZC7 AZV7S GZV7S GZV6S GLZS5B GLZS4M GLZS4B)
  • Franklin packaged air conditioner systems (models GPCH3 GPCM3)
  • Franklin packaged heat pumps (models GPHH5 GPHM5 GPHH3 GPHM3 GPDM3 GPGM5 GPGM3 GPUM3)



Daikin / Goodman AVPTC Manuals

Other Amana/Goodman HVAC Error Codes, Manuals, Parts Lists

Watch out: see the US CPSC recall notice below as it involves 140,000 horizontal furnaces manufactured by Consolidated Industries - and reports of 50 fires. Note that there is no PSC has received more than 50 reports of fires associated with the 140,000 horizontal furnaces manufactured by Consolidated Industries Inc.



Amana & Goodman GMP & Other Gas Furnace Status Light Flash Fault Codes

A (usually red) LED is visible through an opening in the front of your Goodman furnace, typically just above a data tag. This table decodes the various LED lamp flash trouble codes.

Amana or Goodman Status Light / LED Error Codes
Trouble Code Indicator Meaning Repair
On Solid No connection from the thermostat Check thermostat wiring, setting, function
1 Flash on/off

Furnace ignition failure

Locks out after 3 ignition attempts.

Automatically resets after 1 hour.

or

Turn off power or turn down thermostat for 30 seconds then restore power / thermostat setting
2 Flashes Draft inducer / blower failure or pressure switch failure (short circuit)

Check for shorted wires;

Replace pressure switch.
3 Flashes

Open pressure switch circuit or draft inducer running when it should not be.

Heating mode: The vent pressure (vacuum) switch will close when it detects a pressure in excess of it’s setting.

If the pressure switch fails to close the status light will flash three (3) times. The sequence cannot continue until the pressure switch closes.

Check pressure switch hose for crimping;

Check for improper or loose wiring.

Replace failed pressure switch.
4 Flashes Primary limit circuit open

or


Amana: Pressure issue, high limit cuts furnace off.

Bad, loose, corroded electrical connection,

Dirty air filter, Clean or replace air filters.

Blocked exhaust flue: Safety check exhaust flue.

Check flue, draft, combustion air.

Check for clogged condensate drains.

Check/replace open/faulty fan limit control.

5 Flashes Flame present but no call for heat

Check for gas leaks

Check for improper / delayed burner shut-down

Check for sticking gas valve & replace it if faulty.

Watch out: this is an unsafe heater that should be left OFF pending repair.

6 Flashes

Reversed polarity (some models)

 Check power supply wiring vs wiring diagram
7 Flashes Low flame or weak flame sensor signal

Check gas supply pressure vs data plate pressure

Check / replace dirty corroded flame sensor probe

Check flame sensor mounting/location to be sure sensor is in the flame.

8 Flashes Igniter circuit failure

Check igniter wiring connections; check for bad ground connection;

Replace defective igniter.
9 Flashes

Open high state pressure switch

Switch not closing during high-stage draft inducer blower operation

Inspect pressure switch hose for crimping

Check for loose electrical connection at switch
Continuous rapid flashing 120VAC power supply polarity reversed Check wiring diagram; fix wiring polarity

...


ADVERTISEMENT



Reader Comments, Questions & Answers About The Article Above

Below you will find questions and answers previously posted on this page at its page bottom reader comment box.

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

What's the meaning of 4 flashes on the Goodman Gas Furnace indicator?

i have a goodman gas furnace.model# gmp 100-3 i am getting a code of four flashes.condition:limit switch open. action:gas valve off. circulator on. inducer on. On 2020-02-08 by jim

Reply by (mod) - Causes of Goodman gas furnace / air handler error code consisting of 4 flashes

Jim

The Goodman gas furnace / air handler error code consisting of 4 flashes may vary by model, but the usual meaning is

that the primary limit circuit open.

Causes include

Loose wiring or a bad electrical connection such as at a control board

Dirty or blocked air filters.

Repair:

First Check and clean or replace any/all air filters

Second: tighten any loose electrical connectors

Third: have your heating service technician check the flue for blockage - this is an important safety check.

If you don't have the IO / user's manual for your Goodman IMP gas furnace you can download a copy at

inspectapedia.com/aircond/Goodman-Gas-Furnace-Manual-GMP100-4.pdf

Or see AMANA HVAC MANUALS & PARTS GUIDES

See a complete table of Goodman gas furnace error fault codes at

AMANA & GOODMAN HVAC MANUALS & ERROR FAULT CODES

Goodman GMP Furnace Red Light Blinking 4 Times - loose connector vs dirty blower fan vs dirty filter

As the heading says I bought a used Goodman GMP 100-4 and the red light on the board blinks 4 times.

As soon as power is turned on tho the Furnace I hear a click and a few seconds later the blower motor and inducer run even with the thermostat disconnected. I have checked the inductor switch and have continuity, and also tried jumping it.

I checked the nipple on the inductor and it is clear, the hose is not kinked. The vacuum pot does open and close when vacuum is applied. the fuse on the board is good.

I did not see a reset button any where.

Also there is a multi connection plug laying in the bottom of the Furnace and I have no idea what it is for.

I just happen to think I have not checked the igniter. It will do the same with the thermostat connect or out of circuit. Am I missing something, is the board the problem. On 2016-10-23 by bob

Reply by (mod) - diagnose and fix Goodman furnace air flow restriction & high limit switch trigger vs loose wiring connector plug

Bob, When the Goodman GMP furnace red error light blinks 4 times that indicates that the furnace high limit switch has opened, turning the hater off.

However, if that loose connector is in fact one that should be plugged into a wiring socket that connects high limit and other furnace controls, then simply plugging the connector back in will probably fix your problem.

Most often the high limit is triggered if air flow through the furnace is restricted, possibly risking overheating, heat exchanger damage and thus risking dangerous flue gas leaks into the building. That's why the high limit will turn the system off until the problem is corrected.

Most often what's needed is simply to replace the air filter with a new, clean one.

In more extreme cases it might be necessary to have a service technician actually clean the blower fan assembly; even a small amount of dust and dirt on the fins of a squirrel cage fan can significantly reduce the airflow through the system.

Blower fan cleaning details are at BLOWER FAN ASSEMBLY CLEANING



Amana RHD60A2A heat pump keeps tripping the circuit breaker

This is 2020. We have a 1996 Amana HUAC system. Last summer running the AC it began popping the circuit breaker once a day or so.

Re-set and all was fine for a day until it popped again. We had service in and he replaced the condenser and at my request, installed a starter kit.

That almost ended the problem but not quite. So on a hunch, I set the electronic thermostat to wait 500 seconds before re-powering the AC after it shut off, adding about 150 seconds to the old setting.

So far, that worked. Maybe someone can explain why, and if something else needs replacing? And maybe someone can tell me who re-builds Amana RHD60A2A heat pumps? 2020 is the last year for legal freon, and there's no way we can afford to replace this system. We're pensioners on a shoestring.

Re-build or find a less used model is all we can do. - On 2020-01-24 by Reybo -

Reply by (mod) - Amana RHD60A2A heat pump rebuild?

Reybo

What was included in "replaced the condenser" ? The whole condenser unit? That would have meant a new compressor, fan, condensing coil & controls.

So we'd not expect a new system to trip the breaker if the setup is properly wired and fused. And you'd not install a starter kit on a new AC compressor motor.

On the other hand if you're using an old compressor motor and it's tripping the breaker, a hard start kit might get it going for a time but you've already been warned that the compressor is at or near the e nd of its life.

Indeed commercial compressor motors are often re-built.

But nobody rebuilds residential A/C or heat pump compressor motors. The compressor is in a hermetically sealed can and is not repairable.

You might find a used unit but I'd be pretty reluctant to try that.

Few people will remove and salvage an old A/C or heat pump that's still working acceptably, so a used residential compressor on the market is risking having to do the job over multiple times- at a cost greater than having replaced the unit with a new one in the first place.



Franklin A/C unit won't cool

Our 4 ton Franklin Model ASTP47C14BA A.C unit quit cooling.. It is only five months old The fan runs and the controls work. Suggestions? On 2020-04-26 by David Heckman

Reply by (mod) - what to check first

David

In our LOST COOLING CAPACITY article in

the ARTICLE INDEX you'll see some easy diagnostic steps that are a good place to start.

You should to check out some obvious things (like is electrical power lost?) before calling for repair.



Goodman condenser unit, fan won't run unless you push it.

Goodman condenser unit, fan won't run unless you push it. I put a new 35/5 capactor on and same problem. I then put a new fan motor with separate capacitor on and it does same thing.

Voltage at cut off box is 246 and same at main contactor. With contactor engaged in have same voltage .

Compressor starts and runs great. Fan motor is 2 wires to line and 2 brown wires to new capacitor. I even tried another new capacitor with the new motor. Help ! - On 2018-08-05 by Dwight

Reply by (mod) - signs of a bad motor start capacitor or bad electrical connection

Usually that signifies a bad start cap or a bad start cap wire or connecto



Looking for manual or other information on Goodman GUE040-3

The Goodman website doesn't have any information about my much older model, GUE040-3.

Does anyone have any info (esp manuals!) about this furnace model? On 2023-01-10 - by Mom124

Reply by (mod) -

Mom124

We found parts lists for older Goodman GU-series heaters - now available above on this page, but I've not found the IO manual for the GUE040 heater - I'll continue to look and post whatever we can find here.



Want a manual for Goodman GMH950904cxac

Manual gmh950904cxac - On 2019-12-15 by Anonymous

Reply by (mod) -

Anon

You can download a Goodman GMH95 manual [PDF] from a live link given above on this page. - Daniel



How do I find information about a Goodman Ceiling Mount AC24 A/C system

Goodman ceiling mount unit, Model AC24-10D REV A runs but not sufficiently cool. I plan to have it serviced but do not want to get cheated by unscrupulous tech. Where can I find info on this product. Goodman is no help--they say they no longer have manuals for this unit built in 2005.

Reply:

Anon:

Here is information about the Goodman A/C unit you asked for

This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does not assume any responsibility for property damage or personal injury for improper service procedures or services performed by an unqualified person. Service Instructions CKL, CLJ, CRT, CLT, TWC, CLQ & HDC Split System Remote Coolers and CPLE, CPLJ, CPRT, CPLT & HDP Split System Remote Heat Pumps with R-22 Refrigerant Blowers, Coils, & Accessories

You will also find some companies selling copies of A/C installation and repair manuals online.

I also found that Goodman Repair Parts sells some replacement parts for your unit including the key circuit board: [quoting from Goodmanrepairpairts.com]

PCBFM103S 300x300 Circuit Board PCBFM103S / PCBFM131S Goodman/Amana

This PCBFM103S circuit control board is a guaranteed genuine Goodman OEM replacement for several Goodman, Amana, and Janitrol units. All of our parts are shipped factory direct, giving you the assurance you need for a quality repair on your furnace, air conditioner, or other Goodman product.
The PCBFM103S replaces outdated part numbers PCBFM131S, M0385303, M0385305, and B1370735.

You can also obtain service information in general from Goodman at:

  • GOODMAN HVAC MANUALS & ERROR CODES
  • Consumer Information Line Goodman Manufacturing Company, L.P. Toll Free 1-877-254-4729 (U.S. only)
    email us at: customerservice@goodmanmfg.com
    fax us at: (731) 856-1821 (Not a technical assistance line for dealers.)
    Outside the U.S., call 1-713-861-2500. (
    Not a technical assistance line for dealers

Can a Goodman AVPTC49c14 be installed in a doublewide mobile home"

Can a Goodman AVPTC49c14 be installed in a doublewide mobile home. - On 2020-06-11 by LISA

If so would anything have to be modified?

Reply by (mod) - check the manual: it MUST say "approved for mobile home use" or "approved for manufactured home use"

Watch out: If a heater is not listed and approved for mobile home installation, modifying it would be unsafe.

We have not found the term "mobile home" nor "manufactured home" in the Amana, Franklin, Goodman HVAC manuals for AVPTC units. So don't try it without first checking with customer support at Goodman - we give contact information for Goodman above on this page. - Daniel


...

Continue reading at MANUALS for HEATING & A/C SYSTEM CONTROLS or select a topic from the closely-related articles below, or see the complete ARTICLE INDEX.

Or see these

Recommended Articles

Suggested citation for this web page

AMANA & GOODMAN HVAC MANUALS & ERROR CODES at InspectApedia.com - online encyclopedia of building & environmental inspection, testing, diagnosis, repair, & problem prevention advice.


Or see this

INDEX to RELATED ARTICLES: ARTICLE INDEX to AIR CONDITIONING & HEAT PUMPS

Or use the SEARCH BOX found below to Ask a Question or Search InspectApedia

Or see

INDEX to RELATED ARTICLES: ARTICLE INDEX to HEATING SYSTEMS

Or use the SEARCH BOX found below to Ask a Question or Search InspectApedia

Ask a Question or Search InspectApedia

Try the search box just below, or if you prefer, post a question or comment in the Comments box below and we will respond promptly.

Search the InspectApedia website

Note: appearance of your Comment below may be delayed: if your comment contains an image, photograph, web link, or text that looks to the software as if it might be a web link, your posting will appear after it has been approved by a moderator. Apologies for the delay.

Only one image can be added per comment but you can post as many comments, and therefore images, as you like.
You will not receive a notification when a response to your question has been posted.
Please bookmark this page to make it easy for you to check back for our response.

Comment Form is loading comments...



IF above you see "Comment Form is loading comments..." then COMMENT BOX - countable.ca / bawkbox.com IS NOT WORKING.

In any case you are welcome to send an email directly to us at InspectApedia.com at editor@inspectApedia.com

We'll reply to you directly. Please help us help you by noting, in your email, the URL of the InspectApedia page where you wanted to comment.

Citations & References

In addition to any citations in the article above, a full list is available on request.


ADVERTISEMENT
