Manuals, parts lists, wiring diagrams & current contact information for Snyder General HVAC equipment:

Free downloadable manuals for Snyder General Air Conditioners, Boilers, Furnaces, Heat Pumps

We include immediate downloads of example installation & repair manuals and wiring diagrams for air conditioners, heat pumps, and heating equipment from a variety of manufacturers as well as contact information to obtain the exact manual or wiring diagram for your unit.

Snyder General, Arcoair, Comfortmaker, McQuay HVAC History, Manuals, Contact

Direct Links to Free Downloads of Heat Pump parts lists, wiring diagrams.

Snyder General Comfortmaker: Snyder General originally sold both Arcoair and Comfortmaker brands. SnyderGeneral's original location was in Minneapolis MN.

[Click to enlarge any image]

• Contact McQuay International: Tel: (800) 432-1342 Web: www.mcquay.com
• Contact Snyder General: Comfortmaker https://www.comfortmaker.com/en/us/ - see COMFORTMAKER, AFCO, ARCO for corporate address and additional contact information.

  International Comfort Products, part of UTC Climate Controls (http://www.ccs.utc.com/) in turn owned by UTC United Technologies Corporation http://www.utc.com/ and if that's not horribly confusing enough, UTC incorporates (now) Arcoaire, Comfortmaker, Carrier, Day and Night, ICP Commercial, Keeprite, Lincoln, and Tempstar brands

  See also the McQuay manuals listed below for Snyder General HVAC equipment including RTUs (RoofTop Units) - found independently as we did not have luck going to McQuay directly for Snyder General manuals.
• See also DAIKIN GLOBAL, Daikin Mini Split A/C, marketed in the U.S. until 1988; also see Unitary Products
• See also this third party vendor stocks Snyder General parts (probably not manuals)
  http://www.hvacpartsusa.com/index.php?route=product/category&path=59_130

Snyder General Equipment Age Decoder

Snyder HVAC equipment manufacturing date, for equipment produced up to the late 1990s, is usually encoded in the serial number as follows:

PYM567890 where P is a numeric digit (plant code) and YM the year and month are letters encoding year and month of production as we show in the table below.

"P" the first numeric digit in the Snyder General serial number gives the manufacturing factory code found in the table below.

McQuay Snyder General Model Number Decoder

For the decoder tables above and just below see the Unit Code Index pages in

Daikin McQuay CENTRAL STATION AIR HANDLERS, LOW PRESSURE SPECIFICATIONS & PARTS [PDF]

McQuay Snyder General Serial Number Decoder

McQuay & Snyder General HVAC Manuals, Parts Lists, Specifications

• Daikin McQuay MPS ROOTOP A/C HEATER MANUAL [PDF] IM972-1 Heating & Cooling Models MPS015B - MPS025B 15 to 25 Tons R-410A Refrigerant (2010)
• EH Electro Hydronic HEAT PUMP COOLING UNIT MARK III CONTROLS [PDF] Used with Duct-connected HVAC Models CC, C & FC Heat Pumps, Snyder General Corp.
• Daikin McQuay CENTRAL STATION AIR HANDLERS, LOW PRESSURE SPECIFICATIONS & PARTS [PDF] (1999) for models LHD, LYF, LSL, LML, LWL 103-228, Vintage C, and LML, LSB 106-111 Vintage E, last manufactured 1999

  Also call Daikin Parts distributor 1-800-377-2787 or see the Daikin website https://www.daikinapplied.com/
• McQuay HVAC CATALOG LYF LHD LSL LMLMSL MMM. HSH HMH Models [PDF] (1990)
• McQuay IM684 MANUAL [PDF] Forced Draft Gas Fired Furnace on McQuay Rooftop Systems FC ****A* with RM7897A Flame Safeguard (2007)

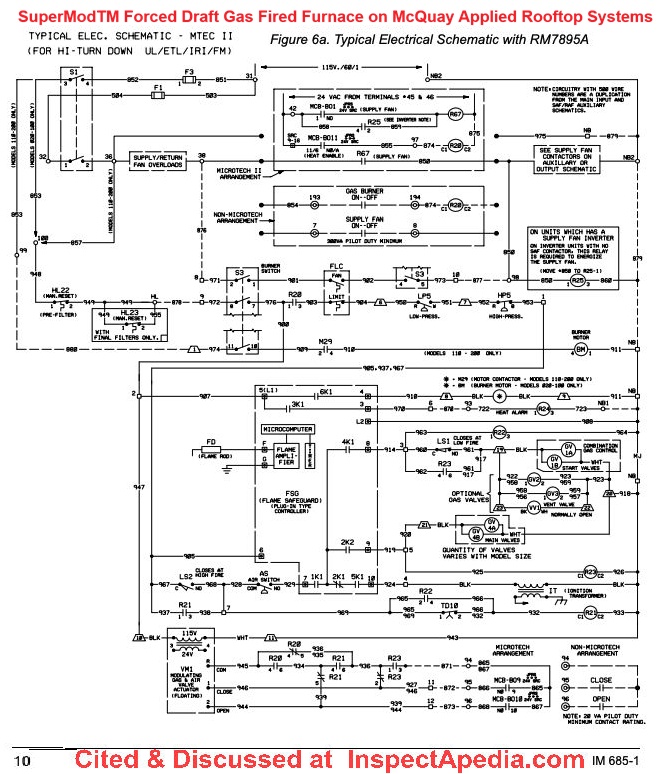

• McQuay IM685 ROOFTOP FURNACE MANUAL [PDF] SuperModTM Forced Draft Gas Fired Furnace on McQuay Applied Rooftop Systems
  HT***A* with RM7895A Flame Safeguard (2004)
• McQuay Enfinity™ WATER SOURCE HEAT PUMP MANUAL [PDF] (2007) Model CCH & CCW Ceiling Concealed – Size 007–060 Model FCV & FCW Vertical Floor – Size 007–060, McQuay Air Conditioning,

  Below: model number decoders for McQuay Enfinity™ brand Heat Pumps: ceiling or floor units.

...

• McQuay ROOFPAK HEATING & COOLING UNIT INSTALLATION & SERVICE MANUAL for RPS/RDT/RFS/RCS 015-075C [PDF] (2002) Roof Mounted Heating and Cooling Units with Scroll Compressors
• McQuay WATER SOURCE HEAT PUMPS CC / UC 330 MANUAL [PDF] EH Electro Hydroinic Systems
• Snyder General PGHA / EPGHA - McQuay PACKAGED ROOTOP PARTS LIST [PDF] (to 1996) these EPGHA & PGHA 060 units were last produced in 1996. The manual lists the following brands: Daikin, Daikin McQuay, AAF, Remington, Climate Control, American Air Filter, Singer, Westinghouse, Herman Nwelson, and Kennard. Parts may be available from Daikin Global listed above.

  Below: McQuay rooftop unit model number decoder.

Below: Snyder General or McQuay rooftop unit CUR model nomenclature decoder.

Below: more Snyder General or McQuay installation or operating manuals.

• Snyder General McQuay CUR-Series 075-150 ROOFTOP UNIT MANUAL [PDF] (1993) Models CUR075G through CUR 150G
• Snyder General McQuay ROOFTOP SYSTEMS MANUAL CUR160-CUR201 [PDF] (1992)
• Snyder General CUR-Series PACKAGED ROOFTOP SYSTEMS MANUAL [PDF] Models CUR251, CUR300, CUR351 (1989)
• Snyder General RGS PACKAGED ROOFTOP UNIT MODEL NAME DECODER [PDF] (2011)

Also see the HVAC Manuals at

• TEMPSTAR HVAC MANUALS

...

---

---

ADVERTISEMENT

---

---

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

Reader question: need technical details related to the Snyder chilled water air handler

Hi Techies, Im searching for some technical details related to the chilled water air handler (snip is attached below). Can anyone please help me out. 2024-07-02 by Prakash R

Reply by moderator:

@Prakash R,

Certainly, start by taking a look above on this page where we provide information about Snyder general and access to copies of its manuals.

Looking for a manual and wiring diagram for the Snyder General pgha060g100im roof furnace

I'm looking for a manual and wiring diagram for the Snyder General pgha060g100im roof furnace. Does anyone have it? How to troubleshoot it? It doesn't ignite. I'll highly appreciate any help. - On 2020-12-05 by Natalie -

Reply by (mod) - where to find Snyder General manuals

Natalie

Above on this page at SNYDER GENERAL MANUALS

I've added links to those McQuay and Snyder General rooftop units we could obtain as free PDF downloads. In the Snyder General PG-series you'll find manuals suitable for your Snyder General pgha060g100im roof furnace that may be helpful.

I'll continue to look for and post additional versions of your manual, and if you locate one elsewhere do let me know by posting here.

Snyder General control board replacement needed

Need to find info on control board to replace . Thanks - On 2020-05-31 by Rich -

Reply by (mod) - Snyder General control board replacement

Rich

You'll need the brand and model number before reading about replacing the control board for your Snyder General equipment.

Simply take a look at the data tag on the unit.

Then you can find the manual above on this page or at one of the links that we give for company contact.

Wiring diagram needed for Snyder General Model RC90A7 water source heat pump

I need a wiring diagram for a snyder general model RC90A7 water source heat pump. We have over 100 still in operation at our hotel. Have been unsuccessful in finding this diagram - On 2019-08-26 by Carl Seiler Charleston Place hotel -

Reply by (mod) - snyder general model RC90A7 water source heat pump

I'll see if i can find it.

Have you looked inside all of the units? Usually a wiring diagram is found there too.

Photos of the units would be helpful, including the data tag.

What is the AFUE of a 1991 Snyder General?

What is the AFUE of a 1991 Snyder General? - On 2018-05-27 by Andrew Boydston -

Reply by (mod) -

at the very least we would need the fuel type and the model number.

Older Snyder General units may run at 65% AFUE for units made up to say, around 1990.

You'll find that the Snyder General AFUE ratings such as for a GUF - series unit will be at least 60-70%, often warming up to 80%, so when you make the measurement is important too.

For comparison, new high-efficiency heater units can have an AFUE rating between 90% and 98.5% !

Question: Snyder General Chiller: E2214122LA details?

I need more details about this Snyder General Chiller: E2214122LA - Manny, 2024/01

Reply:

Since 1994, Snyder General has been AAF-McQuay. So your chiller must be an older unit if it's branded as Snyder General. I spent the morning looking for an IO manual or parts list for a Snyder General Chiller: E22-Series unit - without success, finding either the generic manuals websites or a page that promises the manual for the E22 chiller but turns out to be spam or a dead page.

Best bet, sorry to say, is to contact AAF-McQuay - OR - if you have a specific question or need we might be able to make a suggestion; often there are, for example, generic parts that can replace OEM parts on your chiller, and usually, inside the equipment you'll find a wiring diagram. Let me know if you find that (post a photo if you can ).

Also post a photo of the unit's data tag as that may help research.

Question: how much does the PGDA048H125IN1 weigh?

I wondered if if you guys can help me I have
PGDA048H125IN1
I need to know the weight - Javier Estrada, 2024/01

Reply:

We have this Tempstar PGDA manual/spec [PDF] that is perhaps the same or quite similar.

that gives weights - around 1000 lbs. for a rooftop unit but take care: the IO manuals give a LOT of very different weights depending on just which components are being discussed, so any single number might be misleading.

Question: what are the dimensions of a 1987 vintage, McQuay M# ER132 RTU.

I'm looking for dimensional data for a 1987 vintage, McQuay M# ER132 RTU.

I'm trying to get a custom curb adapter made up, and I need the original dimensions. Any help is appreciated - Pete, 2024/01

Reply:

Please post a sharp photo of the unit's data tag so that we have all of the information we can get, and I'll see what schematic or dimensions or manuals we have or can find.

Also see the ER model manuals given above on this page. The installation manuals will generally give the unit's dimensions.

Question: can I add a smart hub controller to an older McQuay heat pump?

Hello, I have an older McQuay heat pump that I am trying to determine whether or not we can integrate to. There does not appear to be any kind of communications card in the unit, but it is currently difficult to access to determine for sure.

The model number does not translate directly with the ones posted on this page (looking at M#: CCW036AMTS, S#: 7 WE25450 08). Is this unit BACnet capable?

Thanks. I attempted to attach a photo of the name plate but it didn't want to take it (photo was less than 5MB and saved as a .jpeg) - Cory 2023

Reply:

I doubt that an older McQuay heat pump not designed for smart hub or device communication is going to work directly, though there might be an add-on intermediate controller that would allow that.

Honeywell, Johnson Controls, and Daikin Applied all sell controllers for McQuay heat pumps - it might be worth asking your local distributor or contacting those companies directly.

I'm sorry you had trouble posting the photo - if that happens again, you are welcome to use the page top or bottom CONTACT link to find our email and email it and we'll post it for you.

EG: The Metasys from Johnson Controls product literature says

The Metasys Integrator unit allows McQuay equipment to become an integral part of the Metasys and Metasys Companion Networks. Once McQuay controllers are connected to Metasys or Companion systems via the Metasys Integrator, McQuay controllers data is available to the full complement of Metasys Building Automation System (BAS) features including Change-of-State (COS) monitoring, alarm notification, scheduling, trend, and totalization.

McQuay Open Protocol Master (OPM) is the interface between McQuay controllers and non-McQuay devices such as the Metasys Integrator unit. The OPM allows status information and commands to be transmitted between the controllers and the Metasys or Companion Network. Each Metasys Integrator unit vendor port can connect to one OPM. Each OPM can connect to up to 64 McQuay controllers.

The Metasys Integrator unit supports the McQuay applications listed in Table 1.

You can connect a single piece of McQuay equipment directly to a Metasys Integrator unit vendor port without an OPM. Therefore, a 2-port Metasys Integrator unit panel can control two chillers or rooftop units without an OPM. See the Cable Connections section of this document for additional information. See your McQuay representative for further setup and connection information.

Copy at: METASYS INTEGRATOR MANUAL [PDF] Metasys Integrator McQuay Application, Johnson Controls, Web: www.johnsoncontrols.com

For another example see this DAIKIN SYSTEM MANAGER [PDF]

To protect reader trust that we report without bias or conflict of interest, InspectApedia.com does not sell any products nor services.



Question: looking for a database of old Snyder General HVAC Units

I'm just wondering if your company can assist me with this matter. Does your company have a database which can look up the model number on it older units?

If so, can you tell me the specs of a Snyder General (McQuay) air handler unit (model number LHD114DV); namely the maximum cubic feet of air per minute it can circulate? - Ralph Aikens - 2023

Reply:

Not a data base, Ralph, but we provide de-coding guides for HVAC model numbers and serial numbers and PDF downloads (free) of manuals and product specification sheets. To find the specifications for a model we'd either find the manual or spec sheet for the specific unit or go to the company directly.

Post a photo of your unit's data tag and that can help us research the question, especially if we don't already have a PDF download of the product manual or specification sheet for that mode.

Take a look at this specifications for

• McQuay CENTRAL STATION AIR HANDLERS, LOW PRESSURE SPECIFICATIONS & PARTS [PDF]

and more model number decoding (that gives features and thus specifications) is also in this

• McQuay HVAC CATALOG LYF LHD LSL LMLMSL MMM. HSH HMH Models [PDF] (1990)

Question: need info on a 1960s Snyder General AAF LYS-12500

Looking for information on an old AAF LYS-12500 unit installed in 1964. Anyone have any idea where to start?

Looking for information on an old AAF unit installed in 1965. Any one have any ideas where to start or have any resources they can share? - Steve C - 2023

Reply:

Steve

Post a photo of your unit's data tag, and also look at the SG AAF manuals given above on this page. - Dan

Question: looking for submittal sheet for a Snyder General RTU model PHYA036H

looking for a submittal for a Snyder General RTU model PHYA036H ? - Rick - 2023

Reply:

I did a search for Snyder General PHYA and found zero hits. Do you have any documents or hardware whose document face or hardware data tag you can photo and post?

We have several Snyder documents above on this page but I'm not sure we have the PHY series so I'll see what I can find and have that here

Question: looking for information about Mark III controls from Dynamatic

Hi, looking for any info you have on the Mark III controls - Tom Barlow - 2022

Reply:

See this

• Mark III CONTROLLER INSTRUCTION MANUAL [PDF] from Dynamatic, 7900 Durand Avenue, Bldg 3 Sturtevant, WI USA 53177
  Toll Free: 800-548-2169 Phone: 262-554-7977 Email: sales@dynamatic [dot] com Website: dynamatic [dot] com - original source: dynamatic [dot] com/wp-content/uploads/2019/02/Mark-III.pdf

FYI, Dynamatic says at their website:

If you have a Mark III Controller in place, it is a legacy piece. It can still be repaired, but we recommend that you consider upgrading to our EC-2000 control, which works universally with any eddy current equipment.

Question: want parts list for Snyder General TSC031FRA

Looking for a parts diagram/list for Snyder General TSC031FRA ser:7YJ0218601 - B M - 2022

snyder general uc140g5 need wiring diagram - Gunner Collum 2021

Reply:

there are some UC - manuals for Snyder General . McQuay . Daikin above on this page that might help you out; we're also researching further. Can you post a photo of your unit's data tag?

Question: want specifications for Snyder General rooftop unit

Hello, I am looking for specs on a Snyder General RTU I am replacing. Serial # 5VE84307-01 - MASSIMO NARDONE 2021

Reply:

Take a look again at the data tag on your Snyder General Rooftop Unit and attach a sharp photo of it here - we may have the manual that you need but I want to see the model number not just the serial no.

Question: looking for a Snyder General air handler manual in the #3WL Series

I am looking for a manual for an old Snyder general air handler serial # 3WL01836-06 manual - Derik - 2021

Reply:

So sorry, Derik, I haven't found a generic, model-independent IO manual for the Snyder General AHU in the #3WL series; we're continuing to look around.

...

Continue reading at MANUALS for HEATING & A/C SYSTEM CONTROLS or select a topic from the closely-related articles below, or see the complete ARTICLE INDEX.
