Honeywell / Resideo Controls, Thermostats, Valves, Manuals

for HVAC Equipment, thermostats, primary controls, zone valves
Free PDF downloads of instruction manuals

POST a QUESTION or COMMENT about this article topic.

This index provides links to free PDF downloads of manuals for various Honeywell Controls, now Resideo Technologies, Inc., Thermostats, Valves - Manuals for HVAC Equipment, thermostats, primary controls, zone valves

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

- Daniel Friedman, Publisher/Editor/Author - See WHO ARE WE?

Honeywell / Resideo Controls on HVAC Equipment, thermostats, primary controls, zone valves

Contact: Resideo Technologies, Inc., 1985 Douglas Drive North, Golden Valley, MN 55422 USA Tel: 1-800-468-1502
corporate address nor telephone number.

Resideo Help & Support for Thermostats, security, air quality, water leak detection, apps: https://www.resideo.com/us/en/support/

Resideo help for thermostat wiring: https://www.resideo.com/us/en/thermostat-wiring-compatibility/

WiFi and Connected Homes: 1-800-633-3991

Non-Connected Products: 1-800-222-6525

That data is, however, easily found in the company's current Resideo, nee Honeywell, control manuals and instruction pamphlets and catalogs.

Note: In 2018 Honeywell announced that Resideo would be the corporate name of the Honeywell Homes product portfolio and ADI global distribution businesses when they became a stand-alone, publicly traded company following completion of a spin that was expected by the end of 2018.

Illustrations: Honeywell L4080B,D and L8080A Aquastat limit control - for which we provide links to IO manuals below.

[Click to enlarge any image]

Old name: Honeywell Consumer Products, 39 Old Ridgebury Road Danbury, CT 06810-5110 - (203) 830-7800

Old World Headquarters, Honeywell International Inc., 101 Columbia Road, Morristown, NJ 07962, Phone: (973) 455-2000, Fax: (973) 455-4807 1-800-328-5111

Honeywell product model numbers & instruction Manuals: see the list below and also see Honeywell's web page: yourhome.honeywell.com/home/Applications/FindYourModelNumber.aspx

Find the Right Manual for Your Honeywell Control: use your browser's built-in search feature such as CTRL-F to search for a keyword (eg. aquastat) or to search for a key model number (eg. CT3200) to find the manual for your Honeywell device on this page.

The Honeywell control free PDF downloads given on this page are listed alphabetically by control name or number. We include at least one photo or image of each control to help you identify these HVAC controls, but

Watch out: there are so many Resideo/Honeywell HVAC controls that it's easy to mix up control names or numbers, so double-check the data tag on your control or check the control part number described in the installation manual for your equipment.

Honeywell TRADELINE CONTROLS CROSS REFERENCE [PDF] This is a cross reference giving direct or functional replacements for abouty 75,000 old and new Honeywell OEM and competitive controls.
HONEYWELL HEATING CONTROL HANDBOOK FOR THE INSTALLER AND SERVICE MAN (1949) [PDF] controls for oil burners, gas burners, stokers, extensive, detailed, data not found elsewhere, but does not address some contemporary heating controls.

Describes control circuits, thermostats, limit controls on air, hot water & steam heating systems, low water cutoffs, oil burner controls, gas burner controls, solenoid valves, motorized gas valves, LP gas controls, and transformers.

Below we list Honeywell controls and manuals and articles alphabetically by the control type or actual control name or number.

Honeywell ADMECO Security System Controls

HONEYWELL ADEMCO VISTA SERIES SECURITY SYSTEM MANUAL [PDF] (2008) Vista-20P / VISTA-20PSIA, VISTA-15P / VISTA 15PSIA Security Systems Users guide

Also see SECURITY SYSTEMS [Web Page]

Honeywell Thermostat Heat Anticipators

Honeywell "A" Controls

HONEYWELL AMX SERIES DIRECTCONNECT MANUAL [PDF] (2010) Accurate control of water temperature
HONEYWELL AQUA-RESET-67-7329 [PDF]

Honeywell Control Cross Reference

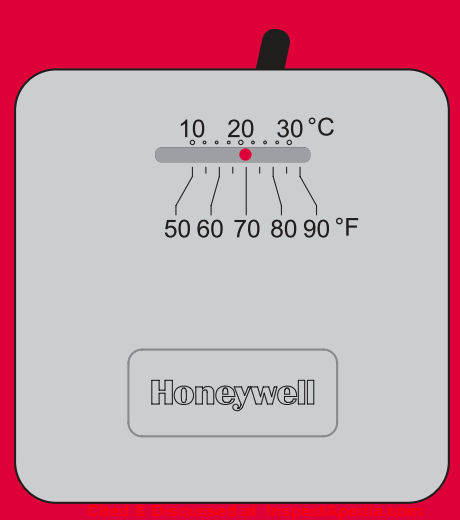

Honeywell CT-Series Controls

Honeywell CT30/CT33 LOW VOLTAGE THERMOSTAT MANUAL [PDF] (2005)
HONEYWELL CT3200 THERMOSTAT OWNERS GUIDE [PDF

Honeywell DT-Series Thermostats

HONEYWELL DT-92-E-THERMOSTAT-MANUAL [PDF]
HONEYWELL DT92-THERMOSTAT-SPECIFICATIONS [PDF]

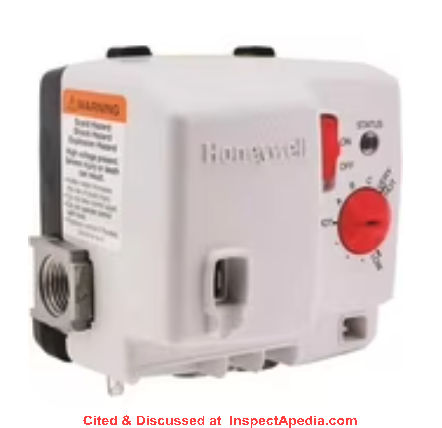

Honeywell Gas Control Valves

HONEYWELL GAS CONTROL on DIRECT VENT WATER HEATERS, CONTROL MANUAL [PDF] (2017) RESIDENTIAL POWER DIRECT VENT GAS -FIRED WATER HEATERS Owners Manual Supplement for water heaters equipped with FVIR Technology, all models including the Honeywell UG50-62 and GG50-62

Honeywell Heater Control Selection

HONEYWELL HEATER-CONTROL-SELECTION-CHART [PDF]

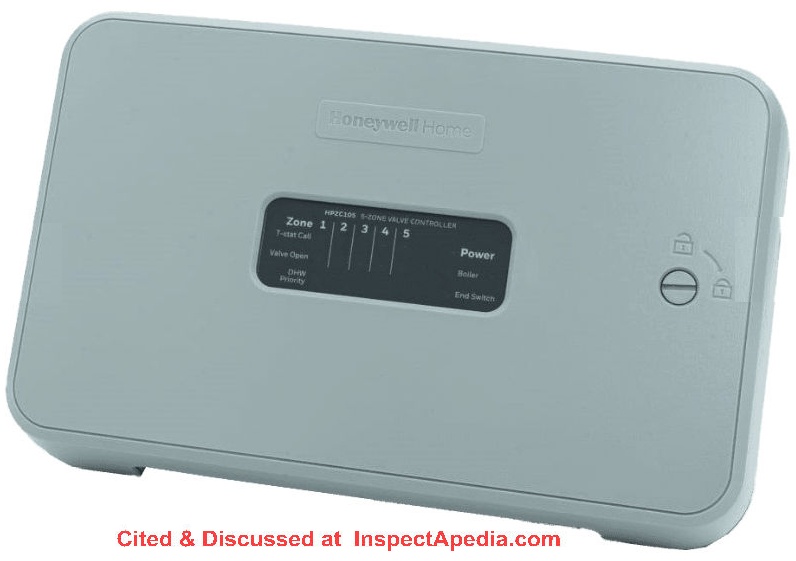

Honeywell HP-Series Zone Controls

Honeywell Single Limit & Strap On Controls

SINGLE FUNCTION LIMIT SWITCH [Web article] Uses & Properties of single-limit controls
STRAP-ON LIMIT CONTROL [Web article] Uses & safety warnings about strap-on type boiler limit controls - Honeywell L4006, Manual Reset Strap-On Aquastat (high limit control, 100 to 240 °F)

Watch out: we consider strap on controls an out-dated safety device that is less accurate and reliable than immersion type sensor controls;

Strap-on aquastats were commonly found on older heating boilers including the GE series downfired boilers

Honeywell L4006-4008-4026 Series Controls

HONEYWELL L4006A,B,E, H HIGH LIMIT CONTROL MANUAL [PDF] (2005) Honeywell International Inc. Honeywell Limited-Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 USA or Honeywell Scarborough, Ontario M1V 4Z9 customer.honeywell.com
HONEYWELL L4006A,B,C,E,G and L4007A CONTROLLERS MANUAL [PDF] (older units)
HONEYWELL L4006A,B,C,E,G and L4007A CONTROLLERS MANUAL [PDF] (older units)

Honeywell L4008E Aquastat high limit,manual reset, aquastat controller instructions [Citation & Manual Copy needed]

Honeywell L4026B Aquastat control instructions (contact Honeywell Corporation) Some basic description of the Honeywell L4026B control, also available at www.honeywell.com

Honeywell L4029 Series Limit Controls

HONEYWELL L4029 RESET LIMIT CONTROL, [PDF] (1988) also available at www.honeywell.com
HONEYWELL L4029E HIGH LIMIT CONTROLLER IO MANUAL [PDF] L4029E Reset Limit Control

The L4029E Reset Limit Control opens a line or low voltage circuit if the air temperature reaches a critical level at a controller location. The primary usage of the L4029E is as a fire thermostat in the duct work of air conditioning and ventilating systems.

If the circulated air reaches a temperature indicative of a fire, the limit control shuts off the fan, preventing the fan from contributing to the spread of fire. It is also suitable for use with any warm air furnace to provide positive lockout of the burner in the event of a fan failure.
Honeywell L4029 RESET LIMIT CONTROL, also available at www.honeywell.com [older instructions]

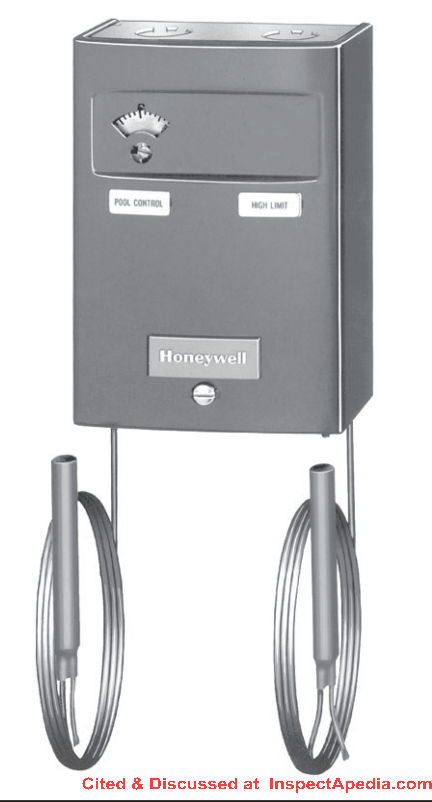

Honeywell L4031 Series Pool Heater Aquastat Controls

HONEYWELL L4031A, CPOOL HEATER AQUASTAT CONTROLLER INSTRUCTIONS, also available at www.honeywell.com

Honeywell L4046 Series Fan Limit Controls

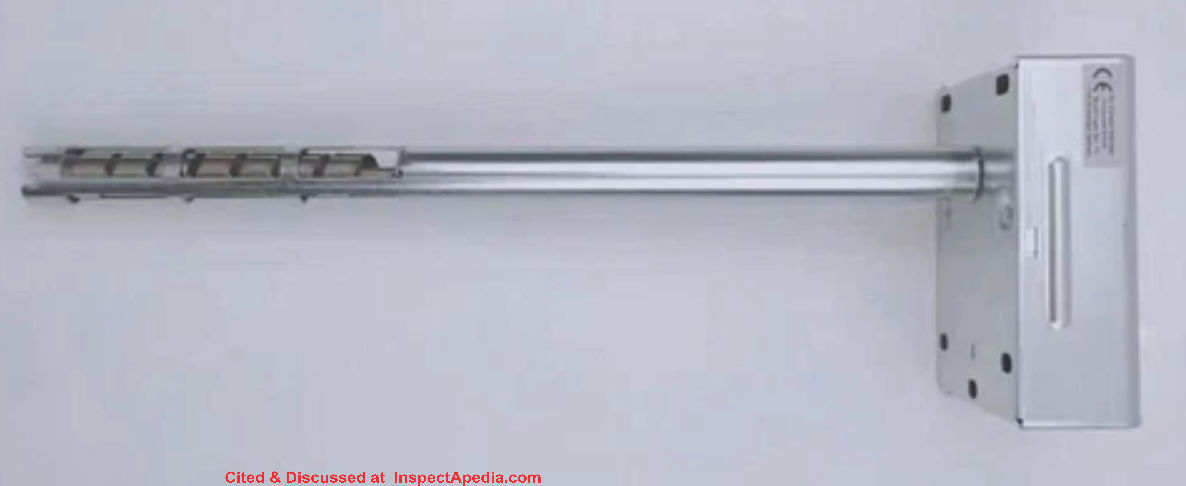

Honeywell L4064 Series Fan Limit Controls

HONEYWELL L4064A-F,J,R,T,W,Y FAN AND LIMIT CONTROLLERS INSTRUCTIONS [PDF] (2010) - current instructions
HONEYWELL L4064B, L4064 R UNIVERSAL COMBINATION FAN & LIMIT CONTROLLERS MANUAL [PDF] (2013)
HONEYWELL L4064 FAN LIMIT CONTROLINSTALLATION INSTRUCTIONS [PDF file]
HONEYWELL L4064A-F,J,R,T,W,Y FAN AND LIMIT CONTROLLERS INSTRUCTIONS [PDF] (1985)
HONEYWELL L4064 FAN_LIMIT SWITCH [PDF]
HONEYWELL L4064B MANUAL [PDF]
HONEYWELL L4064 FAN LIMIT CONTROL INSTALLATION INSTRUCTIONS [PDF]
HONEYWELL L4064B FAN LIMIT CONTROL SETTINGS
See also FAN LIMIT SWITCH INSTALLATION & WIRING MANUALS

Honeywell L4080 Series Aquastat Controls

HONEYWELL AQUASTAT L4080B,D & L8080A HONEYWELL MANUAL [PDF]
HONEYWELL AQUASTAT L4080B,D,F,G & L8080A HONEYWELL MANUAL [PDF]
HONEYWELL L4080B,D & L8080A AQUASTAT MANUAL [PDF]
HONYEWELL L4080B,D,F,G & L8080A AQUASTAT MANUAL [PDF]
HONEYWELL AQUASTAT L4080B,D & L8080A MANUAL [PDF] L4080B-1352 Manual
AQUASTAT L4080B,D,F,G & L8080A HONEYWELL MANUAL [PDF]

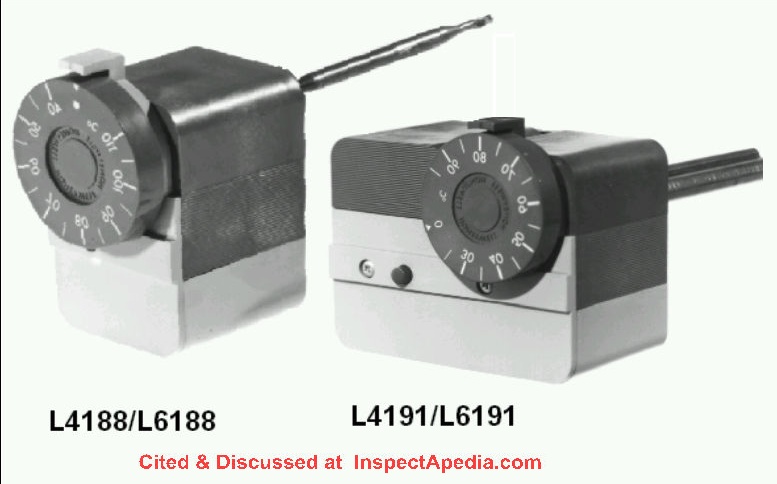

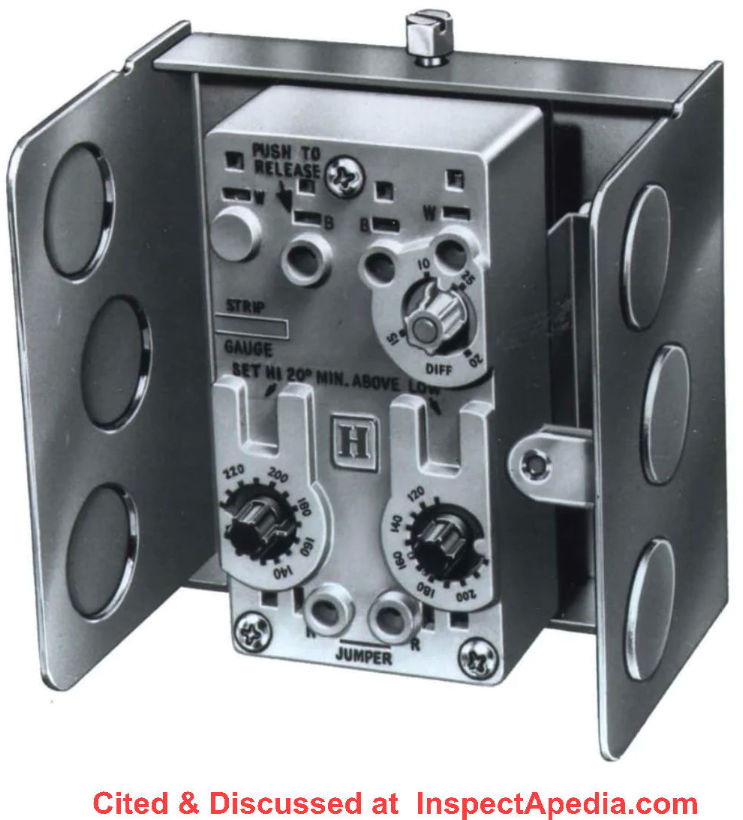

Honeywell L4188, L6188 L4191 L6191 Dual Aquastat Series Controls

Resideo - Honeywell L4188 L6188 L4191 & L6191 Dual Aquastat MANUAL [PDF] (Products such as the L6161B2005U is no longer available so Residio does not provide literature - Editor)

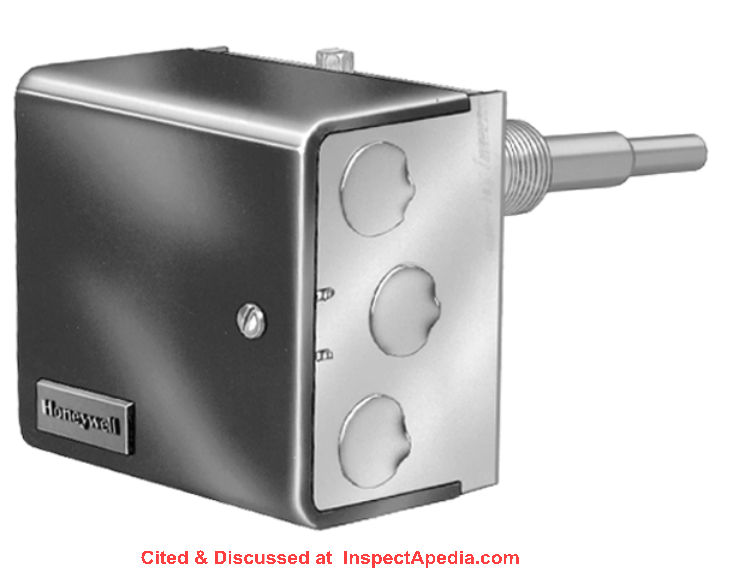

Honeywell L4103 Series High Limit Controls

HONEYWELL L4103A,B,C COMBINATION AQUASTAT AND HIGH LIMIT [PDF] Controller Instructions, also available at www.honeywell.com

Honeywell L6006 Series Controls

HONEYWELL L6006A AQUASTAT GUIDE [Web article] describing the features, use, & installation for this aquastat controller
HONEYWELL L6006 AND L6007 AQUASTAT CONTROLLERS, [PDF] installation instructions for the trained service technician, these controls combine low or high limit and circulator control, with or without an immersion well depending on the control model A,B, C etc., also available at www.honeywell.com
HONEYWELL L6006A AQUASTAT CONTROL MANUAL [PDF] installation instructions, also available at www.honeywell.com

Honeywell L6064 Series Fan Limit Controls

HONEYWELL L6064 UNIVERSAL TWO SPEED FAN & LIMIT CONTROL MANUAL [PDF] A liquid filled aquastat with two SPDT switches for horizontal or vertical mounting. Breaks on temperature rise. With two single conduit boxes. Quick connect terminals with jumper between controller and limiter. With smaller diameter sensor.

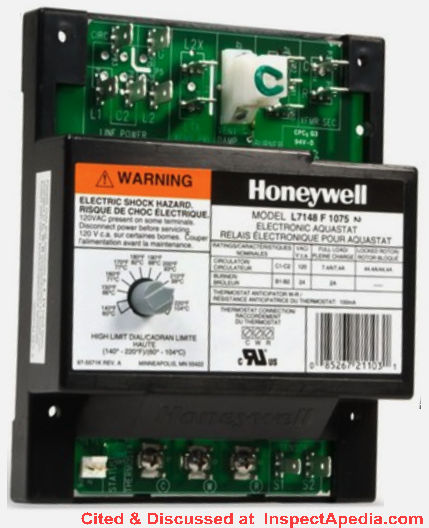

Honeywell L7148 Series Aquastat Controls

HONEYWELL L7148F ELECTRONIC AQUASTAT CONTROLLER INSTALLATION INSTRUCTIONS [PDF] L7148F Aquastat, Gas: immersion thype hydronic controller, HI limit protection, controls circluator, gas valve, & optionally, vent damper equipment

Honeywell L7224U Series quastat Controls

AQUASTAT L7224U UNIVERSAL OPERATION HONEYWELL [Web article]
HONEYWELL L7224U OIL ELECTRONIC AQUASTAT CONTROLLER [PDF] - 69-1720-2 series instructions
L7224U1002 TECHNICIANS QUICK REFERENCE GUIDE #69-19 [PDF] (1957)
HONEYWELL L7224U AQUASTATS [PDF]
HONEYWELL L7224U UNIVERSAL AQUASTAT OPERATION & Manuals
HONEYWELL L7224U UNIVERSAL AQUASTAT DIAGNOSIS & Manuals
HONEYWELL L2224 AQUASTAT INSTALLATION MANUAL [PDF] (2012)
HONEYWELL L2224 AQUASTAT INSTALLATION MANUAL [PDF]
HONEYWELL L7224 AQUASTAT CONTROLLER, oil electronic controls allowing high limit, high limit differential, low limit, and separate low limit differential settings - set to the specifications of your oil heating equipment manufacturer - 69-1957-1 L7224 Series controls, also available at www.honeywell.com
HONEYWELL L7224U OIL ELECTRONIC AQUASTAT CONTROLLER - 69-1720-2 series instructions. These newer"Universal" aquastat controllers are often used to replace the older Honeywell L8124A series that was and remains widely used, also available at www.honeywell.com.

L7224U1002- is a universal electronic aquastat (replacing over 40 other aquastat models) that provides circulator, burner and boiler temperature control with electronic temperature sensing. The L7224U1002 provides status and diagnostic information through an LED display to enhance the diagnostic process.

In "Run" mode the LED displays the boiler temperature followed by the ambient temperature. Buttons inside the control permit the service tech to scan through the control's settings as well as to change them, much like the functions on a programmable room thermostat.

Using the "I" button, the LED display can be cycled through: boiler temperature, high limit, low limit, high differential, low differential, local thermostat status, EnviraCOM thermostat status, Burner status, Circulator status, Zone control, Zone request, Error code, °F/degC.

Five diagnostic LEDs inside the control provide additional diagnostic features, indicating (counterclockwise from upper left) EnviraCOM network active, Thermostat calling for heat, Burner on, Power to zone circulator interrupted (lockout), Circulator powered.

This is a "triple aquastat" providing High, Low, and circulator controls, as well as advanced features permitting electronic configuration and an LED display for diagnostics. This aquastat can provide multiple zone control as well.

The L7224U1002 supports Honeywell's EnviraCOM™ communications that permits remote diagnosis as well as OnWatch diagnostics. The low-limit can be disabled for "cold-start" boiler applications such as where no tankless coil is in use.
Eight error codes:

1=sensor fault (check sensor),

2=ECOM fault, check EnviraCOM wiring,

3=Hardware fault, replace the control,

4=B1 fault, check B1 wiring/voltage,

5=Low line voltage, check L1/L2 110VAC,

6=Fuse, check ECOM wires, replace fuse,

7=EEPROM limit and differential settings, restore to desired settings,

8=Repeated B1 fault, (voltage present at B1 when output is turned off); check B1 wiring/voltage
Honeywell link for a powerpoint training session on this aquastat: http://customer.honeywell.com/NR/rdonlyres/5C67D10A-631C-4404-9149-25BA61F5D8BB/4041/L7224UUNIVERSALAQUASTATTrainingModule.ppt
See L7224U1002 TECHNICIANS QUICK REFERENCE GUIDE #69-1957 L7224U Universal Oil Aquastat Controller, LED diagnostic display
L7224 SERIES OIL ELECTRONIC AQUASTAT CONTROLLER (2012 COMPLIANT) TECHNICIANS QUICK REFERENCE [PDF]
and

HONEYWELL L7224U OIL & ELECTRIC BOILER ELECTRONIC AQUASTAT CONTROLLER INSTALLATION INSTRUCTIONS [PDF]

Note: Honeywell provides at least 15 different wiring instructions for using the L7224U Universal Controller including versions in both English and Spanish

for L7224 AQUASTAT WIRING FOR SINGLE HEAT ZONE WITH INDIRECT HOT WATER TANK AND CIRCULATORS, [Illustration]

and
the L7224 AQUASTAT WIRING FOR SINGLE ZONE CONNECTIONS, [Illustration] multi zone connections with circulator(s)

Honeywell L8124 Series Aquastat Controls

AQUASTAT L8124 AQUASTAT CONTROL INSTALL / REPAIR [Web article Series]
AQUASTAT L8124 A-M INSTALLATION & OPERATION MANUAL [PDF]
HONEYWELL L8124A,B,C,E,G,LO,M AQUASTAT RELAYS [PDF] immersion type controllers for forced hydronic heating systems that include domestic hot water service (such as a tankless coil), also available at www.honeywell.com
HONEYWELL L8124 AQUASTAT MANUAL [PDF]
HONEYWELL L8124A,C,E,L AQUASTAT RELAYS MANUAL [PDF] These immersion type controllers are used with forced hydronic heating systems that include domestic hot water service. All models provide high limit, low limit and circulator control. Table 1 lists the various models and their applications.
HONEYWELL L8124A,B,C,E,G,LO,M AQUASTAT RELAYS [PDF] immersion type controllers for forced hydronic heating systems that include domestic hot water service (such as a tankless coil), also available at www.honeywell.com
L8124 Aquastat, Gas, immersion type, combined HI & LO limit, circulator control for forced hot water + tankless coil for domestic hot water.

INSTALLATION MATERIALS-INSTALLATION INSTRUCTIONS FOR L8124A, L8124C, L8124E, L8124L, L8124M AQUASTAT RELAYS (English) [PDF]

Honeywell L8148 Series Aquastat Controls

AQUASTAT L8148 AQUASTAT INSTALLATION
AQUASTAT L8148 HONEYWELL DIAGNOSIS & REPAIR
RESIDEO L8148 A,E,HJ AQUASTAT IO MANUAL [PDF] (2021) from Resideo Technologies, Inc., 1985 Douglas Drive North, Golden Valley, MN 55422 USA Tel: 1-800-468-1502 - retrieved 2022/02/20 original source customer.resideo.com/resources/Techlit/TechLitDocuments/60-0000s/60-2278.pdf
RESIDEO L8148B,E,G,L AQUASTAT RELAY IO MANUAL [PDF] (2021) Op. Cit.

Resideo catalog excerpt:

Built to last. Meet all your immersion-type hydronic controller needs for years to come with the Resideo L8124A/C and L8148A Aquastat® relays. For high-limit, low-limit and circulator control that maintains boiler temperatures efficiently and effectively, the reliable L8124A/C and L8148A relays have you covered without the need to stock dozens of models.
HONEYWELLl L8148 AQUASTAT CONTROL [web article], Gas, immersion type controller combines HI limit, burner switching & circulator switching
HONEYWELL L8148A,E,J AQUASTAT® RELAYS (Controllers), product data & installation, operation manual including L8148 wiring diagrams [PDF]
HONEYWELL L8148 AQUASTAT troubleshooting, installation & manuals
HONEYWELL L8148 AQUASTAT DIAGNOSIS troubleshooting, installation & manuals

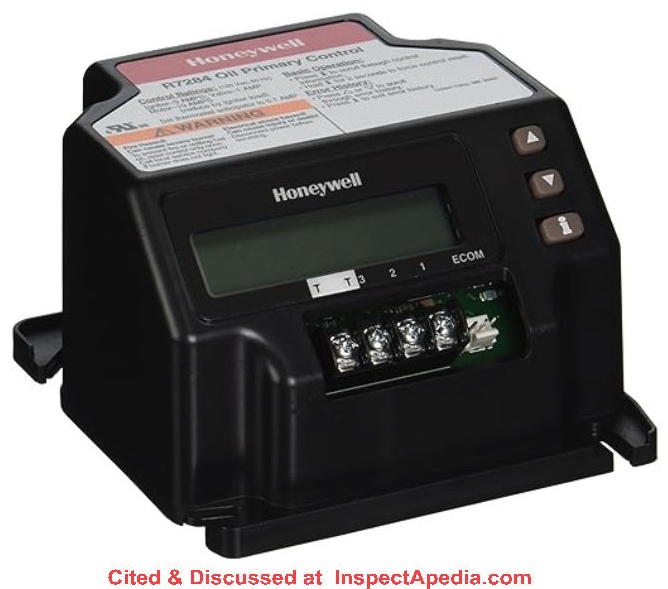

Honeywell R7284 Series Primary Controls

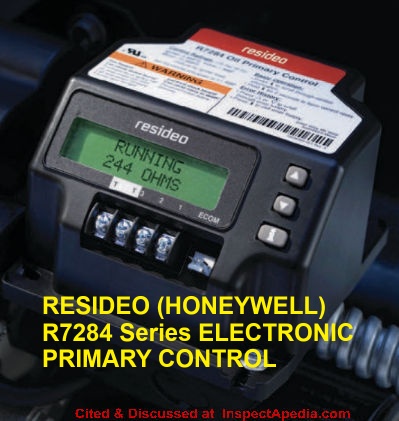

Resideo (Honeywell) R7284 electronic primary control (oil or gas) cited & discussed at InspectApedia.com

RESIDEO (HONEYWELL) R7284 Series ELECTRONIC PRIMARY CONTROL [PDF] (2010)Technician's Quick Reference Guide. Shown just above, the R7284 is a Universal electronic oil primary with programmable parameters and LCD display. It may be used on both oil and gas fired heating equipment.
[Excerpt]
The R7284U parameters are user defined and provides detailed actionable diagnostics.

Also see

HONEYWELL R7284B,P,U,G ELECTRONIC OIL PRIMARY ENVIRACOM™ ENABLED MANUAL [PDF] Honeywell International Inc. 1985 Douglas Drive North Golden Valley, MN 55422 customer.honeywell.com
HONEYWELL R7284B,P,U,G ELECTRONIC OIL PRIMARY ENVIRACOM™ ENABLED MANUAL [PDF] Honeywell International Inc. 1985 Douglas Drive North Golden Valley, MN 55422 customer.honeywell.com
HONEYWELL R7284U PRODUCT OVERVIEW [PDF]
HONEYWELL R7284U1004 UNIVERSAL ELECTRONIC OIL PRIMARY CONTROL MANUAL [PDF] (2010) Electronic Oil Primary with 15 second lock out timing and selectable valve and blower delays
HONEYWELL R7284U TRAINING MANUAL [Power Point] (Dead link 2025/1/08 = https://customer.honeywell.com/Documents/R7284U1004UniversalOilPrimaryTrainingModule.ppt)
Honeywell R7284B,P,U,G Electronic Oil Primary, ENviraCOM Enabled INSTALLATION MANUAL [PDF] (2011) also in French & Spanish

Honeywell R7795 Series Primary Controls

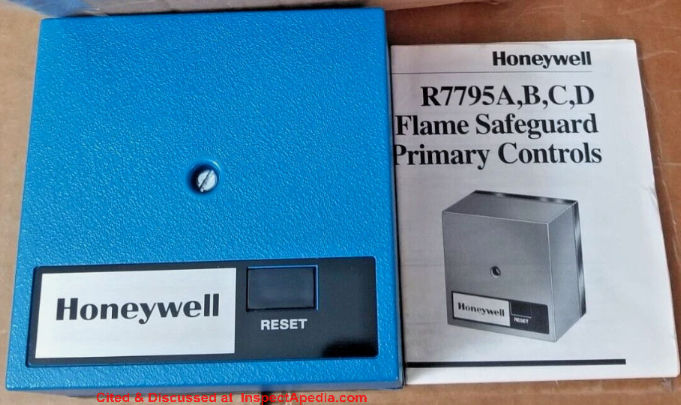

Above: A Honeywell R7795 Flameguard Primary Control as shown for sale at eBay in 2025.

HONEYWELL R7795A,B,C,D FLAME SAFEGUARD PRIMARY CONTROLS MANUAL [PDF]

Excerpt: The R7795 Flame Safeguard Primary Control provides flameout protection plus automatic control of commercial and industrial gas and oil burners. Models provide intermittent pilot or interrupted pilot with delayed main valve.

Honeywell R8182 Series Aquastat / Primary Controls

AQUASTAT R8182-SERIES HONEYWELL CONTROL [Web page] Detailed instructions
AQUASTAT R8182D,H COMBINATION PROTECTORELAY MANUAL [PDF]
HONEYWELL R8182D,H COMBINATION PROTECTORELAY™ PRIMARY CONTROL AND AQUASTAT® CONTROLLER INSTALLATION INSTRUCTIONS [PDF] combination protectorelay Primary Control installation and operations manual, also available at www.honeywell.com

HONEYWELL R8182D,H COMBINATION PROTECTORELAY™ PRIMARY CONTROL AND AQUASTAT® CONTROLLER INSTALLATION INSTRUCTIONS combination protectorelay Primary Control installation and operations manual, also available at www.honeywell.com
HONEYWELL R8182D,H COMBINATION PROTECTORELAY™ PRIMARY CONTROL AND AQUASTAT® CONTROLLER INSTALLATION INSTRUCTIONS combination protectorelay Primary Control installation and operations manual, also available at www.honeywell.com
R8182 D1079U Aquastat, Oil, immersion type controller providing HI, LO, Circulator control for oil fired heating equipment (this aquastat also appears on the company's Gas Aquastats list)

R8182 COMBINATION PROTECTORELAY & HYDRONIC HEATING CONTROLS, R8182D,E,F (HORIZONTAL MOUNT) AQUASTATS & R8182H,J (VERTICAL MOUNT) AQUASTATS, PRODUCT DATA [PDF]
and

R8182D,E,F,H,J AQUASTAT MANUAL [PDF]
and

R8182D,H AQUASTAT MANUAL [PDF]
HONEYWELL R8182-SERIES AQUASTAT CONTROL troubleshooting, installation & manuals
HONEYWELL R8182D AQUASTAT HI LO DIFF SETTINGS
HONEYWELL R8182D-69-0599 [PDF]
HONEYWELL R8182DEFHG_AQUASTAT_INFO [PDF]
HONEYWELL R8182DEFHJ_AQUASTAT_MANUAL [PDF]
HONEYWELL R8182DH_AQUASTAT_MANUAL [PDF]

Honeywell R8184 Series Aquastat Controls

Illustration: wiring diagram provided inside the cover of a Honeywell L8148G Aquastat Relay.

HONEYWELL R8184G / N PROTECTORELAY OIL BURNER CONTROLS MANUAL [PDF] (1991)
HONEYWELL R8184 M PROTECTORELAY OIL BURNER CONTROL MANUAL [PDF]

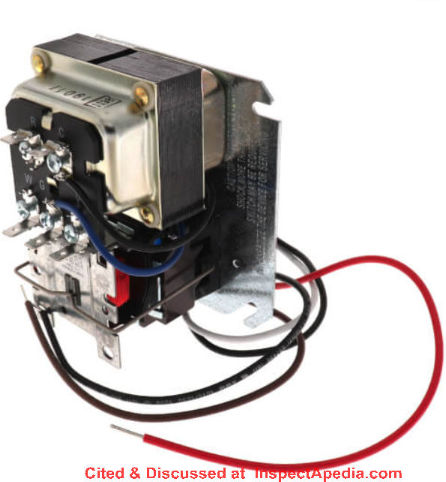

Honeywell R8285 Series Controls

HONEYWELL R8285A-G,J,K CONTROL CENTERS LOW VOLTAGE CONTROL OF LINE VOLTAGE [PDF] This transformer and relay combination is often used as a fan control, including models R8222B, R8285A1048

Honeywell R845 Series Relay Zone Controls

HONEYWELL R845A SWITCHING RELAY FOR HEATING ZONE CONTROL [PDF]

Honeywell RA116-RA117-RA817 Switching Relay Controls

HONEYWELL Tradeline RA 116A-RA117A-RA817A Relay Manual at InspectApedia.com

HONEYWELL Tradeline RA 116A-RA117A-RA817A_MANUAL [PDF]

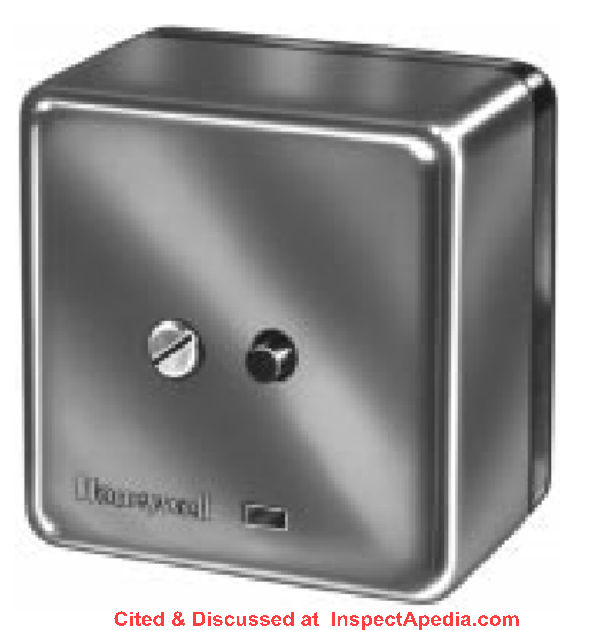

Honeywell RA890 Series Primary Controls

HONEYWELL RA890F / G FLAME SAFEGUARD PRIMARY CONTROL MANUAL [PDF]
Excerpt: The [Honeywell] RA890F Protectorelay™ is a nonprogramming, amplifying relay that provides solid state electronic flame safeguard protection for industrial and commercial gas, oil, or combination gas-oil burners.

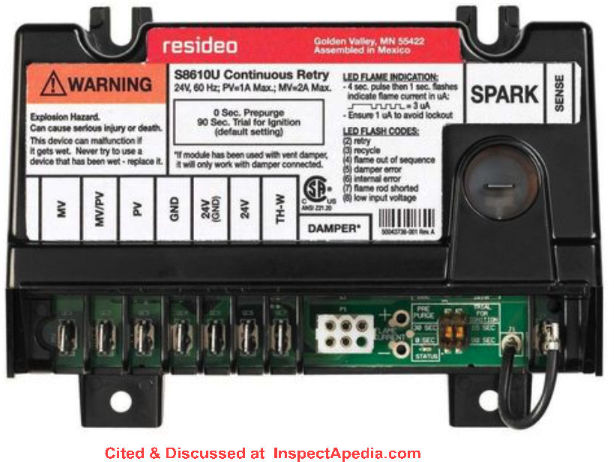

Honeywell S8610U Series Gas Controls

HONEYWELL S8610U INTERMITTENT PILOT GAS IGNITION CONTROL [PDF]
HONEYWELL S8610U UNIVERSAL INTERMITTENT PILOT GAS CONTROL MODULE [PDF] (1996) Honeywell Inc. Honeywell Plaza P.O. Box 524 Minneapolis MN 55408-0524

Excerpt: The S8610U Universal Replacement Ignition Module is designed to provide easy field replacement of a wide range of intermittent pilot ignition modules manufactured by Honeywell, Robertshaw, Johnson and others.

The S8610U Module provides ignition sequence, flame monitoring, and safety shutoff for intermittent pilot central furnaces, residential boilers, and other heating appliances.

Honeywell SZ Series Zone Valve Controls

HONEYWELL SZ-SERIES POWER-TRACK ZONE VALVE MANUAL [PDF]

Honeywell Thermostat Manuals

Honeywell / Resideo Thermostat Manuals THERMOSTAT WIRING & MANUALS, HONEYWELL - includes manuals for various Honeywell Thermostat models
A complete list for all manufacturers is at at THERMOSTAT INSTALLATION & WIRING MANUALS
THERMOSTAT CALIBRATION

Honeywell V-Series Zone Valves

HONEYWELL ZONE VALVE WIRING INSTRUCTIONS [Web page]
HONEYWELL V8043A,E,F 5000 SERIES ZONE VALVES [PDF] (2004) Form No. 95C-10932

Excerpt: These valves consist of a motorized actuator and valve assembly for controlling the flow of hot water to a heat exchanger such as a radiator, convector, finned baseboard radiator, or infloor radiant coil for space temperature control. The V8043 5000 series valves provide two-position, straight through control of supply water at up to 300 psi operating pressure.
Honeywell V8043C, D, F & G 5000 Series MOTORIZED ZONE VALVES INSTALLATION GUIDE [PDF]
HONEYWELL V4043 MOTORISED ZONE VALVE INSTALLATION INSTRUCTIONS [PDF] (2012) includes

Normally Closed Valves: V4043C & V4043H and Normally Open Valve: V4043B
HONEYWELL WHITE RODGERS & JOHNSON CONTROLS ZONE_VALVES_PARTS [PDF] Honeywell, White Rodgers, & Johnson Controls Zone Valves and Parts

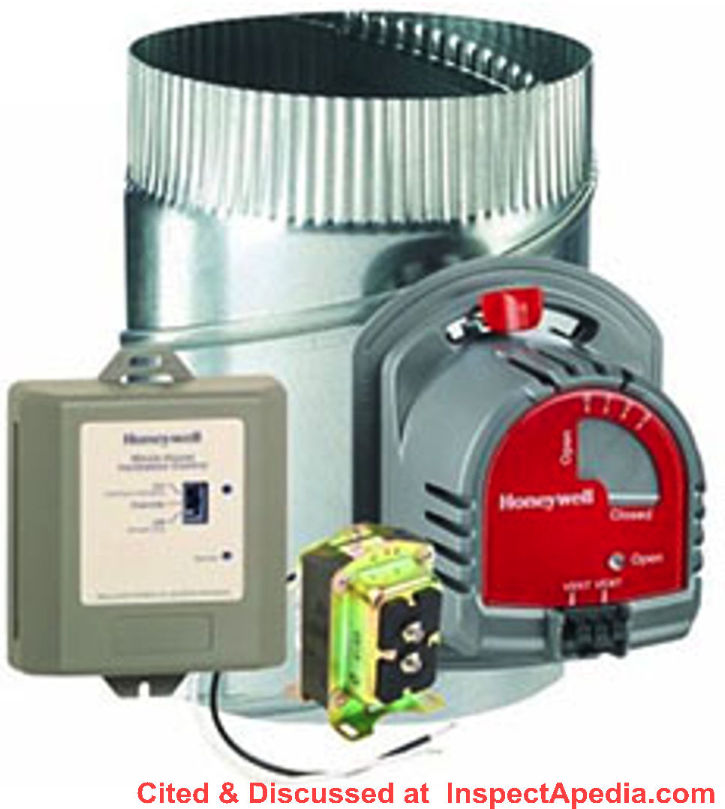

Honeywell Y8150 Series Ventilation Controls

Shown above, the Honeywell Y8150A1017 Fresh Air Ventilation System with TrueZONE damper

HONEYWELL Y8150A FRESH AIR VENTILATION SYSTEM CONTROLLER [PDF] (2009) product literature - shown above, Honeywell Automation and Control Solutions Honeywell 1985 Douglas Drive North Golden Valley, MN 55422-3992 USA Tel: 1-800-328-5111 web: http://customer.honeywell.com Email: info@honeywell.com

Excerpt: The Y8150 Fresh Air Ventilation System from Honeywell provides optimal ventilation for improved indoor air quality at an affordable price for your home.

A “set it and forget it” program calculates the amount of ventilation needed in your home based on your custom settings.
HONEYWELL Y8150 / W8150 FRESH AIR VENTILATION SYSTEM & CONTROLLER INSTALLATION INSTRUCTIONS [PDF] (2009) Op. Cit.
HONEYWELL WHITE RODGERS & JOHNSON CONTROLS ZONE_VALVES_PARTS [PDF] Honeywell, White Rodgers, & Johnson Controls Zone Valves and Parts

Continue reading at HVAC MANUALS, PARTS LISTS, WIRING DIAGRAMS, or see the complete ARTICLE INDEX.

Or see these

Suggested citation for this web page

HONEYWELL /RESIDEO HVAC CONTROLS & MANUALS at InspectApedia.com - online encyclopedia of building & environmental inspection, testing, diagnosis, repair, & problem prevention advice.

Share this article

Or see this

INDEX to RELATED ARTICLES: ARTICLE INDEX to AIR CONDITIONING & HEAT PUMPS

Or use the SEARCH BOX found below to Ask a Question or Search InspectApedia

Or see

INDEX to RELATED ARTICLES: ARTICLE INDEX to HEATING SYSTEMS
