Honeywell L4064 Fan Limit Switch

Honeywell / Resideo L4064-A-F,J,R,T,W,Y
Alternatives: White Rogers 5D51-35, -78, & -90
Adjustment, Settings, Wiring, Repair
Fan OFF, ON, LIMIT & AUTO features

1. L4064 Furnace FAN OFF Setting

The furnace combination fan and limit control FAN OFF setting (blue arrow in our photo at left) lets the furnace blower continue to run for an interval after the furnace burner has turned off, but will shut the blower off after the heat exchanger has been cooled down and the heat it contained has been sent to the occupied space.

The FAN OFF setting is the left-most metal finger protruding through the round silver plate of the fan limit control.

Move the FAN OFF setting lever to the temperature at which the fan is to stop in order to prevent sending cool air into the occupied space.

Watch out: when adjusting the set points on the combination furnace control be sure to hold the round faceplate dial steady with one hand while moving the sliding fingers or pointers in its face.

Otherwise you may bend, strain, or damage the temperature sensing element (the bimetallic spring and related parts).

Bending the element could make the control fail to sense temperature accurately and thus could be dangerous.

Also do not "turn" the silver dial by hand to try to make the control turn on or off. This too can damage the control, making it unsafe.

From the factory the FAN OFF finger is usually set to about 90 °F.

Occasionally the FAN OFF may be set as high as 110 °F

At the end of a furnace-on heating cycle, after the gas or oil burner shuts down, the furnace blower will continue to operate for a time.

This continued fan operation achieves the following:

• The remaining heat from the hot furnace heat exchanger is salvaged and sent into the occupied space
• The furnace heat exchanger is cooled down more uniformly by the air flow over its surfaces in order to help reduce the chances of heat exchanger cracking
• The temperatures in the occupied space remain more even

2. L4064 Furnace FAN ON Setting

When an adequate warm temperature has been reached inside of the furnace warm air plenum chamber the FAN ON switch turns (green arrow in our photo at above left) on the furnace blower to deliver warm air to the occupied space.

The FAN ON setting on this control makes sure that the blower fan does not turn on too soon (even though the building thermostat has asked for heat) so that the furnace will not blow cool air into the occupied space. This setting also prevents the blower fan from cycling on and off too frequently during a heating cycle.

The FAN ON setting is the metal finger second from left-most, protruding through the round silver plate of the fan limit control.

This finger is set to a temperature range from a minimum of 20 °F above the FAN OFF set point, to a maximum f 30 °F below the LIMIT OFF set point.

From the factory the FAN ON is usually set to about 130 °F. and is identified by the orange text and arrow in our illustration below (adapted by InspectApedia from older Honeywell pub.).

3. L4064 Furnace LIMIT OFF Setting

The LIMIT OFF indicator setting (red arrow in our fan limit switch photo above where it's set to 200°F) is a safety control that will turn off the oil or gas burner if temperatures inside the warm air plenum exceed a safe level.

This is the highest temperature setting on a furnace combination control. It is set to the furnace warm air temperature at which this safety switch is to turn off the oil or gas (or other) burner or heat source.

On the Honeywell L4064B the LIMIT OFF is set to a temperature between 100 °F and 250 °F.

From the factory this setting out of the box is 200 °F.

If the temperature inside the supply plenum reaches the "high" limit set at the LIMIT OFF finger, the switch will turn off the oil or gas burner.

This condition may not ever happen under normal conditions with most hot air furnace systems - on those systems the burner continues to run all of the time the thermostat is asking for heat.

Watch out: The LIMIT OFF or "HIGH" or "MAX" on the furnace fan limit switch is a safety device.

In the unusual event that temperatures inside the supply plenum become too high, when temperatures reach the LIMIT OFF setting the fan limit switch will turn off the burner to prevent damage to the furnace heat exchanger (from warping or cracking from excessive temperatures)

4. L4064 Furnace LIMIT STOP Setting

The LIMIT STOP control is an extra safety device to make it difficult for an amateur to set the LIMIT OFF to an unsafe or too-high temperature. This control setting could be changed by inserting a pen tip or similar object into the round hole visible in the LIMIT STOP plate near the right end of the temperature dial and slog on the silver plate of the fan limit control.

The LIMIT STOP is set at the factory to 200 °F. You should not change this setting as to do so maybe dangerous.

You can seer the LIMIT STOP at the red arrow in our L4064 photos above and below.

5. L4064 Furnace FAN ON Manual or "override" Switch

Fan override switch, also called a "manual fan switch" or "fan on switch" if present, is usually a white button that can be set to cause the furnace blower fan to run continuously or to run automatically driven by the temperatures sensed by the combination fan and limit control switch.

The fan override switch is indicated by the white arrow in our photograph.

FAN ON SWITCH Settings:

Manual-On furnace fan:

Push the white fan override button "IN" to set the fan to its MANUAL position to force the furnace blower to RUN CONTINUOUSLY

This setting can be used to move (and presumably to filter) building air through the heating duct system at any time of year.

Some experts opine that running the fan continuously will make heat in the building more uniform and more comfortable. (This will not be true in every building and for every heating system and in some cases can cause blowing of uncomfortably cool air into some rooms during the heating season.)

• Automatic furnace fan:

  Pull the white fan button "OUT" to the AUTO position to cause the fan to cycle on and off automatically in response to temperatures sensed by and set on the fan limit control dial.

After completing these control settings be sure you test the combination fan and limit switch for safe and proper operation.

See FAN LIMIT SWITCH TROUBLESHOOTING for details.

There we discuss troubleshooting furnace blower fan operating problems such as a blower that runs continuously or one that turns on and off to frequently.

Which way do we push or pull the fan switch to go between AUTOMATIC and MANUAL-ON - Summary

• PUSH the white button IN to force the fan to ON or MANUAL or always-running mode.
• PULL the white button OUT to put the fan back into AUTO mode - turning on and off under control of the switch and furnace temperature

Alternative Fan Limit FAN ON / AUTO Control Lever

Some Fan Limit Controls use a lever instead of a push-pull switch to control the air handler or blower unit fan operation.

For example, on the White Rodgers Fan Limit Control Type 5D51-1A shown here, you will see a lever protruding out through the cover near the top of the control instead of the white button that gets pushed or pulled.

Notice the embossed letters right on the switch cover.

You'll see, as I illustrate in our a photo of a White Rogers fan limit control, that the words "MAN" and "AUTO" (or an equivalent) will appear.

"MAN" means "Manual" which means in this position you are forcing the fan to run or to turn ON CONTINUOUSLY

"AUTO" means that the fan will turn on or off depending on the temperature sensed in the heating plenum.

For details about this White Rodgers control

see White Rogers 5D51-35, -78, & -90 FAN LIMIT CONTROL INSTALLATION INSTRUCTIONS [PDF]

or see WHITE RODGERS CONTROLS & MANUALS

Compare the White Rodgers 5D51-35 fan limit switch with the Resideo L40654B22326 fan limit that we show again below and you'll again see Resideo (nee Honeywell) uses a round push-pull knob that sticks out at the bottom left of the control.

Wiring the Honeywell / Resideo L4064-T

Honeywell notes that on the L4064T limit control, the FAN ON indicator is not functional. Here are more details about this limit switch model.

The T suffix (L4064T) limit control has the 2 additional black wires which run to the gas value, but they do not "control" the gas valve.

Rather the gas valve in turn controls the indoor (house) blower fan.

When the gas valve is energized, to send gas to the burner, some of the 24V ac power goes from the gas valve solenoid to the Honeywell fan control, to energize the fan during the initial heat startup cycle.

This is from a Lennox Pulse G14 furnace, which heats up very fast so the indoor blower fan must start earlier before the regular thermostatic bimetal switch is triggered.

When the heating cycle stops and the gas turns off, those black wires are supposed to be de-energized to stop the artificial running of the fan, and the thermostat bimetal switch controls the fan.

As the air in the furnace plenum cools down due to the lack of flame and blower fan running, the dial turns and the finger shuts off the fan.

Not that on this model T, there is a middle finger which is not used, the first (lowest temp) finger controls the fan on and off.

I think the manufacturers keep most of these things secret because most people don't have the capacity to properly understand and service their appliances, and also because Lennox wants to keep their repair dealers fat and happy.

- Above courtesy of InspectApedia Reader Steve, 2021-02-14

Comment by (mod) - Honeywell L4064T Fan Limit Control details: fan on and off times at various temperatures

In the two (current 2010 and older 1985) IO manuals that we list above on this page for the Honeywell L4064 Fan Limit Controller instructions,

the company says:

The L4064T,W, and Y however, have a bimetal heater in the fan switch that turns the fan on approximately 20 to 90 seconds* after a call for heat begins.

Fan off is approximately 2-4 minutes after the call for heat ends.

The wiring example shown just above is one of the details given by the company for the L4064T- model

Photo below: a Resideo/Honeywell L4046T fan limit control installed on a gas furnace showing common wiring connections on a gas furnace.

Below: this chart of fan on and off times for the L4064T may also be helpful in understanding how this model of the "T" of the L4064 limit control series works.

The table above is excerpted from

HONEYWELL L4064A-F,J,R,T,W,Y FAN AND LIMIT CONTROLLERS INSTRUCTIONS [PDF] (1985)

Reduce the FAN LIMIT HIGH LIMIT on Some HVAC Equipment

Thanks to InspectApedia reader Jim Navotney for pointing out that the factory set HI LIMIT is too hot for Heating/AC combination systems.

Jim wrote:

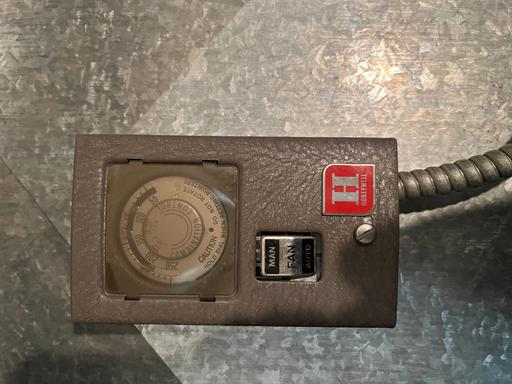

My 1963 Moncrief furnace has a L4064 fan switch and it has 3 sliding fingers. Max limit, fan ON, and fan OFF.

Max limit from the factory is 200 degrees which will most heat exchangers and can begin to melt some AC coil condensate trays

The maximum bonnet temperature on my data plate says 170 degrees so my limit is set at 165.

And I found that i got maximum efficiency and comfort with the fan set to come on at 110 degrees and go off at 90 degrees.

Ideally you want the blower to come on as soon as possible to satisfy the thermostat sooner and waste less heat up the flue and go off as low as possible in order to not waste all the residual heat in the plenum and duct work.

I found that on the coldest day my furthest register had 80 degree air at fan off which is the minimum temperature to avoid feeling a cold draft.

Furnace / Air Handler Fan Limit Control Manuals

• Honeywell Corporation, (now Resideo) Minneapolis, MN 55408. Honeywell has sales offices in all principal cities in the world and has manufacturing facilities in Australia, Canada, Finland, France, Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A. Honeywell Form Number 60-0450 7-75, residential division.

  Honeywell's latest product data for this type of control can be found in English at http://customer.honeywell.com/Techlit/Pdf/69-0000s/69-0117.pdf
• HONEYWELL L4064A-F,J,R,T,W,Y FAN AND LIMIT CONTROLLERS INSTRUCTIONS 2010 [PDF] (2010) - current instructions
• HONEYWELL L4064A-F,J,R,T,W,Y FAN AND LIMIT CONTROLLERS INSTRUCTIONS 1981 [PDF] (1981) - older instructions

• HONEYWELL L4064A-F,J,R,T,W,Y FAN AND LIMIT CONTROLLERS INSTRUCTIONS [PDF] (1985)
• HONEYWELL L4064B, L4064 R UNIVERSAL COMBINATION FAN & LIMIT CONTROLLERS MANUAL 2013 [PDF] (2013)
• HONEYWELL L4064B UNIVERSAL FAN & LIMIT CONTROLLER SUPER TRADELINE INSTALLATION INSTRUCTIONS [PDF] (2006)
• HONEYWELL L6064 UNIVERSAL TWO SPEED FAN & LIMIT CONTROL MANUAL [PDF]
• White Rogers 5D51-35, -78, & -90 FAN LIMIT CONTROL INSTALLATION INSTRUCTIONS [PDF]

The L4064T,W,Y ... have a bimetal heater switch which turns fan on approximately 20 to 90 seconds under normal conditions after the thermostat calls for heat. Fan turns off according to plenum temperature.

Fan limit switches are widely available from

- local plumbing and heating suppliers

- local HVAC service companies
- online vendors

Simply type "Buy Honeywell L4064 control" into the search line of your web browser and you'll see a response like the one we show below.

Watch out: heating controls are critical safety devices - while their installation is not technically difficult, making a mistake or damaging the control (such as by manually turning the temperature control dial on your L4064b fan limit control) can make the heating system unsafe, risking fire, injury or worse.

If you're not trained in safe and proper heating system controls and service it's best to use a trained HVAC service technician to do the job.

The Honeywell OEM Furnace 11" Replacement Combination Fan Limit Switch # L4064A3046 is sold by local heating suppliers, some plumbing suppliers, an online vendors of heating equipment, even amazon.

There is a universal replacement for the L4064 series fan limit controls.

at FAN LIMIT SWITCH INSTALLATION & WIRING

we provide also this

HONEYWELL L4064B, L4064R UNIVERSAL COMBINATION FAN & LIMIT CONTROLLER INSTALLATION MANUAL [PDF] (2017)

Alternate Fan Control: the White Rodgers 90-340 24VAC Isolation Relay

Shown above: White Rodgers 90-340 24VAC Relay switch, model 90-340.

We've moved the wiring and operating instructions for the White Rodgers 90-340 to a separate page.

Please see ISOLATION SWITCH WIRING or see WHITE RODGERS CONTROLS & MANUALS
