Oil Burner Fuel Units

Heating Oil Pump Installation, Diagnosis, Repair

Danfoss / Sunstrand / Suntec & Webster Oil Burner Fuel Units

Two common brands of widely used fuel units for oil burners are Danfoss Sunstrand or Suntec (photo at page top) and Webster (images at left and above-left). At left is a Webster single-stage 3450-rpm fuel unit.

Both companies make a range of excellent products that in our experience have proven durable and simple to install and maintain.

The single-stage Sunstrand J-pump and the two-stage Sunstrand H-pump were among the most widely used fuel units we encountered when servicing heating equipment in the Northeastern U.S. Webster's M-series fuel units are also widely used as OEM equipment on a variety of oil burners found on residential heating boilers, furnaces, and water heaters.

Manuals for oil burner fuel units are found

at OIL BURNER MANUALS

Single stage & two stage fuel unit operating capabilities

Quoting from Webster's description of their current product line we can read the typical capabilities of modern heating oil fuel pumping units:

Single and two stage models with 1725 and 3450 rpm operation feature compact design and field-proven reliability.

These units, rated @ 3 to 25 gph (11 to 57 1/hr.) @ 100 psi (6.9 bar), can be used on one or two pipe installations. ... Operating pressure [on heating oil fuel units] is factory [typically] set at 100 psi.

Commercial capacity oil burner fuel pumps

Larger, commercial-application fuel pumps are of course also available, such as Webster's R-series fuel pumps that can deliver up to 75 gph and even V-pumps capable of firing equipment at up to 260 gph (gallons per hour) - far larger than any home application.

Oil Burner Fuel Unit Rotation Direction - CW vs CCW or left hand vs right hand

Fuel units for oil burners are sold in "left-hand" and "right-hand" rotation to meet different electrical motor and oil burner configurations.

The direction of rotation of a fuel unit is marked on the fuel unit label (shows as our red arrow on this Beckett Clean cut oil burner fuel unit) or possibly on some older Sunstrand pumps as a casting into the fuel unit body.

The direction of rotation is interpreted by viewing the fuel unit from the shaft end.

Thus the fuel unit shown above is actually rotating in a clockwise direction (as it would be viewed from the other side, from the shaft end).

Installation & Adjustment Procedures for an Oil Burner Fuel Unit

What are the Connections or Ports on a Heating Oil Fuel Unit?

As we describe and illustrate (Suntec ports and components are illustrated at left, courtesy Suntec - click to enlarge any image) in this article a typical fuel unit or "heating oil pump" will have these connections and controls:

1. An inlet port - feeds oil from the oil tank into the pump or fuel unit
2. Oil delivery pressure to the burner (adjustment screw)
3. Oil return or outlet port or external bypass port - can be used in a two-pipe hookup to return oil to the oil tank
4. Pressure gauge port
5. Nozzle line port - high pressure oil delivered to the oil burner nozzle
6. Heating oil inlet port
7. An internal bypass port or cover - possibly accessed through the bypass port, an internal plug can be installed or removed
8. Air bleeder valve

These features will be reversed if the fuel unit rotation direction is reversed, and they may be in different positions on different models and brands of oil burner fuel units. Not directly accessible from outside the fuel unit are additional important parts found on most heating oil pumps (or if you want to sound like a pro, call it a "fuel unit").

• An internal check valve (discussed below)
• An internal filter screen (maintenance or service item on most units, discussed below)

Single-line Heating Oil System Fuel Unit Oil Piping Connections, Hookups

Where an indoor oil storage tank is installed on or close to the same level as the oil burner, it is common for a single heating oil line to bring oil from the oil storage tank to the fuel unit.

In a single-line installation, an internal check valve found in the fuel unit prevents oil backflow into the oil lines when the fuel unit stops spinning.

In our fuel unit photo the incoming oil from the oil tank and filter (under vacuum when the pump is running) is at the right side of the fuel unit - you can see the silver knob on the Fire-o-Matic fuel shutoff valve at far right in the image.

At the left side of this oil pump a smaller diameter copper high pressure oil line delivers oil from the fuel unit into the oil burner nozzle line at the required pressure for this oil burner.

This oil burner pump unit includes an oil delay valve that you can sot sitting on top of the Beckett Cleancut pump unit itself. The oil delay valve is an electric solenoid switch connected through the burner tube over to the oil burner motor run circuit by an electrical wire.

The typical fuel unit used on modern oil burners does not have a high lift capacity - perhaps 6 feet would be a safe lift level for a one-line oil pipe installation.

Watch out: we have found single-line fuel unit hookups where a low or even a buried oil tank was installed. Such systems may "work" successfully for many years even though they violate good practice. Or the single-line hookup may work only if the oil level in the oil storage tank is kept pretty high (reducing the total lift required).

But on occasion we visited a property where there was recurrent loss of heat - a problem that was traced to the oil burner losing prime in the oil line.

The "fix" was to convert the system to a two-line oil pipe hookup described below.

Oil Burner Fuel Pump Lift Capacities, Flow & Oil Line Diameters

While individual manufacturer's oil burner pump (fuel unit) lift capacities vary by brand and model, in general the following table will apply to typical residential oil burners.

Notes to the table above

Effects of oil line length on lift capacity and also on fuel flow capacity (table below) are in essence friction losses in the oil piping.

The Beckett CleanCut fuel unit may be installed with gravity feed or lift. The maximum allowable lift for a single pipe installation is 8 ft.

Sources:

• Beckett, INTRODUCTION to the BECKETT CLEANCUT FUEL UNIT PART I [PDF] retrieved 2019/12/3 original source: https://www.beckettcorp.com/support/tech-bulletins/an-introduction-to-the-beckett-cleancut-fuel-unit-part-i/
• NORA, FUEL UNITS & OIL VALVES [PDF] NORA, National Oil Heat Research Alliance, 600 Cameron Street Alexandria, VA 22314 USA Tel: 703.340.1660 retrieved 2019/12/3 original source: https://noraweb.org/wp-content/uploads/2016/10/NORA-Silver-Chapter-4.pdf

  Website Excerpt:

  NORA stands for The National Oilheat Research Alliance, it was authorized by Congress in 2000 to provide funding that would allow the oilheating industry to provide more efficient and more reliable heat and hot water to the American Consumers. As a government sanctioned “check-off” program, $0.002 is collected at the wholesale level on every gallon of heating oil sold. While it is mandatory, the benefits greatly outweigh the minimal cost.

• OIL TANK PIPING & PIPING DEFECTS - home
• OIL LINE VACUUM & PRESSURE TESTS

Notes to the table above

Additional pipe diameter or pump capacity may be needed to overcome the resistance (or vacuum) created by the fuel unit's external oil filter, by additional elbows, sharp bends, and check valves.

Source: Webster FUEL PUMP PRESSURE DATA [PDF] retrieved 2019/12/30 original source: http://www.websterfuelpumps.com/pdffiles/tubeloss.pdf

Two Line Fuel Unit "Heating Oil Pump" Unit Piping Hookups

A two-line fuel unit hookup simply means that there are two oil pipes between the fuel unit and the oil tank. A two-line oil piping system is generally required when oil is being pulled from the top of an above ground oil storage tank and it's always required when oil is being pulled from a buried or underground oil storage tank.

One line is the delivery line - from oil tank into the fuel unit, and the second line is the "return line" through which excess oil pumped by the unit flows back to the oil tank.

A two line oil piping system, required for buried oil tanks or oil tanks located below the oil burner, increases the "lift" capacity of the fuel unit and also nearly eliminates oil piping priming problems.

Our photo (left) shows a two-line oil piping hookup on a Suntec fuel unit - it's pretty easy to see since both the supply oil pipe and the return oil pipe connections are visible at the bottom of the fuel unit.

My pen is pointing to the air bleeder fitting on this fuel unit.

The oil inlet hookup is on the left and the oil "bypass" or "return" hookup is on the right. The label on the heating oil fuel unit face also will identify the various ports on the device.

A third oil pipe, the high pressure line from the pump outlet to the oil burner nozzle assembly is not clear in this photo, though you can make out a small brass tubing loop at the upper left in our photo - a part of the high pressure oil line.

Where a buried oil storage tank is installed or where the oil storage is significantly lower than the oil burner a two-line oil piping hookup is used to give added lift capacity to the fuel unit.

Watch out: check the fuel unit installation instructions and be sure that the internal check valve is set to the proper condition on the fuel unit when changing from a one-line to a two-line oil piping hookup, or vice versa.

Watch out: about installing a fusible link in the wrong place, causing an oil line blowout and fire contributor - as we discuss

at FIRE SAFETY CONTROLS
and

at OIL SUPPLY LINE SAFETY VALVES, OSVs, when a two-line oil piping system is in use, the fusible link oil safety valve should be installed only on the oil supply line. A check valve without a fusible link is typically installed on the oil return line.

Above: preparing a two-line oil piping connection to be inserted into the oil tank.

On a typical 275 gallon 44-inch tall oil storage tank, the longer vertical pipe in our photo is a 42-inch long oil pick-up line that will deliver oil to the fuel unit at the oil burner, and a 6-inch long return line that delivers returning oil to the storage tank from the fuel unit.

The 42-inch long oil pick-up pipe thus stops about 2-inches from the bottom of the oil tank in order to avoid picking up water or sludge that may be present in the oil tank bottom.

Below: once the oil pick-up and return assembly has been installed in the oil tank top tapping the oil line supply and return lines are attached, as shown below. Here we are using 3/8" ID flexible L-copper oil piping encased in a polyethylene protective sheath.

By attaching the oil supply line (to the burner) to the lower tank top connection the installer slightly-reduces the oil pump or fuel unit lift-height required, making life easier for the oil pump.

The oil return on the two line oil pipe system is fed to the taller of the two attachments shown in our photo above, simply to give working space to make the necessary oil line connections.

Above we show the two oil lines at the oil burner; the upper line supplies oil to the oil burner fuel unit, passing first through an oil safety valve or OSV, then through the oil filter, then through a check valve and into the oil burner's fuel unit or oil pump.

The lower oil line is the 2-line oil pipe system return line from the fuel unit to the oil storage tank.

See details at OIL SUPPLY LINE SAFETY VALVES, OSVs

Oil Burner Fuel Unit Internal Bypass Control

Does the oil pump's internal bypass plug go "in" or should it be "removed" ?

Watch out: standard factory-set-up usually delivers a fuel unit with an "internal bypass" in the fuel unit "open". That's the set-up for a one-pipe oil piping hook-up.

When installing a two-pipe oil piping hookup to a fuel unit, an allen screw or plug is inserted into the fuel unit to close the internal bypass. The access to the internal bypass will be found beneath a service plug and will usually also be marked on a label on the fuel unit body.

A single-pipe heating oil system

 requires that the bypass plug is removed. Leaving the plug in the fuel unit will result in a blown seal, and oil leak, and loss of heat.

A two-pipe heating oil system

requires that the internal bypass plug is inserted - in place.

But kinked oil piping or piping blocked by sludge in the return line can still result in a blown seal in the fuel unit, an oil leak, and loss of heat. [8]

If a novice heating tech is having trouble remembering what to do with a bypass plug or port, just remember that we want only one excess pumped-oil return path - it's either inside the pump itself (an internal bypass is open on a one pipe oil piping system) or it's outside the pump and sends excess oil back to the oil tank (the internal bypass is then shut).

Our photo (above left) shows a modern single-stage 3450 rpm Webster fuel unit. If you are replacing the fuel unit on an oil burner you will need to note and match the following specifications:

• The rotation speed of the unit (1725 or 3450 "high speed")
• The direction of rotation (some pumps may be convertible) as "left hand" or "right hand" rotation direction.

At the bottom of the label in our photo above you can see a reference to the internal bypass plug along with a warning note and an arrow pointing to the threaded "plug" that is either installed (internal bypass closed, two pipe installation) or removed (internal bypass open, one pipe installation).

Our fuel unit shown above, also a Webster unit, tells a story without having performed any tests.

It appears from the dirt and cobwebs that no one has touched this device - a clue about its service history.

Typical Pressure Settings on Heating Oil Fuel Units

When Carol Schnierer and I (DF) serviced heating equipment back in the dark ages, typical fuel unit pressure factory setting was to 100 psi.

The pump output can be adjusted on most fuel units, typically within a range of about 100 psi up to 150 psi.

At oil burner school we learned to set the fuel unit pressure up to 110 or even 120, adjusting the nozzle size down to a smaller gph nozzle to keep the overall fuel delivery rate at the intended design point for the oil burner. That higher pressure gave better, finer oil spray delivery and more efficient oil burner operation.

Currently we see new oil fired heating equipment using 125 psi as a "standard" pressure setting.

Modern fuel units such as the Webster M34DK fuel unit is able to maintain its 3 gallon fire size throughout the 100 to 150 psi pressure range.

Our heating service tech Bob, from Bottini Oil, recently installed a replacement fuel unit on our lab's oil burner assembly.

In setting up the system, a 15 year old cast iron Peerless boiler with a Beckett oil burner, Bob set the oil pressure up to 140 psi, and the smoke was set first to "trace" and then (with a slight combustion air boost) down to "zero" - what he regards as current optimum settings for contemporary high speed oil burner units on newer heating equipment.

Watch out: check the labels or tags on your oil burner: the manufacturer will often specify the oil pressure at which the burner is designed to operate, as we illustrate just below.

Do not guess at the oil pressure setting. Unless you install an oil pressure gauge on the nozzle line side of the oil burner you will have no idea what the fuel unit's outlet pressure actually is.

This oil burner fuel unit pressure data tag was fixed to the oil burner assembly just above the high pressure nozzle line inlet connector on a Beckett oil burner.

Where to Find the Right Oil Pump Pressure Setting

• Data tag on the furnace or boiler may give the recommended oil burner fuel unit pressure setting
• A sticker on the side of the oil burner itself (photo above) will give the recommended pressure setting for that specific oil burner - we choose this number unless we have authoritative data to use a different value.
• IO Manual: Oil burner fuel unit pressure data including optional settings may also be given in the heater or oil burner installation and operation manual for the specific equipment involved
• Watch out: Don't guess at the oil pressure setting - doing so can be very dangerous, risking a building fire or an oil spill in the building

Also see OIL LINE VACUUM & PRESSURE TESTS

How to Bleed air out of oil piping and oil burner fuel units

Details are now found at OIL BURNER FUEL UNIT AIR BLEED PROCEDURE

Oil Burner Fuel Unit Annual Service & Repair Guide

Change-out of the Internal Filter Screen on Heating Oil Fuel Units

Oil burner fuel units typically use an internal filter/screen to help protect the pump internal parts and the oil burner nozzle.

While a proper heating system installation will include a canister-type oil filter on the oil piping ahead of the oil burner, for several reasons debris can escape the filter and enter the oil pump body.

This screen should be replaced as part of annual oil burner service. The screen comes with a new gasket that should also be used.

Watch out: if you fail to properly torque the four bolts holding the fuel unit cover over this screen assembly, air leaks in and oil leaks out at that location will prevent proper fuel unit operation.

Debris-clogging at the oil burner check valve

Watch out: when the fuel unit screen is never replaced, debris entering the oil pump can cause two common operating problems, both leading to improper and even unsafe oil burner operation:

Debris can clog the oil burner check valve (discussed just above) causing the valve to fail to stop oil delivery quickly when the oil burner stops running. The result can be a sloppy oil burner shut-down, oil burner nozzle clogging, and loss of heat or an oil burner puffback

Debris that prevents the internal check valve from closing may also allow oil from an oil storage tank to feed through the fuel unit by gravity, flooding the combustion chamber and risking a dangerous oil burner puffback, explosion or fire when the system re-starts.

During a service call on a very old oil burner in Poughkeepsie, NY in the 1980's, we found a low-speed oil burner that would keep right on going even after we turned off electrical power to the oil burner motor.

It was scary. The combination of heating oil feeding past the failed check valve and into the combustion chamber along with very hot combustion chamber liner components was enough to keep a "fire" going in the combustion chamber of the old boiler.

Vacuum Checks at the fuel unit at annual service

Annual service for the fuel unit also includes a vacuum check for proper pump operation and to check for leaks in the input line.

See OIL LINE VACUUM & PRESSURE TESTS for details.

Internal Check Valve on Heating Oil Fuel Pumps: leaks, repairs, oil delay valves

An internal check valve on the fuel unit is designed to rapidly stop the flow of oil out of the pump and to the oil burner nozzle when the electric motor stops spinning. If the check valve is not working, as the electric motor shaft slows below its full operating speed, oil may be otherwise delivered to the oil burner nozzle at low-pressure.

In turn, low pressure oil delivery means incomplete combustion of the oil in the combustion chamber (it is not fully atomized or broken into a fine spray). Incomplete combustion of heating oil in turn clogs the oil burner nozzle, leading to sooting and even loss of heat or a dangerous oil burner puffback.

Because a failed or "sticking" oil burner pump check valve causes serious operating problems and because this internal part is not easily repaired in the field there are two common repair approaches:

1. Replace the entire oil burner fuel pump or fuel unit
2. Install an oil delay valve -

   see OIL LINE QUICK STOP VALVES for details.

   An oil delay valve is an electric solenoid installed on the high pressure oil line between the oil pump outlet fitting and the oil burner nozzle tube.

   The oil delay valve can help assure clean oil burner start-ups and shut-downs by making sure that the electric motor spinning the oil burner air intake blower as well as the oil pump are up to full operating speed before the solenoid opens to allow oil to flow to the oil burner nozzle.

This article series explains the installation & use of

• FUSIBLE LINK OIL SAFETY VALVES
• OIL SUPPLY LINE VACUUM-ACTIVATED OSVs & PRVs ,
• OIL SUPPLY LINE CHECK VALVES On Heating Oil Lines, and
• TIGERLOOP™ or similar oil line de-aerator/prime-protection devices.
• Oil delay valves, also called quick-stop valves and also referred to as oil safety valves, are discussed separately

  at OIL LINE QUICK STOP VALVES.

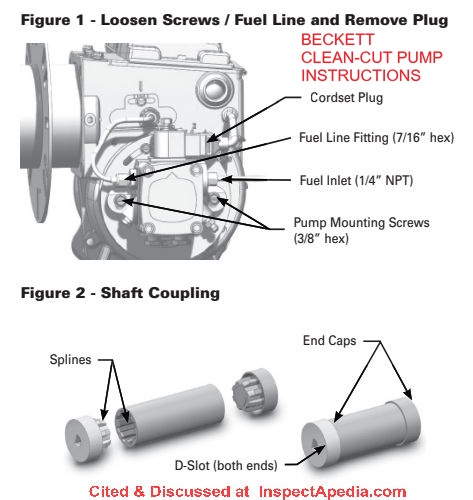

Drive shaft connections for oil burner fuel pumps on boilers, furnaces, water heaters

An electric motor mounted on one side of the oil burner drives a shaft that in turn spins both a combustion air blower (that draws combustion air into the oil burner tube) and the fuel unit. Both of those components are connected in line on the drive shaft of the electric motor using a somewhat flexible rubber or plastic and rubber coupling.

Older "slow speed" oil burners used a motor that rotates at 1725 rpm, a speed that in turn determines the speed of the blower assembly and the fuel unit as well.

Modern "high speed" oil burners use a motor that rotates at 3450 rpm, a bit noisier but because of the additional combustion air that these systems can provide, high speed burners typically operate at a higher efficiency than the older models.

Watch out: a stripped or failed or loose coupling can result in slow burner blower assembly or fuel unit rotation and improper oil burner operation, or in no oil burner operation at all. A bad coupling or bad coupling alignment (everything should be in a straight line, motor, blower shaft, fuel unit shaft) will also be a cause of noise at the oil burner or fuel unit.

Drive Shaft Bearing Leaks on Oil Burner Fuel Units

Damaged coupling joining the electric motor that drives the oil burner, the combustion air blower squirrel cage fan, and the shaft that turns the fuel pump unit itself.

In our photo, left, the heating service tech has removed the fuel unit (oil pump) from the oil burner to inspect for evidence of leaks around the oil burner's fuel unit drive shaft.

He did so after observing oil and debris and tar inside the burner tube assembly and on the oil burner's squirrel cage fan assembly. Because this fuel unit had a (small) leak around the fuel unit shaft, the entire unit was replaced.

In this CLOSEUP PHOTO of the fuel unit shaft leak you can see a tarry accumulation that convinced the tech (and us) of the leak problem.

What happens if we have even a small leak around the fuel unit drive shaft on an oil burner pump? Oil dripping into the oil burner tube soils the squirrel cage blower fan blades just enough that the blades accumulate and hold dust and debris.

The result is that while the fan may look OK, it is moving less air, leading to inadequate combustion air and a smoky sooty oil burner operation, eventually perhaps a puffback. Crud accumulating in the oil burner tube will eventually clog a small bleeder hole in the tube bottom, leading to still more oil and debris accumulation in this location.

The heating system articles provided at this website explain how to inspect and detect defects and hazards on heating systems, boilers, furnaces, and other equipment. Methods for saving on heating cost and on improving heating safety are included. Heating safety hazards such as carbon monoxide gas leaks, unsafe furnaces, furnace and boiler recalls are addressed.

Reader Question: leaks at Electro Oil Inter B9B burner in a Heatslave 15/19 boiler - Contacts for Danfoss Oil Burner Pumps

Stewart Brown said:

Hi! We have an Electro Oil Inter B9B burner in a Heatslave 15/19 boiler.

Oil has started leaking, quite slowly, from the pressure adjustment screw on the front of the oil pump. Is there something I can tweak or tighten to cure this without turning a minor problem into a catastrophe?

Reply:

Hi Stewart.

What is the name brand on the oil pump? We ought to be able to look at its instruction manual to see what's sealable.

Typically there is a lock nut and a slotted screw that's turned to adjust the oil pressure, or on some units a recessed allen screw.

If yours is a Suntec fuel unit you can also contact Suntec’s
field service department at 800-367-7116.

Keep me posted or send along a photo so I can ID and research your particular unit

Followup from Stewart Brown said:

It has Danfoss on the front. The rest of the description is from the WEC Heatslave installation manual (Fig 24 on page 32). Sorry, can't fathom how to attach photo/manual extract.

(Feb 21, 2014) Stewart Brown said:

More sleuthing on the internet: It is very similar to a Danfoss BFP21. The front plate with the controls/adjusters is identical although the orientation of our main body (solenoid/bleed valve) is different.

Moderator Reply:

Stewart there are a number of Danfoss oil burner pump models and the company provides manuals online - though it sounds as if you've got one. From my scan of the documents I don't see an obvious cap or leak discussion.

If there is a faceted fitting at or around the pressure adjustment screw port you might try gently tightening that to be sure it's secure;

I would give Danfoss a call to ask about the leak you are observing: a concern is not just oil leaking out but the possibility of air leaking in - which can cause burner malfunction.

You don't say where you are located so I'm giving just contact information for North America; there is additional contact data for other countries

You'll see that for most of these fuel units there will be more than one way to hook up fuel lines, that may be the difference; also there are LH and RH rotation models that can be confusing to some. There ought to be a label on the unit giving model number, though on occasion the oil burner company or a service tech may have re-labeled.

If you want to use our CONTACT link to send me photos of the unit and a sharp closeup of where you see a leak I may be able to comment further.

Followup Stewart Brown said:

I have found the schematic! P1 on: heating.danfoss.com/PCMPDF/DKBDPD010E302.pdf but it doesn't answer the practical problem I have!

Moderator Reply:

give them a call and let me know what advice you receive; if you call a tech s/he will either just tighten something or will replace the unit. We don't know if there is a repairable seal.

Followup Stewart Brown said:

There is a slightly clearer document: oilburnerspares.com/products/images/pages/file/danfoss/Danfoss%20Oil%20Pump%20type%20BFP.pdf.

It is a deep seated screw with an allen key head.

Function: to adjust oil flow. The screw thread is adjustment rather than seal & it is starting to look as if the diaphragm in our unit has given up the ghost. I can't really complain about longevity but it is a nuisance nonetheless!

Reply:

Sounds as if a tech would at this point replace the fuel unit.

Be sure to get exactly the right one, including rotation direction; a service tech will know how to measure vacuum, adjust nozzle line pressure, and bleed air.

We give contact information for Beckett, Danfoss, Sunstrand, Suntec, and Webster oil pumps below.

Oil Burner Fuel Unit Suppliers, Manuals, Adjustment Guides

Shown above, an Inglis fuel unit, or oil burner pump, now branded as Sunstrand/Inglis fuel units, in essence the Sunstrand J-pump series.

Photo contributed by Inspectapedia.com reader Vladimir, rotated "upside down" to make the Inglis brand clear. [Click to enlarge any image]

• OIL BURNER MANUALS provides links to manuals for oil burners, controls, fuel units, etc.
• [2] Beckett MODEL SR OIL BURNER INSTRUCTION MANUAL [PDF] R.W. Beckett Corporation, PO Box 1289, Elyria OH 44036 and R.W. Beckett Canada, Ltd., 430 Laird St., Guelph, Ontario, Canada N1G 3x7
• [3] Thanks to Bottini Fuel [website] service technician Bob for discussing the buzzing aquastat relay problem, 4/18/2012. Bottini Fuel is a residential and commercial heating oil distributor and oil heat service company in Wappingers Falls, NY and with offices in other New York locations. Bottini Fuel, 2785 W Main St, Wappingers Falls NY, 12590-1576 (845) 297-5580 more contact information for Bottini Fuel at http://www.bottinifuel.com/contact/
• [4] Beckett MODEL SF OIL BURNER INSTRUCTION MANUAL , op.cit.
• BECKETT CLEANCUT PUMP INSTRUCTIONS 5285-001 Service & Installation [PDF] (2020) www.beckettcorp.com, USA: R.W. Beckett Corporation, 1-800-645-2876 - Canada: R.W. Beckett Canada Ltd, 1-800-665-6972

  Instructions for the Beckett fuel unit models CleanCut PF20322 CleanCut PF20323 CleanCut XL PF20422

Below: Beckett Single-Stage CleanCut pump Model No. A2EA-6527 showing the solenoid valve atop the fuel unit that assures a rapid and complete shut-off of oil flow when the pump stops.

• Danfoss, DANFOSS BURNER COMPONENTS SERVICE MANUAL [PDF] (2012) also see the company's website: burner.danfoss.com
• Danfoss, (older version of the above) DANFOSS OIL BURNER SERVICE MANUAL [PDF] (2010) U.K. version
• Danfoss, SERIES 90 PUMPS SERVICE MANUAL [PDF] (2020)

Below: Danfoss BFP 21 L3 Oil burner Pump model Bio 10

• Danfoss Hago Inc. Customer Service 1120 Globe Ave., Mountainside, NJ 07092, Phone: 908-232-8687

  Toll-free: 800-710-HAGO (4246) Fax: 908-232-7246 E-mail: hago@danfoss.com Todd Vitali, Phone: 908-232-8687 X209, E-mail: tvitali@danfoss.com
• Danfoss Inc. Heating Division Baltimore Office 11655 Crossroads Circle Baltimore, MD 21220 USA Website: https://www.danfoss.com Tel: 443-512-0266 Fax: 443-512-0270 E-mail: heatingsales@danfoss.com
• Danfoss Inc. Heating Division Toronto Office 6711 Mississauga Road, Suite 306 Mississauga, ON, L5N 2W3 Tel: 905-285-2050 Fax: 905-285-2055 E-mail: heatingsales@danfoss.com
• [5] Sunstrand Corporation - Sunstrand Fuel Units, 4949 Harrison Avenue P.O. Box 7003 Rockford, Illinois 61125-7003 U.S.A. Telephone: (815) 226-6000 Fax: (815) 226-5399 http://www.sundstrand.com

  Note: Inglis fuel units or oil pumps are currently marketed under the brand Sunstrand/Inglis and are typically matched by Sunstrand J-Pumps.

Below: a Delta VU fuel pump used in oil burner applications. On at least some Delta fuel units like the VU1 the rotational direction can be reversed without removing the pump cover. And like most fuel units there are mounting ports for left-hand or right-hand nozzle port connections and the pump can be converted between 1-pipe and 2-pipe oil line installations.

Photo adapted from Anglo Nordic, a U.K. supplier of Delta fuel pumps. - Anglo Nordic Burner Products LTD 12/14 Island Farm Avenue West Molesey Surrey KT8 2UZ United Kingdom Website: https://www.anglo-nordic.com/

• Delta Pumps, DELTA Oil Burner FUEL UNIT Type CV, SV2 MANUAL [PDF] retrieved 2019/12/30 original source: http://www.patriot-supply.com/files/delta_cvsv_en.pdf Contact: Delta Pumps at www.deltapumps.com

Below: an older Sunstrand oil burner fuel unit or "Sunstrand Suntec oil burner pump" - the SunTec Sundstrand J3DD-100 Fuel Oil Pump as for sale on eBay in 2021. Older Sunstrand pumps can be identified quickly by the raised "S" on the cast-iron pump cover. Often these older pumps were used on oil burners whose motors rotate at 1725 rpm - half the speed of modern "high-speed" oil burners spinning at 3450 rpm.

Watch out: when selecting a replacement fuel unit or oil burner pump be sure to match the pump's capacity, rotation direction, and operating speed to the original.

• [6] SUNSTRAND TRANSMISSION SERVICE MANUAL [PDF] May 1974, web search 08/19/2011, original source: http://www.cushmantrackster.com/pay-pdfs/sundstrand.pdf - Sunstrand Series 15 hydrostatic transmissions

Below: Suntec Oil Burner Pump, 3450 rpm, 3gph, 100-150psi, model A2VA-7116 widely used on many oil burners. SunTec is a Sundstrand brand.

• [8] SUNTEC MODEL A-7400 Fuel Unit SOLENOID DUMPING PUMP [PDF] Suntec Industries Inc., 60 Aberdeen Drive - PO Box 5000 Glasgow, KY 42142-5000 - USA Tel : 270 651 7116 - Fax : 270 651 9276 e-Mail : info@suntecpumps.com and

  Suntec Industries France, 1 Rue Lavoisier - B.P. 102 F-21603 LONGVIC Cedex - FRANCE Tel : +33 (0)3 80 70 60 70 - Fax : +33 (0)3 80 70 61 11 e-Mail : information@suntec.fr,

  Also see SUNTEC SOLENOID OIL SAFETY VALVE BROCHURE [PDF] web search 4/19/12, original source: http://www.suntecpumps.com/Suntecus/PDFs/Form%202740%20 -%20Solenoid%20Dumping%20Pump.pdf
• [9] SUNTEC MODEL PRV-38 OSV Oil Safety Valve Installation Information [PDF] Suntec Industries Inc., 60 Aberdeen Drive - PO Box 5000 Glasgow, KY 42142-5000 - USA Tel : 270 651 7116 - Fax : 270 651 9276 e-Mail : info@suntecpumps.com and

  Suntec Industries France, 1 Rue Lavoisier - B.P. 102 F-21603 LONGVIC Cedex - FRANCE Tel : +33 (0)3 80 70 60 70 - Fax : +33 (0)3 80 70 61 11 e-Mail : information@suntec.fr, You can download this file from Suntec's website.



  Suntec's manuals for their fuel units are at www.suntecpumps.com/Technical%20Literature.htm

• Suntec, IDENTIFICATION MARKINGS on SUNTEC PUMPS [PDF] to identify the proper model and features of your oil Suntec fuel unit, for models AN, AE, AS, AL, ALE, AU, AR, AP and D pumps, and A 7000, A 3000, OL, B 8000 and B 4000 pumps, retrieved 2019/01/22, original source: http://www.suntec.fr/wp-content/uploads/2018/03/SB33EN_dec2018.pdf

Illustration: Webster® R series Two Stage Pump 22R322D-5AA14, 3450 RPM, 34 GPH at 300 psi

• [7] Webster Fuel Pumps & Valves, Capitol City Tool, Inc., Tel: (800) 367-7116 Web: http://www.websterfuelpumps.com/ Email: czahalka@suntecpumps.com

  See also Suntec - above.

  Webster provides fuel pump IO & service manuals at the company's website: http://www.websterfuelpumps.com/pump_docs/pump_doc.htm
• Webster, WEBSTER FUEL PUMPS & VALVES INSTALLATION & SERVICE MANUAL [PDF] Division of Capital City Tool, Inc.,

  Excerpts:
  This Webster ® Service Technician’s Handbook is supplied as a service to our customers, dealers and installers.

  It represents our efforts to share with them our experiences of many years with our products in the field, and to also provide condensed catalog information to you on Webster products.

  This booklet is not intended to be all-inclusive, or to be directly applicable to products manufactured by any other company.

  The following list includes the terms which are most common to the oil heating industry. Single-stage fuel unit: unit with one set of gears for both suction and pressure. Two-stage fuel unit: unit with two sets of gears, one for suction and one for pressure.

  One-pipe system: one line, an line, from tank to fuel unit.

  Two-pipe system: two lines, one inlet and one return line, from tank to fuel unit.

  Bypass plug: small hex socket head pipe plug used to close internal port and convert unit from one pipe to two pipe operation.

  Bleed: to remove air from system. Lift: oil drawn from a level below pump expressed in feet of lift or inches of mercury.

  Head of oil: column of oil over fuel unit expressed in psi or feet.

  Inlet port: port which receives oil from tank.

  Bypass port: port which discharges surplus oil back to tank in two-pipe system.

  Return line port: same as by-pass port.

  Valve differential: number of pounds per square inch the pump pressure must drop from operating pressure to close nozzle valve.

  Delivery: gallons per hour pumped from the nozzle outlet assembly of the fuel unit.

  Gear Set Capacity: Gear Set Capacity: Total amount of oil being displaced by the pumps gear set(s).
• Webster, WEBSTER M-SERIES FUEL PUMP INSTALLATION MANUAL [PDF] LL7970 for Webster oil pump models: M34-3, 2M34-3 3 gph 1 gph — M34-6, 2M34-6 6 gph 3 gph — M34-15, 2M34-15 15 gph 13 gph — M17-6, 2M17-6 6 gph 3 gph — M17-15 15 gph 13 gph — M34DK-3 3 gph.
• Webster M34DK-3 SERIES FUEL UNITS [PDF at Webster's website] - retrieved 2024/11/21
• Webster, WEBSTER R-SERIES FUEL PUMP INSTALLATION MANUAL [PDF]
• Webster, WEBSTER SPM-SERIES FUEL PUMP INSTALLATION & OPERATION MANUAL [PDF] (2021) retrieved 2021/11/08, original source: http://www.websterfuelpumps.com/pdffiles/spm_pump.pdf
• Webster, WEBSTER V-SERIES PUMP INSTALLATION & SERVICE MANUAL [PDF] for single & two stage high-capacity fuel pumps (1998)
