Oil tank piping requirements sketch Guide to Oil Tank Fill & Vent Piping
Inspection for Above Ground Heating Oil Storage Tanks (ASTs)


  • How to install, inspect, or troubleshoot oil storage tank filler piping
    • How to install, inspect, or troubleshoot oil storage tank vent piping
    • What happens if an oil tank vent pipe is too small or clogged?
  • Questions & Answers about oil fill & vent piping location, diameter, length, routing, connections, leaks, & troubleshooting.
  • References

Click to Show or Hide Related Topics

  • OIL BURNERS - home
  • OIL FILTERS on HEATING EQUIPMENT
  • OIL FILTER MISSING
  • OIL FUEL TYPES & CHARACTERISTICS
  • OIL ODORS, LEAKY OIL TANK PIPING
  • OIL PUMP FUEL UNIT
  • OIL SPILL CLEANUP / PREVENTION
  • OIL TANKS - home
  • OIL TANK PIPING & PIPING DEFECTS - home
    • CAULK OIL PIPE ENTRANCES
    • DEFINITIONS: OIL PIPING CONTROLS
    • DUAL OIL LINE 2 VALVES
    • DUAL OIL TANKS - PIPING
    • FIRE SAFETY CONTROLS
    • HEAT TAPE HAZARD ON OIL TANK
    • OIL FILL & VENT PIPING
    • OIL FILL PIPE EXPOSED
    • OIL FILL / VENT PIPE CAP LOST
    • OIL FILL & VENT PIPES UNDERSIZED
    • OIL LINE CLOGGING FIX
    • OIL LINE EXPOSED
    • OIL LINE LEAKS
    • OIL LINE QUICK STOP VALVES
    • OIL LINE SAFETY VALVES
    • OIL LINE SINGLE, UP HIGH
    • OIL LINE SINGLE ON BURIED TANK
    • OIL TANK FILL & VENT LINES APART
    • OIL TANK VENT PIPE MISSING
  • OIL TANK LEAKS & SMELLS - home
  • OIL TANK PRESSURE
  • OIL TANK SLUDGE
  • OIL TANK SPILL CLEANUP / PREVENTION
  • OIL TANK WATER CONTAMINATION
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

Oil tank fill & vent piping guide: this heating oil piping article gives advice and example photos for the installation, inspection, & leak troubleshooting of oil tank fill & vent piping for both buried and above ground oil storage tanks .

Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.

Heating Oil Fill & Vent Piping installation, inspection, troubleshooting

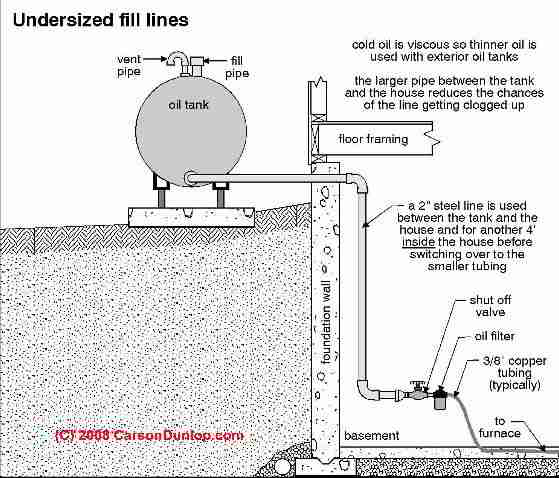

Photograph of a in-home oil tank - notice the small diameter vent line?See our complete list of heating oil piping topics beginning at OIL TANK PIPING & PIPING DEFECTS. Also see additional visibly detectable oil tank defects listed at OIL TANK INSPECTION, ABOVE GROUND and Heating Oil Piping. Sketch provided courtesy of Carson Dunlop Associates.

Here are a some important indicators of tank condition that any home owner or home inspector can examine when an oil storage tank is visible and accessible inside or at a building.

  • Is the oil storage tank vented properly with the right size piping (1 1/2" on older systems, 2" diameter piping by current standards). In the photo a 1 1/2" vent line is installed.

The oil company recommends going to 2", and most new installations use a two-inch diameter vent pipe; we've seen vent piping as small as one inch on oil tanks. During fill fuel is delivered at an average rate of 60 or even 70 gallons per minute.

Improper or blocked oil tank air exit venting can place excessive stress on tank seams and piping. See OIL TANK PRESSURE for a detailed explanation.

  • If the oil tank is indoors, does the tank vent extend to outside?
  • Is the oil tank vent line properly capped with a screened weather-resistant cap to prevent water entry or clogging by mud or insects?
  • Is the oil tank piping tight, leak-free, and does it drain freely into the tank? Has the piping been equipped with a whistle to signal the delivery person when the tank is full?
  • Are all tank plugs and piping tightly in place?
  • Has black or galvanized iron piping been used for oil tank filler and vent lines? Plastic lines may come apart at the seams during a fill up. Some plastic lines can shatter or break in extremely cold weather.
  • Is the tank vent next to or close to the oil filler pipe so that the delivery person can listen to the vent alarm (some call this the oil tank vent whistle) and determine when the tank is full? The vent alarm prevents over filling and is recommended for both underground and above ground tanks. It should be mounted at the top of the tank at the vent pipe opening. (Naturally inspectors cannot see this component on buried tanks.)
  • Is there a working vent alarm or tank whistle?
  • Is the oil tank gauge installed and tight. Loose or broken oil tank gauges can cause spills during tank fill operations.

Fill and Vent Piping for Duplex Heating Oil Storage Tanks

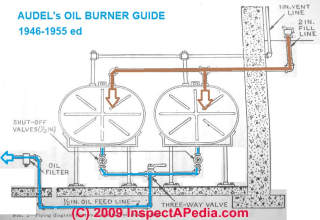

Oil tank piping for two tanks (C) Daniel Friedman - Audel

At buildings where two heating oil storage tanks are installed, typically indoors, this Audel Oil Burner Guide sketch shows the proper arrangement of fill piping, vent piping, and oil line piping leaving the tanks.

We have seen an alternative arrangement that provides a fill line only to the first tank, with the second tank filled by a second pipe exiting the top of the first oil tank - not an arrangement we recommend as this forces the first oil tank to be fully pressurized at the oil delivery truck pressure during fill-up of the second tank.

The piping shown in this Audel sketch is better. Details about piping of fill and vent and oil supply lines for duplex oil tanks are at DUAL OIL TANKS - PIPING.

Thanks to Arlene Puentes for technical editing, March 2010.

...
