Reliance Water Heater Age or Manuals
Reliance Water Heater Manuals, Age, Installation, Repair
- POST a QUESTION or COMMENT about how to find out the age of a heating appliance: water heater, heating boiler, heating furnace
Reliance ater heater manuals & age decoder.
Here we provide links to Reliance water heater manuals and we give contact information for Reliance-brand water heater, geyser, cylinder, calorifier manufacturers and for water heater installation, operation, & troubleshooting manuals.
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
- Daniel Friedman, Publisher/Editor/Author - See WHO ARE WE?
Reliance Water Heater Manuals & Age Decoding
Reliance Water Heater company produces both gas and electric water heaters in a range of sizes and models for residential use, mobile home use, and point of use applications. Models also vary by warranty period including 6-year, 9-year, 12-year warranties.
Reliance also produces a wide range of tankless water heaters in indoor and outdoor models, ultra low NOx models, Non-conden sing models, and set-up for burning either propane or natural gas.
Notice: the reliance water heater manuals listed here are a representative subset of the enormous number of electric, natural gas, propane gas water heaters with various features. In the Reliance Water Heater Company contact information below we provide a link to the company's current list of all of their water heater models.
Watch out: typical warnings in Reliance water heater manuals include
Use a new CSA approved gas supply line. Install a shut-off valve.
Failure to follow these instructions can result in death, explosion, or carbon monoxide poisoning.
WARNING Do not connect a natural gas water heater to an L.P. gas supply.
Do not connect an L.P. gas water heater to a natural gas supply.
Electric Water Heater Manuals from Reliance Water Heater Company
- RELIANCE POINT OF USE 120V WATER HEATER MANUAL [PDF] (2015)
- RELIANCE 6-GALLON COMPACT ELECTRIC WATER HEATER MANUAL [PDF]
- RELIANCE 30-GALLON COMPACT ELECTRIC WATER HEATER MANUAL [PDF] Model 6 30 EOMBS
- RELIANCE 30 GALLON MOBILE HOME ELECTRIC WATER HEATER MANUAL [PDF] Model 6 30 EMHBS
- RELIANCE 40 GALLON MOBILE HOME ELECTRIC WATER HEATER MANUAL [PDF] (2015) Model 6 40 EMHBS
- RELIANCE 30 GALLON RESIDENTIAL ELECTRIC WATER HEATER MANUAL [PDF] Model 6 30 EORS where "S" designates "short" water heater
- RELIANCE 40 GALLON RESIDENTIAL ELECTRIC WATER HEATER MANUAL [PDF] Model 6 40 EORT where "T" designates "tall" water heater
- RELIANCE 50 GALLON RESIDENTIAL ELECTRIC WATER HEATER MANUAL [PDF] (2015) Model 6 50 EORS
Natural Gas Fired Water Heater Manuals from Reliance Water Heater Company
- RELIANCE 30 GALLON GAS WATER HEATER MANUAL [PDF] (2015) Model UNORT 30 Gallon Tall Ultra Low NOx Natural Gas Water Heater - 6 Year Warranty
Excerpt:
The Flammable Vapor Ignition Resistant Safety System is designed to reduce the risk of flammable vapor-related fires.
The patented system protects your family by trapping the burning vapors within the water heater combustion chamber through the special flame-trap. - RELIANCE 40 GALLON GAS WATER HEATER, HIGH EFFICIENCY [PDF] (2015) Model 12 40 GPCT high efficiency tall natural gas water heater manual, 12-year warranty
Excerpt:
This water heater is design certified by CSA International as a Category I, non-direct vented water heater which takes its combustion on air either from the installation on area or from air ducted to the unit from the outside.
This water heater must be installed according to all local and state codes or, in the absence of local and state codes, the “Nation onal Fuel Gas Code”, ANSI Z223.1(NFPA 54)-current edition on.
This is available from the following: CSA America, Inc. 8501 East Pleasant Valley Road Cleveland, OH 44131 Nation onal Fire Protection on Association on 1 Batterymarch Park Quincy, MA 02269 Check with local code offi cials about codes governing this installation on. H
ave your installation on inspected by a code offi cial to ensure the installation on meets all local codes. - RELIANCE 40 GALLON GAS WATER HEATER, SELF-CLEANING [PDF] Model 12 40 NACT natural gas water heater manual
Excerpts:
CAUTION! Hydrogen gas builds up in a hot water system when it is not used for a long period (two weeks or more).
Hydrogen gas is extremely fl ammable. If the hot water system has not been used for two weeks or more, open a hot water faucet for several minutes at the kitchen sink before using any electrical appliances connected to the hot water system.
If hydrogen is present there will probably be an unusual sound such as “air” escaping through the pipe as hot water begins to fl ow. Do not smoke or have an open fl ame or other ignition on source near the faucet while it is open.
Carbon Monoxide Risk WARNING!
This water heater operates by burning gas. Carbon monoxide is a colorless, odorless, gas that is a by-product of burning of fuels such as coal, wood, charcoal, oil, kerosene, propane, and natural gas.
Breathing excessive and abnormal amounts of carbon monoxide can cause carbon monoxide poisoning, resultion ng in serious injury or death. This water heater must be supplied with adequate combustion on air and must be properly vented to the outdoors.
Have a qualifi ed person (licensed plumber, authorized gas company personnel, or authorized service technician) install the vention ng system using these installation on instructions. When the installaton is complete, check the vent’s draft using the instructions on pages 23-24. - RELIANCE 50 GALLON GAS WATER HEATER [PDF] Model 6 50 NBRT, tall natural gas water heater manual
- RELIANCE 75 GALLON GAS WATER HEATER MANUAL [PDF] Model 6 75 URRS, Ultra Low NOx natural gas water heater
- RELIANCE ULTRA LOW NOX GAS WATER HEATER [PDF] with the "Safety System" (2015)
- RELIANCE FVIR GAS WATER HEATER INSTALLATION & USE GUIDE [PDF] (2013) - for potable water heating only, not for use in mobile homes.
Mobile Home Natural Gas / Propane Fired Water Heater Manuals from Reliance Water Heaters
- RELIANCE 30 GALLON FVIR GAS WATER HEATER for Manufactured (Mobile) Homes 6 30 NOMT [PDF] - 30 Gallon Mobile Home Natural Gas/Propane Water Heater - 6 Year Warranty
- RELIANCE 40 GALLON FVIR GAS WATER HEATER for Manufactured (Mobile) Homes 6 40 NOMT [PDF] - 40 Gallon Mobile Home Natural Gas/Propane Water Heater - 6 Year Warranty
Note: Definition of FVIR = Flammable Vapor Ignition Resistant - This water heater complies with ANSI Z21.10.1, regarding the accidental or unintended ignition of flammable vapors, such as those emitted by gasoline.
Propane Gas Fired Water Heaters from Reliance
- RELIANCE 30 GALLON SHORT PROPANE WATER HEATER MANUAL [PDF] Model 6 30 POCS propane fueled short heater model
- RELIANCE 30 GALLON TALL PROPANE GAS WATER HEATER MANUAL [PDF] (2015) Model 6 30 POCT [PDF] - 6 Year Warranty
- RELIANCE 40 Gallon Short Energy Efficient Liquid Propane Water Heater [PDF] (2015) MODEL 6 40 LBFS- 6 Year Warranty

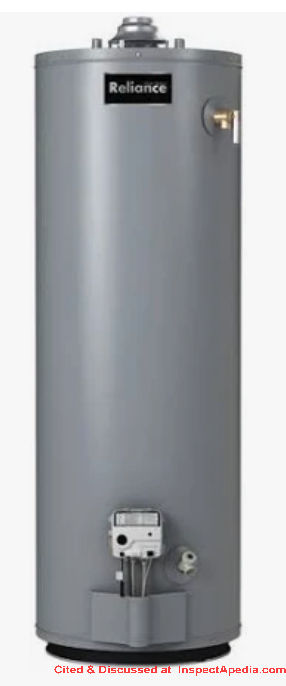

- RELIANCE 50 GALLON PROPANE WATER HEATER MANUAL [PDF] (2015) Model 12 50 PACT self-cleaning, liquid propane fuel, 12-year warranty family (NAECA3)
Tankless Water Heaters From Reliance
- RELIANCE TANKLESS WATER HEATER MANUAL INDOOR Model TS-110-GI [PDF] Indoor Tankless watre heater, non-condensing 140K BTU Natural Gas
- RELIANCE TANKLESS WATER HEATER MANUAL OUTDOOR Model TS-110-GE [PDF] Exterior (Outdoor) Tankless wate heater, non-condensing 140K BTU Natural Gas, Models 110 Indoor (T-KJr2-IN) 310 Indoor (T-K4-IN) 510 Indoor (T-D2-IN) 110 Outdoor (T-KJr2-OS) 310 Outdoor (T-K4-OS) 510 Outdoor (T-D2-OS)
- RELIANCE TANKLESS WATER HEATER MANUAL INDOOR Model TS-140-GIH [PDF] Indoor Condensing Ultra-Low NOX 120K BTU Natural Gas, Models 140 Indoor (T-H3M-DV) & 140 Outdoor (T-H3M-OS)

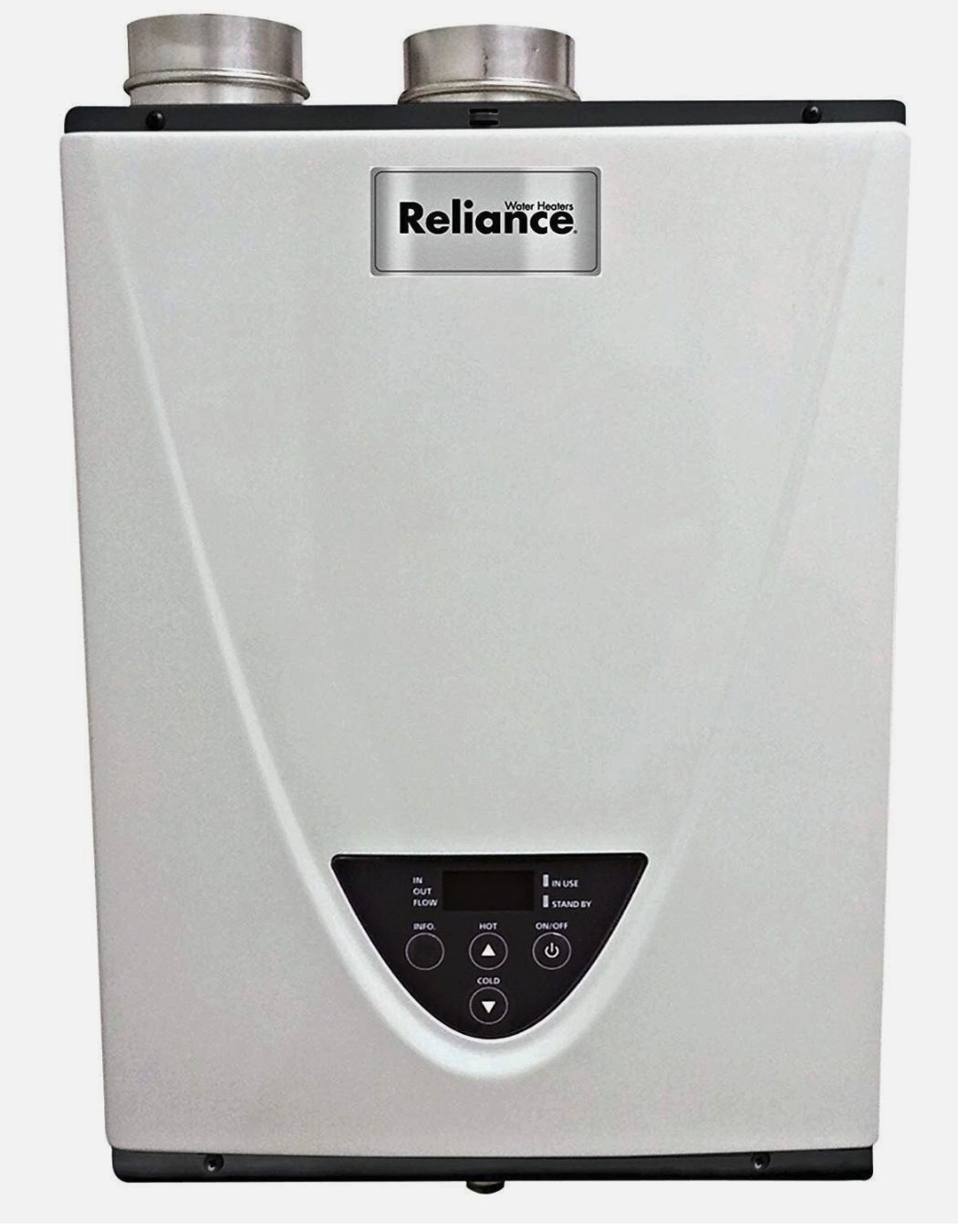

- RELIANCE TANKLESS WATER HEATER MANUAL INDOOR Model TS-540-LIH [PDF] Indoor Condensing Ultra-Low NOX 199,000 BTU Propane, Models 240 Indoor (T-H3J-DV) 340 Indoor (T-H3S-DV) 540 (T-H3) 540 Indoor (T-H3-DV) 240 Outdoor (T-H3J-OS) 340 Outdoor (T-H3S-OS) 540 Outdoor (T-H3-OS)
Contact the Reliance Water Heater Company
Reliance Water Heater Company, 500 Tennessee Waltz Parkway, Ashland City TN 37015 USA,
Tel: 800-644-9306 Website: http://www.reliancewaterheaters.com/ Reliance Water Heater
Parts: TEL 1-800-365-4054 (You will need model and serial number as well as the item number and part description from your water heater's manual)
- Full list of current Reliance Water Heater Models, Manuals - http://www.reliancewaterheaters.com/resources/instruction-manuals
...
