Guide to Installing, Inspecting, Repairing Copper Roofs
Copper as a durable roofing material has been in use for hundreds of years, in both hot and cold climates and on a wide range of building types.

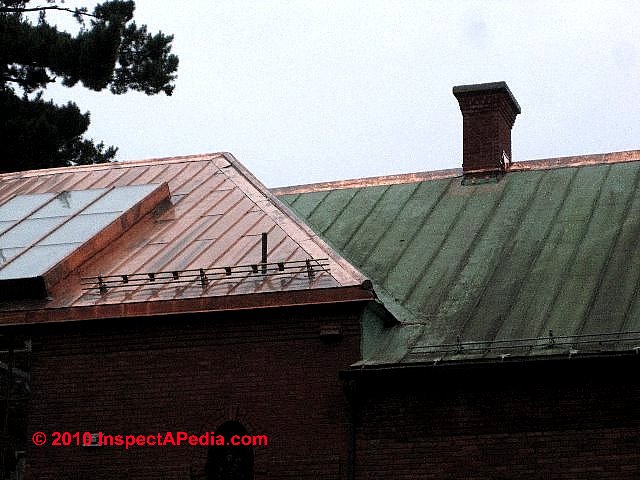

Our copper roof photograph (left) shows a brand new copper standing seam metal roof (left) and an older standing seam copper metal roof (right) on a Vassar College building in Poughkeepsie, NY.
The new copper ridge atop the right-hand slope was installed during re-roofing of the opposing slope that is not visible in this photograph.
At left in our photo you'll also notice a custom-constructed copper-clad skylight over an area intended for use by art students and artists. More about skylights is found at SKYLIGHT LEAK DIAGNOSIS & REPAIR and at SLOPED GLAZING DETAILS.
You will also notice that both the older copper roof and the new copper roof installation included continuous snow guards along the building eaves. |

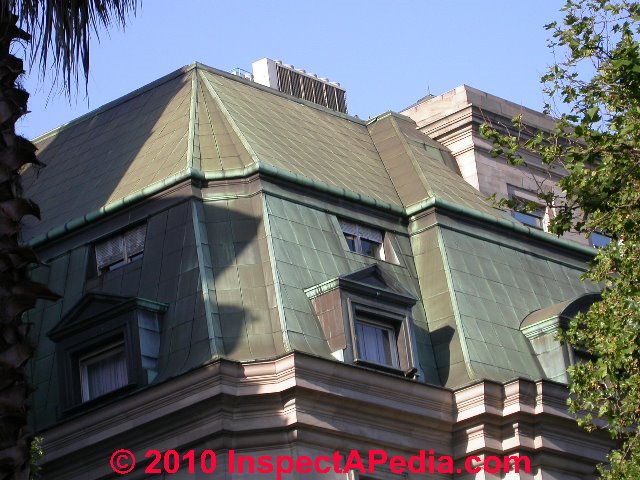

The mechanically fastened steep-slope copper roof shown in our photograph (below left) is on a building in Buenos Aires, Argentina, while the steep sloped copper roof in our second photograph (below right) is on a building in Oslo, Norway. (Photographs by DF).
Examples of fastening details for the installation of copper roofs to the building roof deck or structure are discussed under metal and standing seam roofing below.
As our photograph of this tower roof on a building on the Vassar College Campus, Poughkeepsie, NY USA, copper roofing is used for
- Aesthetic reasons, beauty, color of the weathered verdigris green copper
- Durability
- Weatherproofing complex surfaces where metal flashing is needed
- Weatherproofing building components that are difficult and thus expensive to access for maintenance or re-roofing.
|
Soldered Flat Shingle and Flat Copper Metal Roofs
|
Flat metal shingles with interlocking edges were produced in both steel and copper, then soldered when in place. Usually we find these installed on flat or low-slope roofs such as at dormer insets on homes constructed in the U.S. before 1920.
Carson Dunlop's standing seam metal roof sketch (below) includes a sketch of soldering used to connect flat metal roofing panels.
Watch out: large expanses of metal roofing with soldered connections may flex and break open the soldered joints due to thermal movement.
|
Modern Copper Shingled Roofs
Zappone Manufacturing is a current producer of copper roof shingles, including copper scallop shingles and snap-together copper roof shingles. In appearance these contemporary copper roof shingle products resemble older soldered-copper shingles (shown in our photo above) and also older steel roof shingle products that we show at Metal Shingle Roofs.
The producer cites the long life of copper roof materials and higher-speed installation that using non-copper roofing shingles as compensating for the higher installed-cost than other more conventional roof coverings (such as asphalt roof shingles).
[Photos of modern copper shingles wanted: CONTACT us]
For examples of Zappone-produced copper roof shingles see that company's two marketing articles:
Metal Roofing Sources, Products, & Manufacturers
Below we have adapted and added to the Best Practices Guide to Residential Construction list of producers and sources of metal roofing, metal roof fastening systems, and related metal roofing products
- Classic Products, website:
www.classicroof.com
Modular metal shingle panels and standing seam panels
- Copper Development Association, Tel: 212-251-7200, http://www.copper.org/
- Decra Roofing Systems, website:
www.decra.com
Modular metal shingle, tile, and shake panels
- Dura-Lok Roofing Systems, website:
www.duraloc.com
Modular metal roofing shingles with granular coating
- Fabral, website:
www.fabral.com
Exposed fastener and concealed clip metal roofing
panels
- Gerard Roofing Technologies, website:
www.gerardusa.com
Modular metal shake and tile panels with granular
coating
- Met-Tile, website:
www.met-tile.com
Modular metal roof-tile panels
- Atas International, website:
www.atas.com
Modular metal shingle, tile, and standing-seam panels
- Custom-Bilt Metals, website:
www.custombiltmetals.com
Modular metal shakes and standing seam panels
- Zappone Manufacturing, website www.zappone.com/
Zappone Manufacturing, 2928 North Pittsburg St. Spokane, WA 99207
1-800-285-2677, Washington State Copper Roofing Supplier of Copper scallop shingles, copper shingles, copper bay windows, vertical walls, aluminum roof shingles
-- Adapted with permission from Best Practices Guide to Residential Construction.
