Electric Heating System Inspection Methods, Diagnosis, Safety, Repairs

Fahrenheat electric wall heater (C) Daniel Friedman

Electric heat is about the easiest heating method to install, the least costly type of heating equipment to purchase, and in many locales, the most costly way to heat a conventional home.

Super-insulating a building, and paying special attention to drafts and air leaks can change that picture however, as can special electrical rates available from utility companies in some areas.

This article describes different types of electric heat in buildings and give some inspection and no-heat diagnosis tips for each.

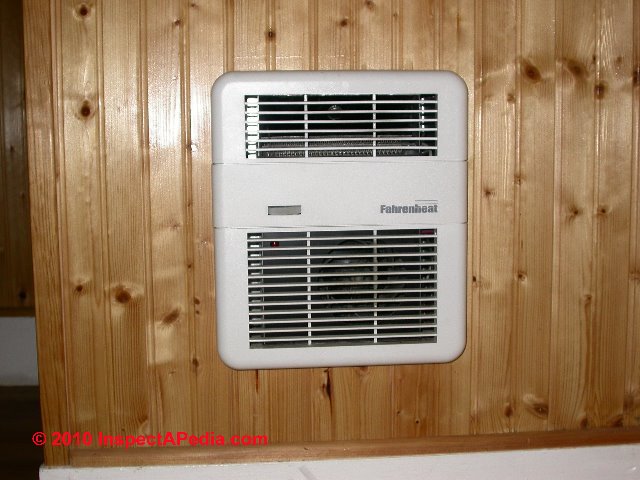

Our photograph (left) shows Fahrenheat electric wall heater observed in a remodeled bathroom in a Poughkeepsie NY home and sold by Marley Engineered Products.

Types of Electric Heat in Homes

Electric baseboard heat (see our photo above left, and the page top sketch) is installed on (usually exterior) walls in occupied rooms. The number of linear feet of electric heating baseboard (and some other parameters) determine how many watts of electric heat is provided.

Electric heating boilers are commonly used as a backup heat source for heat pump systems or for small radiant floor heating systems (such as our Minnesota fiasco radiant floor heat project).

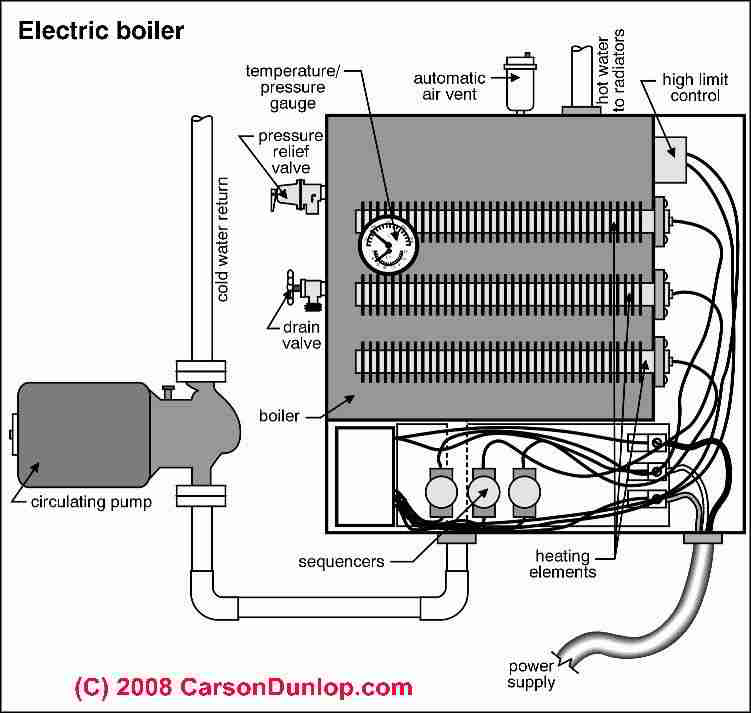

Carson Dunlop Associates' sketch (left) illustrates an electric heating boiler used for residential heating systems.
Electric furnaces can provide warm air heat; this Carson Dunlop sketch shows how we figure the equivalent heat between an electric furnace (in watts) and a gas or oil fired heating furnace (in BTUs).
Electric convectors with fans such as the ceiling mounted garage heater shown at above right are used most often for irregular use in larger cold spaces such as a garage or workshop. But also see wall-mounted electric heaters, below. Similar units that use hot water or hydronic systems - hot water heated fan convector heating units - are discussed at FAN CONVECTOR HEATERS - HYDRONIC COILS.

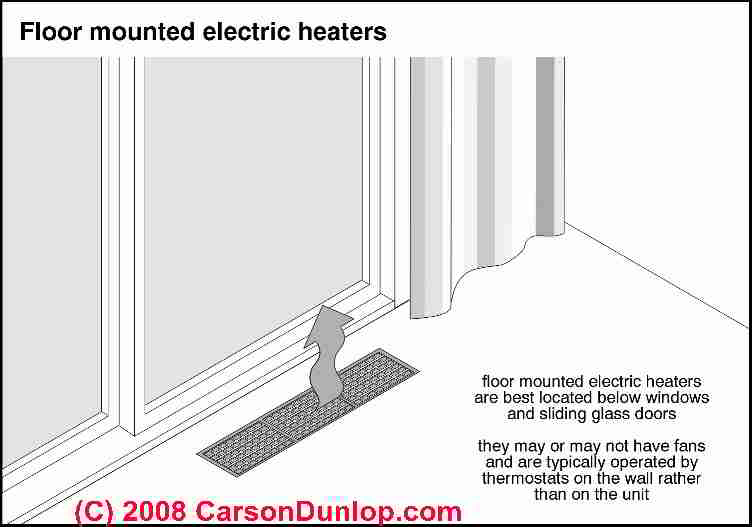

Electric floor-mounted heaters: as this Carson Dunlop sketch shows, an individual electric heater can be mounted right into the floor surface (instead of along a wall). Watch out for kids dropping crayons or things that can catch fire into the grates of heating equipment like this. As the drawing points out, flush-floor mounted electric heaters are used where heat is needed in front of a sliding door (and where no wall is available to mount a heating baseboard.)

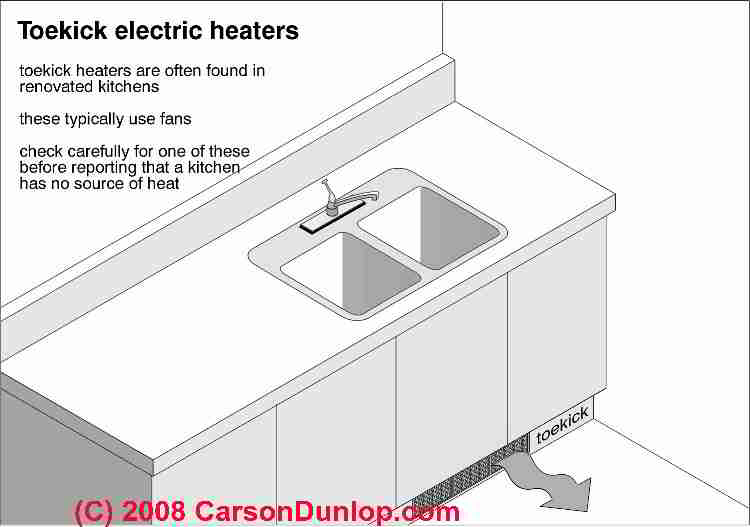

Electric toe-kick heaters (kick-space heaters) are mounted in bathrooms and kitchens as this Carson Dunlop sketch shows. We use a kick space heater (which are also available for hot water heating and warm air heating systems) where a room lacks wall area to mount a conventional heat source.

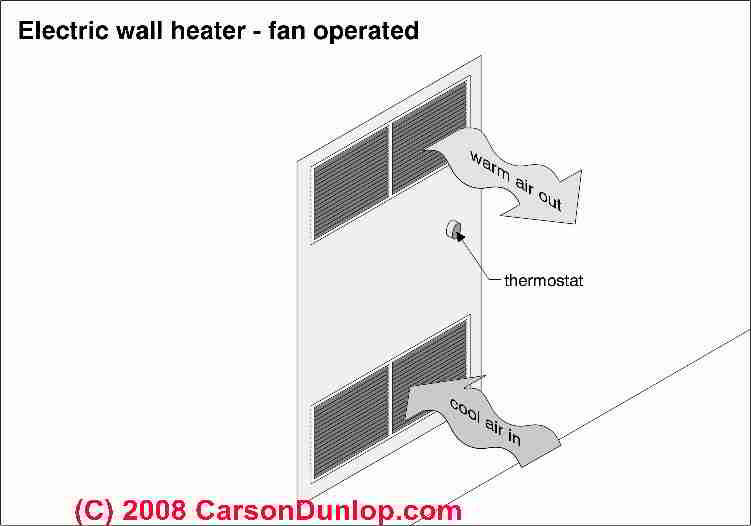

Wall-mounted electric heaters (usually recessed or flush mounted such as the Cadet™ electric heater at left; also see Carson Dunlop's sketch) are often used in hallways, entrance foyers, and other locations where spot heat is needed. See Cadet & Encore Heater Recall for a safety recall on this heater type.
Electric radiant heat panels have been installed in homes for over 50 years. Here's a sketch of a typical radiant heat ceiling layout. Electric radiant heat in ceilings was produced as both wires imbedded in gypsum board (drywall) and as wire panels taped to the upper surface of the ceiling drywall. Electric radiant heating panels are also available that fit perfectly into a suspended ceiling grid.
Electric plenum heaters are used as supplemental heat on combination fuel warm air systems such as wood fired furnaces and possibly on warm air systems heated by a heat pump.

Wesix™ type Wall & Floor Mounted Electric Heaters: general information

We do not have research data on this nor other specific brands of small point-of-use electric heaters (see US CPSC, Consumer Reports, and similar sources). We have read sporadic field reports of Wesix heaters. These electric heaters were made by the Wesix Electric Heater Company [WEH], a California company, chartered originally in 1938 and again in 1942, and headed by Thomas J. Mellon.

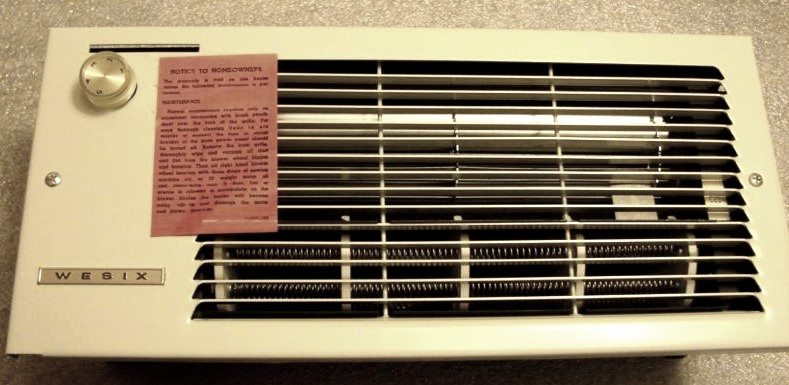

Wesix™ electric heaters were often installed in bathrooms, in floors as a small fan convector unit, and as electric baseboards, including both 120V and 240V models that included a brass data tag on the bottom of some units. The company also made the Wesix Mark IV ion collector used in researching the effect of ions on microorganisms and other biological materials.
Wesix heater product identification & electrical data:
- Wesix DHF-30T In-Wall Fan Forced Electric Heater 3000 W
- Wesix DHF-20 In-Wall Fan Forced Electric Heater 2000 W

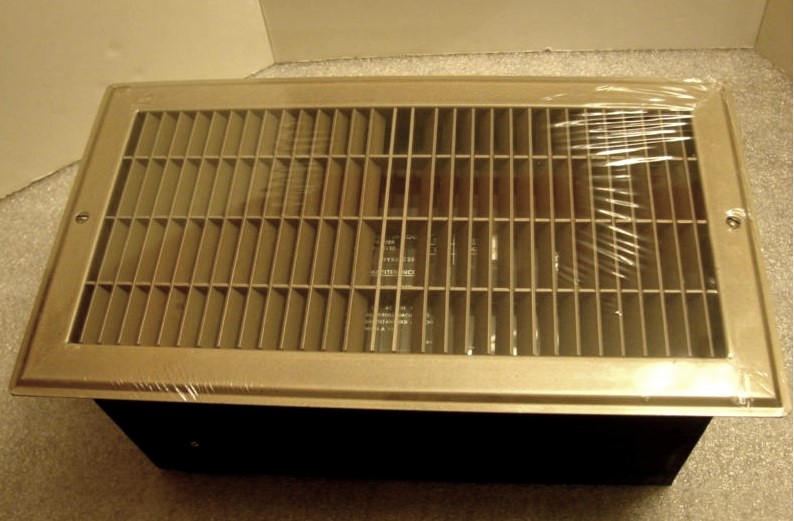

- Wesix in-floor fan type heaters
- Wesix 220 VAC 6.8 A, 1500 watts
- Wesix 120 AC, 15CHM-1-G-29-01
Possible Wesix electric heater (and similar product) concerns to be noted by owners or home inspectors:
- overheating covers
- age and reliability, including loose or corroded connections leading to loss of heat (easily repaired) and burned-out heater element (replace the unit) - neither of these defects are peculiar to this brand nor to a particular model (as reported
- Inoperative thermostat or controls
