Guide to Buying & using a Chemical Toilet or Portable Toilet
 Chemical Toilets: use a chemically treated reservoir located directly
below the toilet seat. The chemicals reduce odors and perform partial (incomplete) disinfection of the waste.
Chemical toilets have limited storage capacity and must be pumped and periodically cleaned by a septic
company. Similar to simple chemical toilets but more sophisticated in design are recirculating toilets which
separate the waste from the chemical and then re circulated the fluid through the toilet tank.
Chemical toilets with larger waste reservoirs are used in RV's and campers as well as for full-sized portable toilets or
Porta-Johns used at construction sites and at outdoor festivals.
Readers should also see TOILET ALTERNATIVES for a discussion of camping toilets, chemical toilets, emergency-use toilets, waterless toilets, graywater systems, composting toilets, home health care toilets, incinerating toilets, outhouses, and latrines. Citation of this article by reference to this website and brief quotation for the sole purpose of review are permitted.
The following is from: New York State Appendix 75-A.10 Other systems
(i) Chemical toilets provide a toilet seat located directly above a
vault containing a chemical to disinfect and remove odors from the wastewater. Recirculating toilets use chemicals as the toilet flush
fluid. The wastes are separated from the fluid, wastes discharged to an internal holding tank, and the fluid reused.
(ii) The liquids used in these types of toilets do not completely disinfect the wastes; therefore, waste products from these units shall
not be discharged to surface waters or to the ground surface.
(iii) The reduced volume wastewater from recirculating toilets may be discharged to a larger holding tank but not to a subsurface absorption
system.
Toilet Tips: How to Use and Maintain a Chemical Toilet
 Chemical Toilets: use a chemically treated reservoir located directly
below the toilet seat. The chemicals reduce odors and perform partial (incomplete) disinfection of the waste.
Chemical toilets have limited storage capacity and must be emptied and cleaned by the user.
The photograph at page top is of the Century 6205 2.6-Gallon Portable Toilet by Century Tool, a portable toilet which uses chemicals to deodorize and disinfect toilet waste. We built the wooden platform shown underneath this toilet in order to raise the seat height to a more comfortable position, but in normal use this toilet works just fine placed directly on a floor or on the ground outdoors.
Other common
portable toilets include models from Thetford, Sears, the Coleman, and Reliance toilets who provide a hassock model portable chemical toilet.
Here are complete details for operation and maintenance of the chemical porta-potty toilet.
Before First Use of the Toilet
- Check for deodorant/disinfectant: pull out the “T” handle located at the center of the toilet front to open the sliding door that separates the toilet bowl from the waste reservoir and look into the toilet base. If you see blue-green powder or liquid on the toilet bottom and perhaps a tiny amount of water then the toilet is ready for use. If there is no chemical visible in the toilet base the follow step 2. Otherwise go to step 3.
- Add deodorant/disinfectant: locate the chemical toilet disinfectant/deodorant chemicals. Both dry powder and liquid versions of chemical toilet holding tank deodorants and cleaners are available, as we show below where our photographs illustrate Coleman toilet holding tank chemical and Thetford's AquaKem toilet tank deodorant and sanitizer.
How to add chemical deodorant / disinfectant to a chemical toilet
- Separate the toilet top and bottom sections by un-latching the white plastic clips on the left and right side of the toilet, then lift the top away from the bottom section and set it aside.
- Open the waste reservoir: Pull the “T” handle located at the center of the front of the toilet base (same handle as described in step 1 above) to open the sliding door that opens the waste reservoir in the toilet base.
- Add chemical disinfectant (see How much chemical to add below).
- Replace the toilet top half onto the bottom reservoir base and re-latch the two side clips that secure these parts together.
- Add water: Push the toilet flushing rubber accordion-valve on the rear left corner of the toilet once or twice to flush water from the toilet top water tank into the toilet bowl. If there is no clean water in the toile top flush reservoir, see How to add water to the toilet top flush tank below).
- Close the waste reservoir opening by pushing the “T” handle back in.
The portable chemical toilet is now ready to use.
How much toilet disinfectant / deodorizing chemical to add
One packet of dry powder, or one plastic bottle of liquid portable toilet disinfectant / deodorant (shown above) is sufficient to treat forty gallons of wastewater, but this toilet base only holds about three gallons of waste, so just use a tiny amount, about 1/10 of a dry powder packet or 1/10 of a liquid bottle of chemical. Just estimate – precision is not necessary. Keep the chemicals away from children.
How to Use a Chemical Toilet
- Have a Seat. Please use this toilet only from the sitting position. Standing means messy splashes.
- Toilet tissue: we prefer to use RV-type biodegradable toilet tissue, but because this toilet is to be emptied into a septic system, any kind of toilet tissue is acceptable. See TOILET TISSUE TEST for an ongoing test of the break-down of several types of toilet paper including RV-type toilet paper recommended for chemical toilets and RV/Marine sewage holding tanks.
- Flushing the toilet after use:
 |
- Open the waste reservoir in the toilet base - Pull the “T” handle located at the center of the front of the toilet base (same handle as described in step 1 above) to open the sliding door that opens the waste reservoir in the toilet base.
- Flush: Push the toilet flushing rubber accordion-valve on the rear left corner of the toilet once or twice to flush water from the toilet top water tank into the toilet bowl. (see “How to add water to the toilet top flush tank” below). One or two pushes of the valve are usually sufficient. More is ok but you will need to empty the waste reservoir sooner if excessive flush water is used.
- Close the waste reservoir – push the “T” handle back in.
How to Add Water to the Chemical Toilet Top Flush Tank
- If the toilet top flush water reservoir needs water
- Separate the toilet top and bottom sections by un-latching the white plastic clips on the left and right side of the toilet, then lift the top away from the bottom section.
- Carry the toilet top section to a convenient location close to a garden hose.
- Unscrew the white plastic cap on the top right corner of the toilet top section and fill the tank about ¾ full with clean water. Precision is not necessary, just estimate. Filling the tank completely is ok but makes it a bit heavier for some folks to carry.
- Replace the white plastic cap on the toilet reservoir tank.
- Replace the toilet top half onto the bottom reservoir base and re-latch the two side clips that secure these parts together.
When to Empty and Clean the Chemical Toilet
When you observe that the toilet bottom waste reservoir tank is getting full (liquid is near the top of the opening visible when you pull the “T” handle out to give view into the bottom tank) the toilet needs to be emptied.
Or
When use of the toilet is not going to be required for a few days or longer periods it should be emptied, cleaned, and left empty.

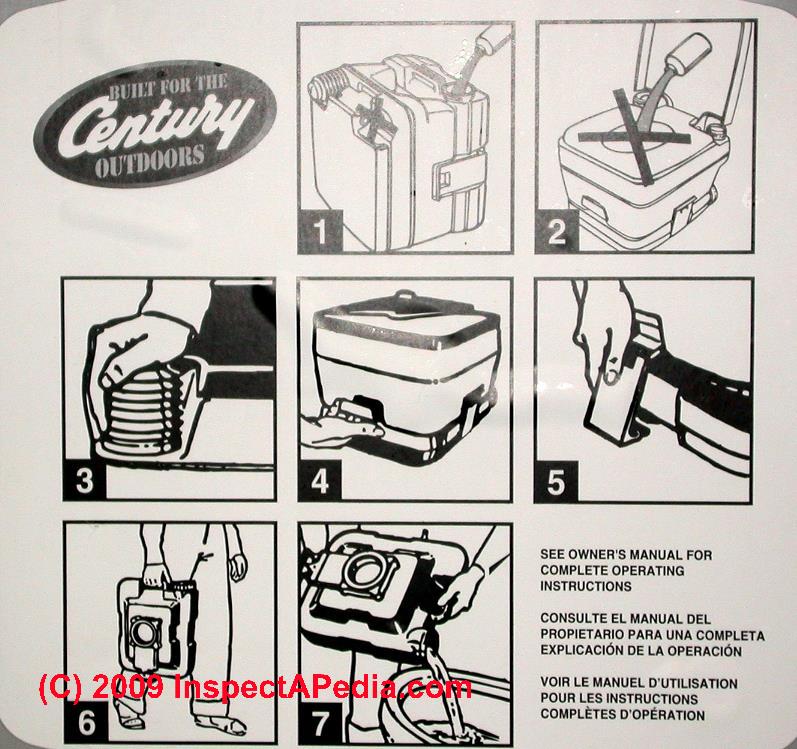

The illustration at left shows simple pictorial instructions provided by Century Tool, the manufacturer of the portable toilet used to illustrate this article.
- Adding toilet deodorant / disinfectant through the toilet waste reservoir base opening.
- Do not pour toilet chemicals directly into the toilet bowl.
- Pump water from the toilet top section flush reservoir into the toilet bowl
- Pull the "T" lever to empty water or waste into the toilet bottom reservoir, (then push this opening closed again).
- How to un-latch and separate the toilet top and bottom sections
- Carrying the portable toilet waste reservoir to a dumping station
How to Empty and Clean the Chemical Toilet
Emptying the portable toilet waste reservoir into a toilet or other dumping locadtion
- To empty out the portable toilet:
- Separate the toilet top and bottom sections if you have not already done so.
- Empty the toilet waste reservoir by unscrewing the large round cap found on the rear of the toilet waste reservoir. You’ll notice that when carrying the toilet waste reservoir by its handle this cap will be “up” and the “T” handle or toilet front will be facing down.
- Be sure that the toilet bottom reservoir is closed: that is, assure that the “T” handle at the toilet front has been pushed in.
- Carry the toilet outside: For convenience the entire toilet can be carried outside, or if you prefer, separate the top and bottom sections of the toilet while it is still indoors, and then each half can be carried separately outside. Handles on the rear of both top and bottom halves of the toilet allow easy carrying.
- Wash the toilet top and bottom halves thoroughly outdoors using a garden hose. If a small amount of deodorant/disinfectant remains in the waste reservoir you can add water from a garden hose, slosh the waste inside the reservoir to loosen it, and then empty this diluted wastewater out.
Now you are ready to install a new dose of chemical toilet deodorant and a few ounces of clean water.
Where to Empty a Chemical Toilet or "porta potty"
If a local septic tank outdoor access port is available, open the septic tank pump-out port at the top of the septic tank cleaning riser pipe. Pour the toilet waste reservoir contents into that opening and replace the cap on the pumping port immediately.
If the septic tank pump-out port has become buried by deep snow, or if no septic tank outdoor port nor RV dumping station is available, the portable toilet can be emptied into an indoor toilet – pour carefully so as not to splash.
Is it acceptable to ever dump an RV toilet into a home septic system tank?
 The answer is, ... it depends.
Our photo (left) shows a small chemical toilet holding tank being emptied into the service riser over a residential septic tank. In some circumstances this is ok.
Dump into Septic Tank? is a detailed article explaining when it is probably ok and when it is probably not ok to dump a chemical toilet, a porta-potty, or an RV waste holding tank into a septic tank (rather than dumping these at a sanitary waste disposal station, for example, at a campground or marina).
Portable toilets include these brands: Thetford Porta Potti, SeaLand’s SaniPottie, Coleman Portable Toilet, Fiamma Bi-Pots, Century Portable Toilet, Dometic Sani Porti, Visa Potty, Companion Eziloo and Primus Deluxe Portable Loo. CONTACT us to add other portable or camping or alternative toilets and products.
Also see our detailed article about camping and emergency use toilets found at Camping & Emergency Toilets.
Watch out: SEPTIC & CESSPOOL SAFETY discusses the importance of safe, non-collapsing and child-proof septic tank access covers. |
How to Store a Chemical Toilet When Not in Use
When use of the chemical toilet is not going to be required for a few days or longer periods it should be emptied completely, washed, and left empty.
For odor and sanitation control, add a fresh dose of disinfectant/deodorant to the toilet waste reservoir followed by about a half-cup of water (just enough to wet the dry chemical and cover the bottom of the waste reservoir). (see How Much Chemical to Add above).
Do not leave the toilet top tank filled with flush-water as it may freeze and damage the toilet.
Replacing the Accordion Valve on a Chemical Toilet or Porta Potty
Question: How can I replace the accordion valve flush-plunger on my chemical toilet?
The accordian valve on my chemical toilet is damaged. Can it be replaced? - B. Howard
Reply: Yes but it's not easy to replace the accord ian valve or flush valve on a porta potty

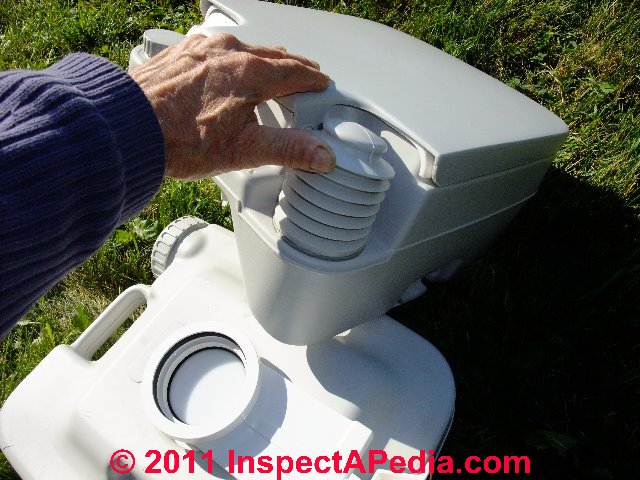

The accordion valve on a chemical toilet is that flexible plunger pushed to force water from the reservoir tank into the toilet bowl (photo at left). On at least some chemical toilets it's a replaceable part - you'll want to obtain exactly the proper part that matches your toilet to be sure that the replacement fits and doesn't leak.
I've replaced similar parts by carefully cutting and pulling away the old accord ian valve without damaging the plastic that surrounds the valve mounting opening. The new valve may need to be warmed in hot water a bit as well as kept wet to fit it into the opening. But I found it was a difficult process.
Watch out: You'll probably find, as I did, that a sticky sealant is used between the accordion valve or flush valve surface and the upper surface of the plastic porta potty at the mounting hole. You may need a replacement sticky gasket kit from the manufacturer to do this job reliably. If you fail to seal the valve at its mount position the new toilet flush valve will look fine, but it may not pump an adequate dose of water into the toilet bowl for flushing.
Preparing a Chemical Toilet Porta Potty for Use in Freezing Conditions
Question: How to freeze-proof a porta potty
I want to keep my porta potty in my van for occasional use during the upcoming Michigan winter. How do I keep it useful without it freezing? - Bonnie Jones
Reply: RV Wastewater System Anti-Freeze, Heat, or Leave the System Empty
Short answer: to keep a portapotty in a van in freezing conditions, first buy and use RV wastewater and flush water environmentally safe antifreeze product from an RV supplier.
Option 1: leave the toilet drained, empty, and treated
We leave a chemical toilet in a remote cabin in northern Minnesota through very deep freezing weather. But first we empty the water from the flush reservoir and we empty the toilet base as well. Then we leave a very small quantity of water along with toilet treatment chemical in the toilet base receptacle. By that means the toilet fresh, without a lingering worry about developed odors, bacteria, or mold growth while it's sitting idle. The toilet is almost ready to use when people return to the cabin. All that's needed is to add water to the flush reservoir.
I would not leave any water in the toilet nor waste in the toilet in freezing conditions. The risk is that frozen water or wastewater breaks the toilet and later thaws, leaving a mess in your van.
Option 2: use an RV antifreeze product in the chemical toilet?
For buildings (or vans) where we need to leave a portapotty in ready-to-use condition in freezing conditions we'd have to add a heat source OR we'd need to add an antifreeze mix to be sure of avoiding damage. You MIGHT get away with letting a small amount of waste in the toilet bottom freeze but it's risky.
People who own an RV or a boat that includes water supply and waste piping learn that to winterize their vehicle they need to drain the system of water and usually they also add an antifreeze to be sure that pumps or any components that might contain residual water won't be damaged by freezing.
If you check with your local RV suppliers you'll find that they sell RV wastewater holding tank antifreeze for use in the holding tanks in those larger vehicles. Most RV and Marine antifreeze solutions use ethylene glycol (EG) or propylene glycol (PG), with glycerin as a primary second ingredient. Also in RV applications and some others, antifreeze solutions include phosphates as an anti-corrosion agent that you would not need in an all-plastic water or wastewater system. (Phosphate-containing antifreeze is used in the U.S. but prohibited in Europe.)
According to Splashproducts propylene glycol antifreeze is considered "generally regarded as safe" or "GRAS" by the U.S. FDA. The company states that their RV & Marine antifreeze is "Safe for incidental contact with people, pets, and wildlife". [1] We'd always prefer to use an environmentally safe product that can be used in both the flush water supply and in the wastewater holding tank if you are going to use an antifreeze in a chemical toilet or portapotty.
You will also find "drinkable" antifreeze (propylene glycol based antifreeze) sold by other RV suppliers and intended for use in the RV's drinking water holding tank and pump. Although no one is going to be drinking out of your porta-potty, that's what I'd prefer to use in the porta potty flush reservoir tank.
Watch out: be sure to follow the proper dilution instructions on the product label so that you don't over-dose your porta potty nor the dumping station into which it is later emptied.
Watch out: many antifreeze solutions are toxic if ingested (drunk) and may also be environmental contaminants that should not be dumped into a septic tank nor onto the ground surface.
Are chemical toilets useful as a septic system design alternative or not?
 While at least some manufacturers of the chemicals used in chemical toilets (to deodorize and to stop bacterial action in order to prevent
dangerous production of potentially explosive methane gas inside the toilet) inform us that their products are environmentally friendly,
New York State, as an example, does not want homeowners discharging chemical toilets into the environment.
Further, as we have advised
at Dump into Septic Tank? about dumping RV toilets into the septic system, there is some risk that discharging these chemicals into a conventional
septic system could cause it to stop working, depending on the frequency and volume of chemical waste to be disposed-of.
With this in mind, we use chemical toilets where there is no onsite waste disposal system at all such as in a weekend
cabin without plumbing, or in RV's, but not as a permanent toilet facility in a permanently occupied building. Chemical
toilets or camping toilets and porta-potties are also suitable for the "pack it in, pack it out" environment in which waste is removed from the site and dumped at an approved
RV dumping facility.
Chemical or portable toilets may also be a life-saver for home health care or for elderly, disabled, or other people of limited mobility who need a close-by toilet or who need to avoid excreting large amounts of drugs or antibiotics into a private septic system. See Disabled or Elderly-Use Toilets for more information.
Frequently Asked Questions (FAQs) about how to buy, use, clean & maintain chemical & portapotty type toilets
Question: can I use household chemicals as an alternative to over-the-counter toilet deodorants & disinfectants
there are alternative effective recipes for use in Portable toilets that can be made from household chemicals. Do you know of any such mixtures that are available - Colin 6/12/11
Reply: yes maybe sort-of
Raft-camping down the Colorado River we carried an ammunition can used as an emergency day-toilet. Inside the can were supplies including ziplok plastic bags, toilet paper, and a small bottle of diluted bleach. The routine was to defecate into the baggie and also use it to dispose of toilet paper. Since all of that waste had to be packed out of the Canyon, and because the can was exposed to high temperatures during the day, we poured a little bleach into each baggie to slow the decomposition and gas production - avoiding an exploding ammo can.
But in general I don't recommend do-it-yourself toilet chemical experiments since there are health and safety risks.
Furthermore, using bleach or PineSol or similar household cleaners in a portable toilet is likely to leave you with no place to dump the toilet when it needs to be emptied and cleaned. That's because RV parks and other porta-potty waste receivers won't want you dumping into their systems a mix of waste that includes chemicals that kill off bacteria. Killing off septic tank bacteria with bleach or household cleaners interferes with septic tank function and can lead to not only ground water contamination but also costly septic drainfield failures or increased costs of extra septic tank pumpouts.
Question: how do I keep my porta-potty from freezing?
I want to keep my porta potty in my van for occasional use during the upcoming Michigan winter. How do I keep it useful without it freezing? - Bonnie Jones 10/5/11
Reply:
Good question Bonnie.
Short answer: to keep a portapotty in a van in freezing conditions, first buy and use RV wastewater and flush water environmentally safe antifreeze product from an RV supplier.
We leave a chemical toilet in a remote cabin in northern Minnesota through very deep freezing weather. But first we empty the water from the flush reservoir and we empty the toilet base as well. Then we leave a very small quantity of water along with toilet treatment chemical in the toilet base receptacle. By that means the toilet is almost ready to use when people return to the cabin. All that's needed is to add water to the flush reservoir.
I would not leave any water in the toilet nor waste in the toilet in freezing conditions. The risk is that frozen water or wastewater breaks the toilet and later thaws, leaving a mess in your van.
For buildings (or vans) where we need to leave a portapotty in ready-to-use condition in freezing conditions we'd have to add a heat source OR we'd need to add an antifreeze mix to be sure of avoiding damage. You MIGHT get away with letting a small amount of waste in the toilet bottom freeze but it's risky.
If you check with your local RV suppliers you'll find that they sell RV wastewater holding tank antifreeze for use in those larger vehicles. Basically it will be an environmentally safe product that can be used in both the flush water supply and in the wastewater holding tank.
Be sure to follow the proper dilution instructions on the product label so that you don't over-dose your porta potty nor the dumping station into which it is later emptied.
Also see Preparing a Chemical Toilet Porta Potty for Use in Freezing Conditions
Question: how do I treat a toilet so it can be left for weeks?
Is there no way to treat a toilet so that it can be left for weeks? Thing is we only use the toilet a couple of times when we visit a remote cabin. Getting the toilet to a dump point is a mission, so it would be good if there was a way to avoid it each visit. - Mark 2/1/2012
Reply:
Mark, if you use the proper amount of disinfectant I've found that a chemical toilet is just fine left alone for weeks;
Question: where can I buy a chemical toilet in Ghana?
i live in an area which has a lot of salty water in the soil. if the water does not affect the manhole the salt would. i need this portable chemical potty to buy where can i get one in Ghana - Evelyn 11/9/12
Reply:
Evelyn portable chemical toilets are sold worldwide in most large cities at camping and RV suppliers, contractor supply houses and some plumbing suppliers; if you can't find a close source I'd just ask someone to bring one in for you - they're not heavy. The Thetford is particularly widely distributed, and back in 2011 we read of a whole collection of test-porta-potty toilets being brought from the U.S. to Kumasi by Danny Alexander.
However as you'll read in the article above, a small porta-potty is not going to be very functional for permanent or regular use in a home with more than one or two occupants - you'll find that you have to empty and clean the unit daily; conversely, a very large reservoir portable toilet means that it may be heavy and awkward to carry to a disposal point.
Where electricity is limited, there is LP fuel shortage, or where cost matters, therefore ruling out an incinerating toilet, you might be better off considering a composting type toilet, even a site-constructed one. See COMPOSTING TOILETS.
Question: is it OK to dump my chemical toilet into the outhouse ?
I have a cabin way up north and are wondering about a chemical toilet instead of using the out house at nite because there are bears and wolves there. The out house is legal there. Would it be safe to dump the chemical in the out house - Dave
Reply:
Dave,
OPINION: it would be safe to dump normal concentrations of chemical toilet waste into the outhouse but it will also have the effect of slowing down any biodeterioration that may have been expected there. Since outhouses collect a rather concentrated dose of solid feces and liquid urine, the rate of break-down of waste is very slow anyway, and the usual procedure is to move the outhouse and bury the pit when it's near full.
I'm doubtful that modest doses of chemical toilet waste will make much of a change there other than perhaps reducing odors. But I'd be sure not to overdose the chemical toilet - just use the required amount of chemical, don't dump whole bottles or packets of chemical into your chemical toilet or you'll be dumping more than needed into the outhouse, and you might risk leaching chemicals into surrounding soil.
Question: we are considering getting a chemical toilet - are they smelly? Can the chemicals be flushed into a home septic tank?
We are considering getting a chemical toilet for use in our home's bathroom. My questions are, can chemical toilets be flushed into a home septic tank, and do they smell really bad after a bowl movement?
Any suggestions as to which type of chemical toilet would be good for in-home use would be greatly appreciated. - K.S. 1/23/13
Reply:
Chemical toilets are not smelly - at least not from urine or feces that are placed in the toilet, any more than a water-flush toilet. The deodorant recommended by the manufacturer is placed in the chemical toilet holding tank along with a small volume of water as a starter; it's effective both in odor and sanitation;
If you don't use a recommended treatment chemical, indeed the toilet may smell and also may be unsanitary if not emptied very frequently.
Provided you follow the dilution and usage instructions, limited emptying of a chemical portapotty type toilet into a home septic tank should not be harmful - the preservative in the deodorant should be quite dilute.
Details are in the article above.
We discuss the worry of dumping chemical toilet chemicals into the septic tank in more detail at Dump into Septic Tank?
Ask a Question or Search InspectApedia
Questions & answers or comments about buying, using, maintaining, repairing, and emptying out a chemical toilet or porta potty.
Ask a Question or Enter Search Terms in the InspectApedia search box just below.
Technical Reviewers & References
Related Topics, found near the top of this page suggest articles closely related to this one.
[1] Splash RV & Marine Antifreeze, Splashproducts, Inc., Tel (651) 489-8211, 51 East Maryland Avenue, St. Paul, MN 55117-4615, web search 05/10/2011, original source: MSDS for Splash Products found at http://www.splashwash.com/data_sheets%5CMSDS%20RV-100%20new%20format.pdf
- Products - for Alternative Septic System Designs aerobic system pumps, media filters, gravelless systems, other advanced wastewater treatment products
including waterless, low water, chemical, and incinerating toilets.
- The Century 6205 2.6-Gallon Portable Toilet by Century Tool shown in the photograph at page top was purchased at Amazon.com and costs less than $100. Other Century Tool camping products can be seen at centurycamping.com/
- Coleman Corporation, 3600 North Hydrauli, Wichita, KS 67219, Tel: 1-800-835-3278, is a producer of camping equipment and gear, including chemical and portable toilets including both non-flush portable toilets and a large portable flush-toilet. Coleman has offices in many countries.
- Reliance Products, 1093 Sherwin Road, Winnipeg, MB, Canada R3H 1A4, Toll Free: 1-800-665-0258, Telephone: (204) 633-4403, produces the Reliance Hassock Portable Toilet #00984421. Quoting from the company's website:
Whether you’re on the road, in a campground, out on the water, or at the cabin, the Hassock is one of best portable toilets around. This lightweight, self-contained toilet has a comfortable contoured seat, a removable inner bucket for easy waste disposal and clean-up, an inner splash cover, and toilet paper holder.
In addition, the Hassock is compatible with our standard Double Doodie bag, which means virtually no clean-up and waste disposal is a snap when used together.
- Rothco Corporation, 3015 Veterans Memorial Highway, Ronkonkoma, New York 11779-0512, Telephone: 631-585-9446, Toll Free: 800-645-5195
Domestic Fax: 631-585-9447, International Fax: 631-585-9442,
Email: info@rothco.comTel. 800-645-5195; Rothco, founded in 1953, is a wholesale supplier of military and outdoor products including camping toilets. Quoting:
ROTHCO is America’s foremost wholesale supplier of military and outdoor products. We carry an extensive line of apparel and gear available for domestic and overseas sale to resellers of all types: retail, wholesale, military, police, security, outdoor products, screen printers, uniform dealers, fashion retailers, and sportswear shops.
For nearly 50 years we’ve primarily serviced independently-owned Army/Navy surplus stores across America, but in recent years ROTHCO has expanded our customer and product range to include new lines of sportswear and over 25% of our sales are now to overseas customers.
- Thetford Corporation 7101 Jackson Road, Ann Arbor, MI 48103, Phone: 1-800-543-1219, 734-769-6000, Fax: 734-769-2023; Thetford produces a wide range of permanent and portable alternative toilet designs. Quoting:
Our [toilet] products are easy to use at bedside and indispensable for the physically challenged, the aged, and small children.
Thetford's list of toilet products suitable for home or bedside health care are listed at
http://www.thetford.com/Thetford/HOME/ApplicationHome/BedsideApplications/tabid/94/Default.aspx
- Mark Cramer Inspection Services Mark Cramer, Tampa Florida, Mr. Cramer is a past president of ASHI, the American Society of Home Inspectors and is a Florida home inspector and home inspection educator. (727) 595-4211 mark@BestTampaInspector.com 11/06
- Hankey and Brown home inspectors, Eden Prairie, MN, technical review by Roger Hankey, prior chairman, Standards Committee, American Society of Home Inspectors - ASHI. 952 829-0044 - hankeyandbrown.com 11/06
- Arlene Puentes, a licensed home inspector, educator, and building failures researcher in Kingston, NY. 11/29/06
- Products - for Alternative Septic System Designs aerobic system pumps, media filters, gravelless systems, other advanced wastewater treatment products
including waterless, low water, chemical, and incinerating toilets.
- The Century 6205 2.6-Gallon Portable Toilet by Century Tool shown in the photograph at page top was purchased at Amazon.com and costs less than $100. Other Century Tool camping products can be seen at centurycamping.com/
- Composting Toilet System Book: A Practical Guide to Choosing, Planning and Maintaining Composting Toilet Systems, David Del Porto, Carol Steinfeld. Quoting an Amazon review: Del Porto's book is the definitive composting toilet book at this time. There is nothing even close. His book covers all aspects of composting toilet systems and touches on graywater issues as well. He treats the composting toilet as part of the home system. If a person is seriously interested in installing/having a composting toilet, this book can save him/her all of the mistakes people usually make. He even (carefully) explodes some of the advertising myths that the purveyors of composting toilets would have us believe. The book covers ready-made systems as well as home built systems. As trite as this sounds, the book truly is a must for someone considering installing composting toilet.
- The Humanure Handbook: A Guide to Composting Human Manure, 3rd Ed.,
Joseph C. Jenkins. Quoting part of an Amazon review: The Humanure Handbook provides a wealth of thoroughly researched, hands-on experience and scientific data that demonstrates that after a natural process called "thermophilic" bacterial digestion, which occurs in a compost bin and where all pathogens are killed, excreta is then converted to a valuable nutrient for agriculture and thereby completing a full-circle life cycle. Most importantly, effluent can then be kept out of our drinking water and not treated or referred to as an undesirable "waste product".
The information is conveyed in a humorous, folksy, down-to-earth easy to understand style along with drawings, charts, tables, photos and a wealth of resource info for further research. Jenkins' website has a forum for sharing more info, experiences and to answer any and all questions in the process of humanuring and constructed wetland gray water treatment.
- Thermal composting of fecal matter as treatment and possible disinfection method--laboratory-scale and pilot-scale studies,
B. Vinneras, A. Bjorklund, H. Jonsson. Quoting Amazon review: When using toilets where the urine and faeces are collected separately for reuse as nutrients in agriculture, the collected matter should be disinfected. One way to do this is by thermal composting. Composting of different material mixes was investigated in a laboratory-scale experiment. This showed that the best mixture for dry thermal composting was a mix of faeces, food waste and amendment. The urine was collected separately by use of urine-diverting toilets. A new method was developed to mathematically evaluate and estimate the safety margins of pathogen inactivation during thermal composting. The method is based upon a mathematical calculation of the number of times total inactivation (at least 12log"1"0 reduction) of the organisms is achieved. In a pilot-scale experiment, the disinfection of a faeces/food waste mix was performed with a calculated safety margin of more than 37 times the total die-off of Enteroviruses and some 550 times that of Ascaris. Thus, well functioning composting seems to be
effective for disinfection of faecal matter. To get a high temperature in all of the material, the reactor has to have sufficient insulation. A major disadvantage is the initial need for handling the raw un-disinfected material. The degradation of the organic matter in the compost was almost 75%, resulting in a small final volume that could safely be recycled.
- Experiences with a composting toilet article from: Countryside & Small Stock Journal, available as HTML download.
Quoting Amazon review: This digital document is an article from Countryside & Small Stock Journal, published by Countryside Publications Ltd. on May 1, 1994. The length of the article is 1516 words. The page length shown above is based on a typical 300-word page. The article is delivered in HTML format and is available in your Amazon.com Digital Locker immediately after purchase. You can view it with any web browser.
From the supplier: A composting toilet is a good alternative to propane burning toilets, but it also has many problems. The worst part is emptying the waste and compost every 4-6 weeks. Other problems are the fan that must be kept running constantly and bug infestation.
- Decentralized Systems Technology Fact Sheet: Septic Tank - Soil Absorption Systems, U.S. EPA, PDF Document provides basic information about septic tanks and drainfields.
Books & Articles on Building & Environmental Inspection, Testing, Diagnosis, & Repair
 The Home Reference Book - the Encyclopedia of Homes, Carson Dunlop & Associates, Toronto, Ontario, 25th Ed., 2012, is a bound volume of more than 450 illustrated pages that assist home inspectors and home owners in the inspection and detection of problems on buildings. The text is intended as a reference guide to help building owners operate and maintain their home effectively. Field inspection worksheets are included at the back of the volume. Special Offer: For a 10% discount on any number of copies of the Home Reference Book purchased as a single order. Enter INSPECTAHRB in the order payment page "Promo/Redemption" space. InspectAPedia.com editor Daniel Friedman is a contributing author.
Or choose the The Home Reference eBook for PCs, Macs, Kindle, iPad, iPhone, or Android Smart Phones. Special Offer: For a 5% discount on any number of copies of the Home Reference eBook purchased as a single order. Enter INSPECTAEHRB in the order payment page "Promo/Redemption" space.
|
- Advanced Onsite Wastewater Systems Technologies, Anish R. Jantrania, Mark A. Gross. Anish Jantrania, Ph.D., P.E., M.B.A., is a Consulting Engineer, in Mechanicsville VA, 804-550-0389 (2006). Outstanding technical reference especially on alternative septic system design alternatives. Written for designers and engineers, this book is not at all easy going for homeowners but is a text I recommend for professionals--DF.
- Builder's Guide to Wells and Septic Systems, Woodson, R. Dodge: $ 24.95; MCGRAW HILL B; TP;
Quoting from Amazon's description: For the homebuilder, one mistake in estimating or installing wells and septic systems can cost thousands of dollars. This comprehensive guide filled with case studies can prevent that. Master plumber R. Dodge Woodson packs this reader-friendly guide with guidance and information, including details on new techniques and materials that can economize and expedite jobs and advice on how to avoid mistakes in both estimating and construction. Chapters cover virtually every aspect of wells and septic systems, including on-site evaluations; site limitations; bidding; soil studies, septic designs, and code-related issues; drilled and dug wells, gravel and pipe, chamber-type, and gravity septic systems; pump stations; common problems with well installation; and remedies for poor septic situations. Woodson also discusses ways to increase profits by avoiding cost overruns.
- Country Plumbing: Living with a Septic System, Hartigan, Gerry: $ 9.95; ALAN C HOOD & TP;
Quoting an Amazon reviewer's comment, with which we agree--DF:This book is informative as far as it goes and might be most useful for someone with an older system. But it was written in the early 1980s. A lot has changed since then. In particular, the book doesn't cover any of the newer systems that are used more and more nowadays in some parts of the country -- sand mounds, aeration systems, lagoons, etc.
- US EPA Onsite Wastewater Treatment Systems Manual [online copy, free] Top Reference: US EPA's Design Manual for Onsite Wastewater Treatment and Disposal, 1980, available from the US EPA, the US GPO Superintendent of Documents (Pueblo CO), and from the National Small Flows Clearinghouse. Original source http://www.epa.gov/ORD/NRMRL/Pubs/625R00008/625R00008.htm Onsite wastewater treatment and disposal systems,
Richard J Otis, published by the US EPA. Although it's more than 20 years old, this book remains a useful reference for septic system designers.
U.S. Environmental Protection Agency, Office of Water Program Operations; Office of Research and Development, Municipal Environmental Research Laboratory; (1980)
- Eco John® Innovative Toilet Solutions, Global Inventive Industries, Fountain Valley CA, PDF, product brochure
- "International Private Sewage Disposal Code," 1995, BOCA-708-799-2300, ICBO-310-699-0541, SBCCI 205-591-1853, available from those code associations.
- "Manual of Policy, Procedures, and Guidelines for Onsite Sewage Systems," Ontario Reg. 374/81, Part VII of the Environmental
Protection Act (Canada), ISBN 0-7743-7303-2, Ministry of the Environment,135 St. Clair Ave. West, Toronto Ontario M4V 1P5 Canada $24. CDN.
- Manual of Septic Tank Practice, US Public Health Service's 1959.
- The New Create an Oasis With Greywater, Art Ludwig; Buy New: $14.25. Ludwig is one of the most thoughtful, prolific, and sometimes controversial writers on gray water systems and alternative designs. We recommend his book as clear, easy-to-understand writing aimed at property owners who want or need to consider a graywater installation to conserve water, recycle water, reduce water use, or to reduce the load on their septic system. This is the latest edition of this Art Ludwig's greywater design book classic.
- Builder's Greywater Guide, Art Ludwig; Buy New: $10.17. Installation of Greywater Systems in New Construction & Remodeling; A Supplement to the Book "Create an Oasis With Greywater" (Paperback).
Quoting a review from Amazon: I recommend that you get the 3 companion books on greywater treatment "Create an Oasis", "Branched Drain Greywater Systems" and "Builder's Greywater Guide". The information in these volumes will keep most of us far more informed than most of the regulators, the system builders, and the experts-in-theory. These volumes are real-world gems.
Art Ludwig has cut to the core of wastewater issues. He's obviously done all of his homework, mulled-over the variables, and come up with a common sense, economically reasonable, environmentally responsible approach to wastewater. I expect to save money that I would have spent on a post-septic tank, aerobic unit that would seemingly have been ecologically responsible; but because of the technological overkill, ultimately that system would have defeated my altruistic environmental concerns.
... These books talk the talk and walk the walk better than anything else that I've seen. Buy a set for yourself, a set for your neighbors, and a set for the regulators.
- Branched Drain Greywater Systems [superseded by "The New Create an Oasis with Greywater"], Art Ludwig. If you already have this book but are in the process of installing new gray water systems you should take a look at the newer
edition listed first above in this section of our Greywater book recommendations.
You may prefer the newest edition, but there is great information in this older version, perhaps all you need, and these copies are
sold at very low prices - an aid to people of limited means.
- Create an Oasis With Greywater: Your Complete Guide to Choosing, Building and Using Greywater Systems, Art Ludwig, [superseded by new edition] (Paperback) You may prefer the newest edition, but as I said above, there is great information in this older version, perhaps all you need, and these copies are
sold at very low prices - an aid to people of limited means.
- Rainwater Catchment Systems for Domestic Supply: Design, Construction and Implementation,
Erik Nissen-Petersen, John Gould. (Mr. Ludwig, while much appreciated, is not the only author providing really useful design guides for graywater systems--DF)
Quoting from an Amazon review: This book reviews the art of roof and ground catchment systems for rainwater. The water collected can be used for household or other purposes. The designs are aimed for individuals with limited access to electricity and/or civic water utilities. The text includes drawings, photographs and step-by-step instructions.
One might say the book is really written for the 'aid worker' since it also considers ethnic and gender issues that would be 'obvious' to the future owners of the the systems.
- Guidelines on rainwater catchment systems for Hawaii, (CTAHR resource management publication)
Patricia S. H Macomber. This more technical document may be especially helpful for rainwater collection and recycling systems for climates
where there is heavy rainfall such as demonstrated for Hawaii.
- Design for Water: Rainwater Harvesting, Stormwater Catchment, and Alternate Water Reuse, Heather Kinkade-Levario. Quoting from Amazon's review: Design for Water is an accessible and clearly written guide to alternate water collection, with a focus on rainwater harvesting in the urban environment. The book:
Outlines the process of water collection from multiple sources-landscape, residential, commercial, industrial, school, park, and municipal systems
Provides numerous case studies, Details the assembly and actual application of equipment, Includes specific details, schematics, and references.
All aspects of rainwater harvesting are outlined, including passive and active system setup, storage, storm water reuse, distribution, purification, analysis, and filtration. There is even a section on rainwater harvesting for wildlife.
In addition to rainwater, there are several affordable and accessible alternate sources, including cooling tower bleed-off water, air conditioning condensate, gray water, and fog collection. Design for Water is geared to providing those making development decisions and guidelines with the information they need to set up passive harvesting techniques. The book will especially appeal to engineers, landscape architects, municipal decision-makers, developers, and landowners.
Heather Kinkade-Levario is a land-use planner in Arizona and the author of the award-winning Forgotten Rain. She is president of Forgotten Rain L.L.C., a rainwater harvesting and stormwater reuse company.
- The Toilet Papers: Designs to Recycle Human Waste and Water : Dry Toilets, Greywater Systems and Urban Sewage (Paperback) Sim Van Der Ryn, Wendell Berry; Quoting from an Amazon review: With a title like "Toilet Papers" and from a distinguished eco-architect like Sim Van der Ryn, I needed no intro or review to buy a copy of this little, but well researched historical over-view of effluent mitigation and current eco-friendly toilet design.
This book is filled with good line drawings and photographs to depict everything from the historical perspective to the current dry toilets and their construction..
- Rainwater Reservoirs Above Ground Structures for Roof Catchment: Most Common Rainwater Tanks in Comparison and Construction Manual, (Paperback) Rolf Hasse. [I have not reviewed this book --DF, but it may be helpful to people constructing rainwater collection and reservoir systems for use in arid climates such as Mexico and the U.S. Southwest.
- Quality issues in harvested rainwater in arid and semi-arid Loess Plateau of northern China,
K. Zhu, L. Zhang, W. Hart, M. Liu, H. Chen (out of print, find by search and deferred order).
Amazon's description may be helpful: Loess soils cover vast areas in the arid and semi-arid regions of northern China. Due to the lack of reliable surface water and ground-water, rainwater harvesting has played a prominent role in farmers' domestic usage and agricultural irrigation. An economical and valid type of water storage cistern with optimum design of components has been introduced to rural areas in the Loess Plateau. Different collection alternatives showed apparent variations in rainwater quality. By using different catchments, such as mortar roofs and cement-paved courtyards, compacted land or road surfaces, rainwater can be effectively collected for storage in cisterns. This study focused mainly on the quality of rainwater harvested from the different catchment systems and stored for different periods of time. By analysis of the water samples stored in these cisterns, it was evident that rainwater quality could be improved significantly by self-purification during the storage. With emphasis on rainwater quality affected by the
different catchment systems, it was found that the measured inorganic compounds in the rainwater harvested from roof-yard catchment systems generally matched the WHO standards for drinking water, while the concentrations of some inorganic compounds in the rainwater collected from land and road surfaces appeared to be higher than the guideline values for drinking water, but generally not beyond the maximum permissible concentrations. However, Fecal Coliform, which is an important bacteriological parameter for the three catchment systems, exceeded the limits of drinking water to a greater extend. Trace amounts of 55 organic pollutants were identified, including aliphatic hydrocarbons, aromatic compounds and phthalate esters, etc. The analytical results indicated that roof-yard catchments that included the ''first flush'' usually provided safe drinking water with low organic contents, even for rainwater collected immediately after rainfall. In contrast, rainwater harvested from road surfaces had poor quality
with respect to the organic constituents, regardless of stored time.
- City eying home water-recycling technology; uses bath and washer water for irrigation., (ReWater Systems' equipment for greywater irrigation):
This is an article from: San Diego Business Journal [HTML] (Digital) available online in digital format. I have not (yet) reviewed it -- DF
- Onsite Wastewater Disposal, R. J. Perkins;
Quoting from Amazon: This practical book, co-published with the National Environmental Health Association,
describes the step-by-step procedures needed to avoid common pitfalls in septic system technology.
Valuable in matching the septic system to the site-specific conditions, this useful book will help you install a reliable system in
both suitable and difficult environments. Septic tank installers, planners, state and local regulators, civil and sanitary engineers,
consulting engineers, architects, homeowners, academics, and land developers will find this publication valuable.
- Onsite Wastewater Treatment Systems, Bennette D. Burks, Mary Margaret Minnis, Hogarth House 1994 - one of the best septic system books around, suffering a bit from small fonts and a weak index. (DF volunteers to serve as indexer if Burks/Minnis re-publish this very useful volume.)While it contains some material more technical than needed by homeowners, Burks/Minnis book on onsite wastewater treatment systems a very useful reference
for both property owners and septic system designers. We refer to it often.
While Minnis says the best place to buy this book is at Amazon (our link at left), you can also see this book at Minnis' website at http://web page .pace.edu/MMinnisbook
- Septic Tank/Soil-Absorption Systems: How to Operate & Maintain [ copy on file as /septic/Septic_Operation_USDA.pdf ] - , Equipment Tips, U.S. Department of Agriculture, 8271 1302, 7100 Engineering, 2300 Recreation, September 1982, web search 08/28/2010, original source: http://www.fs.fed.us/t-d/pubs/pdfimage/82711302.pdf
- Soil Percolation Tests soil perc testing guide and instructions
- Percolation Testing Manual, CNMI Division of Environmental Quality, PO Box 501304, Saipan, MP 96950
- Planting Over Septic System Component", Daniel Friedman (author/editor, InspectAPedia.com), The Innovator, Winter/Spring 2008, BCOSSA, British Columbia OnSite Sewage Association, 201-3542 Blansard St., Victoria BC V8X 1W3 Canada
- Save the Septic System - Do Not Flush These Items Down the Toilet, Daniel Friedman, InspectAPedia.com - PDF document, printable
- SEPTIC STANDARDS
- SEPTIC MAGAZINES
- Septic System Owner's Manual, Lloyd Kahn, Blair Allen, Julie Jones, Shelter Publications, 2000 $14.95 U.S. - easy to understand, well illustrated, one of the best practical references around on septic design basics including some advanced systems; a little short on safety and maintenance. Both new and used (low priced copies are available, and we think the authors are working on an updated edition--DF.
Quoting from one of several Amazon reviews: The basics of septic systems, from underground systems and failures to what the owner can do to promote and maintain a healthy system, is revealed in an excellent guide essential for any who reside on a septic system. Rural residents receive a primer on not only the basics; but how to conduct period inspections and what to do when things go wrong. History also figures into the fine coverage.
- Test Pit Preparation for Onsite Sewage Evaluations, State of Oregon Department of Environmental Quality, Portland OR, 800 452-4011. PDF document. We recommend this excellent document that offers detail about soil perc tests, deep hole tests, safety, and septic design. Readers should also see Soil Percolation Tests and for testing an existing septic system, also see Dye Tests
- Grass is Always Greener Over the Septic Tank, Bombeck, Erma: $ 5.99; FAWCETT; MM;
This septic system classic whose title helps avoid intimidating readers new to septic systems, is available new or used at very low prices.
It's more entertainment than a serious "how to" book on septic systems design, maintenance, or repair. Not recommended -- DF.
- US EPA Onsite Wastewater Treatment Systems Manual Top Reference: US EPA's Design Manual for Onsite Wastewater Treatment and Disposal, 1980, available from the US EPA, the US GPO Superintendent of Documents (Pueblo CO), and from the National Small Flows Clearinghouse. Original source http://www.epa.gov/ORD/NRMRL/Pubs/625R00008/625R00008.htm
- Water Wells and Septic Systems Handbook, R. Dodge Woodson. This book is in the upper price range, but is worth the cost for serious septic installers and designers.
Quoting Amazon: Each year, thousands upon thousands of Americans install water wells and septic systems on their properties. But with a maze of codes governing their use along with a host of design requirements that ensure their functionality where can someone turn for comprehensive, one-stop guidance? Enter the Water Wells and Septic Systems Handbook from McGraw-Hill.
Written in language any property owner can understand yet detailed enough for professionals and technical students this easy-to-use volume delivers the latest techniques and code requirements for designing, building, rehabilitating, and maintaining private water wells and septic systems. Bolstered by a wealth of informative charts, tables, and illustrations, this book delivers:
* Current construction, maintenance, and repair methods
* New International Private Sewage Disposal Code
* Up-to-date standards from the American Water Works Association
- Wells and Septic Systems, Alth, Max and Charlet, Rev. by S. Blackwell Duncan, $ 18.95; Tab Books 1992. We have found this text very useful for conventional well and septic systems design and maintenance --DF.
Quoting an Amazon description:Here's all the information you need to build a well or septic system yourself - and save a lot of time, money, and frustration. S. Blackwell Duncan has thoroughly revised and updated this second edition of Wells and Septic Systems to conform to current codes and requirements. He also has expanded this national bestseller to include new material on well and septic installation, water storage and distribution, water treatment, ecological considerations, and septic systems for problem building sites.
- The NSFC Products List has an excellent list of design manuals/modules available from their website or by telephone 800-624-8301
- Submissions welcome. send us a suggested document link or request an exchange of website links
- ...
|
