Trenchless Pipe Repair of Septic Fields
Use trenchless sewer line repair technology to replace old damaged septic soak-bed (leacfield) piping?
POST a QUESTION or COMMENT & reader comment about septic tank aeration add-on products & about drainfield rejuvenation treatments
Guide to trenchless or no-digging septic system drainfield restoration:
Is it feasible to use trenchless sewer line repair methods to restore a failed septic soakbed or leaching field?
This article series discusses the use of various septic drainfield restoration methods including the use of drainfield restorer treatments, add-on aerobic systems, soil aeration, porox methods, jetting, chemical treatments and also septic tank or drainfield aeration or septic aerobic system add-on systems and special septic bacteria for failed septic system rejuvenation.
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
- Daniel Friedman, Publisher/Editor/Author - See WHO ARE WE?
Trenchless Pipe Technology Proposed for Septic Drainfield Soakaway Bed Leachfield Pipe Repair or Replacement
Reader Question: can I replace failed drainfield piping using trenchless technology for pipe replacement?
7/3/2014 Anonymous said:

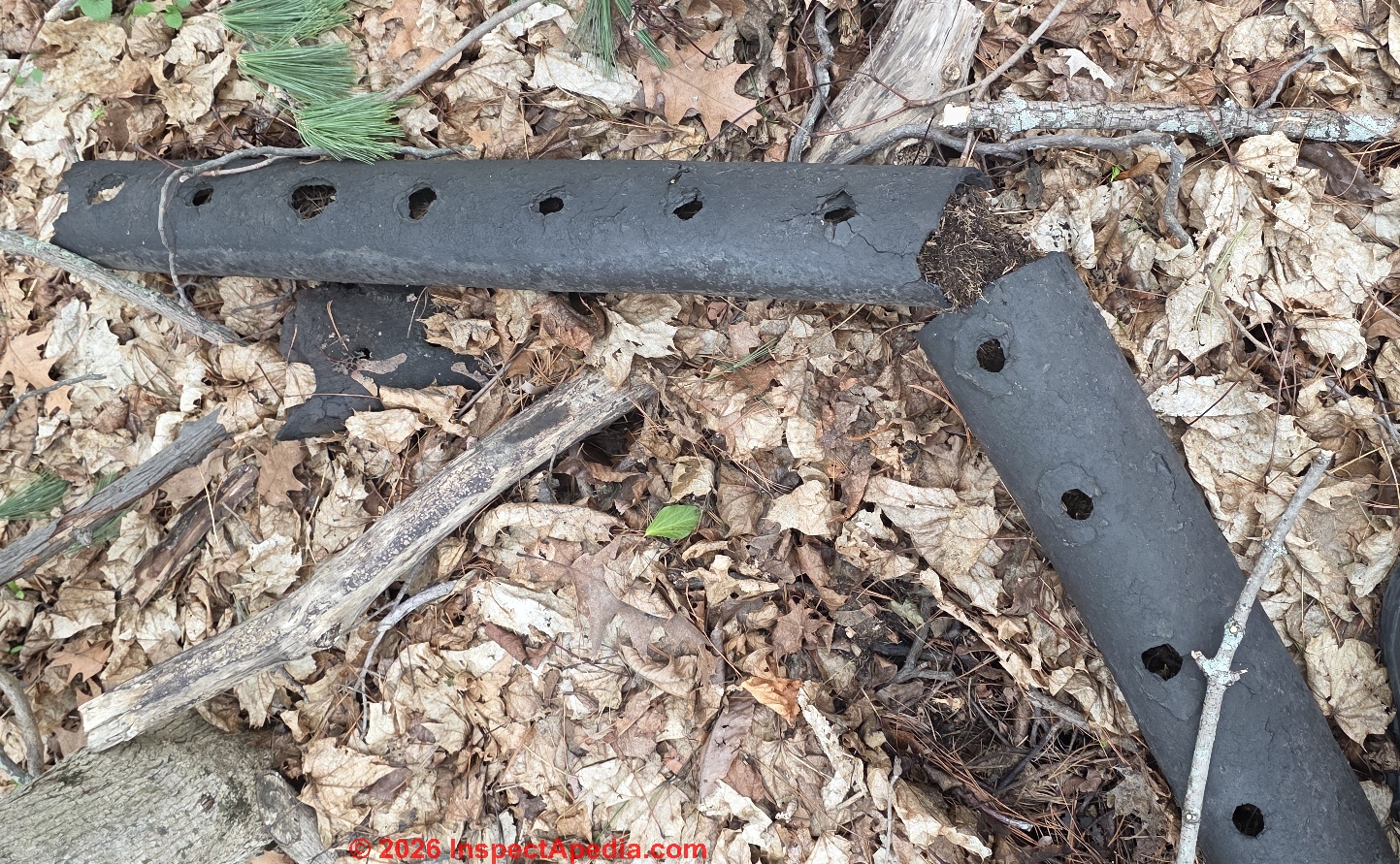

I believe a section of ORANGEBURG PIPE in my septic leach field has been broken. Can I have Roro Rooter Co. replace all of the
Orangeburg pipe by pulling in a new perforated plastic pipe and still comply with Massachusetts Title 5 ?
They would dig two small (2x3 foot holes one at the beginning and one at the end of the leach field.
They would run a video camera into
the leach field to inspect the piping.
They would then shove a plastic rod into the pipe and then hook onto a 5 inch boring head and pul this head through to destroy the old Orangeburg pipe.
Once the boring head has created a new tunnel, they would pull a new 4 inch perforated pipe onto the existing leach field thus solving the broken pipe
problem.
Can this system be done and still comply with Massachusetts Title 5 laws ?
You will want to call your local building department about the Massachusetts Title 5 approval question (and please let me know what you're told).
The authorities may approve the solution you propose if the design is credible, since Title 5 does not explicitly require specific design materials so much as it requires proper drainfield capacity, layout, height above seasonal high water table, and evidence of working - or of failure.
Indeed there is a whole industry of trenchless pipe replacement, though I've not read any studies of applying that technology to perforated drainfield piping installation. We describe the trenchless pipe repair process
at TRENCHLESS PIPE REPAIRS.
Because using scholarly research tools we found it difficult to find independent research reporting on the long term success of the approach you describe, perhaps you can obtain (and refer to me) citations or documentation of the procedure for review.
Watch out: I would also make a careful cost comparison of this approach vs. a complete conventional drainfield replacement.
A drainfield that is so old that ORANGEBURG PIPE was still in use until now is likely to be at or past the end of its life for more reasons than collapsed pipe, such as salt, grease, or biofilm clogging of the soils surrounding the drainfield trench.
It would be unfortunate to pay for this procedure and then have to dig up and install the whole field anew anyway on discovery that it is in failure.
Research Citations for Trenchless Sewer Pipe Replacement Procedure & Applications
See these studies of trenchless sewer and other large pipe replacement & (which does NOT mean drainfield) rehabilitation
Beetschen, Lee J., and William C. Henry. Evaluation of trenchless sewer construction at South Bethany Beach, Delaware. Vol. 1. Environmental Protection Agency, Office of Research and Development, Municipal Environmental Research Laboratory, 1978.
Curran, Sully. "Installation of Large Diameter Buried Pipes." Proceedings of the Water Environment Federation 2007, no. 19 (2007): 505-511.
Forbes, James H. "Wastewater collection." Water environment research (1993): 303-305.
Sen Gupta, B., S. Chandrasekaran, and S. Ibrahim. "A survey of sewer rehabilitation in Malaysia: application of trenchless technologies." Urban water 3, no. 4 (2001): 309-315.
Continuing citations, these authors do address, at least to a limited degre, sewer & private or decentralized wastewater drainfield rehabilitation using trenchless pipe technology
Haarhoff, Mr Thomas. "Paper Title Sustainability Assessment for First Time Wastewater Scheme."
Liden, Doug. "Wastewater System Improvements Project Environmental Assessment." (2003).
Nawrot, Tadeusz. "Economic analysis of small diameter gravity sewers compared to other sewerage systems." Teka Komisji Ochrony i Kształtowania Środowiska Przyrodniczego 7 (2010).
Wu, Shan, Shiwen Tang, Yueheng Hu, and Simon Thibault. "Research on the Septic Tank of Existing Building Drainage System Based on the Sustainable Development View." In Reston, VA: ASCE copyright Proceedings of the International Conference on Pipelines and Trenchless Technology 2011 October 26. 29, 2011, Beijing, china| d 20110000. American Society of Civil Engineers, 2011.
