This article discusses sources for replacement toilet tank or cistern tops or lids.

Page top image: an example of an assortment of toilet tank tops (toilet cistern tops) sold by picclick.co.uk cited & discussed below on this page.

Find a Replacement Toilet Tank Lid

Generally, replacing a toilet tank lid or top can be a bit of a challenge; what I've done is to keep an eye out for people tossing out an old toilet with lid, or alternatively, with a general outline of the tank top shape and measurements I look for a third party source.

The toilet tank lid doesn't need to match exactly; it can be a bit larger, as long as its depth doesn't so intrude towards the front of the toilet as to block keeping the lid or seat raised.

1. Identify the toilet brand and model if you can. Help in recognizing or identifying a toilet brand is

   at TOILET TYPES, CONTROLS, PARTS and

   at TOILET MANUFACTURERS & SOURCES
2. Note the general shape of the top of the toilet tank or cistern so that you can describe that to the toilet tank top vendor - take a photo if you can, to provide to the toilet tank top supplier


   - Rectangular


   - Rectangular with increased dimension at corners

   - Curved Front, straight back

   - Other
3. Measure the cistern (tank) top dimensions as we illustrate in photos shown here and as we outline in detail below.

   You can use a tank or cistern top that is a bit larger but, of course not one that's smaller in any dimension.

   Watch out: if you make the tank/cistern top too deep (in the front-to-back dimension) you may find that the toilet seat or lid won't stay in the raised position.
4. Contact a vendor of "replacement toilet tank tops" or "replacement toilet cistern tops" where you'll see that many of these company's sell both model-specific toilet tank tops and also generic tops that will fit most toilet shapes.

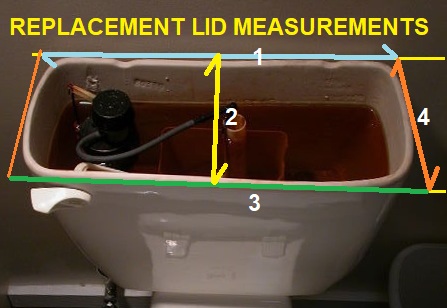

Replacement Cistern (Toilet Tank) Lid Measurements

Example #1: Replacement Toilet Top Measurements: Toilet Cistern is Roughly Rectangular

Along with a photo and rough sketch of the shape of the top of your toilet tank or cistern, make these measurements before calling a replacement tank / cistern top vendor:

1. Back width of the tank or cistern
2. Depth of the tank front to back, at the center of its width
3. Front width of the tank
4. Depth of the tank measured at its side(s)

Example #2: Replacement Toilet Top Measurements: Toilet Tank Curves Out at Center-front

1. Back width of the tank or cistern - note that the back of this toilet tank is straight
2. Depth of the tank front to back, at the center of its width
3. Front width of the tank - note that the front of this toilet tank is curved with the apex of the curve "out" or towards the front of the toilet. (Other toilet tanks may curve inwards.)
4. Depth of the tank measured at its side(s)
5. Example depth of the tank measured front to back at distance (6) from the ends of the tank. You may make two or even three of these to give an accurate description to the replacement toilet top supplier.
6. Distance from end or side of toilet tank or cistern to the curve depth measurement.

Example 3: Toilet Tank Curves In at Center Front

1. Back width of the tank or cistern
2. Depth of the tank front to back, at the center of its width -

   Notice that this toilet tank curves "IN" at the center of its front wall.
3. Front width of the tank
4. Depth of the tank measured at its side(s)

   Notice that the tank width is greater at its sides that at its center.

You may notice that this toilet tank back is also slightly curved outwards. As long as the depth of the replacement lid is equal to dimension 4 and its width equal to the larger of dimension 1 or 3, the lid will "fit".

But note also that if the lid sticks out too far at the front of the cistern the toilet seat may refuse to rest in the lifted position. If you make a mistake in replacing the cistern lid and buy one a little too deep in dimension 4, and the toilet seat / lid won't stay up, instead of exchanging the top, you might find a replacement seat whose hinges provide a friction adjustment so as to hold the lid up.

...

---

---

ADVERTISEMENT

---

---

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

On 2023-07-24 by InspectApedia Publisher

Please do take a look at the information we have above on this page. If that doesn't help, please see

DIRECTORY OF TOILET MANUFACTURERS & SOURCES

In order to absolutely assure our readers that we write and report without bias we do not sell any products or services, nor do we have any business or financial relationships that could create such conflicts of interest.

On 2023-07-24 by ann

I need a lit for toilet tank. It's name is H-2411 and it's 24X11cm cap. I need it 100. How can i get it.

On 2022-05-26 by InspectApedia (mod) - generic replacement toilet tank may work

@Jack,

Quite possibly, but fortunately the good news for your situation is that if you make the correct measurements and check the shape of the mount on the toilet base you'll probably find a generic replacement toilet tank that will work just fine.

On 2022-05-26 by Jack

Hello I am trying to replace toilet tank but all I can find for manufacturer is made in Venezuela ? Did a company out source to Venezuela ?

Question: replacement for a 1929 Welling toilet tank lid

I have a 1929 Welling Toilet in which I broke the lid. Do you have one? If not, do you know where I can get one? Anonymous, - 2022/08/24 by private email

Illustration above (not from this reader) is from a Welling toilet for sale on eBay 2022-08-24- by mod, of an Antique Ceramic White Porcelain Toilet Bowl Tank Lid Vtg Trenton Welling 414-21E

Welling Toilets are also described at ANTIQUE FLUSH TOILETS

Moderator reply:

Our best advice is above on this page.

If your Welling toilet is like the one shown above, the tank is rather rectangular in cross-section so it may be easy to find a replacement toilet tank or cistern top that fits using a more-generic source like those we list.

Please

- post a photo at the bottom of this page using the add-image button, showing me the logo on your Welling toilet base, broken lid, and

using additional comments (one photo per comment) post photos of any other identifying stamps on the toilet or inside the toilet tank or lid.

That may help us offer other suggestions.

Incidentally, let's be sure you mean a "Welling" brand toilet. Kohler produced a (now discontinued) Wellington™ toilet - shown below.

After reading our instructions above if you have further questions don't hesitate to ask.

On 2022-08-20 by InspectApedia-911 (mod) - where to buy a replacement lid for a toilet cistern - UK sources

@Dash,

I've seen a similar toilet brand mark - though in blue on the glazed china surface of a toilet base - but haven't yet found exactly where that is in our data (still looking).

UK Sources of Toilet Cistern (Tank) Lids

The following UK suppliers can provide a replacement lid for a toilet cistern. Before ordering be sure to measure the toilet cistern top dimensions, including length width, and width at the widest as well as most-narrow locations.

These are some UK vendors who will sell the toilet cistern lid by itself

• Amazon-UK: Web: https://www.amazon.co.uk/toilet-cistern-lids/s?k=toilet+cistern+lids (limited to specific models)
• Ideal Standard Co: Web: https://www.idealstandard.co.uk/products/catalog/toilets/cisterns
• MyToilet Spares: My Toilet Spares, Unit 3 Global Business Park, 4 Hamburg Road Hull Hu7 0AW United Kingdom. Web: https://www.mytoiletspares.co.uk/ (uncertain if they supply lids alone)
• Pic-UK: Toilet Cistern Lids, wide selection, various brands, https://picclick.co.uk/?q=toilet+cistern+lid
• Victorian Plumbing: Web: https://www.victorianplumbing.co.uk/ Email: info@victorianplumbing.co.uk

For older toilets, brands, manufacturers, sources, see also

ANTIQUE FLUSH TOILETS

On 2022-08-20 by Dash - Toilet Brand Mark "S 650" in a 1980s home

@InspectApedia-911,

Sure, sorry I realise now it was lacking basic info.

Location: UK, North London.

The item in question is a toilet, the image in inside the tank lid. It has that "S" shape then the number "650".

I moved into my home in November 2020. its a 1980's build house. I do not believe the toilet in from that era as the rest of the bathroom is modern and it is an enclosed toilet.

the lid in question has a crack in it and i would like to replace it.

On 2022-08-19 by InspectApedia-911 (mod) - Identify "S" like toilet logo or brand

@Dash,

Thank you for the question and photo. We could be more helpful and research more thoroughly and more quickly to give a more useful answer if you would help us out first with a bit of very basic information.

Basic information includes things such as
Location:
Country and city of location, where are the object of your question was found. Our readers are in 52 countries around the world.
Surrounding context:
By contact I mean I formation such as history of a site or building or name and (if known) age of site or building where an object that is the subject of a question has been found.

That might help narrow down toilet age and manufacturer.

On 2022-08-19 by Dash

Could I get some help with this toilet brand please.

[Photo above]

On 2022-07-14 by InspectApedia-911 (mod) - Find a Tank Top for a Ferguson Toilet

@Andrewsjs09,
Take a look at the brand on the toilet base - you'll find that at

TOILET MANUFACTURERS & SOURCES

inspectapedia.com/plumbing/Toilet_Manufacturers_Sources.php

Look under "F" for Ferguson Toilets

On 2022-06-14 by Andrewsjs09

Need to know what kinds toilet this is so i can order a replacement tank cover

On 2022-08-19 by InspectApedia-911 (mod) - Identify "S" like toilet logo or brand

@Dash,

Thank you for the question and photo. We could be more helpful and research more thoroughly and more quickly to give a more useful answer if you would help us out first with a bit of very basic information.

Basic information includes things such as
Location:
Country and city of location, where are the object of your question was found. Our readers are in 52 countries around the world.
Surrounding context:
By contact I mean I formation such as history of a site or building or name and (if known) age of site or building where an object that is the subject of a question has been found.

That might help narrow down toilet age and manufacturer.

On 2022-08-19 by Dash

Could I get some help with this toilet brand please.

[Photo above]

Question: replacement lid for AIO Toilet

I have an AIO toilet. The lid is damaged and I want to replace it. What company makes them? - 2021/07/20 Ross Franks

This Q&A were posted originally

at TOILET TYPES, CONTROLS, PARTS

And at TOILET MANUFACTURERS & SOURCE we provide additional details on AIO Toilets & parts.

Moderator reply:

@Ross Franks,

AIO Toilets is an acronym for All In One, a toilet sold by Glacier Bay and at home depot stores and at some other building suppliers.

One online vendor says he has a lid for this toilet (at $130. U.S. + shipping)

thisoldtoilet.com
Telephone: 650-483-1139 (Dumb phone - no text)
P O Box 3501, Los Altos, CA 94024
Email preferred, texting not available.
Gary@Tjader.com

On 2018-04-11 by (mod) - where to get Marathon toilets & toilet parts & tank lids

Roberto

The Marathon II 6200 toilet is sold in Home Depot stores and at Walmart. Your local store may be able to order a replacement toilet tank lid for you.

There are also generic toilet tank tops that may fit - make a trace or make measurements of the top of your toilet tank; a slightly larger tank lid is OK.

On 2018-04-10 by Roberto Perez

Need to replace a broken toilet lid/top. The inscription is"Marathon II 6200" on inside of lid. Who is the manufacter? Are replacement lids available?

On 2015-09-17 by Anonymous

where can I find a tank cover lid for a quasar toilet?

On 2015-03-30 by Hector

Where I can find Toilet Tank Lids > urc-v-4433
thanks

...

Continue reading at TOILET MANUFACTURERS & SOURCES - identify toilet brands, find toilet parts , or select a topic from the closely-related articles below, or see the complete ARTICLE INDEX.
