Expansion Tank / Compression Tank Air Valve Leak Diagnosis & Repair
Water leaks at the heating system expansion tank air valve or air vent
- POST a QUESTION or COMMENT about heating system expansion tanks: their function, size, location, maintenance, and need for draining (on some models)
Heating boiler expansion tank / compression tank air adjustment valve & air vent valve troubleshooting guide:
This article explains the difference between the air pressure adjustment valve on an internal-bladder compression/expansion tank and the a automatic air vent valve found on both bladder type and bladderless type expansion tanks on hot water heating systems. We explain how each of these valves may be leaking but the implications, cause, and repair are quite different.
This article series provides a heating system expansion tank (compression tank) troubleshooting & repair guide.
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
- Daniel Friedman, Publisher/Editor/Author - See WHO ARE WE?
Expansion Tank Air Valve vs Vent Leaks
Reader Question: water coming out of the top brass venting/valve atop the boiler's expansion tank
I found information on the expansion tank noted in the subject line on your web page. This is the kind I have on my gas furnace. There is water coming out of the top brass venting thing above the tank. My water pressure cold is almost down to zero.
The unit runs and heats the house but wondering what is going on here something is off. Any suggestions on what to do would be greatly appreciated.
At left we illustrate a new automatic air bleed valve.
[Click to enlarge any image]
Reply: First let's distinguish leaky automatic air bleed valves from a leak at the air pressure adjustment valve on an internal-bladder heating system expansion / compression tank
Water Leaks at an Automatic Air Bleed Valve
The most likely cause of leakage at the automatic air bleeder valve is that the valve core or stem itself has failed or its seat has debris on it, preventing the valve from closing when it should, or the float inside the valve has failed and no longer opens and closes the valve properly.
That leaky automatic air bleed valve should be replaced.
If the part that is leaking on your boiler looks somewhat like the device shown at left, that's an Automatic Air Eliminator - Auto Vent No. 67 from Maid O Mist in our example. (Your heater may use a different brand or product).
If that's the leak source the part replacement is usually a minor repair.
Temporarily you can usually stop the leak at an automatic air vent by screwing closed the valve cap atop the valve. But that will also prevent the valve from venting air and thus can lead to an air-bound heating system and thus to loss of heat in one or more areas of your home.
Therefore while you want to stop any immediate leak to avoid making a mess or dripping onto electrical components, the proper repair is to replace the automatic air vent promptly.
See AIR BLEEDER VALVES for details it's just a hop skip and a jump right over
to AIR BLEED VALVE LEAK REPAIR
Leaks at an air pressure adjustment valve on an internal-bladder compression / expansion tank
However if the leak is not at the automatic air bleed vent (shown in our photo above), but is at the air valve mounted on an internal-bladder type heating boiler expansion tank, then we have a different problem.

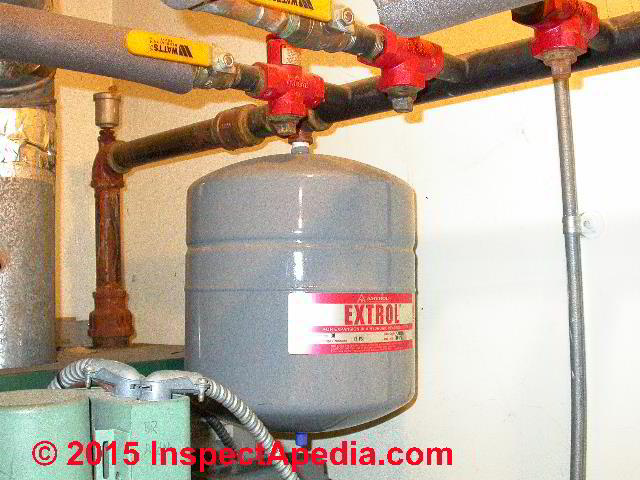

Our page top photo shows an internal-bladder type expansion / compression tank used on a hot water heating boiler. In the page top photo a small blue cap on the under-side of the tank covers its air pressure adjustment valve.
[Click to enlarge any image]
At left, that little red cap atop the heating boiler compression tank hides the air pressure adjustment valve. Manufacturers typically ship these tanks pre-charged to 12 psi cold - suitable for most circumstances.
For some heating systems operating at higher pressures the service technician may use this valve to adjust the pre-charge air pressure in this little compression / expansion tank.
What does it mean if water squirts out of the air adjustment valve on an expansion tank?
If the expansion tank you are using is an internal-bladder type and water is coming out of the air charge valve as you describe, I suspect the bladder is burst - it's time for a replacement tank bladder or if that's not an option on your tank, a new expansion tank is needed.
Watch out: before even considering expansion tank replacement, if the water leak you are describing is not at an air charge vent on the expansion tank itself (a part that is indeed not present on most bladder type expansion tanks for heating systems) then you are probably talking not about a problem with the expansion tank but rather a problem with an automatic air bleeder vent - a separate part intended to bleed air from a hot water heating system.
Our photo below illustrates water squirting out of a water tank air pressure adjustment valve. This particular tank is in use on a potable water supply system pressure tank, it is not a heating system expansion tank.
But this is what you might see when pressing the center pin of the air adjustment valve on an internal-bladder-type heating system pressure tank if its bladder has leaked and the tank is waterlogged.
Watch out: unlike the cold water squirting out of a water pressure tank with a burst internal bladder, the water that may squirt out of a heating system's expansion tank will be hot and nasty.
...
Reader Comments, Questions & Answers About The Article Above
Below you will find questions and answers previously posted on this page at its page bottom reader comment box.
Reader Q&A - also see RECOMMENDED ARTICLES & FAQs
On 2020-03-29 - by (mod) - emergency leak repair: tighten the valve cap
Yes definitely, George. If the leak is at the screw cap on the air vent, just tighten the cap down, or if it's corroded and stuck you may be able to carefully
(don't make matters worse by breaking off the valve)
remove it and install a new tire valve stem cap. But do call for repair and get it replaced, as if you lose a working air vent you can ultimately lose heat by having a zone become airbound.
On 2020-03-29 by George
The little air releif valve is leaking above my furnace expansion tank.. Can I tighten it down until I get a plumber
On 2018-09-15 - by (mod) - is the air valve cap kept loose or tight
If the valve is leaking you can make a temporary repair by tightening it until the leaky valve is replaced;
If the valve is used ONLY for adjusting air pressure in the tank it can be left tight.
Watch out: If the valve cap that you're discussing is on an air vent device such as found on hot water heating radiators, convectors, and boilers, then it needs to be kept loose so that the vent can infect release Air from the system.
On 2018-09-12 by J
Should bleeder cap on top of expansion tank be tight or slightly loose
On 2018-09-08 - by (mod) - My air valve on my tank froze
If the pressure tank is a type that uses an internal bladder, yes a regular valve stem that is the right length should work - take the old one to your auto parts supplier.
For other air valves on some water supply systems the valve core uses a softer spring and you wouldn't get a match at the auto supplier. YOu'd match that at a plumbing supplier.
On 2018-09-05 by Isarick Brown
@Jean,
I am speaking of a hot water expansion tank valve stem froze up and I need to check the air pressure but can't?
My air valve on my tank froze on me can't get a reading,can I replace it myself and is it a regular valve stem?
On 2018-03-04 by Jean How can I isolate the Automatic Air Vent.
Radiators needed bleeding.
Pressure in expansion tank was low so opened both valves in loop and added water till pressure 1.5, meanwhile automatic air vent has started leaking and expansion tank pressure is dropping.
When the expansion tank pressure drops to zero will the water stop dripping - or does the water from the Auromatic Air Vent come from somewhere else? (Can't reach the Off tap so continually emptying jugs of water. Please help!
How can I isolate the Automatic Air Vent. It is a Headrae Sadea Amptec Wet Radiator system I have.
On 2017-10-27 - by (mod) -
The valve core is a standard Schrader valve but of course the valve for everybody maybe a shape that is designed specifically to fit the tank.
you might try using a valve core tool to tighten or replace the core inside the valve ste
On 2017-10-26 2 by Leaky Schrader Valve
Hello,
I have a schrader valve on my Extrol Amtrol tank attached to my hydronic heating system whose operating pressure is 12 PSI. The tank is failing to maintain pressure. I have re-pressurized the tank to 12psi and with a bit of saliva was able to see that it is not holding the air in. There is no water coming from the valve just air.
Does the tank utilize a standard size schrader valve so that I can replace it with a simple trip to walmart or something non-standard?
Any tips to replacing the valve besides being gentle?
Thank You
Sam
On 2015-07-29 by Anonymous
Good.
...
