Exposed-Fastener Panels for Metal Roof Installations
Adapted/paraphrased with permission from Best Practices Guide to Residential Construction, chapter on BEST ROOFING PRACTICES:
Steel and aluminum panel roofing with exposed fasteners
has been a popular choice on agricultural buildings for
decades. In recent years, these “ag panels” have grown increasingly
popular for rural homes as well, since they can
provide a long-lasting roof at a cost comparable to asphalt

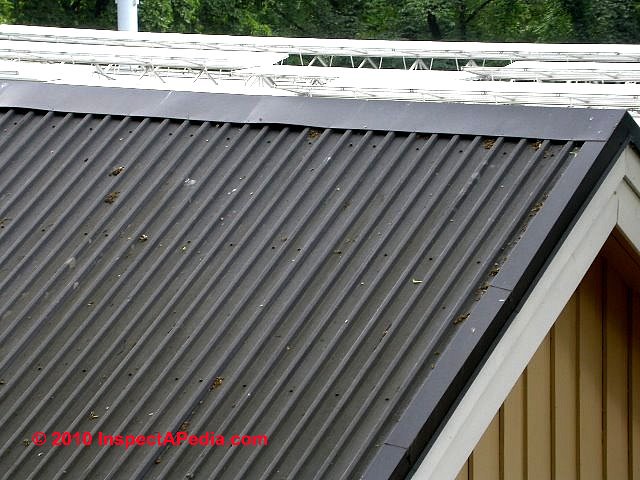

[Click to enlarge any image] At left is an exposed metal faster roof on a barn in Dutchess County, New York, in the U.S.
The metal roofing products installed on homes, while essentially
the same material as the agricultural panels, generally use
better metal coatings, and installers pay more attention to
sealing and watertight detailing.
While a carefully installed exposed-fastener roof
should be free of leaks upon completion, small installation
errors can result in leakage later as the metal panels
undergo normal thermal movement that places stress on the
fasteners. With so many exposed holes in the panels, periodic
inspections are recommended. Also, the exposed
fastener heads, in addition to lending a rural look to the
building, tend to catch leaf debris and restrain sliding snow.
Materials used in Exposed-Fastener Metal Roofs
Exposed-fastener panels are typically 26 to
29 gauge, compared to the heavier 22 to 26 gauge used in
The ribs in exposed fastener roofing
are also lower and closer together than in standingseam
roofing and may be squared, rounded, or v-shaped
(see Figure 2-36).
Most exposed fastener or "barn roofing" panels are 2 to 3 feet wide and
formed with galvanized steel, Galvalume®, or aluminum.
Panel length. While some stock sizes are available,
ordering panels factory-cut to exact lengths simplifies
installation and reduces corrosion at field cuts.
can be ordered in any shippable length, although
excessive thermal movement can be a problem for steel
panels longer than 40 feet or for aluminum panels
longer than 16 feet.
Reduce Metal Roof Panel Lengths To Avoid Buckling
In regions with very wide temperature
swings, contractors should use shorter lengths - see “Thermal Expansion” in Table 2-10, shown just below. [Click any image or table to see an enlarged view.]
[Click to enlarge any image]
Installation Methods for Exposed-Fastener Metal Roofs
While traditionally installed over battens,
most panels in residential installations are now installed
over a solid plywood deck with minimum No. 30 felt underlayment.
Metal roofing manufacturers recommend plywood
over oriented-strand board (OSB) due to plywood’s
better screw-holding ability. Roofing felt should be installed
with plastic cap nails rather than metal buttons,
which can deteriorate the metal roofing by galvanic action.
See GALVANIC SCALE & METAL CORROSION

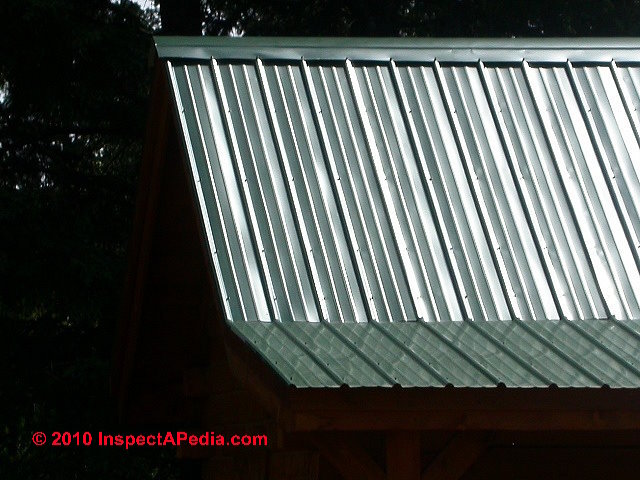

Our exposed-fastener metal roof installation shown at above-left is located in Molde, Norway.
Align the metal roof panel to eaves. After installing drip edges and valley
flashing, the first panel is fit along one rake, square to
the bottom edge of the roof. If the roof is not square,
the first panel may need to be cut at a bevel along the
rake. Start at the downwind end of the roof, so the
edge of each overlapping panel faces away from the
Cutting exposed fastener metal roof panels. Where panels need to be cut, use snips
or shears rather than an abrasive blade, which overheats
the steel coatings and leaves a rough edge prone
to rust. Abrasive blades also produce hot metal filings
that can embed in the paint and cause rust on the face
of the panels.
Side and end laps on exposed fastener metal roofs. After the first panel is screwed
down, the next panel is set in place, lapping over the
first. Side laps are typically sealed with butyl tape and
held together with gasketed sheet-metal screws.
Where more than one panel is used up the run of the
roof, the upper panel laps the lower by 6 inches and is
sealed with butyl tape.
Fasteners used on exposed-fastener metal roofs.
Fasteners are typically special wood
screws with integral EPDM or neoprene gaskets that
compress under the screw head to seal the hole.
Fasteners should be driven at a right angle to the roof
plane and should be snug but not so tight as to deform
the washer (see Figure 2-37 above). Nearly all manufacturers
recommend placing screws in the flat sections
Although making holes in the flat section
may seem unwise, placing screws in the ribs is
discouraged for two reasons - check out our photo at left.
First, the long exposed
screw shaft passing through the rib is prone to snap
over time due to thermal movement of the panels.
Second, it is easy to overdrive the screws and crush
Higher-cost EPDM washers are less likely
to leak than neoprene.

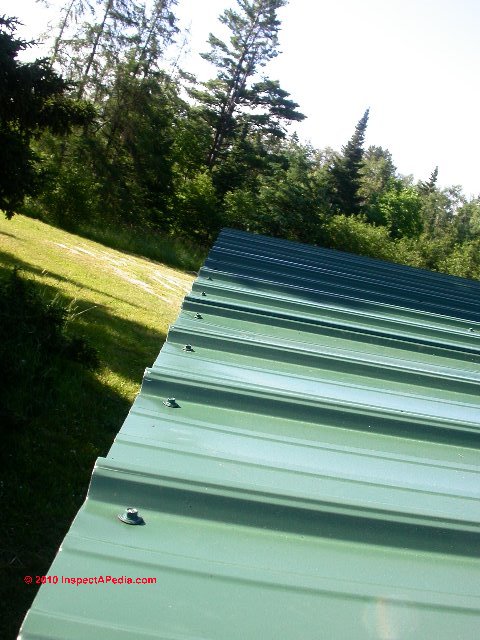

Take a closer look [click to enlarge] at fastener location and the "too-tight" bolting on the exposed fastener metal roof on this Minnesota building. Compare this roof installation to the Norway metal roof shown above.
Reroofing Using Exposed Fastener Metal Roof Panels
Panels can go directly over a single layer of
asphalt shingles in good condition. If the shingles are
curled or uneven, install 2x horizontal purlins at 16 inches
on-center. In either case, put down a new layer of No. 30
underlayment before installing the panels.
-- Above material on exposed metal fastener roofing installation procedures was adapted with permission from Best Practices Guide to Residential Construction.
Exposed Fastener Metal Roofing Fastener Spacing Schedule
Roofing manufacturers (such as Fabral in the U.S. and Dimond in New Zealand) give installation specifications for their product including screw fastener spacing schedules (and other data such as unsupported spans, unsupported overhang, and different fastener types).
Typically the fastener spacing is specified as number of fasteners per square (say 75 or 80 fasteners) but an allowance must be made for more fasteners when installing exposed fastener metal roofs in high wind zones.
Details of metal roof fastener spacing distances or schedules along with photo examples are provided in a the next article in this series, found at
METAL ROOF EXPOSED FASTENER SPACING
