Recommended Floor Framing under Tile to Avoid Cracks
 This article series discusses current best design practices for kitchens and bathrooms, including layout, clearances, work space, and accessible kitchen and bathroom layout, clearances, turning space, grab bars, controls, etc. We include advice on choosing and installing kitchen countertops, cabinets, and kitchen or bathroom flooring, sinks, and other plumbing fixtures and fixture controls such as faucets.
Tiles, stones, and grout joints crack easily from stresses
imposed by movement. For a successful installation, the
structure underneath must be very stiff.
On walls, 16-inch
on-center framing with 2x4s or steel studs is usually
adequate. Floors must be level and subject to minimal
deflection under uniform or point loads.

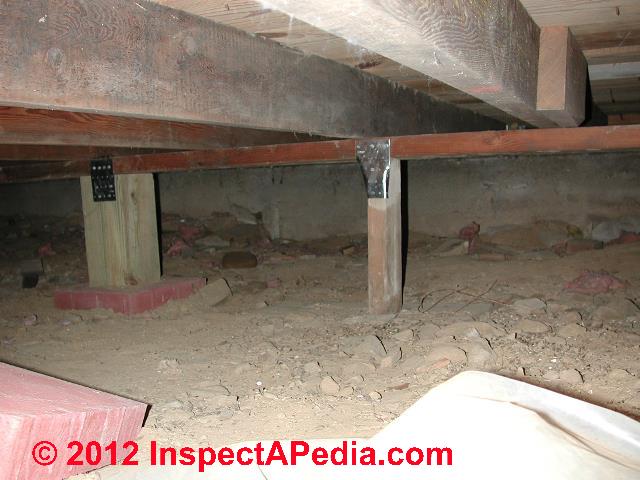

Our photo (above left) illustrates an exploration and repairs we made in the crawl area under a bathroom before installing ceramic tiles on the floor above.
Floor Deflection Problems in Tile Floors Lacking Stiffness
An insufficiently stiff floor will crack ceramic
or stone tiles. The Tile Council of America (TCA)
specifies a maximum deflection for floors of L/360 under
a 300-pound concentrated load. While building codes limit
deflection in living spaces to L/360 under uniform loads,
code-compliant floors may still have too much flexing
between joists under point loads. Many natural stone tiles
require stiffer conditions, ranging from L/480 to as stiff as
L/720.
Subflooring Requirements for Tile Floors
To meet TCA stiffness requirements, floor
framing should be no more than 16 inches on-center with
minimum 19/32
-inch plywood subflooring. Upgrading to 23/32-
inch plywood will stiffen the subfloor by almost 80% and
provide a more solid feeling floor. The subflooring should
be level to 1/8 inch in 10 feet. (TCA specs now permit 1/4 inch
in 10 feet, but this can be problematic for the large tiles
popular today.)
To avoid tile cracks caused by tight-fitting plywood
joints, it is best to use square-edged subflooring under tile
and leave an 1/8-inch gap between sheets (unless the setting
material specifications require tight joints). Lay the plywood
with its long dimension across the joists and use
solid blocking at all open joints.
Two-Layer Subflooring System for Ceramic Tile Floors
To meet the stiffness requirements
for natural stone floors may require two layers
of subflooring screwed and glued together, with the upper
layer serving as the underlayment.
Two layers of 19/32 inch
plywood glued and screwed together on 6-inch centers is
several times stiffer than a single layer (and over four
times as stiff as a single layer of 23/32-inch plywood). Offset
the upper layer so the joints do not line up with the joints
in the lower layer or the joists.
Also, screws in the upper
layer, which serves as underlayment for the tile, should
penetrate the subfloor only and not the joists. Use underlayment-
grade plywood or plywood rated C-C Plugged or
Plugged Crossbands, with a smooth face and no voids.
Floor Substrates for Ceramic Tile: Concrete, Cement Backerboard, Plywood, Drywall, Plaster
Ceramic tile can be installed over clean and sound concrete,
plywood, cement backerboard, drywall, or plaster.
Most substrates can be used with either organic mastic or
thinset mortar, but the installer should always check the
adhesive label for compatibility with the substrate.
Plywood Underlayment Specifications for Tile for Floors or Countertops
Because of its stiffness and
durability, exterior plywood makes an excellent substrate
for tile in relatively dry applications.
- Plywood type. The plywood should be free of internal
voids such as underlayment grade, CC-Plugged, or
Plugged Crossbands , and if tiling directly to plywood,
it should have a sanded face free of voids, surface
resin, or other surface defects.
While TCA specs allow
15/32-inch plywood underlayment over a 19/32 inch subfloor
in residential work, upgrading to 19/32 inch underlayment
is recommended for a trouble-free floor (Figure 6-32).
[Click any image or table to see an enlarged version with additional detail, commentary & source citation.]
 |
- Plywood installation. Leave a 1/8 -inch gap between
sheets and make sure the edges of adjacent plywood
sheets are no more than 1/32
inch out of plane. Overall,
the surface should be level to 1/8 inch over 10 feet
(1/4 inch is allowed by the tile industry but is not
suitable for large tiles). Fasten with ring-shank nails
or screws at 6 inches on-center.
- Glue and screw. Where greater stiffness is required
in a floor, it is worth the effort to also glue the
underlayment to the subfloor and upgrade from
nails to screws.
- Isolation membrane. On large spans or where significant
movement is expected in the floor due to wide
moisture or temperature swings, a crack-isolation
membrane is recommended as a precaution against
cracking. Membranes, if sealed at seams, can also protect
the plywood from moisture that seeps through the
tile system. This is required in wet applications and
recommended in applications subject to occasional
wetting, such as bathroom floors.
- Countertops. Plywood also works well as a tile substrate
on walls and countertops not subject to regular
wetting (Figure 6-33). In applications subject to high
humidity or regular wetting, cement backerboard or
glass-mat gypsum are better choices.
 |
[Click any image or table to see an enlarged version with additional detail, commentary & source citation.]
