Water tank air inlet valve repair or replacement:

This article describes how to repair or replace leaky water tank air valves or Schrader valves which are used for adding air to a water pressure tank such as the water tank air valve.

Replacing a leaky air pressure adjustment valve on your water tank can avoid a costly tank replacement and can permit you to set the proper air pressure pre-charge in the water tank.

How to Fix a Leak at the Water Tank Air Charging Valve

Sometimes when we remove the cap from a water tank air valve, or more likely when we try pumping air into the water tank at the water tank's air valve, we're troubled by water (or air) leaking back out at us from the valve - making us sorry we touched it in the first place.

If the air valve or "tire valve" or Schrader valve on your water tank is leaking water or air there are a few wonderfully easy steps you can take.

[Click to enlarge any image]





Step 0 - first Find the Air Inlet Valve on you water system

The air inlet valve location on an internal bladder type water pressure tank is illustrated in our photos just below.

At left, the air valve is under that red cap; at right is a similar tank whose air inlet valve is covered by a blue plastic cap. The air inlet valve will be located near the top of this type of water pressure tank.

...

Watch out:  except for an initial adjustment at the time of installation, you should not find it necessary to add air at this valve. However on occasion this valve can leak, losing the air charge in the water pressure tank. If this is the problem, the repair is simple as we'll explain below.

The air inlet valve on a bladderless water pressure tank may be at any of several locations: near the tank top, on the tank side, on a tee at the bottom of the water tank, or on well piping nearby.

At left is an air inlet valve located on the tank tee near the bottom of (what was) a bladderless water pressure tank.

At below left we point to an air valve on an older galvanized steel water tank system. At below right there is an air volume control installed at the upper right side of the water tank but this system may not have an air inlet valve.

Watch out: watch out for old air valves in a location like the one shown at left. That installation previously served a bladderless water pressure tank.

If you see an air inlet valve in this location (shown at left) and the pressure tank uses an internal bladder, you should beware of pumping air into the tank at this valve - doing so may be mixing air into the tank bladder intended to hold only water - and you'll foul up the water tank operation.

In fact with an internal bladder type water pressure tank, except for a little adjustment at tank installation, one should never need to be adding air (unless the bladder is torn or ruptured, in which case adding air is not the right fix anyway). - Thanks to reader Jay (8/2012) for suggesting this clarification.

...

Watch out:  on some submersible pump well systems the air inlet valve is a special model intended to automatically allow air to enter the valve. Those air valves may look like any other schrader "tire" valve stem and internal valve assembly as those here, but the spring pressure and operating properties are different.

If you mix up parts the air inlet on a well served by a snifter valve may not work properly. Details about snifter valves and their air inlets and outlets are
at WATER TANK AIR VOLUME CONTROLS

with additional photos and explanation
at WATER TANK AIR ADD AT AIR VALVE.

Other water tank air inlet valve locations

• An air inlet valve may be installed in a tapping screwed into the side or top of the bladderless water pressure tank


• Integral as part of an air volume control device - in this case there may be an air inlet device but it is not a schrader valve - photo at left. If this tank is served by a submersible pump, don't forget to look for a snifter valve on the well piping for this system and a remote air inlet on the well piping above ground.


• On the well pump itself: on some one line or two line jet pumps an air inlet may be installed on a pump fitting.


• Depending on exactly where this valve is mounted it may not be a good location as you may find that you are pumping air into the pump body (instead of the water tank) and losing pump prime as a result.


• I wouldn't use an air valve in this location without advice from the plumber who installed it.





How to Check the Air Inlet Valve for Leaks & How to Replace the Valve Stem if Needed

We describe how to clean an air valve on a water tank to get it to stop leaking (water or air), how to make a simple emergency repair to force it to stop leaking, and how to replace a leaky valve stem core in a water tank air valve.

Step 1: Clear dirt on the valve stem internal parts on the water tank air valve:

The little tip that you see showing in the center of the water tank air valve stem is the part of the valve stem core that is depressed to open the air valve and permit air into the water pressure tank when you connect a tire pump or a can of compressed air.

Try just gently depressing the little pin exposed in the center of the valve stem. This pushes down a spring-loaded valve-stem core part that will let water or air flow OUT of the valve. Basically you are opening the valve.

You can use a pen tip or any small instrument. Here we're using a dental pick from our forensic lab but any small item that won't itself break off in the valve should work.

Don't bend or force the pin as you don't want to make things worse.

Often by flushing out the seat of the valve stem core in this matter you'll remove some debris that was keeping the valve from closing fully in the first place - it may be the only repair step you need to stop leaks at a water tank air valve.

If your water tank is a "captive air" or bladder type tank you should feel air coming out of this valve when it's opened, but not water. If water comes out the water tank's bladder is ruptured and the tank bladder or whole tank need replacement.

If your water tank is not a type that uses an internal bladder to keep water and air separated, OR if the air valve is located not on the water tank itself but at a plumbing fitting near the bottom of the water tank [PHOTO], you may find some water coming out of this valve. That's ok for now.

For an air valve located on top of any water tank, when the tank has been properly air-charged you should not see water coming out at the air valve.

See WATER TANK AIR, HOW TO ADD

Step 2: How to install a cap to stop a leaky water tank air valve:

Just screw on a valve stem cap tightly.

If your water tank's air valve is leaking and there is no valve cap, run out your car and borrow a cap off of one of your tires or off of a nearby bicycle or motorcycle (you can replace the borrowed valve stem cap later today.)

Screw the cap tightly onto the air valve stem at your water tank.

This will usually stop any water leak and will slow way down an air leak at the water pressure tank's air inlet valve.





Step 3: Get the necessary parts and tool to replace a leaky water tank air valve:

At your nearest auto parts supply store you can pick up the following inexpensive items you'll need to replace a leaky air valve on a water tank. Our photo shows from bottom left moving clockwise:

• A valve stem core removal/replacement tool:

  This is a little tool that will let you unscrew the old valve stem core and screw in a new one. Buy a good tool - it's still cheap and the better tool is more likely to be able to extract an old crusty valve stem core.
• A new valve stem core - (we show two types in this photo).

  This is a tiny valve part that screws into the center of your air valve stem. You'll want the short type valve stem core since it's most likely to fit your water tank without a problem.

  The diameter and threads will be standard on all U.S. made water tanks and similar equipment using a Schrader valve design. Some bicycle tires and tires in other countries use a metric diameter and metric threaded valve stem and valve stem core which won't fit a U.S. made water tank air valve.
• A new water tank air valve cap:

  This is just a tire valve stem cap. Plastic doesn't corrode, metal is stronger and probably seals better. In our photo we show both a black plastic valve stem cap and a metal valve stem cap. The metal tire valve cap at bottom center in our photo includes a handy feature - it can also be used as a tool to screw a valve stem core in or out.

Step 4: Replace the leaky water tank air valve core, using the parts at the step above and by following these simple steps:

• Turn off the water pump

  at its electrical switch
• Remove water pressure from the water tank

  by running water in the building until the tank pressure gauge is close to or at zero - you don't have to empty the water tank, just get most of the pressure off so you're not going to be squirted with water or air when you repair the valve
• Use the air valve stem core replacement tool and parts

  described above remove the valve stem cap and then to unscrew the old valve stem core and screw in the new one.

  If you can't get the valve stem cap off it's OK to use a small pair of pliers to gently unscrew the cap (counterclockwise to loosen the cap).

  If you can't unscrew the old valve stem core, try placing one drop of Liquid Wrench or a similar product into the valve stem on the threads that surround the core. Don't use excessive force - cross-threading the valve stem means the new core may not seal well and you'll be back to the emergency repair of just installing a tire valve cap on the valve stem.
• Close any plumbing fixtures

  you opened to take pressure off of the water tank
• Turn the water pump back on

  and let it re-pressurize the water tank


• Check for leaks

Step 4 alternative: replace the entire leaky water tank valve assembly

It is also possible to replace the entire Schrader Valve assembly. If your old valve is badly damaged or leaks at its base where the valve screws into the water piping, or if you can't just screw in a new valve core, this is what you'll need to do. In our photo above our pliers are loosening the black plastic valve stem cap.

Schrader valves whose body bottom is threaded and are screwed into a water tank or water pipe can be replaced entirely. Schrader valves that are welded to the top of a water tank cannot be replaced - just their valve stem core.

But alternatively you could use a small wrench to unscrew and replace the entire valve assembly Notice the white teflon tape we wrapped around the threaded part of the water tank air bleed valve assembly when we installed it in the first place. As we described above, you'll need to remove water pressure from the system to make a complete valve assembly replacement.

First be sure you have on hand, in addition to the tools described above:

• Tool to loosen and then reinstall the valve assembly - it's a screw-in part.
• Pipe dope or teflon tape to seal the threads on the water tank air new valve assembly
• A new replacement water tank air valve - be sure the diameter of the threaded portion of your new valve matches the threads on the old one.

Step 5: Check for leaks at the water tank air valve:

Chances are very good that the air valve is no longer leaking. If it is still leaking you may be able to remove the stem core, clean the valve threads, and try again.

If that doesn't work you need a new water tank or a plumber who can change the entire valve assembly (unlikely).



...

---

---

ADVERTISEMENT

---

---

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

Question: what kind of well system I have here?

Can anyone help me identify what kind of well system I have here? I believe my system is water-logged as the pump is short cycling. I have an old steel bladderless tank with a USG AVC Type-L (see photo) screwed into the side of it.

I see no other valve stems to fill the tank with air after I've drained it of water. This suggests it's a submersible well with a snifter valve, correct? My valve is heavily corroded and doesn't seem to be functioning. However, I have a pump sitting on my basement floor next to the tank... So I am confused on what to do. 2024-07-16 by Steven

Here is an additional photo of my pump next to my tank.

Reply by moderator:

@Steven,

That's a steel water pressure tank that does not use an internal bladder, and whose air charge was maintained by the hexagonal air control in your photo.

You can still buy those controls and similar tanks, but your photo shows rust below that small tank plug that makes me guess that this tank is rather old and iffy to work-on.

Our article WATER TANK AIR VOLUME CONTROLS

shows more examples and gives part numbers like
US Gauge & Similar Type 310WJ, Type 300SL, or Type 6 Rectangular Air Volume Controls = Excess Air Vents

These usually worked with a snifter valve (in the well) that sent some air into the water tank each time the pump cycles on/off. Excess air from that process was vented out at the excess air vent when necessary.

For a short term repair to stop your pump from short-cycling (that can damage the pump or pressure control switch)
you could try adding air to the tank manually - see WATER TANK AIR, HOW TO ADD https://inspectapedia.com/water/Water_Tank_Air_Charge.php

But given the rust that I see and the age of the tank, and in my mere OPINION, I'd be reluctant to do any expensive plumbing repairs since you might be throwing good money after bad. So unless you're someone who can try replacing that air vent control yourself you may find it a better approach to put in a new water pressure tank and air volume control.

I'd install either a new bladderless tank and control or I'd put in a new type that uses an internal bladder. But before opting for a bladder type tank, review your installation with your plumber. If there's a snifter valve in the house or in the well, those might need to be removed and plugged if going to a bladder type tank.



Question: my water tank air valve is leaking around the rubber mount on the tank

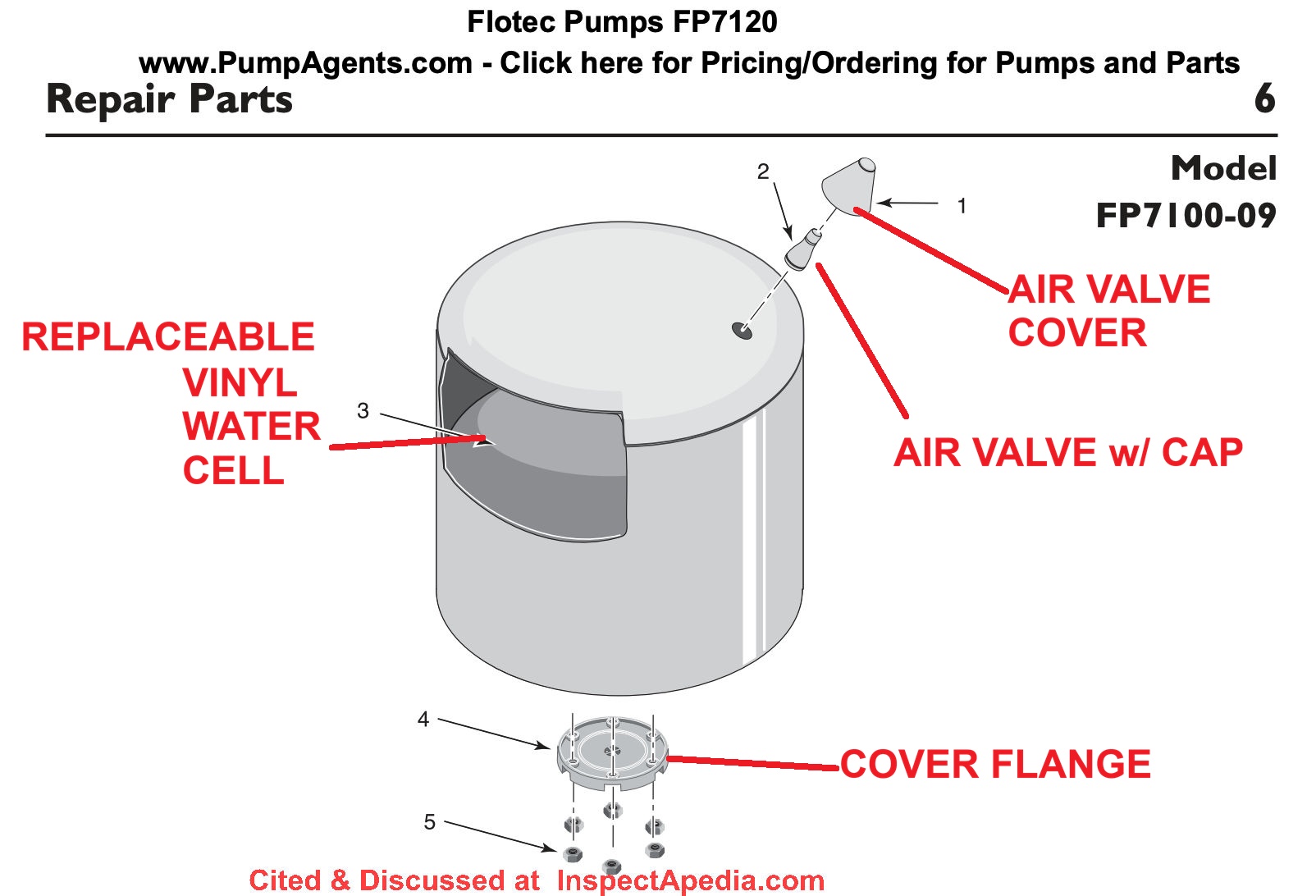

I have a Flotec FP7120 pre charged pressure tank for well water lawn irrigation . The air valve on the top of the tank is suddenly licking. The leaking is at the base of the valve between the rubber of the air valve and the metal of the tank ( the air valve is the same as the car tire valve ) Please help me, let me know what I should do to fix it . Thank you very much. 2020-07-30 by Diep
