Specifications for drywells or seepage pits or soakpits:
This document discusses and describes design specifications for seepage pits and drywells. We describe sepage pit size, area requirements, depth, and other construction requirements if you plan to use a seepage pit for roof or site drainage, to receive graywater or to receive septic effluent.
Site Requirements for septic seepage pits & drywells
(i) If soil and site conditions are adequate for absorption trenches, seepage pits shall not be used.
(ii) A minimum three foot vertical separation must exist between the bottom of any pit and the high groundwater level, bedrock, or other impervious layer.
Design Criteria for seepage pits used to dispose of septic effluent
(i) The required "effective seepage pit area" is obtained from Tables 6 and 7 which are shown below.
(ii) No allowance for infiltration area is made for the bottom area of a pit or the surface area of impervious soil layers (percolation rate
slower than 60 minutes/inch).
(iii) The effective diameter of a seepage pit includes the diameter of the
lining plus the added diameter provided by the annular ring of
aggregate. Any area surrounding the liner with rock smaller than 2 1/2
inches in size shall not be included as part of the effective diameter.
(iv) Effective seepage pit depth is measured from the invert of the seepage pit
inlet to the floor of the pit, with the thickness of impervious layers
Site Distance Requirements for Drywells
This sketch (from New York's Wastewater Regulations) shows the recommended site clearances between seepage pit (used to
receive septic tank effluent in this case) and other building and site features.
A more detailed list of site clearances between all site features and all types of septic system components is listed at "More Reading"
Notice that absorption pits like this one not only need to be at a sufficient distance from the building, from wells, from property lines,
but also if multiple absorption pits are installed, if you expect each pit to dispose of the graywater or effluent sent to it,
they should be adequately separated from one another.
Effluent Soil Absorption Area Requirements for Seepage Pits
The table given above for historical purposes, shows and older copy of the required soil absorption area for seepage pits
as a function of soil percolation rate and anticipated daily wastewater flow in gallons. A current seepage pit sizing table is given just below.
[Click to see an enlarged, detailed version of this or any other image or table found at InspectApedia.com]
TABLE 6 - SEEPAGE PITS - REQUIRED ABSORPTIVE AREA
(IN SQUARE FEET) FOR HOUSEHOLD SYSTEMS
Given in more detail here:
NYS Table 6: Seepage Pits / Soak Pits: Required Absoptive Area for Household Systems
(Table body gives the required square feet of soakpit absorptive surface area)
Soil Percolation Rate
(Minutes per inch)
Sewage Application Rate (Gallons per day per square foot)
Septic Wastewater Effluent Input Flow Rate (Gallons per Day)
1 - 5
6 - 7
8 - 10
11 - 15
16 - 20
21 - 30
31 - 45
46 - 60
Unsuitable soils for conventional seepage pit design. Use a special design.
Watch out: OPINION: as we explain in this article series, because of the depth below ground surface of most seepage pits or soakpits or cesspools there is a lack of adequate aerobic bacteria for proper treatment of sewage wastewater effluient. As a result, even if the system successfully disposes of effluent it is probably not treating it adequately. The result is a risk of environmental and water aquifer contamination by pathogens.

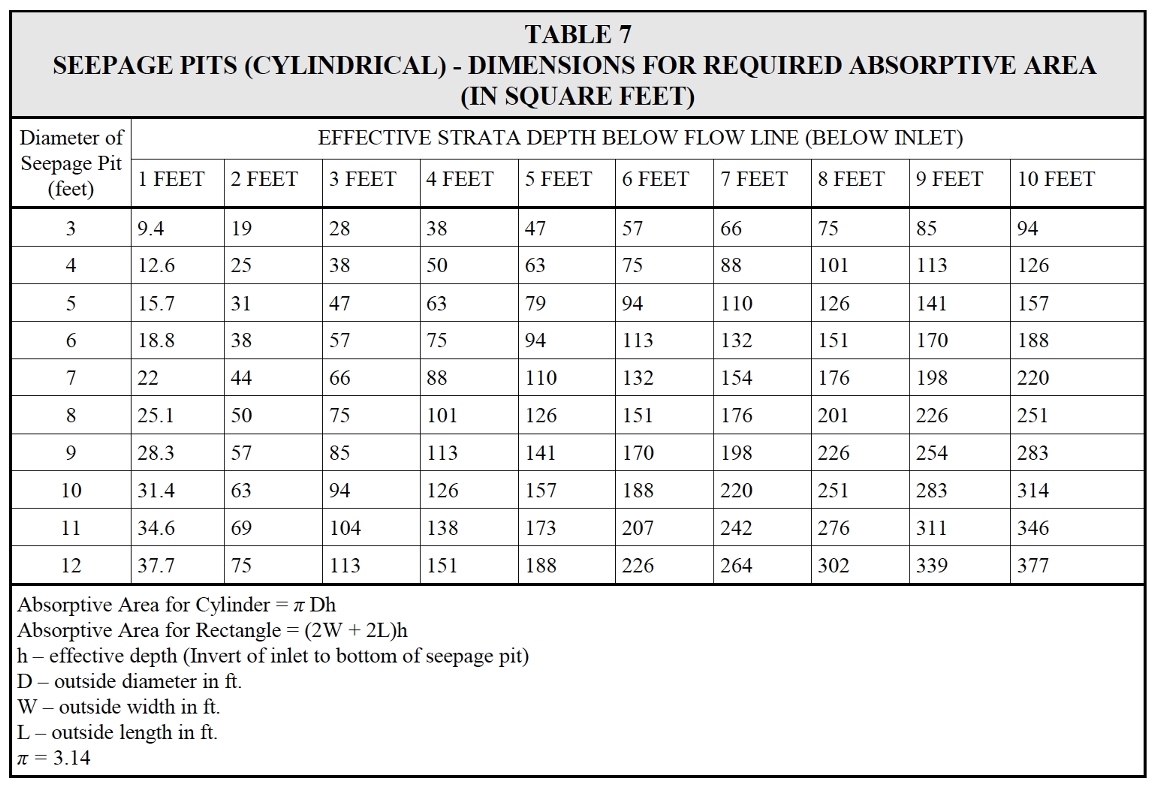

Seepage Pit Size Requirements to Obtain Necessary Absorption Area
The table below shows the size of seepage pit necessary in order to
provide the required soil absorption area for seepage pits. First use
the preceding table to determine the necessary seepage pit absorption area,
then use this table (below) to determine the necessary seepage pit size to
provide that absorption area.
