Flushometer valves guide:

What is a flushometer valve, where and how are they used on toilets (water closets) and urinals, how is the flushometer valve installed, what kind of water pressure and flow does a flushometer valve need to work properly, and what diameter water supply piping is required.

What goes wrong with flushometer valves and their installations: troubleshooting inadequate flush water, too much flush water, noisy or leaky flushometer valves. We also introduce and recommend use of waterless urinals.

Flushometer Valves Used on Toilets, Water Closets, Urinals

Troubleshooting, installation, diagnosis, repair advice for flushometers or "Sloane" valves.

Definition of Flushometer Valve or Sloane valve:

A flushometer valve or popularly Sloane valve, named for its inventor uses building water pressure alone to flush waste from a toilet or urinal.

When the valve handle is pressed or when an automatic sensor detects that the toilet or urinal user has moved away, the valve opens for a sufficient time controlled by the flushometer piston assembly in order to send a sufficient volume of water through the toilet or urinal or bidet.

The flushometer valve flush volume is adjusted to match the water supply pressure and to provide the necessary flush volume.

Unlike a traditional tank or cistern type toilet, a toilet using a flushometer valve has no standing reservoir of a volume of water. It relies on building water pressure and valve-open time to flush the fixture.

Question: Installing a pressurized system & Flushometer Valve Toilets & Urinals on a Well & Pump Water Supply System

I have a well system at a marina and would like to install commercial flushometer toilets and urinals. It is old and is currently served by a standard residential system.

I have space above the rest rooms and would like to install a stand alone pressurized system that is fed by the existing residential system, but would provide the gpm and pressure to function the commercial units. Likely to be a total of 3 toilets and two urinals.

Any ideas or plans available? Thanks, Bill

Reply: Be sure that your well water supply system, pressure tank, pressure, and water supply piping diameter & flow rate can support flushometer valves; consider waterless urinal fixtures.

Bill, there is no technical reason why one could not install flushometer type toilets and urinals at a property served by a standard pump and well system, but the cost and trouble may be more than first meets the eye.

Where we find flushometer type toilets and urinals installed it's usually at a building served by municipal water supply and employing larger diameter water supply piping than the 1/2" pipe usually found at residential type properties.

That's because flushometer fixtures, relying on both water pressure and total gpm flow rate to work properly, need a higher pressure and total flow rate than most residential systems deliver.

You can achieve the necessary pressure and water quantity for the fixtures by adding a water tank and pump at a suitable location, but you might need also to install larger diameter water supply piping to each fixture.

Take a look at the flushometer valves produced by Sloane (William Sloane was the inventor of the flush-o-meter valve in 1906), Kohler, or Sloane-Regal for examples of these controls and to check out the required supply water flow rates.

A properly-adjusted flush-o-meter valve uses about 1/6 gallons per flush.

While flushometer valves by various manufacturers can operate at a range of water pressures (10-100 psi) the typical operating pressure requirement is 25 psi. But the fixtures also need a high water flow rate at that pressure to operate the valve and flush the fixture properly.

That's why the standard water supply pipe diameter to the fixture is 1 1/4" rather than the common 1/2" or 3/4" water supply piping found in residential and light commercial buildings using conventional tank-type toilets.

When choosing fixtures and deciding on water storage volume, pressure, and plumbing specifications you'll need to be sure to check the specific requirements of the flush valves you are buying for the urinals and toilets.

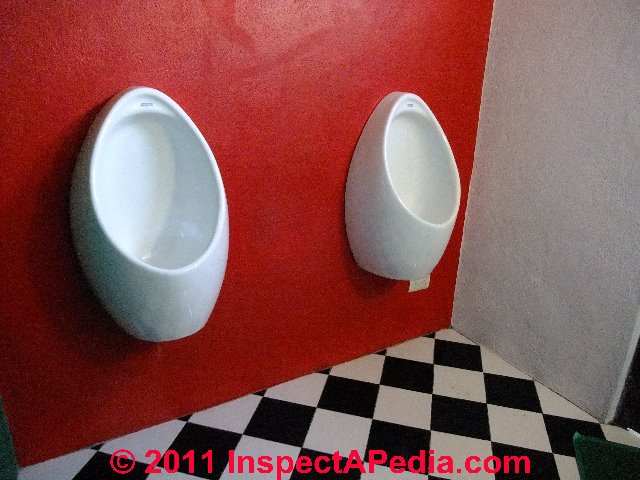

While you're at it, why don't you take a look at some of the new waterless urinals including units provided by Helvex (photo of Helvex waterless urinal) & Sloane-Regal.

I've inspected some of these and found them beautiful, odorless, clean, and as water efficient as one could ask.

Flushometer Valve Installation Notes

Watch Out: Be sure to obtain and follow the installation instructions for the specific brand and model of flushometer valve you are installing.

Links to several flushometer valve manufacturers and their installation guides are provided below atReferences or Citations .

Proper Flushometer vacuum breaker valve location height

For proper flushometer and plumbing fixture operation, the flushometer vacuum breaker must be a minimum of six inches (6") above the highest part of the plumbing fixture that it serves.

Flushometer Toilet (water closet) or Urinal Valve Troubleshooting & Adjustment Advice

Here we combine, expand, and comment on flushometer valve troubleshooting advice from several manufacturers whose original sources are footnoted and detailed below atReferences or Citations [3] [4]

Our photo (left) shows a flushometer valve operating a toilet in a single family residential home in Poughkeepsie, NY.

You'll notice that the piping supplying this flushometer valve is larger in diameter than the common 1/2" or 3/4" diameter water piping used in one family homes.

We have arranged the flushometer valve diagnosis and repair instructions in this order

1. FLUSHOMETER DOESN'T FLUSH AT ALL
2. FLUSHOMETER WEAK FLUSH
3. FLUSHOMETER FLUSH CYCLE TOO SHORT
4. FLUSHOMETER FLUSH VOLUME TOO LITTLE
5. FLUSHOMETER FLUSH VOLUME TOO MUCH or FLUSH CYCLE TOO LONG
6. FLUSHOMETER VALVE LEAKS
7. SPLASHES at FLUSHOMETER FIXTURE
8. FLUSHOMETER VALVE WON'T STOP

no flush water, too little flush water because flush time is too short, and too little flush water for other reasons, problems with over-flushing volume or time, and other flushometer problems such as noises or leaks.

Water Closet (toilet) or Urinal Flushometer valve does not flush - does not send water into the appliance

• Check to assure that the main water supply valve feeding the fixture is open.
• Check that no one has inadvertently "adjusted" the flushometer valve screw to close off water to the fixture
• Damaged handle assembly or internal parts: if the flushometer handle does not cause the valve to flush, does not return cleanly to its normal position, or is leaky,

  chances are you need to either replace the whole handle assembly or remove the handle assembly, take it apart, and install replacement springs, valves, o-rings, washers, etc. from the flushometer handle repair kit available from the manufacturer.
• Damaged relief valve inside the flushometer: re-build the relief valve internal parts using the repair kit available from the manufacturer
• Check for debris clogging of the bypass orifice and clean it (do not drill it to a larger diameter) or replace it.
• Check for dirt or debris on the valve seat or in the valve seal area

Weak Flush or Inadequate Volume of Flush Water at Toilet (water closet) or Urinal with a Flushometer Valve

• Check for adequate water pressure

  and flow rate supplied to the fixture.

  Sloane Regal defines an inadequate volume of flush water as "inadequate volume of water to siphon the fixture" - that is, to cause the waste in the fixture to be totally evacuated [and in our opinion the working sides of the fixture to be washed down for aesthetic reasons]. [4]

At least some of the flushometer valve specifications that we reviewed, particularly from Sloan-Regal and others listed below, are capable of operating satisfactorily at a water flush volume at (an average of) 1.6 gallons or 6 liters per flush, at a flowing water pressure of 25 psi (172kPa).

The requirement for this flowing water pressure and volume for satisfactory flushometer valve operation and toilet or urinal flushing explains our earlier comments about the practice of supplying flushometer-operated toilets and urinals with 1 1/4" water piping.

• No flush water

  for the toilet or urinal at all:

  see FLUSHOMETER DOESN'T FLUSH AT ALL
• Flushometer valve closes immediately -

  no flush water is sent into the urinal or toilet

  Damaged internal parts (diaphragm); install a repair parts kit

  Enlarged bypass orifice; water flowing through any plumbing orifice can cause that opening to become enlarged by corrosion, damage, or simply wear. The part will need replaced.

Flush Cycle Too Short

A Too-short flush cycle for toilet or urinal - flush water flow rate seems adequate but too brief - is a variation on not enough flush water

• Damaged flushometer handle assembly, repair kit parts needed
• Improper installation or assembly of the flushometer assembly over tightening the diaphragm hand tight
• Improper installation using the wrong parts or wrong repair kit (see details below at inadequate volume of flush water)
• Worn internal parts such as bypass orifice, new parts needed

Flushometer Flush Volume Not Enough or Flush Rate Too Weak

If the flush volume is inadequate at the toilet or urinal you may be able to correct the problem by

• Flushometer control adjustment:

  obviously before taking the steps below you would try adjusting the flushometer valve to consume a higher volume of water per flush. The control stop can be opened wider to give a greater water flush volume at the fixture when the flushometer handle is operated.

  As we discuss

  at WATER CONSERVATION MEASURES,

  particularly because they normally operate at high water pressures and send a significant water volume into the toilet, a flushometer valve that is not properly adjusted or that a flushometer valve that allows a toilet to run constantly can waste an enormous volume of water.

  Flushometer valve flow & flush quantity adjustment:

  the flush volume is adjusted on most flushometer valves by turning the control stop, turning the flush volume adjustment screw, or by replacing an internal piston that determines the maximum flush volume. Piston changes can drop a 13 liter flush volume down to about 6L!. For details see the City of Toronto's

  excellent FLUSHOMETER VALVE TEST REPORT [PDF] cited in detail atReferences or Citations (Veritec 2005).
• Flushometer control internal parts are worn,

  damaged, defective: replace the flushometer valve internal parts using a repair kit provided from the manufacturer
• Flushometer control internal parts are the wrong ones:
  • a prior repair attempt that installed urinal flushometer parts into a water closet flushometer valve will cause the valve to fail to provide a sufficient flush water volume in the water closet.
  • an improper original installation (unlikely) or prior repair installed low-consumption flushometer internal parts or an entire low-consumption flushometer valve on a toilet or urinal that is not designed as a low-water-consumption fixture.

    The manufacturers give examples of wrong parts and correct parts by part and kit number. [3] [4]
  • A water saver kit has been installed on a non-water-saver plumbing fixture or bowl. On some fixtures such as Sloane-Regal flushometers, simply installing a refill head with the wrong side "up" can cause this problem.

    For Sloane-Regal flushometers and fixtures, for a non-water-saver bowl install the refill head so that side A is up (for example).

How to Determine if Water Pressure is Adequate at a Flushometer-Toilet or Urinal

Regal gives an interesting procedure for cases in which you are unable to measure the water supply pressure at the plumbing fixture.

The flushometer valve is opened, the relief valve is removed from the internal parts, and the flushometer is reassembled without those parts in place.

The flushometer water flow control stop is opened to its wide-open position. If the fixture siphons, that is it flushes, more water volume is needed. The manufacturer describes how to change-out internal parts or make other adjustments to the flushometer valve to obtain adequate water flow and pressure to adequately flush or siphon the urinal or water closet. [3] [4]

Watch out: adjusting the flushometer valve to use a greater volume of water per flush may provide satisfactory water closet or urinal flushing but at the expense of violating water consumption limitations required by local or other plumbing codes in your area.

"Low Consumption Water Fixtures" regulations require that the toilet (water closet) use not more than 1.6 gallons per flush and urinals not more than 1.0 gallons per flush.

If none of the steps above cause the toilet or urinal to siphon (flush out its contents successfully) then you will need to take one of the steps we list below to improve water pressure and volume.

If you cannot obtain a satisfactory flush by increasing the flushometer water volume per flush, or if you are trying to obtain a more aggressive and cleansing flush without significantly increasing the volume of water consumed you may want to consider the steps below:

• Water pressure is inadequate: providing higher water pressure to the fixture through building water supply piping
• Water supply piping: re-piping all or even just a portion of the building water supply piping using a larger pipe diameter

Flushometer Valve Sends Too Much Water into the Toilet or Urinal or Flushes for Too Long a Time

• Inadequate water pressure

  in the water supply line can cause the relief valve to fail to seat properly. This may be counter intuitive but it is an interesting case of too-little water pressure causing too long a flush at the fixture.
• Clogged bypass orifice:

  The same symptom can occur if the bypass orifice has become clogged.

Watch out: cleaning the bypass orifice of a flushometer valve should be done gently so as not to enlarge the factory-set diameter of the part. Soak a mineral-corroded part in vinegar and gently brush it with a soft brush like a toothbrush.

Or just replace the part. If you gouge or otherwise damage the bypass orifice the flushometer will no longer work properly.

• Damaged internal parts:

  inside cover has cracked; a damaged flushometer internal cover or a flushometer diaphragm that has been installed upside down can also cause chattering noises during flushing of the fixture; use a repair parts kit
• Improper prior repairs

  installing the wrong parts inside the flushometer, such as installing a higher flush-volume parts kit into a low-water-consumption flushometer

Leaks at the Flushometer Valve or Flushometer Handle

Inspecting bathrooms in several countries including the U.S., Mexico, Morocco, France, and Italy we have often seen leaks at the flushometer valve handle and we suspect this is the most common leak source.

Other leaks around water supply piping or flushometer connections are also found on occasions due to sloppy workmanship. Regal points [4]out three common causes of flushometer handle leaks:

• Check for a loose nut at the flushometer lever and tighten it if needed
• Check/replace fiber washer at the lever assembly
• Check for dirty U-packing on Toto flushometer valves - disassemble & clean
• The flushometer handle seal has been worn, damaged, or improperly installed
• The flushometer handle gasket was left out during assembly
• The flushometer valve handle bushing is worn.

Flushometer Toilet or Urinal Splashes

• Sloan advises you to check for a control stop that is open too far.
• Check also for a previous improper repair, there could be wrong parts installed such as installing a toilet flushometer valve control in a urinal flushomter

Flushomter Valve Runs Continuously

If a flushometer valve sticks and flushes continuously - or own't turn off on its own,

• Check first for dirt in the bypass orifice and clean it;
• Check for dirt in the valve seat or falve sealing area; if cleaning doesn't fix this problem replace the valve parts as they're probably worn-out
• Check for a damaged control valve or improper control stop adjustment

Reader Question: How to solve problems or repair Sloan / Regal flushometer valves: noise, adjustment, repair parts

(July 1, 2014) Anonymous said:
I installed a brand new Sloan/Regal standard flush valve. The problem I'm having is, at the end of the flush, it makes a loud noise.

Reply: contact information for Sloan Flushometers, valves, parts, repairs

Anon I can't tell from just your note if the situation is abnormal or not. Give the manufacturer a call to see if they can advise.
I'd start with the company's technical support line

Technical Support P: 888.SLOAN.14 F: 800.737.3061 Email: techsupport@sloanvalve.com

Or in the USA Call Sloan at 847-671-4300, or by email to customer.service@sloanvalve.com

Flushometer Valve Installation, Repair & Parts Manuals

• American Stdandard MANUAL FLUSH VALVE EXPOSED FLUSHOMETER INSTALLATION INSTRUCTIONS for top spud urinals [PDF] retrieved 2019/02/04, original source: https://www.americanstandard-us.com/-/media/sites/asus/files/product-instruction-manuals/commercial-flush-valves/installationinstructions-6045601.pdf?la=en
• Helvex Co. [citation needed]
• Kohler FLUSHOMETER VALVE INSTALLATION GUIDE [PDF] (2018) retrieved 2019/02/04, original source: https://www.us.kohler.com/webassets/kpna/catalog/pdf/en/1202912_2.pdf
• Kohler FLUSHOMETER VALVE SPECIFICATION SHEET [PDF], Kohler, Manual 1.28 GPF WC Flushometer Valve K-13517 Kohler, 1-800-4KOHLER (1-800-456-4537), Website: wee.kohler.com
• Kohler ODEON TOUCHLESS TOILET SENSOR (WATER SAVING) INSTALLATION INSTRUCTIONS [PDF]
• Sloan Valve MANUAL FLUSH VALVES IO MANUAL, [PDF] for Royal & Regal Manually Operated Flush Valves for Toilets and Urinals



  Contact: Sloan Valves world wide

  Sloan Headquarters, 10500 Seymour Avenue Franklin Park, IL 60131 USA
  P: 847.671.4300 / 800.9.VALVE.9 F: 847.671.6944 / 800.447.8329 Email: customer.service@sloanvalve.com North American Sales


  Since Sloan Valve is an international company and you did not say where you are I include


  International Sales for Sloan Valves: P: 847.671.4300 / 800.9VALVE.9 F: 847.671.6851 Email: international.411@sloanvalve.com

  Sloan De México - Carr. A Los Pinos Km.1, Ramos Arizpe, Coah. Mex. CP: 25900 Postal Code P: 844.488.0669 ,800.831.0217 F: 844.488.0815 Email: sloandemexico@sloanvalve.com

  Sloan Valve Water Technologies (Suzhou) Co., Ltd China, 16 Hu Ju Road, Suzhou New District Jiangsu, 215009 China P: 86.512.6843.8068 F: 86.512.6843.4622 Email: sales@sloan.com.cn

  Sloan Valve Asia P: 852.2519.8018 F: 852.2598.1468 Email: sloanhk@netvigator.com

• Sloane-Regal Installation Instructions for Standard Exposed Closet and Urinal Flushometers, Regal I.I. Code 816312, Models 110/111 through Model 117. 120-122, and 180, 186, 1997, Sloan Valve Company, 10500 Seymour Ave., Franklin Park IL 60131, Tel: 847-671-4300, website: sloanvalve.com
• Sloan Valve INSTALLATION INSTRUCTIONS FOR PISTON TYPE FLUSHOMETER EXPOSED CLOSET AND URINAL INSTALLATIONS [PDF] (2013) Sloan Corporation, 10500 Seymore Ave., Franklin Park, IL 60131 USA Tel: 1-800-9-VALVE-9 or 1-847-671-4300 Website: www.sloanvalve.com retrieved 2019/02/04, original source: https://www.sloan.com/sites/default/files/2015-12/0816477.pdf
• Sloan Valve INSTALLATION INSTRUCTIONS FOR EXPOSED REGAL® XL WATER CLOSET AND URINAL FLUSHOMETERS [PDF] (2010) Op. Cit.
• Sloane Installation Instructions for Exposed Regal® XL Water Closet and Urinal Flushometers, Code 0816312 (newer version of above document), Rev. 1 05/10, Sloan Valve Company, 10500 Seymour Ave., Franklin Park IL 60131, Tel: 800-982-5839, or 888-SLOAN-14 / 888-756-2614, website: sloanevalve.com
• Sloan Valve INSTALLATION INSTRUCTIONS FOR EXPOSED ROYAL® FLUSHOMETERS [PDF] (2015), Op. Cit.
• Sloan Valve, Flush Valve Troubleshooting Tips, (2018) retrieved 2019/02/04, original source: https://sloanrepair.com/blogs/blog/7-flush-valve-troubleshooting-tips

  The Sloan flush valve guide addresses seven flushometer problems that we excerpt and adopt from Sloan's more-detailed advice given above.

  1. Flushometer Flush length too short: damaged diaphraghm assembly or handle assembly or wrong parts installed

  2. Flushometer Flush length too long: bypass orifice in the valve is clogged - clean it or replace it, don't enlarge it.

  3. Flushometer Flush valve doesn't flush at all: first check that water to the fixture is turned on; check for a closed control stop or closed main water supply valve, also could be a worn handle assembly that needs replacement.

  4.Flushometer Water splashes out of the fixture (toilet or urinal) - check for a control stop that is open too far, also could be wrong parts installed

  5. Flushometer Flush volume is insufficient - check for a control stop not open far enough, also could be wrong parts installed

  6.Flushometer valve makes chattering noise - probably due to damaged parts including the diapharagm assembly or relief valve; replace parts until the chattering stops.
  Flushometer

  7. Flushometer valve is leaking - around the handle assembly - usually due to damaged or worn parts in the handle seal or handl assembly. Sloan provides a handle seal repair kit. IF that doesn't work replace the flushometer handle assembly.


• Toto USA FLUSHOMETER VALVE INSTALLATION MANUAL [PDF] (2010) TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260 (888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A. retrieved 2019/02/04, original source: https://www.totousa.com/filemanager_uploads/product_assets/0GU3001_TOILET_FLUSHOMETER_VALVES_IM.pdf
• Veritec Consulting, Inc., "Testing of Popular Flushometer Valve/Bowl Combinations, Final Report, Prepared for City of Toronto with Region of Durham & Region of Waterloo Revised August 2005", Veritec Consulting Inc., 1495 Bonhill Rd., Unit #12, Mississauga, ON L5T 1M2, P: (905) 696-9391, ext. 102, Email: bill@veritec.ca, (2005), retrieved 2/3/2014, original source: http://www.cwwa.ca/pdf_files/fv%20revised%20final%20report%20aug,23.pdf
• Zurn AquaSense AV ZER FLUSHOMETER VALVE INSTALLATION, OPERATION, MAINTENANCE & PARTS MANUAL [PDF] ZER6000AV-CP &* ZER6000AV-CPM valves, retrieved 2019/02/04, original source: https://www.zurn.com/media-library/web_documents/pdfs/installation/fv237-pdf

  Zurn Industries, Inc. Commercial Brass Operation
  5900 Elwin Buchanan Drive, Sanford, Nc, U.s.a. 27330 Phone: 1-800-997-3876 Fax: 919/775-3541 Website: Www.zurn.com

  Zurn Industries Limited 3544 Nashua Drive, Mississauga, Ontario L4v 1l2 Phone: 905/405-8272 Fax: 905/405-1292
• Zurn E-Z FLUSH AUTOMATIC SENSOR RETROFIT KIT for URINALS & TOILETS using FLUSHOMETER VALVES [PDF] (2004) Op. Cit.,
  retrieved 2019/02/04, original source: http://www.zesco.com/PDFs/790/790-D-023-2.pdf



...

---

---

ADVERTISEMENT

---

---

Reader Q&A - also see RECOMMENDED ARTICLES & FAQs

On 2024-04-26 by Andy

Hello,
Would you recommend a rebuild kit or a entirely new toilet flushometer. The unit is a Coyne Delany 3.5 gpf flushometer approx. 40 years old and is leaking from the threads on the valve. The toilet is a water saver rated at 1.28 gpf.
Thanks.

On 2024-04-26 by InspectApedia Publisher

@Andy,

Indeed there are both OEM flushometer kits for your exact toilet brand and model but also generic ones that will work in almost any toilet.

I'd replace the assembly. It's not much more work than trying to fix and fiddle with the failing one.

The article above might be helpful and will at least be sure that you and I are talking about the same parts.

Daniel



...

Continue reading  at FLUSHOMETER TOILETS & URINALS or select a topic from the closely-related articles below, or see the complete ARTICLE INDEX.

Or see FLUSHOMETER VALVE for TOILET URINAL FAQs - questions and answers about flushometer flush valves posted originally at this page.

Or see these

Recommended Articles

• TOILET FLUSH HANDLE LEVER REPLACEMENT
• TOILETS, INSPECT, INSTALL, REPAIR - home - cause, diagnosis, and repair of toilet problems (water closet problems) such as a toilet that does not flush well, clogged toilets, slow-filling toilets, running toilets, loose wobbly toilets, and odors at leaky toilets.
• VALVES, PLUMBING

Suggested citation for this web page

FLUSHOMETER VALVES for TOILETS URINALS at InspectApedia.com - online encyclopedia of building & environmental inspection, testing, diagnosis, repair, & problem prevention advice.

Or see this

INDEX to RELATED ARTICLES: ARTICLE INDEX to TOILET INFORMATION

Or use the SEARCH BOX found below to Ask a Question or Search InspectApedia

Ask a Question or Search InspectApedia

Try the search box just below, or if you prefer, post a question or comment in the Comments box below and we will respond promptly.

Note: appearance of your Comment below may be delayed: if your comment contains an image, photograph, web link, or text that looks to the software as if it might be a web link, your posting will appear after it has been approved by a moderator. Apologies for the delay.

Only one image can be added per comment but you can post as many comments, and therefore images, as you like.
You will not receive a notification when a response to your question has been posted.
Please bookmark this page to make it easy for you to check back for our response.
Our Comment Box is provided by Countable Web Productions countable.ca

Citations & References

In addition to any citations in the article above, a full list is available on request.

---

ADVERTISEMENT

---
