Simple Tools Used to Measure Septic Tank Floating Scum Thickness and Sludge Level in the Septic Tank
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
Tools for measuring septic tank scum / sludge: this article explains the necessity of measuring the thickness of the floating scum layer
in a septic tank and of measuring the thickness of the settled scum layer in a septic tank as well.
We include descriptions of how to make septic sludge and scum measuring tools and how to use them. Whether your system is a conventional septic tank and drain field, an above ground septic system, or even a holding tank,
pumping and inspecting the septic tank is a critical septic tank maintenance and septic system maintenance chore.
Septic tank pumping pumping frequency guidance is provided in a table at our website (see links abovet.)
When the septic tank is pumped, measurements of the scum layer and sludge layer tell you the condition of
the system.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
USDA / US FPS design for Septic Tank Sludge & Scum Measuring Tube
 These septic tank sludge/scum measurements, made or at least roughly estimated by the septic pumping contractor at the
time that a septic tank is pumped, provide key information that permits the home owner to know
1) whether or not the septic tank is being pumped often enough, and
2) whether or not there is evidence that the septic fields have been damaged by having not
pumped the tank soon enough.
Use of this information at other websites, in books or pamphlets for sale is reserved
to the author. Technical review by industry experts has been performed and is ongoing - reviewers are listed at "References."
At SEWAGE LEVELS in SEPTIC TANKS we explain how to interpret the meaning of high or low sewage levels in the septic tank as well as thick or thin scum or sludge levels. Readers of this document should be sure to review
our table of septic tank pumping frequency.
This article is part of our series: Inspecting, Testing, & Maintaining Residential Septic Systems.
Also see Diagnosing Clogged Drains Is it a blocked drain or the septic system?
If you can't find your septic tank see How to Find The Septic Tank - tips on locating septic tanks for inspection and septic tank pumping.

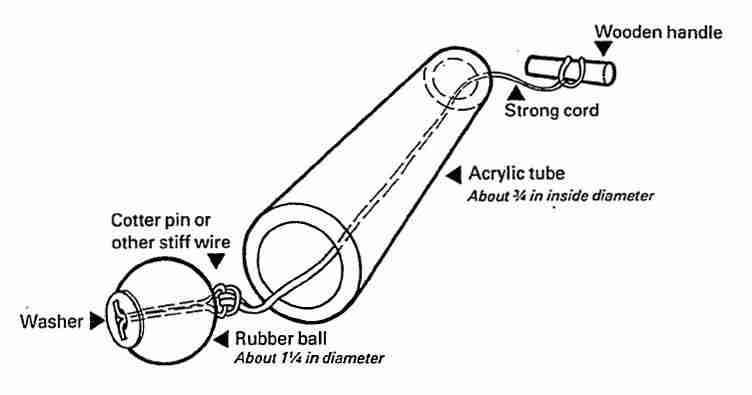

The USDA/FPS sketch at above left shows a tube and rubber ball design that can be used for measuring both the septic tank floating scum layer, and the septic tank bottom sludge layer thickness.
The tube can be constructed using acrylic plastic (as shown) or a PVC plastic pipe (more readily available. All you need is a rubber ball that is a bit larger than the inside diameter of the pipe, some string, a washer, cotter pin or wire, and a scrap of wood for a handle.
The length of pipe needs to be long enough to safely reach the tank bottom without you having to lean over or reach into the tank, but short enough to be easy to handle. Eight feet should be plenty. If you find that your septic tank bottom is just four or five feet below the ground surface you can later cut some excess off of the pipe.

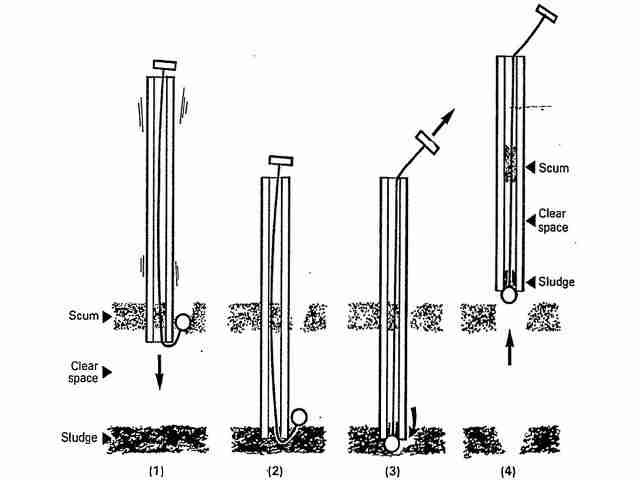

Below we include the USDA sketch showing how this measuring tube can easily measure both the floating scum layer in the septic tank and the bottom sludge layer thickness in the tank.
|
At left is an illustration showing how the pipe and rubber ball measuring system is used to measure septic tank scum layer and bottom sludge layer.
Watch out: opening, leaning over, or falling into a septic tank is dangerous and can be fatal. Do not work alone. See the safety warnings at SEPTIC SYSTEM SAFETY WARNINGS. |
Electronic Monitors for Septic Tank Scum & Sludge Levels
 Below at References we also describe an electronic septic tank monitor or grease trap monitor from Worldstone. These devices can track sludge, scum, or grease levels in order to best schedule septic tank pumping or grease trap cleaning. This product is suitable for commercial installations and possibly for some residential septic tank systems.
According to the company, "Data from monitors can help establish appropriate service intervals, and document maintenance for regulatory compliance. Alarm features can help detect abnormal conditions and prevent costly backups."The company also produces an oil tank level monitor.
Thanks to reader Robert Shirley for this tip.
OPINION - DF: this product is a great idea for commercial installations or problem septic installations. Substituting actual septic tank scum layer thickness or scum level thickness data for the septic tank pumping schedule table above may allow the tank to be opened and pumped less often - saving some money.
Watch out: But don't forget that regular opening and inspection of the septic tank, such as happens when the septic tank is to be pumped out or "cleaned", gives an additional opportunity to check for other septic system problems that could be leading to a costly failure, but that don't directly concern the septic tank sludge or scum layer thickness.
Examples include the discovery of lost or damaged septic tank baffles, septic tanks leaks that allow ground water to flood the septic system, or septic tank leaks out of the tank. |
...
