Clay tile roof wear & damage: in photographs & text this article describes & explains the causes of all types of wear and damage that can be found on clay tile roofs by visual inspection. These include roofing tiles that are cracked, broken, pitting, spalled, loose, or missing, and of course, leaks in a clay tile roof.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Examples of Clay Tile Roof Wear or Installation Problems that Limit Roof Life
|
 In discussing types of clay tile roof damage, we include advice about how to inspect a tile roof and on how, if ever, you might walk on a clay tile or concrete tile roof.
Our page top photo shows clay roofing tiles installed in the Northeastern U.S. This roof had been damaged by foot traffic. Clay tile roofs are often damaged by foot traffic, ice and snow, or by severe storms.
Our photo (left) shows the author (DF, back to camera) examining a clay tile roof installed on the Hwang Lim Won orphanage in Seoul, Korea in 1966. The roof was constructed using an S-tile profile and was not leaking. Tiles on the structure had to withstand Korean monsoon weather of heavy rain and high winds.
|

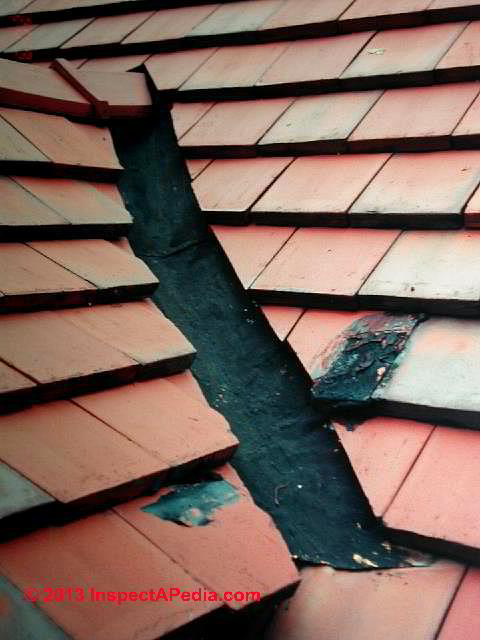

Our photo of a tarred roof valley and damaged interlocking clay roof tiles (above left) was taken from a ladder at roof edge. At above right, on a barn on the Roosevelt Estate in Hyde Park NY, ice and storm damage have broken many of these rectangular flat roof tiles.
The common failures on clay tile roofs include cracked broken tiles, spalling (in freezing climates), loose tiles that slide down out of place (on roofs where not every tile is secured to the roof deck), flashing failures (corrosion or cracking), and fastener failures.
We also find leaks in clay tile roofs that were improperly flashed or that were built on a low slope and without a waterproof membrane.
|
|

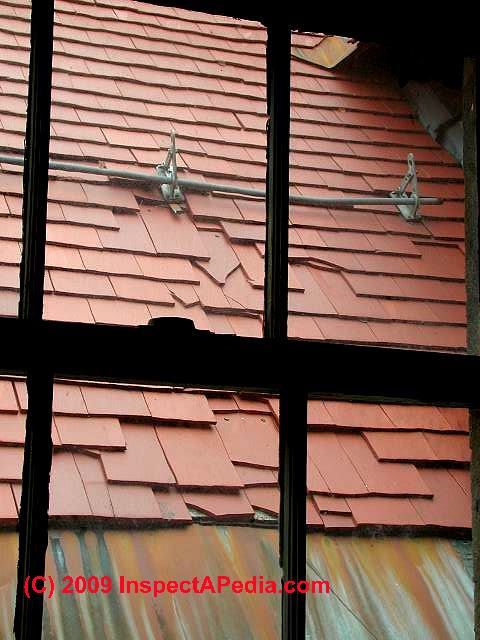

Our photo of broken clay roof shingle-tiles (left) was taken during an inspection made without walking on the roof surface - for obvious reasons: we didn't want to shoulder the blame for this damage.
We recommend against walking on clay tile roofs as you are likely to damage the roof leading to the need for costly repairs. More discussion on walking on fragile roofs is later in this article. |

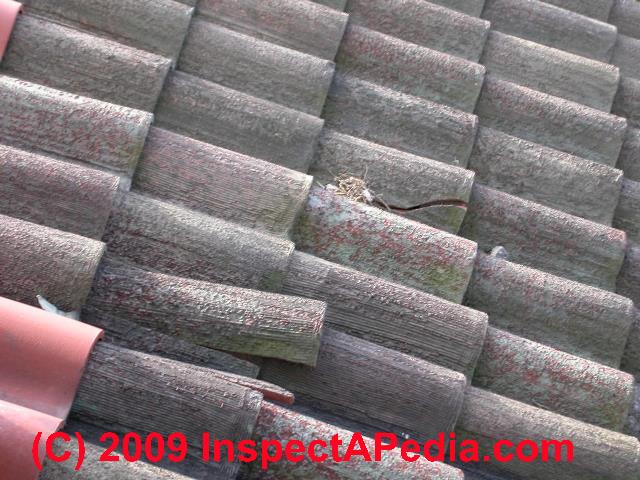

Our photo (above left) shows broken clay roof tiles, a very common clay tile roof defect that is also a common leak source.

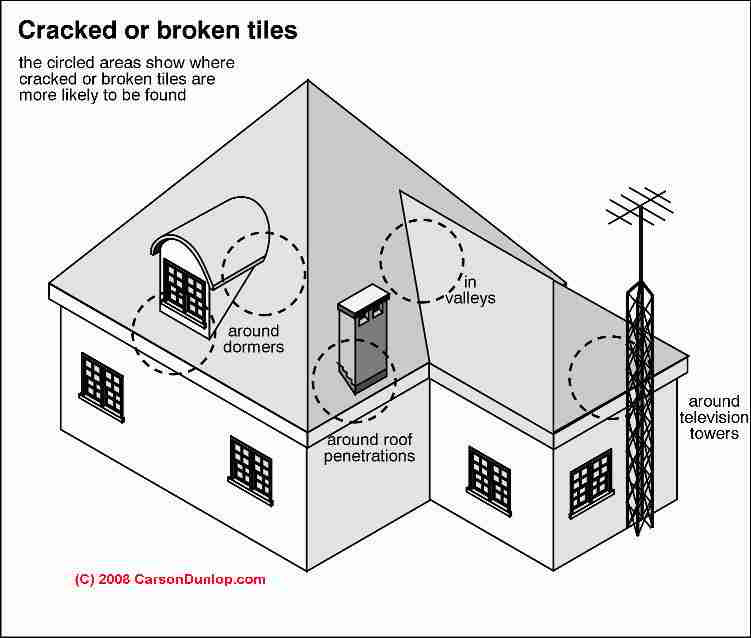

At the photo lower left corner you can see a pair of replacement clay tiles that have been put in place, but more replacements are needed wherever a broken roof tile is found. Carson Dunlop's sketch (above right) illustrates the most common locations where cracked or broken tiles are found on clay tile roofs.

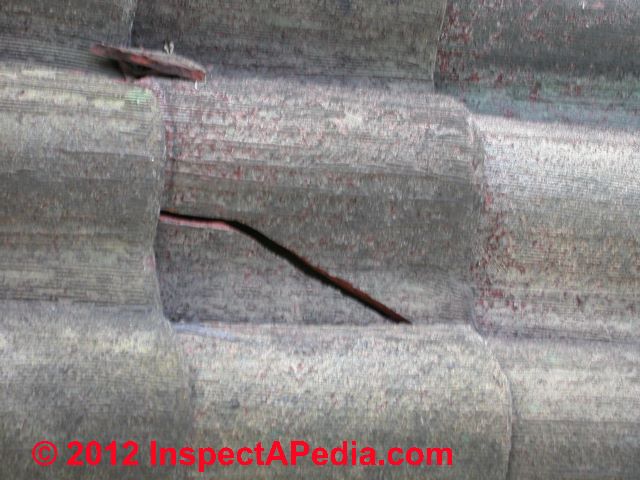

In some climates clay tiles may also become damaged by spalling from freezing when the tiles were wet.
Foot Traffic Advice: Walking on Clay Tile Roofs
 As we discuss at FLASHING, CLAY TILE ROOFS, and as stated in stated in Best Practices Guide to Residential Construction (printed text), to prevent breakage, walk on tiles with extreme caution.
Profile tile and lightweight tile are the most vulnerable,
and concrete tiles are more fragile when they are freshly
manufactured or “green.”
If possible, place antennas and
other roof-mounted equipment where it is easy to access
without crossing many tiles.
Roof access hazards are discussed at ROOF INSPECTION SAFETY & LIMITS
When it is necessary to walk
on tiles, some authorities suggeest that you step only on the head-lap (lower 3 inches) of each
tile. With Mission- or S-tiles, it is best to step across two
tiles at once to distribute the weight. When significant
rooftop work is required, place plywood over the tile to
distribute the load.
|
Removal of Roof Tiles May Be Necessary for On-Roof Access

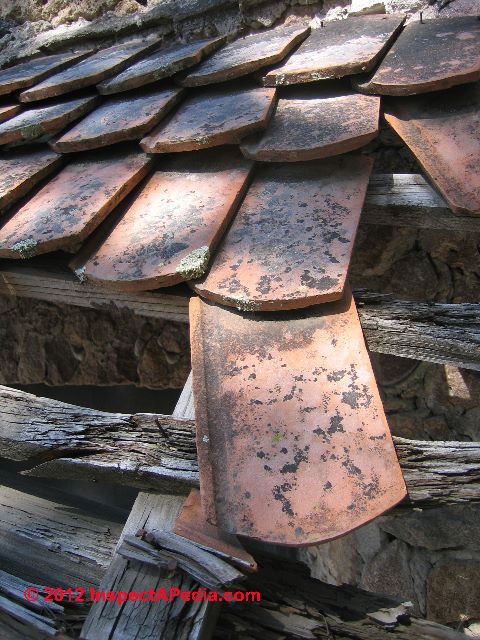

Watch out: our own experience is that it is absolutely impossible to walk on many clay tile roofs without damaging them, particularly soft clay such as the roof type used in Latin America (our photo at left).
For these roofs contractors have to remove sufficient clay tiles to provide a walking area. The removed tiles are replaced as the worker is leaving the work area of the roof.
On some other fragile but not totally fragile roofs such as slate roofs, cement tile, cement-asbestos, fiber cement, and hard-fired ceramic clay tile roofs, contractors suspend a ladder over the roof surface, hanging it from the ridge, and cushioning it off of the roof surface using foam or insulation padding, or contractors work from scaffolding. - Ed.
|
Hidden Structural Damage Below Clay Roofing Tiles
|
Here we illustrate another reason to stay off of clay tile roofs - very fragile, loose clay tiles and rotted collapsing structure below.
Walking on the roof we show at left is almost certainly going to break tiles and risk injury as the supporting structure may break below the inspector.
This particular roof condition could also be observed from inside the home's attic. |
...
Frequently Asked Questions (FAQs) about wear & damage to clay tile roofs
...
Ask a Question or Search InspectApedia
Questions & answers or comments about wear & damage to clay tile roofs: spalling, pitting, cracking, breaking, loose, or missing clay tiles.
Ask a Question or Enter Search Terms in the InspectApedia search box just below.
