Federal Pacific Electric Panel Tests Indicate Failures

Results of independent testing on an FPE Stab-Lok® panel obtained from a homeowner
- Subset of the entire UL 489 Standard, is intended to determine proper electrical circuit breaker function in response to overcurrent.
- FPE PANEL Test Performed - 4 breakers (green tabs in various photos) performed properly
- FPE PANEL Test Results - 13 breakers (yellow tabs in various photos) did not work properly,
- Photos of FPE Stab-Lok® Panel - 2 breakers "tripped" but failed to open at least one pole
- In the electrical industry, the failure rate for non-trip breakers is virtually zero.
FPE Stab-Lok® TECHNICAL REPORT - separate article
FPE Stab-Lok® TECHNICAL REPORT-2004 - separate article
Questions & Answers about tests on FPE Panels and Breakers
References

Click to Show or Hide Related Topics

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

Independent tests of FPE Equipment: October 15, 2000, Poughkeepsie, NY. Tests by an independent forensic engineer confirmed failures of circuit breakers in a Federal Pacific Stab-Lok® residential electric panel that was contributed by a homeowner.

Replacement FPE Stab-Lok® circuit breakers are unlikely to reduce the failure risk of this equipment. We recommend that residential FPE Stab-Lok® electrical panels be replaced entirely or the entire panel bus assembly be replaced, regardless of FPE model number or FPE year of manufacture. We do not sell circuit breakers nor any other products.

Federal Pacific Electric Test Performed on Homeowner's FPE Breaker Panel

The breakers in this Federal Pacific Stab-Lok® panel were tested according to the Underwriters Laboratories UL Standard UL 489 calibration test.

This test, a subset of the entire UL 489 Standard, is intended to determine proper electrical circuit breaker function in response to overcurrent.

40-Amp breakers were tested at 135% of rated load and should trip within an hour. 20-Amp and 15-Amp breakers were tested at 200% of rated load and should trip within 2 minutes.

Federal Pacific Electric (FPE Panel) Test Results

The FPE panel tested contained 19 circuit breakers.

4 breakers (green tabs in various photos) performed properly: the breaker opened the circuit within the prescribed time and the toggle switch moved to the "tripped" position.
13 breakers (yellow tabs in various photos) did not work properly, demonstrating mechanical irregularities within the product: while all "opened" the circuit, some moved to the full-off position and others stayed in the full-on position.
2 breakers (red tabs in various photos), nominally "tripped" in that there was partial or full toggle movement. However, they failed to open the circuit on at least one pole.

10% (2 out of 19) of the Federal Pacific Electric Stab-Lok® breakers in the panel tested failed to perform properly. In the electrical industry, the failure rate for non-trip breakers is virtually zero.

Photographs of Federal Pacific Electric Panel Tested

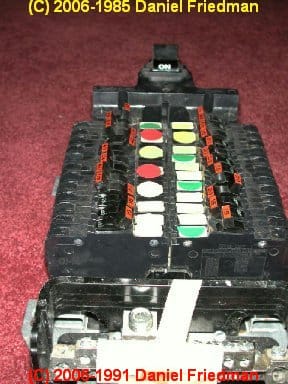

FPE PANEL after testing - oblique view - note variations in toggles after every breaker was subjected to overcurrent

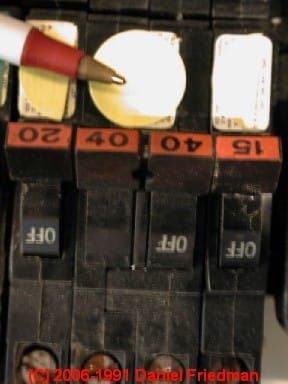

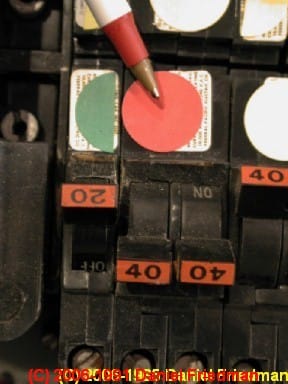

FPE breaker failure - did not open the circuit in response to overcurrent
FPE breaker mechanical variations - this breaker moved to full "off" position after tripping - mechanically inconsistent with breakers which usually move to a "tripped" position

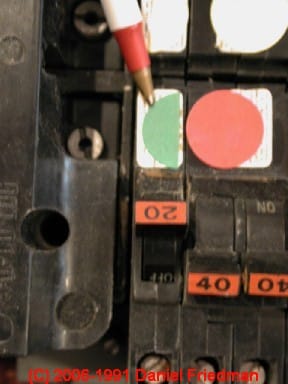

FPE breaker - proper function - tripped properly after testing as described above

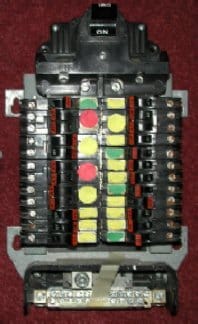

FPE PANEL after testing - front view
FPE PANEL identification label - from panel tested
