Photo Guide to Federal Pacific Electric Stab-Lok® EQUIPMENT COVER LABELS & MARKINGS
Photos of Federal Pacific Electric FPE Stab-Lok® Electric Panel/Circuit Breaker Identifying Labels and Markings How can you it is a "Stab-Lok® " model?
FPE PANEL COVERS - Photos of FPE panel cover and exposed circuit breaker markings
On panels of this vintage you may need to look not at the paper label on the FPE panel door, but rather on the panel face or cover itself for the words "Stab-Lok® " to identify Federal Pacific Electric Stab Lok panels. These identifying words may appear at the top or bottom of the panel face.
[Click to enlarge any image]
- Photo of a bank of Stab-Lok® Electric panels nicely labeled on the panel front face -- Arlene Puentes
- Typical Stab-Lok® Panel with the consumer-access door open, close ups are in the next two photos.
- Typical Stab-Lok® Panel with the labeling visible, notice the words "Stab-Lok® Load Center" in white ink visible at the upper left in this photo - this is what a homeowner might see on opening the hinged panel door
- Typical Stab-Lok® Panel, lower half of panel in above photo, notice the words "Federal Pacific Electric Company, Newark NJ" at the bottom of the photo - this is what a homeowner might see on opening the hinged panel door
- Photos of a Federal Electric Catalong No. 116 "Stab-Lok® " panel that does not include the words "Stab-Lok® " on the panel labeling but shows the stab-loc design on the panel label as well as on direct examination of the copper panel bus
are at FEDERAL ELECTRIC PANELS
- Photo of a Stab-Lok® sub-panel with label visible, Stab-Lok® model#108-16, notice the words "Stab-Lok® visible in the center between the two rows of breakers when the hinged cover door is open.
- Photo of a Stab-Lok® Electric panel, with a 100A breaker on the heater circuit - this breaker failed to trip, discussed
at FPE FIRE PHOTOGRAPHGS
More FPE panel cover examples are at these links:

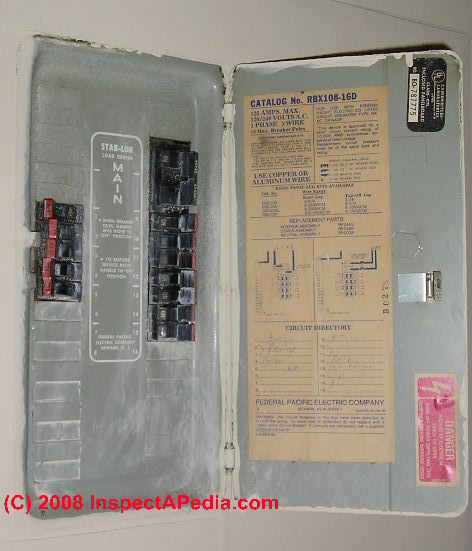

- Photo of a FPE Stab Lok 125A Electric Panel Model RBX108-16D 125A
- Photo of a 125A Stab-Lok® Electric panel (partial view)

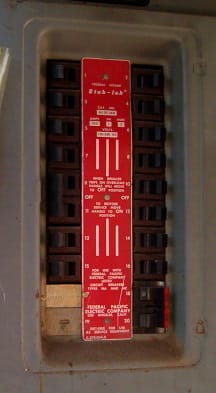

- Photo of a Red-Center Stab-Lok® Electric panel - California Federal Pacific Panel photos by Tim Hemm
Horizontal-Mount FPE Panel Covers

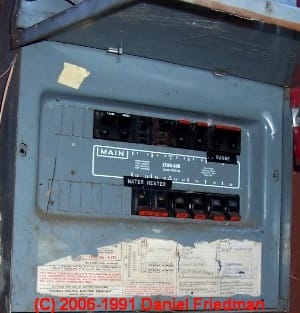

- Horizontal-Mount Stab-Lok® Electric panel - California, White Painted-On ID - photo above

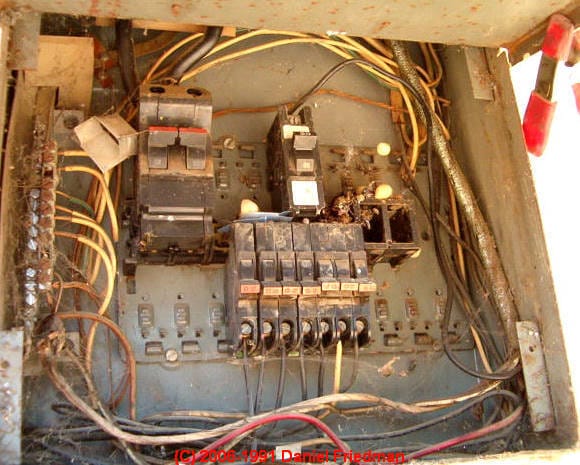

- Horizontal-Mount Stab-Lok® Electric panel interior view - California

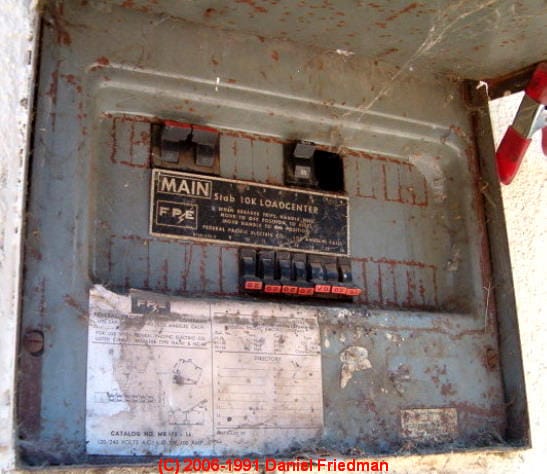

- Horizontal-Mount Stab-Lok® Electric panel - California, Black Metal Plate ID

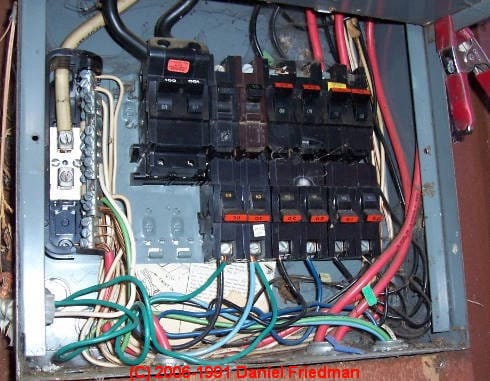

- Horizontal-Mount Stab-Lok® Electric panel interior view - California
More FPE Covers: Arkansas, California, Texas

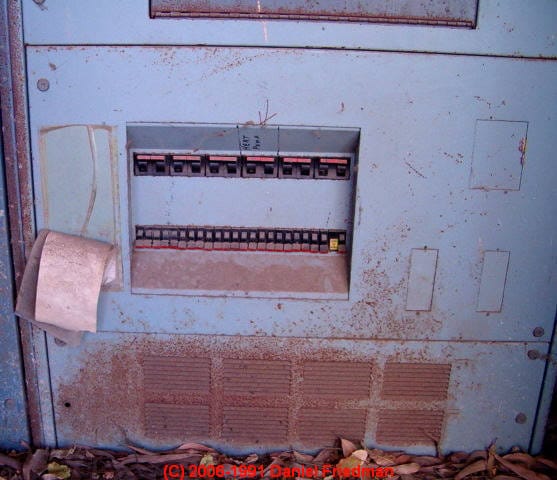

- Stab-Lok® Sub-panel - California
- Stab-Lok® 200-Amp electrical panel Catalog No. C124-40N1 - Searcy, Arkansas - the face of this panel is plainly labeled "Stab-Lok® " at the top center in white print, and the FPE panel label indicates the model number as well as the manufacturer as Federal Pacific (L McIntire).
- Stab-Lok® 200-A panel FPE Model# L120-40 - Texas - This panel was labeled at its top "Stab-Lok® Load Center" and at its "bottom front as "Federal Pacific Electric Company Newark NJ". Texas FPE Stab-Lok® Load Center Electric Panel photos are by M. DeMuth
- Stab-Lok® 200-A panel main switch - Texas - This panel was labeled at its top "Stab-Lok® Load Center"

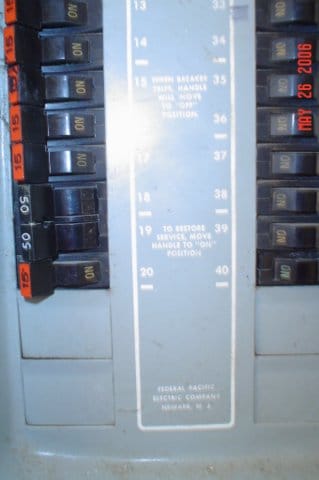

- Stab-Lok® 200-A panel center printing - Texas - At its bottom this FPE Electric Panel is marked at its "bottom front as "Federal Pacific Electric Company Newark NJ". Incidentally, notice that 50-A double pole breaker just up from bottom left? FPE Model# L120-40 was labeled (as you can see in the Texas FPE panel door label photo below) as accepting a maximum 40A breakers.

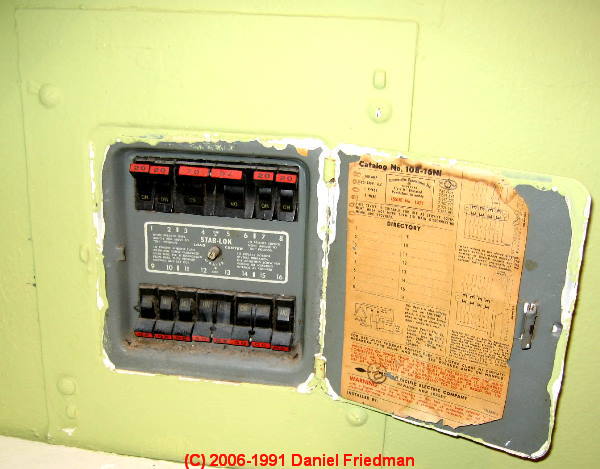

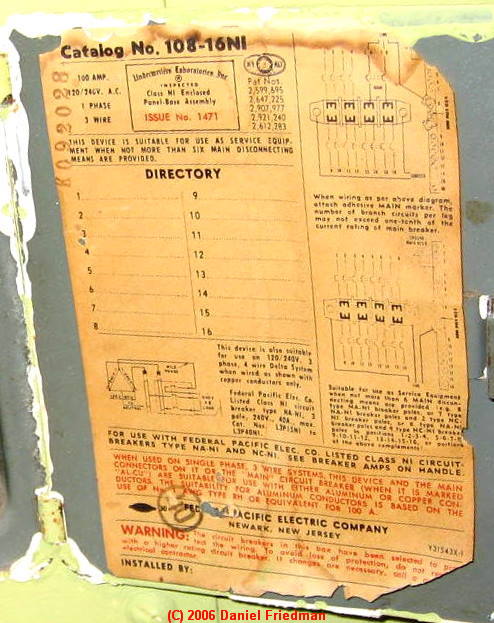

- Stab-Lok® 100-A panel- FPE Catalog Number 108-16NI - Texas, circuit breaker panel in a Texas condominium (as you can see in this close up of the door label) - photos are by Thomas M. Pino
Federal Pacific Electric Meter Covers, Main Switch FPE Meter Base
This topic has moved to its own page now
at FPE ELECTRIC METER BASE & BREAKERS

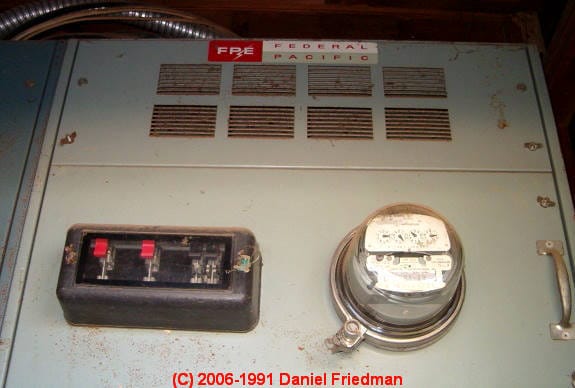

Below: an FPE electric meter and breakers at a residential property:
...
...
