Bracing & Lateral Support Requirements for Tall Masonry Chimneys
- POST a QUESTION or COMMENT about the requirement for bracing tall chimneys along a building exterior wall or above the rooftop: why bracing is needed, how it should be installed, chimney bracing specifications, codes
Chimney bracing & support:
How do we strengthen tall or wobbly masonry chimneys? This article describes when and how support is added to tall masonry flues along the building exterior wall or above the roof-line.
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
- Daniel Friedman, Publisher/Editor/Author - See WHO ARE WE?
Bracing Requirements for Masonry Chimneys
Bracing may be required for chimneys that extend high above the roof line. Lateral support may be required to tie a chimney to the building structure. When these supports are missing, even a chimney set on a solid foundation may tip, wobble, or separate from the building it serves.

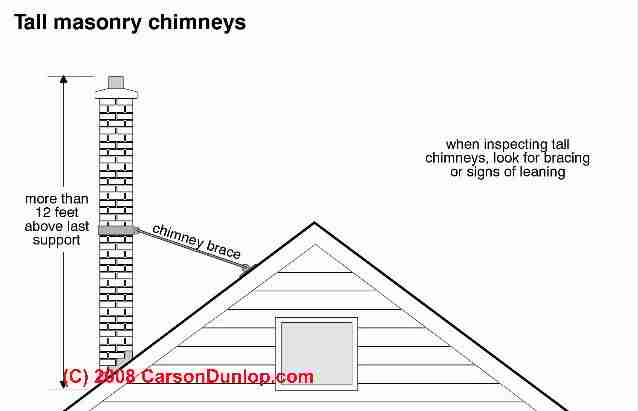

Loose wobbly masonry chimneys may be missing both lateral support (ties to the building wall) and rooftop support (Carson Dunlop's sketch, below right).

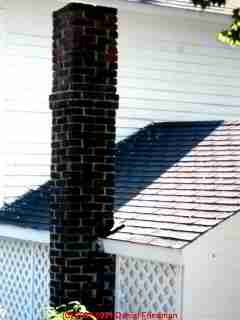

The chimney in our photo (above left) rocked and nearly fell over when we leaned on it a bit while climbing onto this roof.
Pushing gently on a tall flue like this should not produce easy movement.
But
Watch out: don't try this at home and certainly not when there are people below, or when the flue is in use or probably any other time. A good wind could blow this chimney down.
If the flue were intact and there was no other damage it might be possible to secure the chimney against movement. An expert was needed to decide how to make this one safe.
Chimney bracing sketches below are provided courtesy of Carson Dunlop Associates, a Toronto home inspection, education & report writing tool company [ carsondunlop.com ].
Lateral Support Requirements for Masonry Chimneys
In our photo (above) the loose wobbly brick chimney was not supported at the roof and was not connected to the building - hence it moved easily and was in danger of collapse.

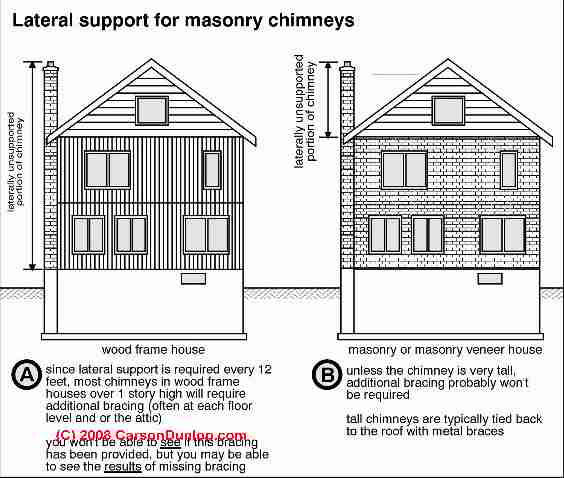

Chimneys built on the exterior of a building need lateral support every twelve feet of height as they pass up the building wall - shown in Carson Dunlop Associates [at REVIEWERS] sketch.
...
In earthquake and high wind areas additional chimney support may be required by local codes, including reinforcement within the masonry structure of the chimney itself.
...
Continue reading at CHIMNEY LEANING, SEPARATION, MOVEMENT or select a topic from the closely-related articles below, or see the complete ARTICLE INDEX.
