ALLOY SYSTEMS™ GRAY FLEXDUCT - Deterioration in Hot Locations

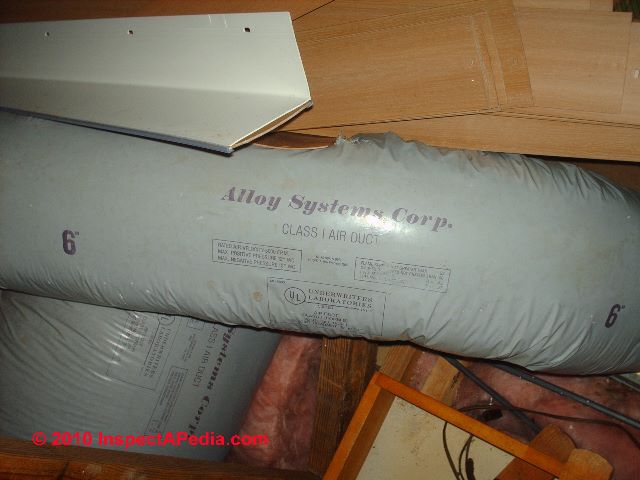

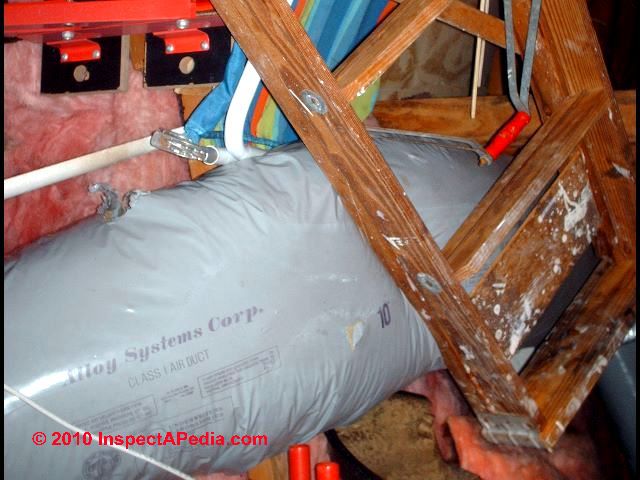

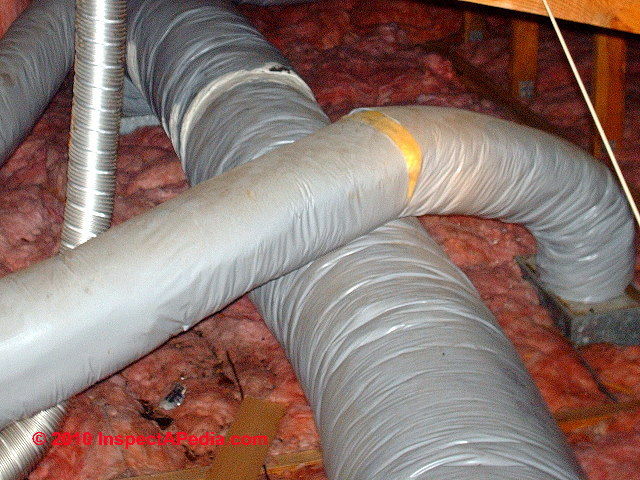

The first field reports we received of gray flex duct disintegration bearing the Alloy Systems brand was in 2010, reported by Eric Van De Ven, a South Florida home inspector. The Alloy Systems flex duct photos in this article were provided by Mr. Van De Ven and were taken in a South Florida home built in 1984.
Air conditioning duct system defects include a remarkably wide range of errors, from failure to supply cool air or failure to even circulate air
in the building, to health hazards such as use of asbestos material in or on duct work, to very dangerous conditions such as drawing heating
equipment combustion gases into the building cooling (or heating) air.
This article explains Alloy Systems™ brand gray flex duct failures that appear as loss of the gray plastic duct covering due to brittleness that appears to be caused by exposure to heat (such as in a hot attic), with references to product failures by several manufacturers of flexible duct work,
including
Alloy Systems™,
Goodman™ flex duct,
Owens Corning™ flex duct,
Owl™ flex duct.
We believe that none of these defective flex duct products is currently sold (2010) but both may be found in older homes. Note: not all
Owens Corning flex duct products share this defect and disintegration problem.
The loss of the protective plastic covering on flex duct poses several concerns including loss of the duct insulation, increased air conditioning system operating costs, and possibly air leaks out (if supply ducts are damaged) or un-wanted attic debris leaks in (if return ducts are damaged), and in-duct condensation in the HVAC system leading to mold and indoor air quality concerns.
This Alloy Systems gray flex duct or "flex duct" air conditioning duct work material is a defective product.
In hot attic spaces or where exposed to UV light, the plastic of this flexible air conditioning
duct material disintegrates leaving its fiberglass insulation exposed to also disintegrate, leak, or possibly blow into
the building living space.

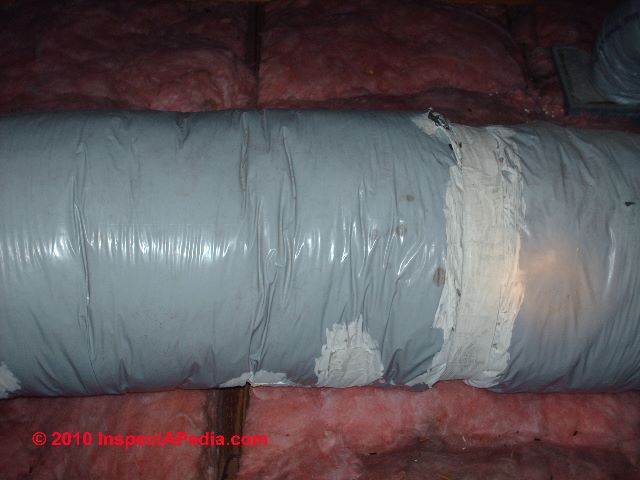

Replacement of the duct work is required - a significant expense. - Thanks to Eric Van De Ven for these photos
of Alloy Systems gray flex duct disintegrating in an attic.
Where this duct is found in a building it should be replaced. When a heating or air conditioning flex-duct product has lost its exterior plastic covering the effects are these:
The cost of heating or cooling the building is increased due to lost insulation: because the ducts are no longer insulated from the ambient temperature in the attic or crawl space where they are located. For example, an air conditioning duct passing through a hot attic and missing its insulation will be heated by the ambient attic air, delivering warmer air to the living space than is desired.
The cost of heating or cooling the building is increased due to leaks: because damaged ducts are more likely to leak, cooled or warmed air intended for the occupied space may be lost in the attic or crawl space where the damaged HVAC ducts are located.
In addition we might see these two indirect problems developing:
Increased circulation of fiberglass particles from the duct insulation or from building insulation which may be picked up and blown into the building air supply
Mold growth in the HVAC ducts due to loss of insulation and increased in-duct condensation in some circumstances. See Flexduct Lawsuit at our references below.
