How to recognize residential building roof dormer shapes & types as a guide to building architectural styles.

Roof Dormer Types - Photo Guide

Readers should see the additional photo and drawing guides to building architectural styles in the links listed at page top or at Related Topics see ARCHITECTURE & BUILDING COMPONENT ID for illustrations of building architectural types, roof shapes, dormers, windows, and other architectural features. Also see AGE of a BUILDING - how to determine as well as individual building component links listed at Related Topics . Our page top photo shows an unusual placement for a rooftop dormer, along the roof hip in a Port Jervis NY home.

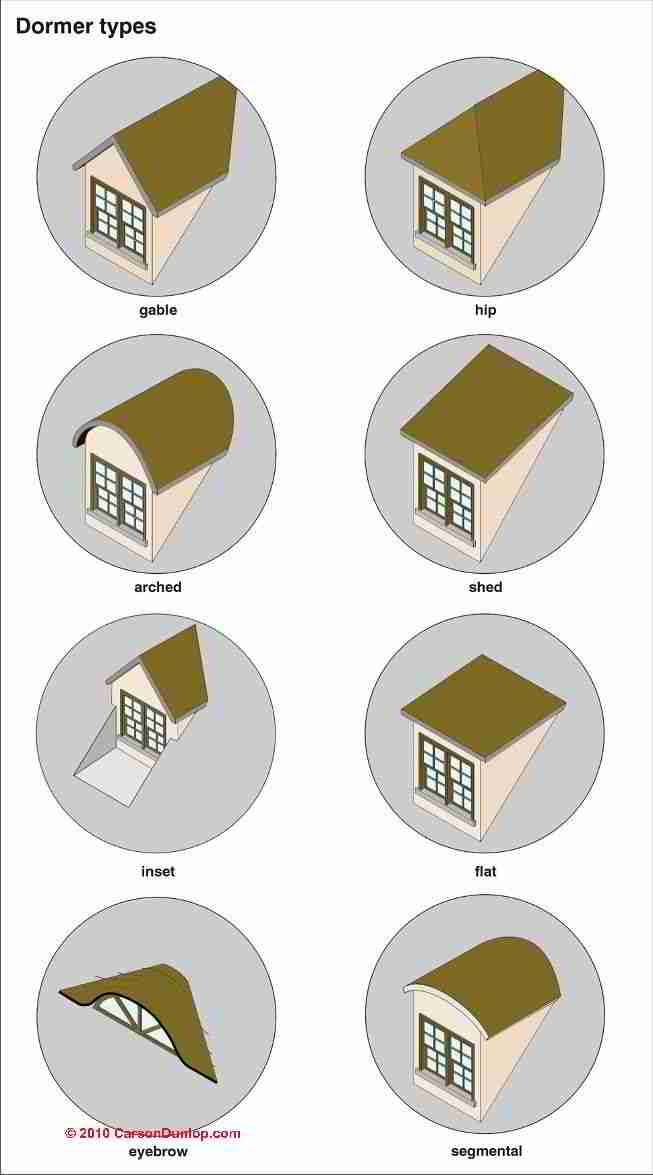

Carson Dunlop Associates' sketch (below-left) identifies common window dormers by shape, clockwise from top right corner of the illustration we show in the table below: hipped dormer, shed dormer, flat dormer, segmental dormer, eyebrow dormer, NY, inset dormer, arched dormer, and gable dormer shapes and windows.

Common Window Dormers by Shape	Dormer Photos Keyed to Sketches at left, taken clockwise from top right corner.	Dormer Name	Roof Dormer Details

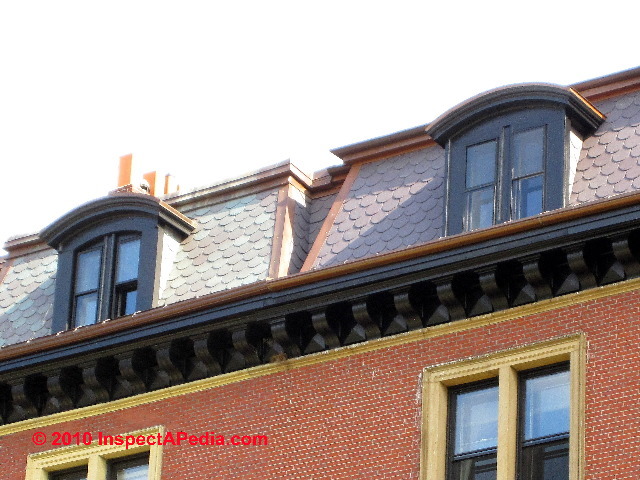

		Arched Dormers	Arched roof dormers, left, Boston MA

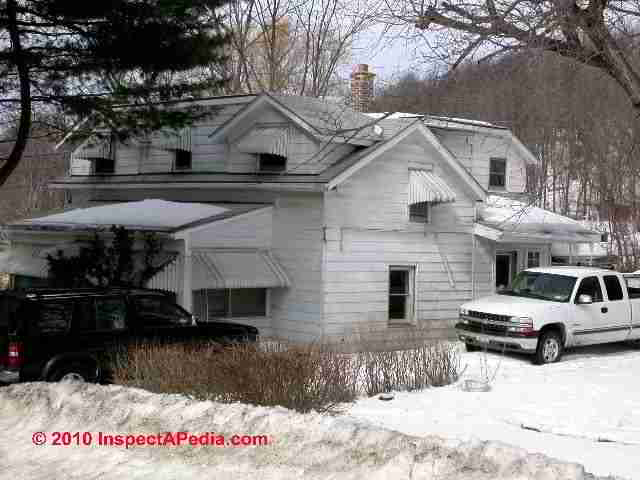

		Compound Dormers	Compound dormer joins two gable dormers with a flat roofed dormer between them, Hudson Valley, NY

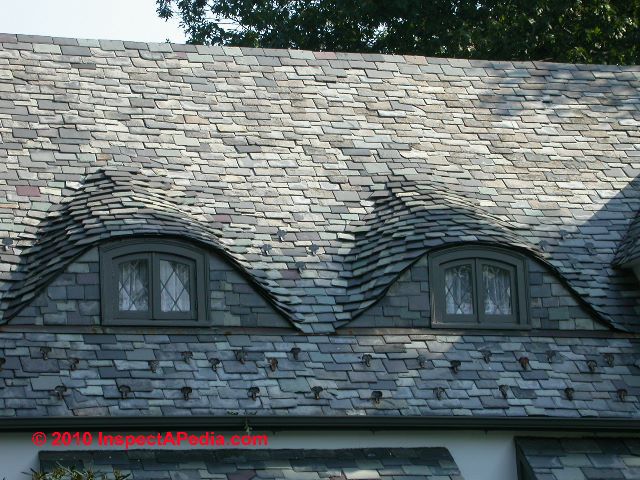

		Eyebrow Dormers	Eyebrow window-dormers, left, Mt. Kisco, NY. Also see Quick Guide to Eyebrow Dormer Windows
		Flat-roofed Dormers	Flat roofed dormer, left, Hudson Valley, NY

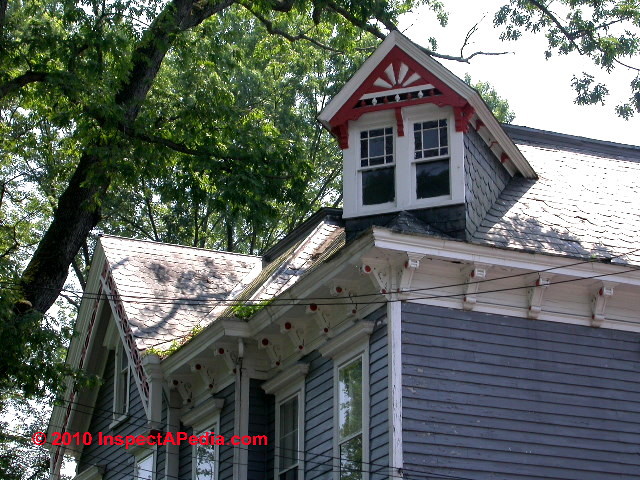

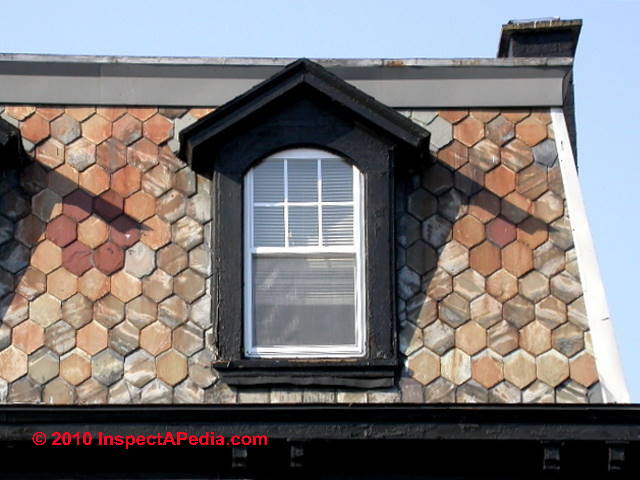

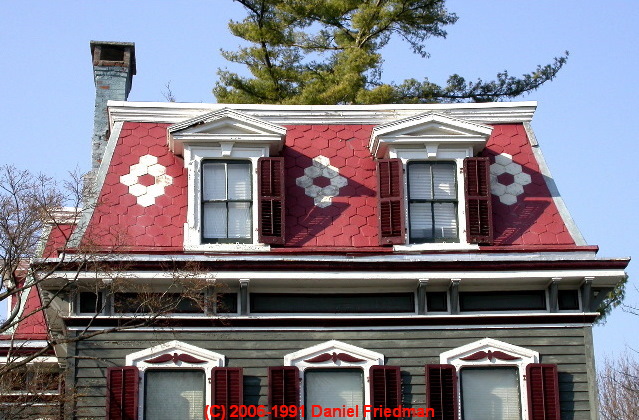

		Gable Dormers	Gable dormer, left Poughkeepsie, NY, and Port Jervis, NY

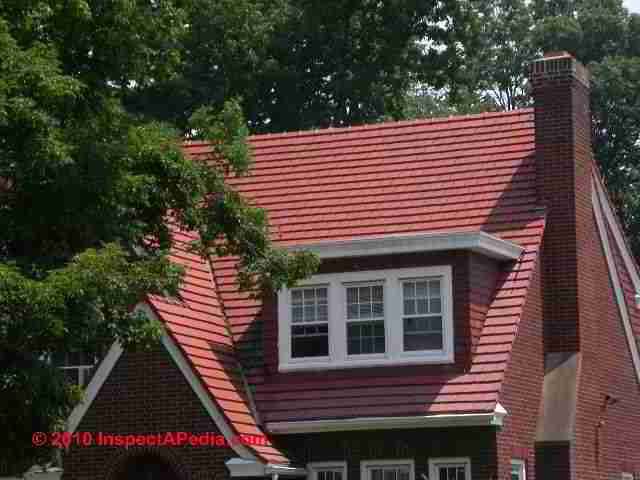

		Hipped Dormers	Hip dormer, left, Port Jervis, NY,

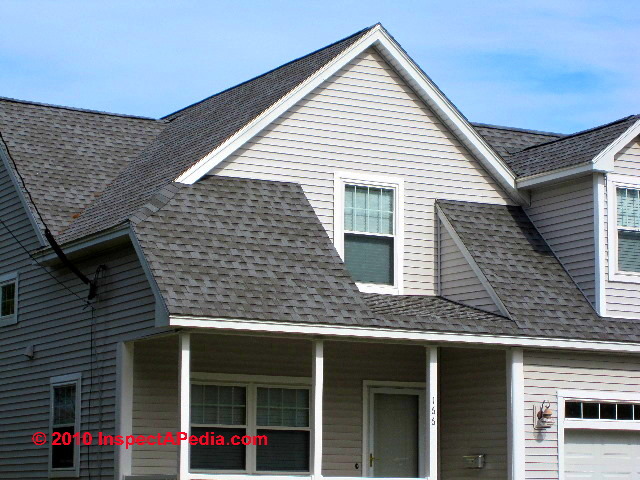

		Inset Dormers	Inset Dormer photos: left, Portland ME, and Molde, Norway

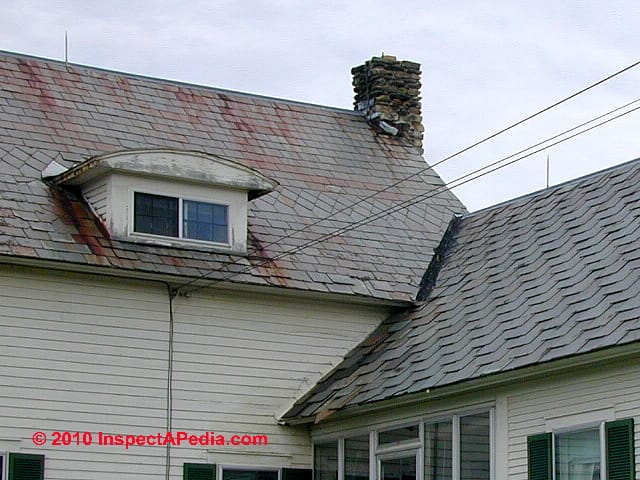

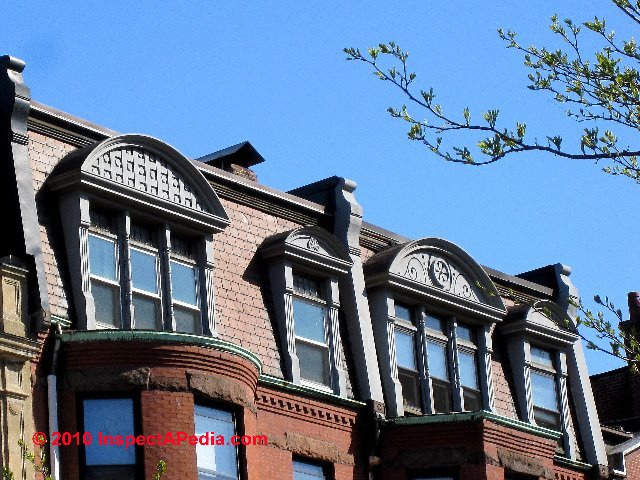

		Segmental Dormers	Segmented roof dormers, left, Vermont, and segmented dormers in Boston MA (compare with Arched dormers)

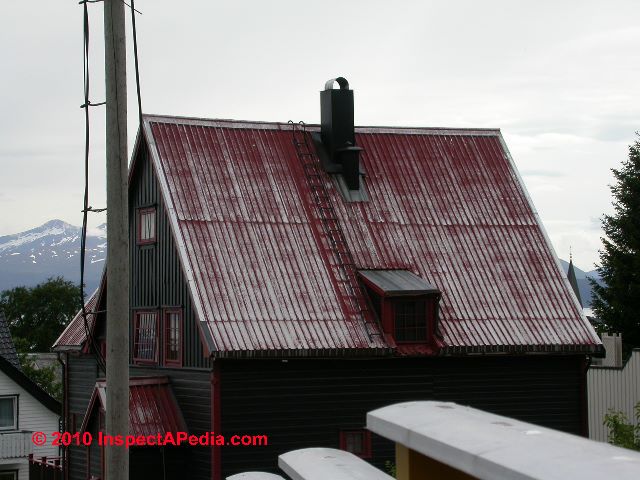

		Shed Dormers	Shed dormer, left, Molde, Norway,
		Skylights	Skylights are not dormers. Left, triple skylights in a glazed-clay tile roof in Molde, Norway. Bubble-type roof skylights were notorious leakers. See SKYLIGHT LEAK DIAGNOSIS & REPAIR for details.

For information about window types, selection, installation, inspection, and repair, see:

WINDOWS & DOORS, Age, Types
  ALUMINUM WINDOWS
  Best Practices Guide for Windows & Doors:
  CLIMATE, WINDOW CHOICES FOR
  CONDENSATION on WINDOWS & SKYLIGHTS
  Doors, Exterior, Energy Efficiency Guide
  Doors, Exterior Flashing Details
  Doors, Exterior, Frames
  DOORS, EXTERIOR, Selecting & Installing
  DOORS, INTERIOR
  FIBERGLASS WINDOWS
  GLASS vs HEAT MIRROR SOLAR GAIN/Loss
  HURRICANE, WIND, & STORM-Resistant WINDOWS
  LOW-E WINDOW GLAZING
  LOW-E VS QUAD-GLAZING
  LOW-E RETROFIT ADD-ON FILMS
  POLYCARBONATE GLAZING
  SITE BUILT DOUBLE GLAZED WINDOWS
  SKYLIGHTS, Guide to Choosing & Installing
  Skylight Condensation Problems
  Skylight Design Issues
  Skylight Energy Efficiency
  Skylight Installation Procedures
  SKYLIGHT LEAK DIAGNOSIS & REPAIR
  SKYLIGHT VENTILATION DETAILS
  SLIDING GLIDING WINDOW DEFECTS
  SLOPED GLAZING DETAILS
  SOLAR SHADES & SUNSCREENS
  STORM WINDOW INTERIOR
  STORM WINDOW PLASTIC CHOICES
  STORM WINDOW WEEP HOLES
  SUNGAIN, FILMS, LOW-E GLASS
  SUNSPACE GLAZING for SUNTANNING
  VERTICAL GLAZING DETAILS
  VINYL WINDOWS
  VINYL / PVC WINDOW WARPING
  WINDOW / DOOR ENERGY EFFICIENT, DOE
  WINDOW LEAKS INTO BASEMENT

SKYLIGHT LEAK DIAGNOSIS & REPAIR how to find the cause of leaks in rooftop skylights and other sloped glazing

A Quick Guide to Eyebrow Dormer Windows

Eyebrow window types (C) Daniel Friedman

Real estate agents, home inspectors, as well as building owners have often referred to the small second floor windows on antique colonial homes (photo at left) as "eyebrow" windows that we include these details to help sort out the confusion.

Our sketch and photo (above) show what an eyebrow window looks like.

Our photo (left) of windows on the Seneca Howland house in Pleasant Valley NY (undergoing renovations by the author) are not eyebrow windows.
