The septic system biomat: this article explains the formation of the biomat below septic drainfield trenches and around cesspools and some drywells and explains
what the biomat does. The biomat, a bacterial slime layer in the soil below the leachfield and around other wastewater disposal systems, is
a critical component of private septic systems - it is responsible for treatment and reduction of biological solids and pathogens in
septic wastewater effluent which is discharged into the soil from a septic tank. The most common and most expensive failure of private
systems occurs as soil clogging and failure of the absorption system to continue to accept water.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
What is a septic biomat? - what is the septic drainfield "biomat" layer?
Here we'll describe how the biomat
forms, how the soil eventually becomes clogged by a too-thick and too-extensive biomat, and how you can extend the life of the soil
absorption system by protecting the formation of the biomat. The origin of this text is the Winter 2005 issue of Pipeline, a publication of
the National Environmental Services Center, used with permission. [Edits and additions to the text are by the website author.]
This article is part of our series: Inspecting, Testing, & Maintaining Residential Septic Systems.
The biomat is a bacteria layer which forms in soil below and around drainfield trenches where septic effluent or wastewater
is discharged. This layer is critical in the processing of fine biological solids and pathogens which are in the effluent, and
without it the septic system would not be adequately treating the effluent. Inadequately-treated effluent released into the ground
risks contamination of nearby ponds, wells, streams, etc. A similar layer also forms around drywells used to accept graywater from
buildings.
Septic effluent, (or onsite wastewater), is discharged into a soil absorption system (or drainfield, seepage pit, or cesspool) from
the septic tank which should, if it's working properly, have retained all large solids. The job of the soil absorption system, or "SAS", is
to further treat the effluent to reduce the level of biological solids and pathogens to a level acceptable for further movement of
the liquid into remaining soils. Inadequate treatment of effluent would mean that sewage and pathogens would be discharged into
and contaminate nearby ground water.
How the biomat forms: how does the Biomat Form in a septic system effluent absorption system?
As the effluent is discharged into the SAS, bacterial growth develops beneath the distribution lines where they meet the gravel or
soil. This layer is known as the clogging mat, clogging zone, biocrust, and bioformat.
It's also referred to by some as the "slime layer" and it's
easily visible as a usually-gray slimy layer in the soil displayed if one excavates a cross-section of an absorption system trench.
This biomat (biological mat) is a black, jelly-like layer that forms along the bottom and sidewalls of the drainfield trench.
This clogging zone [eventually] reduces infiltration of wastewater into the [surrounding] soils.
Septic biomat constituents: what is the biomat made from?
The biomat is composed of anaerobic microorganisms (and their by-products) that anchor themselves to soil and rock particles.
"Anaerobic" refers to microorganisms which do not require high levels of oxygen, as opposed to "aerobic" organisms which do. Septic
waste and wastewater treatment involves both aerobic and anaerobic organisms. "Aerobic" bacteria require oxygen.
In either case but digesting different pathogens, the bacteria's food is the organic matter in the septic tank
effluent.
Less than one centimeter to several centimeters thick, the biomat acts as the actual site for effluent treatment.
Septic biomat formation patterns in soil trenches: the Biomat formation pattern in leach field trenches
The biomat forms first along the trench bottom near the perforations [in the drainfield piping which delivered the effluent along
the trench] where the effluent is discharged, and then up along the trench walls.
[As the bottom becomes clogged effluent rises in the
trench and seeps into the soil along the trench sides.]

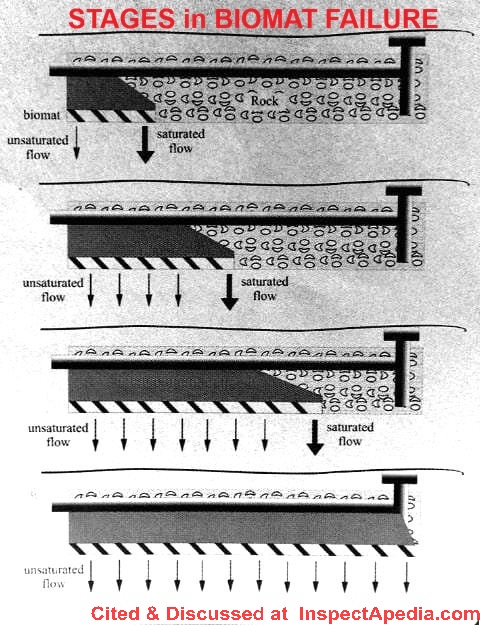

The biomat-coated soil is less permeable than fresh soil, so incoming effluent
will move across the biomat and trickle along the trench bottom to an area where there is little or no biomat growth. (See growth pattern
in the diagram on this page.)
Septic drainfield clogging process: how the soakaway bed or drainage trench fails: the biomat clogging process
Biomats tend to restrict the flow of effluent through the drainfield, but are crucial because they filter out viruses and pathogens.
As the biomat develops, the soil infiltration rate decreases. Once the hydraulic loading rate exceeds the soil infiltration rate, ponding
starts. At some point wastewater will either back up into the home or break out onto the soil surface.
Septic loading and dye tests look for this "breakout" of effluent on the soil surface - a condition which will occur
when the biomat has become so thick that septic effluent no longer percolates through it to the soils below.
If you dig a neat cross section of a traditional leach field trench, and if it was properly constructed,
you'll see the perforated effluent pipe surrounded first by gravel, and then the sides of the trench as it was originally
cut through the soil. You will also see a 1cm (about 1/2") to 5cm (about 2") thick gray band around the perimeter of the trench - this is where the
soil clogging has occurred.
During the septic loading and dye test, an aggressive volume of water, but not exceeding reasonable septic system
design parameters, is run into the system, forcing effluent in a failed system to the surface (maybe).
The septic dye itself is a harmless but intense dye - it does not "make anything happen, but its
sole purpose is to permit the inspector to distinguish between breakout of (dyed) septic effluent during a septic test and other
site water which might be present, say from a spring or surface runoff.
More Reading:
SEPTIC DRAINFIELD FAILURE DIAGNOSIS
SEPTIC DRAINFIELD INSPECTION & TEST
SEPTIC DRAINFIELD LIFE
Septic Loading & Dye Test Procedure
Extend the biomat life - How to Extend the Life of A Septic Drainfield by Protecting the Biomat
Pump the septic tank: Biomat formation cannot and should not be prevented, but septic tank filters, proper organic loading, and proper maintenance of the
septic tank can slow the rate at which it forms [thus extending the life of the drainfield].
Septic tank filters prevent excess suspended solids
from flowing into the drainfield and can be retrofitted to existing systems.
Washing machine lint filters can reduce the movement of lint into the drainfield. (We've seen promotions for this product but not
any studies supporting the effectiveness of this measure.)
Septic tank outlet baffle filters are sold to reduce movement of fine particulates into the leach field.
Use of these filters will require a suitable access port and regular maintenance at the septic tank.
(We've seen promotions for this product but not
any studies supporting the effectiveness of this measure.)
Drywells to handle graywater can reduce the total liquid load on the leach field - a step often taken at sites with
limited drainage capacity.
Reduce unnecessary water usage, and in particular, be alert for plumbing fixtures that run continuously such as
toilets and leaky faucets.
WATER SOFTENERS & CONDITIONERS should be checked for proper settings for backwash frequency, volume, and salt dose.
Other maintenance that should be performed on the septic system includes having the system inspected and the tank pumped at
regular intervals. Pumping the tank allows it to better settle out solids [by maintaining a larger liquid volume or "net free area" in the
septic tank], also reducing the organic load to the drainfield.
Magic bullets which promise to restore drainfields are either unlikely to produce any lasting effect or
are at risk of contaminating the environment with toxic and perhaps caustic chemicals. These processes are prohibited
in some jurisdictions.
As we explain at SEPTIC DRAINFIELD LIFE
We have seen drain fields still working fine after 25 years and others which failed in the first week of
occupancy of a new home.
In a properly designed septic absorption field the level of usage of the system, site characteristics such
as slope, rock, groundwater level, and soil percolation rate have all been considered.
Barring
foul ups such as we discuss in this document, such a field may
last from 10 to 20 years. USDA sources assert that a properly operated and maintained ST/SAS (septic tank / soil absorption system) should last at least 20 years.
But it's easy to ruin or shorten the life of a drainfield/leaching bed. In fact the same USDA source states that
Studies reported at an Environmental Protection Agency seminar, Orlando FL, November 1979, show that over half [ST/SAS] fail prematurely due to improper operation or lack of adequate maintenance. Generally, these failures occur when the soil-absorption system [drainfield] becomes clogged. Preventable clogging, due to a buildup of solids in the [septic] system, is usually extensive enough to require expensive reconstruction of the system. Failures can also cause nearby ground areas, streams, lakes, and water supply systems to become contaminated. This exposed the public [and USDA, EPA, NPS, FPS, and other government employees] to health threats such as hepatitis, typhoid, diarrhea, and dysentery.
... [ in contrast] The unpreventable failure of the soil-absorption system eventually occurs when growth of the organic material in the wastewater [the biomat (SEPTIC BIOMATS) that forms under and along the sides of a drainfield trench] becomes so large [thick] that they plug up the soil.
Similar studies of advanced wastewater treatment systems such as aerobic systems, sand beds, mound systems similarly found that improper or inadequate operation and maintenance were the primary causes of premature failure of those systems as well.
