 Guide to Automatic Vent Dampers Oil Fired Heating Equipment
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
Automatic vent dampers: Here we explain Automatic flue vent dampers, what they are, how they work, and why they can save money on heating bills. This website answers most questions about central heating system troubleshooting, inspection, diagnosis, and repairs. We describe how to inspect, troubleshoot and repair heating and air conditioning systems to inform home owners, buyers, and home inspectors of common heating system defects.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Automatic Vent Dampers on Heating Equipment Flues
|
Damper_ss.jpg)
The articles at this website describe the basic components of a home heating system,
how to find the rated heating capacity of an heating system by examining various data tags and components, how to recognize common heating system operating or safety defects, and how to save money on home heating costs.
We include product safety recall and other heating system hazards.
Details about draft control on oil fired heating systems (such as the oil fired heater shown in the photo above), including furnaces or boilers, are discussed right here at Draft Regulators barometric dampers on oil fired equipment. (Details about draft control for gas fired heating systems, including furnaces or boilers, are discussed at Furnace Draft Hood on gas fired equipment. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.
Heating costs can be reduced by any measure that makes sure that as much as possible of the warmth produced by burning a heating fuel (such as natural gas) is sent into the occupied space rather than lost elsewhere.

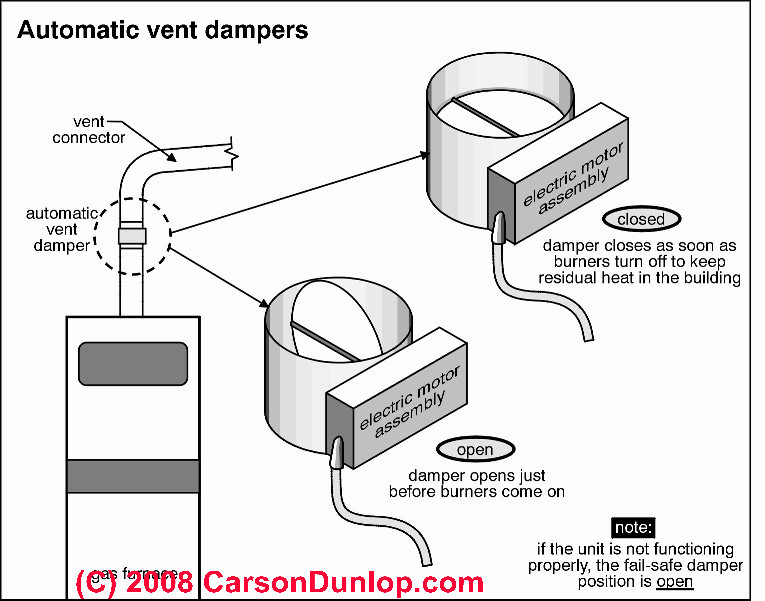

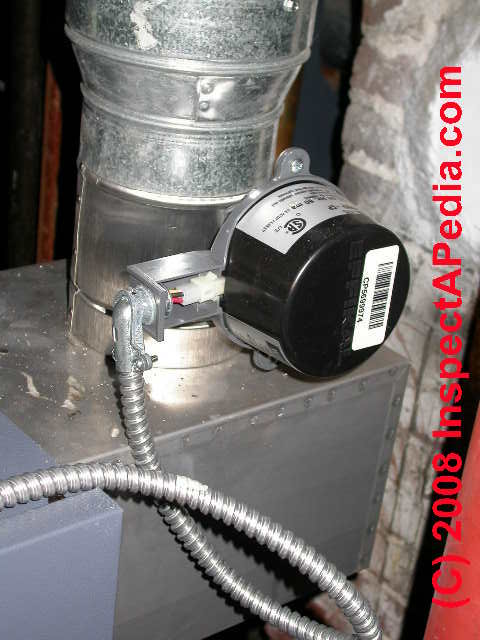

An automatic vent damper, such as illustrated in Carson Dunlop's sketch here and in our photograph just below, reduces heat loss in buildings where gas-fired heaters are installed.
When the heater is off the electric motor turns the vent damper to the "closed" position so that heat is not lost from the boiler nor the building by natural convection.
When the heater is about to turn on, before the burner is ignited the automatic vent damper motor opens the vent so that combustion gases can flow freely through the flue vent connector and out of the building's chimney.
|
Don't confuse an automatic flue vent damper with two other "damper" devices: a heating system automatic duct damper or a duct fire damper.
Exactly what is an automatic flue damper?
An automatic flue damper is a device which closes the heating flue when the furnace or boiler is "off" so that we won't continue to lose building heat up the chimney - it's a device to reduce heating costs and save on heating oil consumption.
When the heating system has turned off at the end of an "on" cycle of burning fuel, the automatic flue damper electric (see sketch above and photo at left) motor turns a baffle inside of the flue vent connector pipe to a position "across" the pipe so that the airflow inside the pipe is blocked or stopped. |
We define and describe the differences between automatic flue dampers, barometric dampers, fire dampers, and draft inducer fans at Define flue damper, duct damper, & fire damper.
Zone dampers: You can see photographs of and read about manual and automatic heating and air conditioning zone dampers at ZONE DAMPER CONTROLS .
Fire dampers: You can see photographs of and read about fire dampers in ductwork in our text at ZONE DAMPER CONTROLS .
Draft inducers: We discuss draft inducer or "draft boosting" fans for heating systems (and maybe for some fireplaces) in detail at Draft Inducer Fans.
Barometric dampers are discussed in detail beginning at DRAFT REGULATORS, DAMPERS, BOOSTERS
|
...
