Shared Chimney Flue Hazards & Repairs

What is a "shared flue" in a chimney and why are they dangerous
Multiple heating appliances, fireplaces, woodstoves all using the same chimney flue
Questions & Answers about shared chimneys and flues
References

Click to Show or Hide Related Topics

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

This article describes shared chimney flues, multiple heating appliances, fireplaces, woodstoves all using the same chimney venting path through a building and to outside. Shared flues can create fire and smoke spread hazards and carbon monoxide hazards in buildings.

Here we outline how to detect shared chimney flues, how they are repaired, and we list the exceptions to the rule, showing when, in some jurisdictions, it is permitted to vent more than one heating appliance into a single chimney flue and when it is permitted to vent both oil and gas-fired appliances into the same flue.

Our photo (page top) shows three heating appliance, each connected by its own flue vent connector to a masonry block chimney. Is this OK? the answer is, it depends. On the chimney flue size and other installation details. Notice too that we are sharing the flue between oil and wood fired appliances. See Exceptions: Shared Flues Permitted?

These articles on chimneys and chimney safety provide detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed.

Shared Chimney & Shared Flue Hazards

Photograph of an unlined brick chimney flue.

A "shared chimney flue" means that the flue or pathway for venting combustion gases out of a building is shared among two or more things that need to be vented, such as a fireplace and a heating boiler. A "flue" refers to a sealed pathway out of the building to vent combustion gases, such as a metal flue pipe or clay flue tiles stacked up inside of a chimney.

A single chimney can safely have multiple flues inside the chimney, each flue venting an appliance, fireplace, or other device, provided that the chimney was properly constructed, including the necessary spacing or sealant between the individual flues.

Our photo at the very top of this page and repeated here shows an unlined chimney flue which, by luck of illumination from our flash camera, also showed us that a common flue was being used to vent two fireplaces - a fire code violation in many jurisdictions. You can see that this chimney has two brick flues entering its common upper section. There is no flue divider in this chimney above the two flues entering in its bottom - shown in the center of our photo.

Dedicated chimney flues are required: Each device that produces combustion gases needs to have its own dedicated flue to vent combustion gases safely out of the building.

Unlined flue with missing divider (C) Carson Dunlop

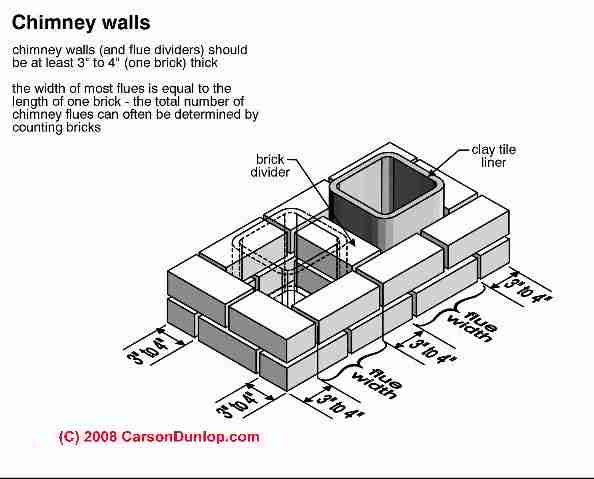

Proper construction of chimney walls (C) Carson Dunlop

Masonry flues may be too close (C) Daniel Friedman

Fire spread and combustion gas or carbon monoxide hazards: gases may be conducted from a heating appliance to another area in the building when the flue divider is missing.

For example, dangerous carbon monoxide from a basement gas fired heater or a coal stove may leak into an upper building floor through a fireplace or woodstove connected to the same flue.

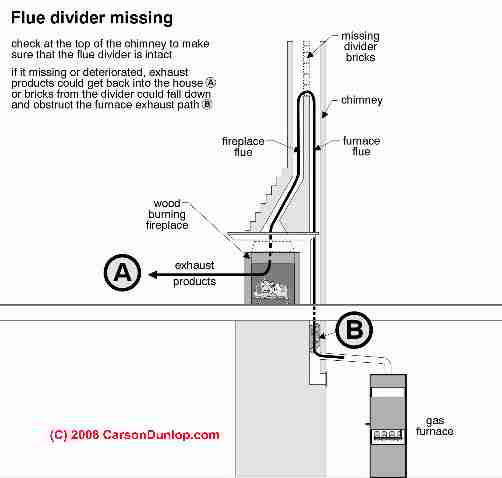

As Carson Dunlop's sketch points out (above left), the missing divider from the chimney shown in our photo above and in the sketch at left may permit dangerous flue gases or carbon monoxide to enter the living area through a fireplace. Proper construction of chimney walls in a modern masonry flue is shown at above right.

Our photo (above/left) shows that the clay flue tiles are just 1.5" apart (left flue pair) and about 2" apart (right flue pair) - too close according to the sketch above.

This is especially the case if elsewhere in the building a gas (or oil) fired heater is using the same chimney.

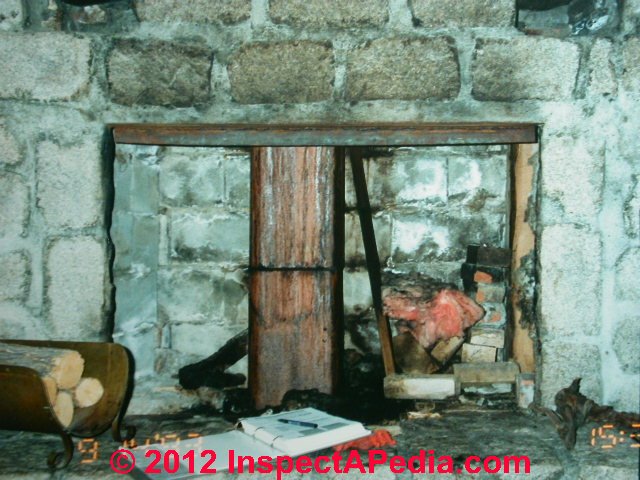

In the unfortunate fireplace at left, we see that someone has "fixed" an unsafe shared chimney flue problem.

The fireplace flue was shared with the heating boiler in the basement.

To end this sharing the repairman installed clay flue tiles between the bottom of the fireplace and the upper fireplace flue.

This is no longer a working fireplace. Is it a safe flue?

Examples of Unsafe Shared Chimney Flues or Flue Vent Connectors

It was common for chimney flues to be shared in older buildings in the following ways (and probably others you can suggest to us). All of the examples in the following list are unsafe and should be corrected immediately.

A single large chimney with multiple fireplaces on the same floor - for example back to back fireplaces on the first floor of a colonial home may share the same flue
A single chimney serving fireplaces on two or more floors may be unsafe and may not be permitted in your jurisdiction. See Two Fireplaces below.
A single chimney flue serving a basement heating appliance: boiler, furnace, or water heater that is also used by a fireplace on the same level in the building or on an upper floor
A single chimney flue serving a fireplace on one floor and a woodstove on an upper floor may be unsafe and may not be permitted in your jurisdiction. See Two Fireplaces below.
A single chimney flue serving a basement heating boiler and a coal stove or woodstove on an upper floor
Single-wythe thick brick masonry flues and some other un-lined chimney flues: see Unlined Chimney Flues: Inspection Procedures, Advice Safety Requirements for old chimneys - photos, dangerous carbon monoxide and blocked flue case report, chimney flue standards, chimney inspection suggestions

Shared Flue Vent Connector and Chimney - Soot Blow-back Clue

Gas heater sharing flue with oil burner (C) Daniel Friedman

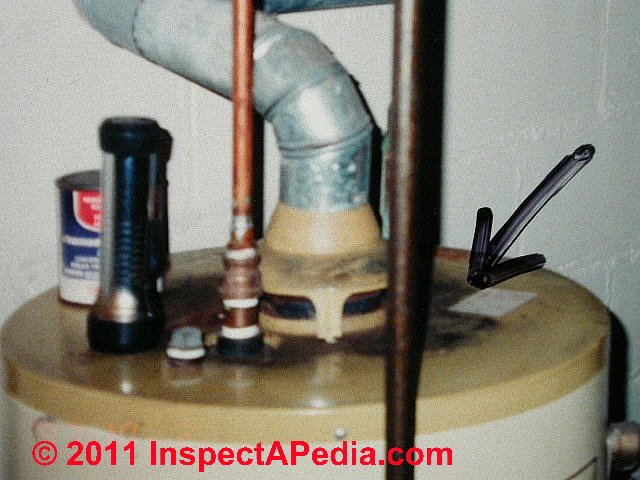

You can see in our photo of this gas fired water heater (left) that the oil-burner fired heater whose flue vent connector is shared is permitting the oil fired heater exhaust to blow backwards out through the gas fired water heater's draft hood.

It is a sure guess that at least when the oil burner is running, this water heater is not working properly and probably not safely. The underlying trouble could be an inadequate or blocked chimney or flue.

Readers should also see Exceptions: Shared Flues Permitted? where we describe circumstances under which a flue or flue vent connector (stackpipe) can be shared.
