Guide to Choosing & Using Solar Shades in or on Buildings to Control Bright Sun & High Heat Gain at Windows

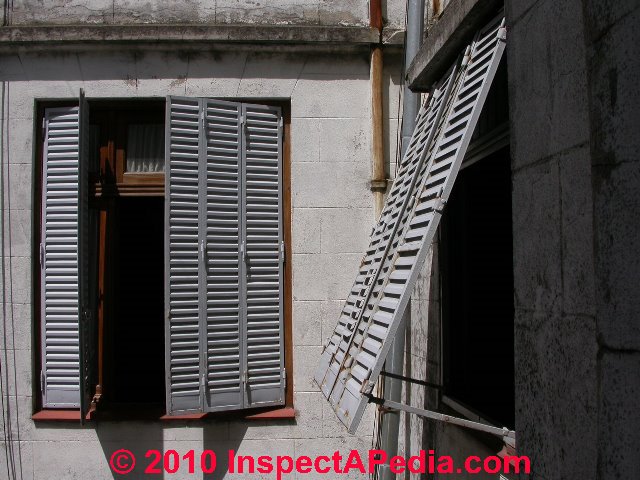

Our page top photograph shows an older solution to solar sunshading in Buenos Aires, Argentina.
These hinged solar screens can be latched and opened or shut as a hinged-vertical sunscreen (photo left side) or as an awning-type sunscreen (photo right side). As we show below, this system also permits individual sections of the louvered screen to be open or shut from indoors.

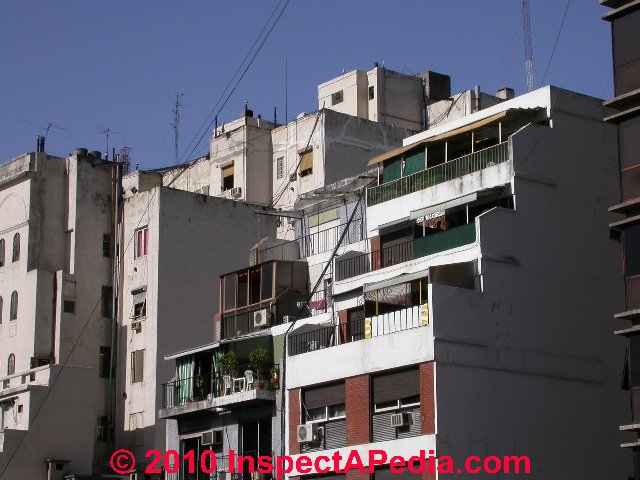

Our photo (left) shows a variety of solar sun shading alternatives in use in Buenos Aires, Argentina. - Ed.
Accompanying text is reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss. Also see PASSIVE SOLAR Roof & Window Overhangs - an alternative to solar shades. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution. For a discussion of night-time insulation using low-E solar shades, see SOLAR SHADES, LOW-E EFFECTIVENESS.
The question-and-answer article below paraphrases, quotes-from, updates, and comments an original article from Solar Age Magazine and written by Steven Bliss.
|
Finding Vertical Exterior Sunshades that Retract & Adjust to Block all Direct Sunlight
Question: Where can I find exterior solar shades that use vertical louvered elements that retract and adjust?
|
 While there seem to be plenty of sources for exterior solar shades and interior solar blinds with horizontal fins, slats, or louvers, I have had no luck finding exterior solar shades with vertical elements that retract and adjust.
I have a number of projects with a western exposure overlooking the ocean, where only a vertical shading device can maintain a partial view, while blocking direct sun from above, straight on, and from below (reflected from the water). -- Chris Hendricks, Los Angeles CA
[ur photo at left shows a contemporary horizontal solar shade installation in Tucson, Arizona. As we explain below, for techical reasons vertical-louvered solar shade elements will be uncommon. - Ed.
|
Answer: Vertical solar shade elements are uncommon but some commercial alternatives are available.
This is a tall order for solar sunshading indeed! Louvered devices that effectively block all direct sun from all angles you mention would have to have both vertical (for low west sun) and horizontal (for straight-on and water-reflected sunlight). This adds up to an egg-crate configuration that would probably cut too much view to be acceptable.
Vertical-louvered systems made for commercial projects could be adapted, but not cheaply. The Moore Co. makes an adjustable vertical solar sunlight screen system with 8-inch aluminum blades that they could taylor to your requirements.
[Our photo (left) shows a versatile louvered sun screen installed on many windows in Buenos Aires, Argentina --DF]
We suggest you consider using an exterior woven polyester shade screen, either fixed or roller-mounted. Available in many colors (charcoal, silver gray, bronze and more ) a polyester woven sunshade screen will reduce solar gain by up to 90 percent, but still allow some through-visibility.
 Some of the newer solar screening products such as Pfifer's SuperSolar screening can block 90 percent of sunlight while providing good outwards visibility.
Polyester woven solar screens can be manually or motor-operated, or even automated to respond to sunlight. A polyester sunscreen shade is produced by Levolor Lorentzen and by Phifer Wire Products and other manufacturers.

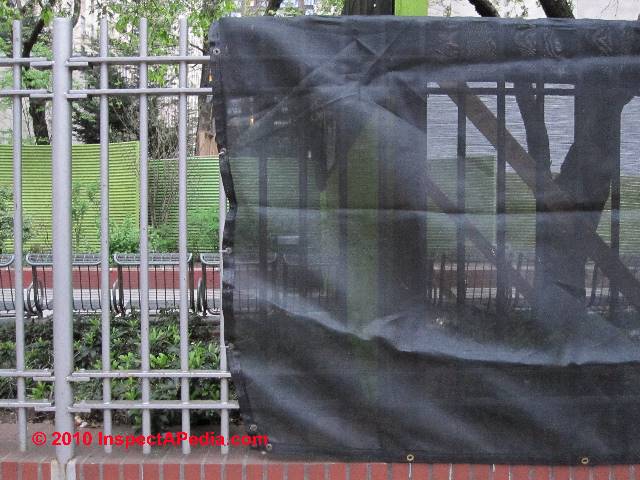

[Our photo (left) shows use of a woven polyester screen suitable for difficult sunscreening applications, in use in New York City at a construction site. -- DF]
Pfifer also produces insect screening, interior and exterior screening products including
- SunTex® - a vinyl-coated polyester woven mesh that blocks 80% to 90% of the sun's rays, intended for use on windows
- SuperSolar Screening - a fabric installed like regular insect screening, but blocking 90% of sunlight, ideal for extremely hot windows while providing excellent outward (only) visibility.
- SunScreen® -to reduce solar heat gain in summer and to reduce winter heat loss, screens, and
- SheerWeave® polyester-coated fiberglass fabrics intended for exterior use.
- SunTex awning fabrics - for window shades and awnings
|
|
A variety of sun screen products and fabrics is currently available and are shown at Technical Reviewers & References where we list sun screen product and solar screening fabric producers and sources.

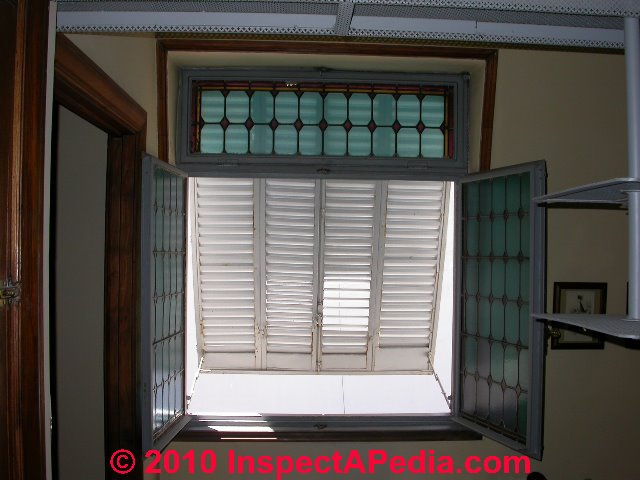

Our solar screen photograph (above) of a solar sunshade screening system in widespread use in Buenos Aires shows one of the opening positions of this system, viewed from indoors.
Also see our page top photo of this sunshade system viewed from outdoors.

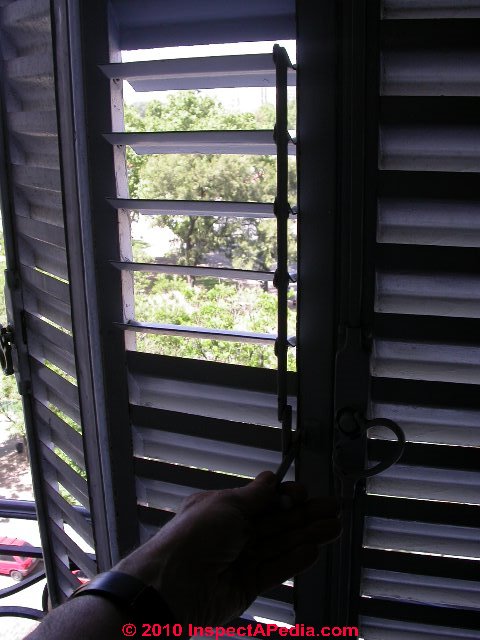

Our detailed photo (left) demonstrates the ability to open and close individual solar screen segments for outdoor view or admittance of light and air in the strong-sun climate of Buenos Aires, Argentina. -- DF
|
Also see SOLAR SHADES, LOW-E EFFECTIVENESS and for a discussion of use of shades and louvers for sunlight glare control in buildings see GREENHOUSE / SUNSPACE GLARE.
The question-and-answer article about the use of solar shades or solar blinds and blocking unwanted heat gain from sunlight in buildings, quotes-from, updates, and comments an original article from Solar Age Magazine and written by Steven Bliss.
The link to the original Q&A article in PDF form immediately below was preceded (above) by an expanded/updated online version of this article.
- Q&A on Vertical Solar Shades use of solid exterior solar shades or interior solar blinds to control building heat gain - PDF version, use your browser's back button to return to this page
