Porch construction & porch screen installation: This article provides details for porch construction and porch screen installation. This article series discuss best porch & deck construction practices, including choice of framing materials, decking or flooring choices & installation, how to select and use deck and porch structural and flooring fasteners, actual deck & porch framing construction details & connections, deck joist & beam span tables, how to build leak-proof rooftop decks, construction of covered & screened porches, deck & porch railing construction & materials, choices of finishes and stains for decks & porches, and past & current deck lumber preservative treatments with related health & environmental concerns. This article series includes excerpts or adaptations from Best Practices Guide to Residential Construction, by Steven Bliss, courtesy of Wiley & Sons. Also see our review of that book. Also see PORCHES & Sunrooms (book review

Construction Detailing for Covered & Screened Porches

This article includes adaptations or excerpts of material provided by and © Copyright protected by Steve Bliss, Wiley & Sons, used with permission

The detailing for decks and porches is very similar. Code requirements for railings are the same, whether a deck is open or closed in with screening. If the screening runs to the floor, railings will be required to protect the screening, even if the railing is not required by code. Porch decking can be spaced (like an open deck) or installed tight with a slope for drainage. Structurally, posts are easier to anchor on a porch, since they are tied in to the roof framing, which keeps them rigid.

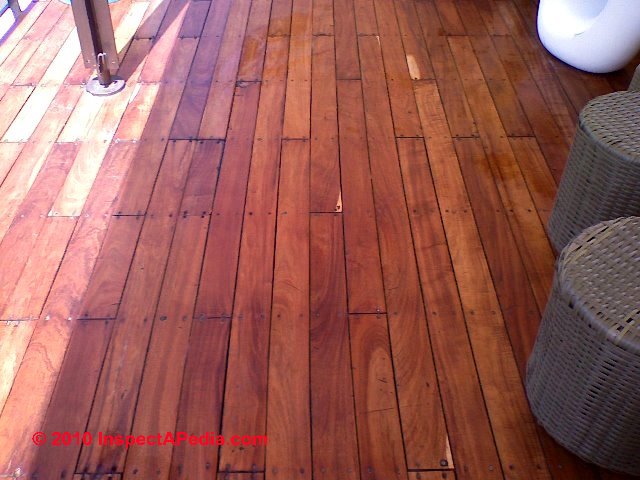

Guide to Solid Decking for Porch Floors

Where the decking will be protected by a roof, it can be either spaced like a typical open deck or sealed and painted with a decking enamel for a more formal appearance.

Solid decking is typically tongue-and groove 1x4, 5/4x6, or 2x6 decking. For solid decking, choose kiln-dried stock and install it with tight seams.

Solid decking should be sloped 1/4 inch per foot to drain. Make provisions for drainage on the three exterior sides and, if exposed to significant wetting, on the house side as well.

If the porch has a solid knee wall, leave minimum 1-inch scuppers at floor level to allow water to drain from the porch interior to outside.

More information about the porch floor above is found at Rooftop Deck Construction.

How to Install Enclosed Porch Screening

With a screened enclosure, use either solid decking or spaced decking with insect screening stapled to the underside of the joists. Furring strips tacked over the screening will help keep it from sagging and tearing.

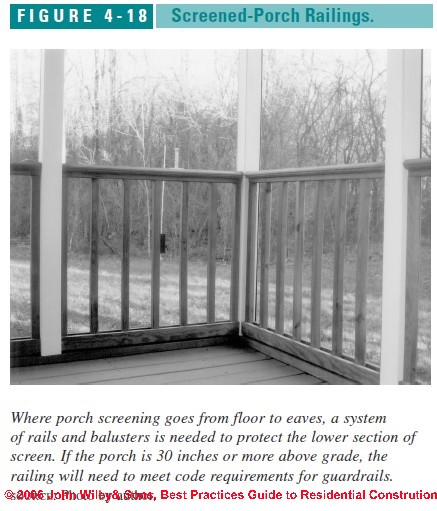

If the screening goes from floor to eaves, a system of rails and balusters will need to be installed to protect the lower half of the screen (Figure 4-18 below).

Figure 4-18: Porch screening details (C) J Wiley, S Bliss

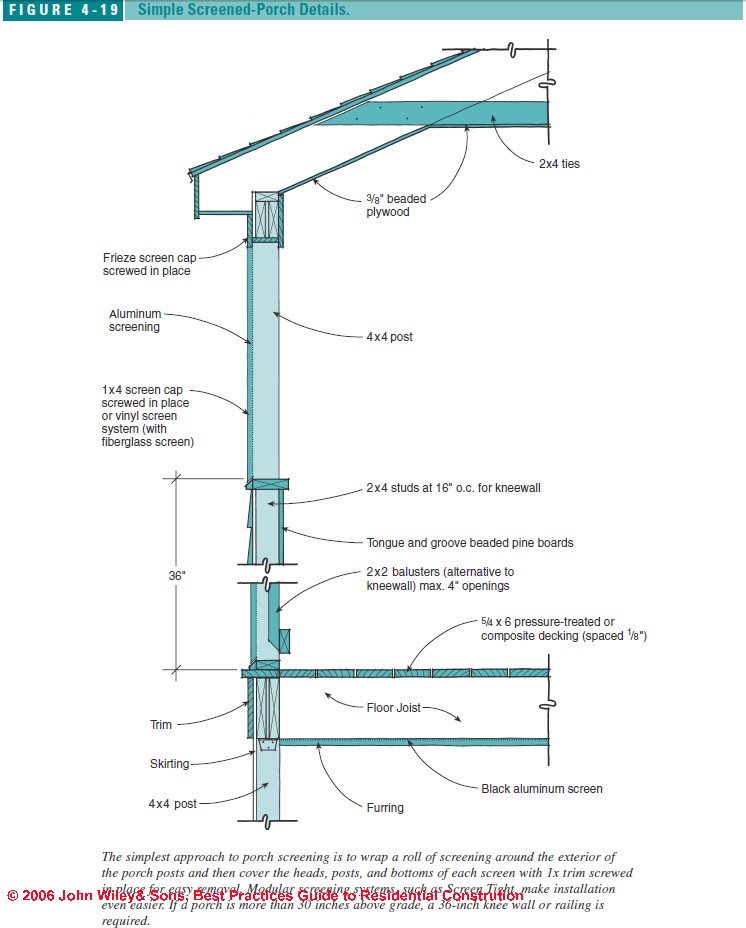

If the porch is 30 inches or more above grade, the railing will need to comply with code for guardrails (see “Railings,” page 147). Another option is to build an enclosed knee wall and start the screening at the top of the knee wall (see Figure 4-19 shown below).

Options for Screening-in a Porch

There are several options for screening. Whether you build your own or buy custom screens, aluminum screening is much stronger and more tear-resistant than fiberglass. Removable screens have the advantage of being easy to remove and repair. However, building screens from wooden screen mold is very time-consuming. Simpler options for screening are:

Have a window supplier build custom wood or metal screens with vinyl splines to hold the screen in place.
Use a manufactured screening system such as Screen Tight™ (One Better Way), a vinyl snap-in-place system for fiberglass screening that screws onto the exterior face of the porch framing.
Staple aluminum screening to the exterior of the 4x4 posts and trim with 1x wood trim pieces screwed in place.

Deck & Porch Resources, Products, Manufacturers: Where to Buy

See Deck & Porch Products, Manufacturers for our complete/updated listings of manufacturers of porch & deck products, materials, coatings, fasteners, lumber, tools.

Prefabricated Deck & Porch Railing Systems

Avcon Structural Railing Systems www.avconrail.com Thermoplastic and aluminum railings

CertainTeed www.certainteed.com EverNew PVC railing system

Global Dec-K-Ing Systems www.globaldecking.com DEC-K-ING aluminum railing system

DecKorators Inc. www.deckrail.com Decorative aluminum balusters and connectors for wooden railing systems. Also, tempered-glass balusters

Duradek www.duradek.com Durarail powder-coated aluminum railing system and walk-on vinyl decking membrane.

FSI Home Products Division www.railingworks.com Aluminum railing systems

Fypon www.fypon.com Polyurethane railing systems in classic architectural styles

HB&G www.hbgcolumns.net PermaPorch cellular-polyvinyl chloride (PVC) railings and posts reinforced with wood or aluminum; cellular-PVC or aluminum balusters Kroy Building Products www.kroybp.com Classic Manor PVC-railing system

L.B. Plastics www.lbplastics.com Sheerline PVC-railing systems and PVC- post cladding

Royal Crown Limited www.royalcrownltd.com PVC railing system with steel reinforcing

Shakespeare Composites Structures www.armor-rail.com Armor-Rail structural fiberglass (FRP) railing system with turned balusters

Thermal Industries www.thermalindustries.com Dream Rail PVC-railing system with optional tempered glass balusters

U.S. Plastic Lumber Corp. www.carefreexteriors.com Recycled HDPE railing system

Hidden Deck Fastener Suppliers

BEN Manufacturing www.premier1.net/~ben69 Dec-Klips fit between deck planks with prongs into edges; nailed into top of joists; electrogalvanized steel

Blue Heron Enterprises www.ebty.com Eb-Ty UV-resistant polypropylene biscuit fits into slots in edge of decking, screws into top of joist Grabber Construction Products www.deckmaster.com Deckmaster angle bracket screws to side of joist and up into decking; available in galvanized or stainless steel

Simpson Strong-Tie www.strongtie.com DBTC deck ties screw down to top of joist with prongs into edges of decking planks; triple-zinc-coated or stainless steel by special order; disposable plastic driving tool

Spotnails www.spotnails.com Tebo stainless-steel fasteners fit between decking boards with prongs into edges of decking; installed with mallet and proprietary tool

TY-LAN Enterprises Inc. www.shadoetrack.com Shadoe Track angle bracket nailed along top of joist and screws up into bottom of deck boards; available in galvanized, powder-coated, and stainless steel

USP Lumber Connectors www.uspconnectors.com Deck Clip screws into edge of one decking board and locks to next board; requires toenailing one edge of each board

Screen Systems for Porches

One BetterWay www.screentight.com Screen-Tight vinyl porch screening system screws to exterior of porch framing; snap-on facings conceal screws and screen splines; available in white, beige, gray, and brown

Deck & Porch Industry Associations

American Wood Preservers Association (AWPI) www.awpa.com

California Redwood Association www.calredwood.org

Deck Industry Association www.deckindustry.org

Forest Stewardship Council www.fscus.org Information on certified tropical hardwoods

Rainforest Alliance, Smartwood Program www.rainforest-alliance.org Information on certified tropical hardwoods

Southern Forest Products Association www.sfpa.org

Southern Pine Council www.southernpine.com

Western Wood Products Association www.wwpa.org

Western Wood Preservers Institute www.wwpinstitute.org

-- Adapted with permission from Best Practices Guide to Residential Construction.

see Codes for Stairs for details about stair building codes and specifications.
