STRUCTURAL DEFECTS - Inspecting for Mobile Home Structural Defects
Ver.3.5 - 04/25/07, updated through 2012 - Steve Vermilye, New Paltz NY and Daniel Friedman, Poughkeepsie NY,
Hudson Valley ASHI Chapter Seminar, Newburgh NY, January 4, 2000, NY Metro ASHI Fall 99 Seminar, Holiday Inn Crowne Plaza, White Plains NY, October
2, 1999. Readers should also see MOBILE HOME STRUCTURAL & SAFETY DEFECTS for high priority mobile home and double wide structural concerns.
|
WIND RATINGS - Mobile Home Zone Ratings for Wind Damage, Uplift, and Damage - Mobile Home Wind Ratings
Wind Zones:
- NY is all Wind Zone 1 (non hurricane), minimal requirements vs. hurricanes or other coastal storms;
- (Long Island is no longer designated as Wind Zone II)
- Andrew (FL 1992) destroyed almost ALL of the mobile homes in So. Dade County; by contrast 28% of contractor-built homes
were destroyed.
|
|
Leaks at the windows of this mobile home led to water entry in its wall below the window.
The photograph (courtesy of Jeremias, some of our readers on mobile home restoration and renovation) shows severe structural rot to the floor frame structure below the leaky window.
Only a "do it yourself" repair was economically feasible in this case.
|
|
If you were not sure of the difference between modular construction and a mobile home, notice the presence of a steel frame chassis and even wheels located beneath your mobile home, doublewide, or static caravan.
Also notice that oil line on the crawl space floor. Is it leaking or vulnerable to damage or cold temperatures? |
Mobile Home Energy Zones
(HVAC) New York is in Thermal Zone 3
Mobile Home Roof Zones
(Snow load) NY North of the Thruway = "Middle Zone (30 psf)" and all areas S of the Thruway "Southern Zone (20 psf)"
(Check zone ratings on the home's data plate: wind load, heating load, roof load)
FOUNDATIONS Common Mobile Home Pier & Foundation Defects

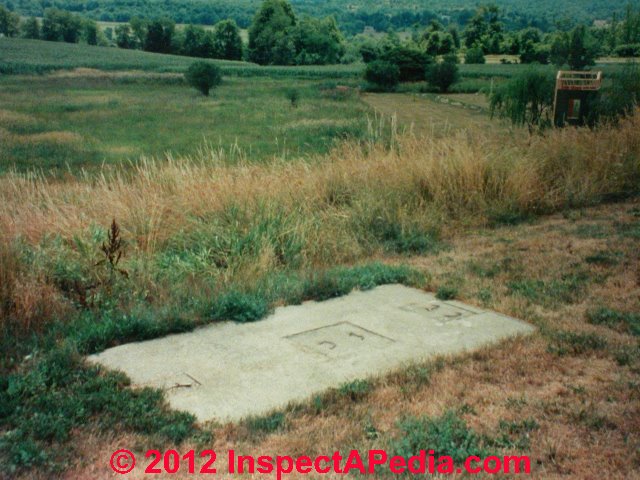

At below left we point out a concrete septic tank that was mistaken for a mobile home foundation slab - do not park a mobile home on top of a septic tank nor over a drainfield or other onsite waste disposal sysetms.
Our second photo (below right) illustrates a cable tie-down securing the mobile home's steel frame to a buried anchor (not visible);
Some common mobile home, doublewide, or caravan trailer foundation & support defects include:
- Systems used: Perimeter concrete, concrete block; piers and/or posts; concrete slab; piers and ground anchors;
permanent wood; if none of these has been used, there may be no adequate foundation.
- Preventing frost damage: footings below frost;
floating slab; other engineered design;
- Preventing wind damage: ground anchors & ties; ties to concrete deadmen, footings, or foundation; other engineered design;
Links to articles found at Related Topics or at the end of this article provide details about specific mobile home structural defects and concerns.
...
