This article explains Concrete block or "cinder block" or concrete masonry unit (CMU) foundation inspection procedures and the diagnosis of cracks, bulges, leaning, bowing, and settlement in concrete block foundations and building walls such as damage due to impact, settlement, frost or water damage, and other causes.

Types of foundation cracks, crack patterns, differences in the meaning of cracks in different foundation materials, site conditions, building history, and other evidence of building movement and damage are described to assist in recognizing foundation defects and to help the inspector separate cosmetic or low-risk conditions from those likely to be important and potentially costly to repair.

How to Identify, Diagnose, & Evaluate Masonry Block (concrete & "cinder block") Foundation & Wall Damage

How the history of building construction, movement, events can help diagnose concrete block foundation cracks & damage

We use the term concrete blocks in these articles where others may refer to this same construction material as concrete masonry unit (CMU), masonry blocks, cement blocks, or cinder blocks. Concrete blocks vary in quality, mostly as a function of the era in which they were made and the raw materials used.

Henry Page Sr. in Poughkeepsie, NY in the early 1900's dug up the family farm, mixed dirt, cinders, and cement using a Sears & Roebuck cinder block kit to make masonry blocks that were used throughout Dutchess County. In time many of these blocks spalled and disintegrated badly where they were exposed to rain splash-up at ground level.

But rarely did these flimsy versions of the modern (and harder, stronger, concrete block) lead to a building failure from their innate properties.

Rather most building failures involving concrete block are our own fault - causes which we inventory in this article series.

Horizontal cracks in a concrete block wall are more immediately threatening of serious collapse than vertical cracks.

But for small horizontal cracks (say 1/16" wide) and walls that have minimal bowing (say < 1" inwards) the block wall foundation collapse risk estimate may be reduced.

And where history indicates that the damage is old, perhaps from a single event (damaged during backfill, for example) and not ongoing, the urgency of repair may also be reduced (see BLOCK FOUNDATION BACKFILL DAMAGE -)

An assessment of these factors as well as the effect on the rest of the structure are important.

The photo at above eft illustrates severe bulging in a concrete block foundation wall. The location of the cracks combined with outside observation of backfill level suggests this damage is due to water, frost, and earth pressure.

In masonry block construction, foundation or wall cracks occur more commonly in mortar joints but can also occur across and through the blocks themselves.

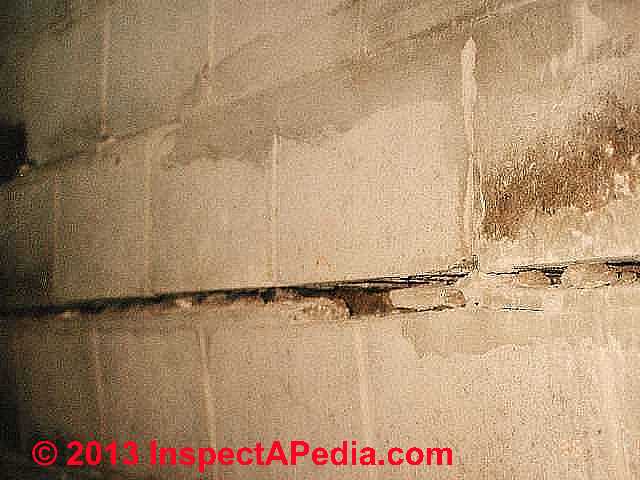

At left we illustrate a wide horizontal crack along the mortar joint of a concrete block foundation wall. The wall also is bulged inwards; measurements showing more than in inch of inwards bow meant that expert evaluation (and probable reconstruction) were in order for this structure.

Vertical cracks in block foundation walls & expansion and shrinkage cracks in a concrete block wall may occur but are less common than in some other materials.

Cracks tend to be more severe in the center of walls from external loading and pressure (from any source).

Cracks occurring near foundation corners in a masonry block wall are often from water and frost. In freezing climates, "frost lensing" can cause soil to stick to and lift a building foundation when the ground freezes.

These cracks are usually visible above grade.

Bulged, collapsing concrete block walls

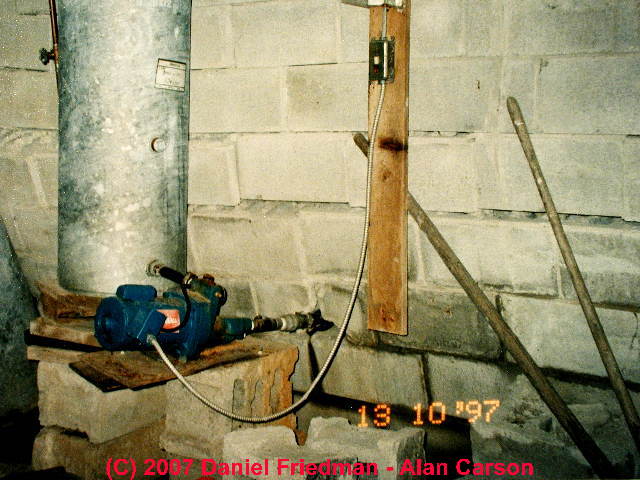

Photograph of a masonry block foundation collapse

Photograph of a masonry block foundation collapse and repair

The masonry block foundation at the house in these photographs collapsed after a period of heavy rain. The underlying problem was in-slope grade at the rear of the home and trapped roof spillage there, causing lots of heavy wet earth pressure on the wall.

The home inspector had previously observed water damage at the wall and had correctly assessed the outside conditions. The owners had deferred action to prevent further water damage, leading to an unexpected and sudden precipitous collapse of the foundation after a period of unusually wet weather. [Left hand photograph courtesy of Alan Carson, Carson Dunlop, Toronto. These photos are of two different buildings.]

Key Defects List for Concrete Block Walls

Some common masonry block (or "concrete block" or "cinder block") foundation or structural wall defects to be observed and reported include:

Leaning or tipping masonry block walls: a concrete block or concrete masonry unit (CMU) wall may tip inwards at its top (a leaning or tipping wall failure) due to pressure from water and wet soils, from frost, from the weight of nearby vehicles driving along the wall (oil truck coming to deliver heating oil), or by defects and tipping wall footings.
Buckled concrete block walls: often due to pressure or loading from water, frost, earth, or nearby passage of vehicles - potentially urgent depending on circumstances and amount. Bulging or buckling masonry block wall failures (shown at above-left) are also called "bending" failures.
Horizontal displacement or "shear failures" occur in concrete block walls, particularly ones which were built without vertical steel reinforcement, and may be caused by pressure from water and wet soils or other forces. If we observe portions of a wall sliding horizontally past other wall segments we've found a shear failure.

A common shear failure can be seen when the bottom course of masonry blocks in a foundation wall is held in place by a floor slab and when the upper portion of the wall has been pushed inwards so that the upper blocks are projecting past the lower ones.

Such walls are also often tipping or leaning or may be buckled and broken open along horizontal mortar joints in the wall.
Cracks in concrete block walls: along the mortar joints, or less often right through the masonry blocks themselves, can be the result of pressure from water and wet soils, frost, nearby vehicles, or differential settlement in a footing.
If a foundation wall crack is vertical and fairly uniform in width, but the wall on one side of the crack is higher than on the other, we're looking at differential settlement which will probably be traced to the footings.

If a foundation wall crack is vertical and wider at its top than its bottom, we may be looking at footing settlement in which the footings have "bent" and settled unevenly, such as when a footing has been placed over unevenly compacted fill or where there was bedrock or a large boulder under a portion of the footing permitting settlement such that the footing has settled down on one or both sides of this "high point".

At least one author also posed that a concrete masonry unit wall which has a vertical crack near its center and whose crack is wider at its top than bottom has cracked due to wall shrinkage along its length. His explanation was that the top of the wall was free to shrink but its bottom was held in place by the footing, making a crack wider at top than bottom. However other experts (D.Wickersheim) assert that concrete block walls do not shrink significantly during curing, though wet masonry blocks might change a bit in dimension during drying.
Crack patterns in concrete or other masonry foundation walls can occur as vertical, diagonal, stair-stepped, or horizontal patterns which we discuss and among which we distinguish in more detail at FOUNDATION CRACK EVALUATION
Missing components such as headers where the wall has been modified, steel reinforcement wire or re-bar (if required by local codes).
Missing footings, piers or other reinforcement
Impact damage which has broken masonry blocks or dislocated them
Point loading cracks or fractures
Other cracks through or across concrete blocks as opposed to cracking in the mortar joints. Unlike poured concrete, concrete blocks do not shrink with age or curing. When investigating cracks through concrete blocks, check the other possibilities.

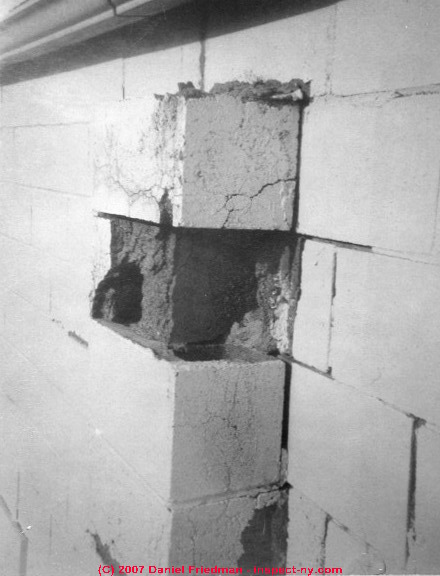

Poured concrete sister walls, additions of pilasters, additions of steel reinforcement, or repeated re-coating of a wall with parging cement are all indications of past damage and/or water entry problems that merit further evaluation
