Three Types of Cracks in Concrete Slabs & Floors

Shrinkage cracks in a slab are unlikely to be of any structural concern but can be a source of water entry or radon entry in buildings and may form a tripping hazard.
Settlement cracks in a slab indicate inadequate site preparation, such as failure to compact fill on which a slab was poured.
Frost heaves or expansive soil damage can cause substantial damage to basement, crawl space, or garage floor slabs in some conditions.

Each type of basement slab, floor slab, or slab on grade crack is discussed and described with photographs below.

Cracks come to the job along with the concrete, riding in the same truck! At a Journal of Light Construction conference (Boston 1985) a lecturer informed us that "Every concrete truck that comes to your job to pour a slab has at least four cracks in it. It's up to you to either provide control joints, or not. If you leave out control joints the cracks will occur in a messier pattern at natural stress points in the slab."

Three Types of Poured Concrete Slab Floors - Different Implications of Cracks & Movement

Before we describe crack, movement, and damage patterns and diagnosis in concrete slabs, we need to introduce three different types of poured concrete floor slabs.

We use the three Carson Dunlop Sketches shown here to comment on the occurrence, causes, and significance of cracks and movement in poured concrete slab construction. We define types of foundations and their common vulnerabilities also at FOUNDATION CONSTRUCTION TYPES.

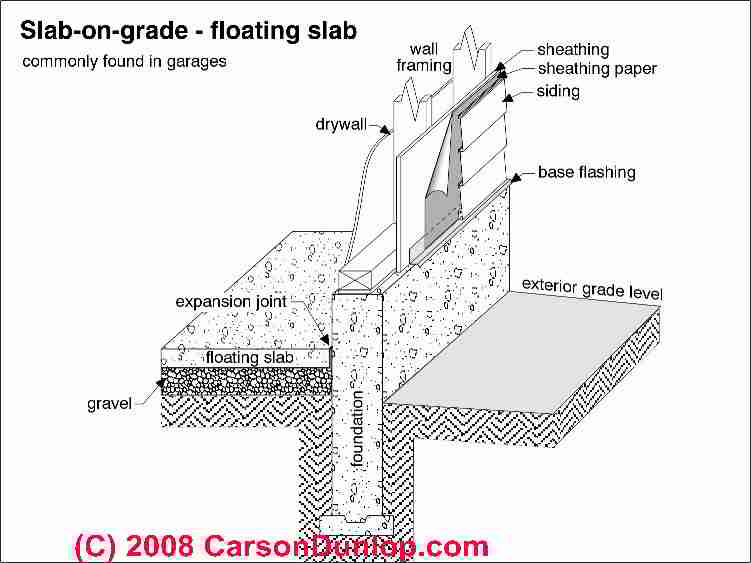

Floating slab characteristics:

In the sketch at above left, the floor slab (left side of the foundation wall) is simply "floating" sitting atop gravel and soil inside the foundation wall.

This is an idealized sketch.

The author's first construction job (construction at the Fleet antiaircraft missile training center, Dam Neck, VA) consisted of raking roughly level loose-fill dirt inside of building foundations.

Over several summers of this labor we never once saw anyone using a soil compactor and rarely did we see gravel poured inside of the foundation walls before the slab was poured.

The bad news about typical floating slab construction (where the soil is not compacted) is that anything that causes the soil to settle risks slab cracking and settlement. Flooding, leaks, or simply poor handling of roof and surface runoff can send water under a building where it causes loose soil to settle.

The good news about cracks in floating slab construction is that the damage is to the floor, not to the structure that is supporting the building. Only if you see a floor slab crack that continues up in the foundation wall where the crack meets the wall would the structure be obviously involved.

More good news: if there is significant soil settlement under a floating slab, the slab is likely to break and follow the settling soil downwards; a sudden precipitous collapse of a floating slab is less likely than the next case we describe.

Supported poured concrete floor slab characteristics

As you can see from the sketch at left, the supported slab is a lot like the floating slab - it claims to have gravel and claims to have compacted soil below the slab.

But the edges of the floor slab rest on a lip built into the poured concrete footing which also supports the building walls.

The good news about a slab with this design is that a little soil settlement below the slab will not cause the floor to tip nor crack provided it has been adequately reinforced.

The bad news about a supported slab design is that if there were significant soil settlement below the slab and if it lacked proper reinforcement at the time of construction, it might collapse.

Where may this occur: if you inspect a garage built on what was originally a sloping hill, you can expect that the interior of the garage foundation was filled with lots of backfill soil. If your builder was the same fellow who hired the author (as we described above), all of this fill was left un-compacted. At the low end of the garage where the most fill was added, significant soil settlement can occur. If the slab was also not reinforced and if a lot of soil settlement occurs under this floor, it could collapse suddenly, say when your car is parked there.

Slab on Grade - Monolithic Concrete Slab Construction Characteristics

As you see in the sketch at left, a monolithic slab is poured at the same time as the building footing that is going to support the building's walls.

If structural cracks appear in a monolithic slab they might trace to footing settlement which might be a structural concern, depending on the amount of settlement, its origin, and type of building construction.

Notice that the sketch shows insulation on the exterior of the slab - unless special methods are used, it can be difficult otherwise to insulate this floor from the surrounding soils, an important factor in cold climates and where heating costs are increasing rapidly.

Where exterior foundation insulation is carried up above grade and right under the building exterior siding, there may be a risk of wood destroying insect attack on the wood-framed wall.

The articles listed below explain how we recognize and diagnose signs of cracking, damage, movement in these different concrete slab construction methods.

Readers should also see SLAB CRACK REPAIR and may also want to see SINKING BUILDINGS where we include case histories of both building settlement and slab cracking, heaving, settling: diagnosis and repair. Also see How to Diagnose & Evaluate Foundation Cracks since those pages also assist in distinguishing among types of cracking in concrete foundations (vertical supporting walls and footings).

Questions & Answers regarding this article

Questions & answers about cracked concrete slabs and floors

Question: Diagnose and repair cracks in ceramic tile covered slab in a nearly-new home

We bought a house two years ago, after it sat empty as a model home for a few years, so now it’s about five years old. I believe it is a slab on grade foundation type--common in this area.

We live in Austin, Texas and the drought has been really bad here, and recently we have discovered a few hairline cracks in a few different tiles. These tiles are on the first story and so are on top of the concrete. One crack is about 4 feet long and runs straight through about 4 different tiles, not following the grout lines. (Theses cracks are hairline, and are barely noticeable.)

There is a lot of limestone and rock in the area, and so we never thought we’d ever have a problem here, unlike Houston, where foundation problems are everywhere. I kinda freaked out and started putting a level to everything in the house, and all the door frames are perfectly level and the countertops are very, very close to being perfectly level.

There a few small hairline cracks throughout the house in the sheetrock, but these were there when we moved in and haven’t gotten worse, and seemed pretty normal to me. There is even a third story, which I know you’d see the most movement, (if there was sinking involved) but everything looks good up there(maybe a very slight slope to one side, like a ¼ inch over 10 feet)

Well, mentioning the drought, a few neighbors have said they have a few cracks too, and they had a foundation company come out, and the company told them it was because of the drought, and told them to soak the foundation.

I went out and bought soak hoses and are going to set that up, and I also bought a nice laser level and checked the slope of the foundation. The foundation slopes about 1 inch over about 20 feet towards the left side of the house, which happens to be the downhill side. But with almost everything else level in the house, I’m starting to think it was already like that, and I just never noticed it before.

So this leads to my main question—how much slope in a foundation is generally acceptable to build on? Because I know brand new foundations won’t be perfectly level, but about how much can a new foundation be off-1 inch, 2 inches, 6 inches?

Thanks, C.M.

Reply: diagnose the crack type, impact on foundation, probable cause, and choose extent of repairs

Thanks for the interesting tile and slab crack question. A competent onsite inspection by an expert usually finds additional clues that help accurately diagnose a foundation, slab, or floor cracking problem because someone with experience might see clues that escape even a smart, careful, thorough homeowner performing a DIY investigation. That said, here are some things to consider:

Decide if the floor and concrete cracks are structural or not

I agree that the cracks you describe are more likely due to slab settlement or movement and that considering Austin has been in a drought, soil settlement (rather than rising due to suddenly newly-wet expansive clay soils) is probably at work.

I also agree that other crack sources such as concrete slab shrinkage are probably not at fault. I think that slab shrinkage cracks appear early in building life, are not structural, and are less likely to suddenly telegraph through a ceramic tile floor. (To be accurate, severe shrinkage cracks in a slab could show up in a tiled floor if the floor were not properly installed to prevent those cracks from telegraphing through the tile, but that just doesn't sound like your case.)

It's useful to distinguish between a crack that only affects the floor slab (usually not structural, the building is not threatened) and a crack that includes the foundations and footings (structural, the building might be threatened depending on extent of movement).

Evaluate the extent of actual foundation movement vs. slab cracking

While building codes expect footings to be poured level, I'm not surprised to read that a foundation and footing slope one inch over 20 feet in new construction. A key diagnostic step will be to convince yourself that this out of slope condition is as-built or that it is the result of settlement.

Examine the sloping foundation walls wherever masonry foundation materials and surfaces are visible. A one-inch change in slope, if it happened after construction, would often be expected to produce vertical or stair-stepped cracks in the foundation wall. (While it's theoretically possible for an entire foundation or even building to settle or tip without cracking (I've found a few), you should not find upstairs floors, windows, doors, all dead level if the building had shifted one inch.)

Also take a look at the location and pattern of floor cracks, If a crack line is more or less straight, and if it runs towards the foundation walls or more or less at right angle to the foundation wall, then if the foundation wall and footing had settled you'd expect to see wall cracks in the same area.

Evaluate the extent of floor slab settlement cracks

If those clues of actual footing settlement and foundation movement are absent, you are more likely seeing settlement in the concrete slab itself. Often floor slabs are not poured on compacted fill (they should be). The result can be future slab settlement and cracking, exacerbated by changes in site conditions (more water, less water, freezing, drying) that may affect the soil below the slab.

If the floor slab is poured with its perimeter sitting atop foundation footings (and presuming the footings are intact) the slab "hangs" on the footings, and perhaps also is "supported" by piers that may have been poured under the floor slab to support Lally columns that march down the center of a basement to support a main girder.

In that construction settlement of the slab may produce cracks as the floor bends and dirt below it settles. Cracks tend to be away from and sometimes roughly parallel to the foundation walls, or to appear as islands around the Lally columns.

If the floor slab was poured atop of dirt that covered the footings, or inside of the footings, the entire slab may settle or tip even at its perimeters.

In any case, the combination of pouring a slab on soft fill and changes in soil moisture invite soil settlement and slab cracking.

In fact my first job in construction was raking a huge dirt pile out to "level" inside of an already poured and built footing and masonry block foundation wall. Once the dirt was roughly "level" via my hand rake, the builder went ahead and poured his floor slab. "Compacted fill" was not in our vocabulary.

See Settlement Cracks in Slabs for details about cracking floor slabs due to settlement.
See SETTLEMENT IN FOUNDATIONS for a more broad explanation of foundation settlement diagnosis, evaluation, and repair.

Repairing Slab Cracks and Cracked Floor Tiles

We discuss several slab crack repair alternatives at SLAB CRACK REPAIR. Unfortunately there is no magic band-aid that will make the cracks disappear, especially where ceramic floor tiles are installed. If radon and water entry are not an issue in your area you might live with the cosmetic defect for a while.

Repair of the cracked floor will require removal of the cracked ceramic floor tiles, including enough mastic and crud removal that you can bed replacement tiles smoothly in place. Before replacing the tiles that were removed you might want to also install mesh tape over the floor slab cracks to reduce the chances that those cracks telegraph again through the new tiles.

Also see Guide to Installing Tile over Concrete Slab Floors

Ask a Question or Search InspectAPedia

HTML Comment Box is loading comments...

Recommend / Share this Article

...

Technical Reviewers & References

InspectAPedia.com^® - Daniel Friedman - Publisher & Editor.
InspectAPedia Bookstore lists recommended books, organized by topic & available for purchase. Most of our articles also include a list of recommended books for the specific article topic as well as other references, and information sources.
Critique, contributions wanted: Contact Us to suggest corrections or additions to articles at this website, and if you wish, to receive online listing and credit as a contributor. Particular thanks are due to the many experts and also consumers who read and critique technical articles at InspectAPedia.com.
Additional technical contributors & reference sources for this article are listed below.

Use links just below or at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

  SLAB CRACK EVALUATION
    Control Joint Cracks in Concrete
    Freezing & Water Damage
    Frost Heave/Expansive Soil Cracks in Slabs
    Settlement Cracks in Slabs
    Settlement Cracks vs. Frost Heaves
    Settlement Cracks vs. Shrinkage Cracks
    Shrinkage Cracks in Slabs
    Shrinkage Cracks Along Foundation Walls

Carson, Dunlop & Associates Ltd., 120 Carlton Street Suite 407, Toronto ON M5A 4K2. (416) 964-9415 1-800-268-7070 info@carsondunlop.com. Thanks to Alan Carson and Bob Dunlop, for permission to use illustrations from their publication, The Illustrated Home which illustrates construction details and building components. Carson Dunlop provides home inspection education including the ASHI-adopted Home Inspection Training Program (home study course), publications such as the Home Reference Book, report writing materials including the Horizon report writer, and home inspection services. Alan Carson is a past president of ASHI, the American Society of Home Inspectors.
Quality Standards for the Professional Remodeling Industry, National Association of Home Builders Remodelers Council, NAHB Research Foundation, 1987.
Quality Standards for the Professional Remodeler, N.U. Ahmed, # Home Builder Pr (February 1991), ISBN-10: 0867183594, ISBN-13: 978-0867183597
"Concrete Slab Finishes and the Use of the F-number System", Matthew Stuart, P.E., S.E., F.ASCE, online course at www.pdhonline.org/courses/s130/s130.htm
Sal Alfano - Editor, Journal of Light Construction*
Thanks to Alan Carson, Carson Dunlop, Associates, Toronto, for technical critique and some of the foundation inspection photographs cited in these articles
Thanks to reader Michael Witten for technical editing, October 2010
Terry Carson - ASHI
Mark Cramer - ASHI
JD Grewell, ASHI
Duncan Hannay - ASHI, P.E. *
Bob Klewitz, M.S.C.E., P.E. - ASHI
Ken Kruger, P.E., AIA - ASHI
Aaron Kuertz aaronk@appliedtechnologies.com, with Applied Technologies regarding polyurethane foam sealant as other foundation crack repair product - 05/30/2007
Bob Peterson, Magnum Piering - 800-771-7437 - FL*
Arlene Puentes, ASHI, October Home Inspections - (845) 216-7833 - Kingston NY
Greg Robi, Magnum Piering - 800-822-7437 - National*
Dave Rathbun, P.E. - Geotech Engineering - 904-622-2424 FL*
Ed Seaquist, P.E., SIE Assoc. - 301-269-1450 - National
Dave Wickersheimer, P.E. R.A. - IL, professor, school of structures division, UIUC - University of Illinois at Urbana-Champaign School of Architecture. Professor Wickersheimer specializes in structural failure investigation and repair for wood and masonry construction. * Mr. Wickersheimer's engineering consulting service can be contacted at HDC Wickersheimer Engineering Services. (3/2010)
*These reviewers have not returned comment 6/95

How to Identify & Evaluate Shrinkage Cracks in Poured Concrete Slabs

Please see the main text version of this article at Shrinkage Cracks in Slabs

We discuss the recognition and significance of concrete shrinkage cracks in detail at Shrinkage Cracks in Slabs. Just below you can read a summary of this topic.

Photograph of a classic shrinkage crack in poured concrete.

Shrinkage cracks in poured concrete are easily recognizable and can be distinguished from other types of cracks that occur later in the life of a foundation wall or floor slab.

The photograph of cracks above were taken of shrinkage cracks in a concrete slab floor in a home built in 2006. The cracks in this case ranged in width (measured across the crack) from "hairline" (less than 1/16") to about 3/32" in the basement floor slab of this particular home. They may appear larger.

What is unique about shrinkage cracks in concrete is that they usually appear to be discontinuous, as shown in this photo. The crack will meander along in the concrete, taper to a stop, and then continue beginning in a parallel line to the first crack, meandering again through the concrete. This is characteristic of concrete (or mud) shrinking while giving up its moisture.

You can see the shrinkage of even a perfect concrete floor slab with no visible cracks in the field of its surface if the floor was poured inside of an existing foundation. Look for the gap between the edges of the slab and the foundation wall? Look also for the stains or concrete debris on the wall at the slab level? These confirm that at the time the slab was poured it was touching the wall.

Shrinkage Cracks in a Basement or other Slab May Be Severe and May Combine with Settlement

Depending on the mix and pour conditions as well as the site work preparation significant concrete shrinkage cracks can appear in a basement slab. On occasion we may also see vertical dislocation in a floor slab crack, that is, one side has settled or tipped away from the other side of the cracked concrete.

Our photographs above show shrinkage cracking and ensuing minor settlement cracks occurring in the same poured concrete basement floor. We suspected that site drainage defects or possibly nearby site blasting for additional construction contributed to the 1/16" to 1/8" vertical dislocation across some of the cracks in this floor where the cracks were about 3/16" wide.

Slab Cracks may Permit Basement Water Entry or Radon Gas Entry

Happily the building owner at the site where we made the photos above did not report water entry through these openings, though it certainly might be expected as the home ages and its footing drains stop working, particularly if surface runoff and roof runoff are not kept away from the building.

Photos of Concrete Floor Slab Shrinkage Points of Origin

The photo at left shows some concrete shrinkage cracks that are larger than usual. Note that these cracks begin at building foundation wall inside projection corners - a condition that probably creates stress points as the slab cures.

If you click on and enlarge the photo you can see clear evidence that the cracks are discontinuous, multiple, and very roughly parallel in this area - good evidence that they were caused during the concrete curing process and not by a later event which "broke" the slab.

When we see combined slab shrinkage and slab settlement condition we suspect that the concrete pour not only allowed for excessive shrinkage, or perhaps shrinkage without control joints, but also the pour was made on top of poorly prepared soils. For example if a slab is poured on poorly-compacted soil, after shrinkage cracking occurs, we may see uneven settlement among sections of the cracked slab.

Settlement cracking following shrinkage cracking may also occur. In both of these cases we anticipate that significant horizontal dislocation in a poured concrete slab should be small unless steel reinforcement was omitted or was improperly installed. Since some contractors use a fiber-reinforced cement and may omit steel reinforcement in floor slabs, this condition may occur.

How to Inspect & Evaluate Cracks at Control Joints in Concrete

We discuss the recognition and significance of control joints in poured concrete slabs in detail at Cracks at Control Joints in Concrete. Just below you can read a summary of this topic.

Photograph of a concrete slab control joint

Photograph of a cracked concrete slab, cracks at a control joint

The first photograph shows an expansion joint in a basement floor slab. Notice that we do not see other cracks in this slab. Shrinkage cracks that occur at control joints such as shown in the second, close up photo here, are occurring where they are supposed-to, although the width of this particular crack was surprisingly large. These cracks are not normally a defect in the slab but may be a source of water or radon entry into the building and may need to be sealed. Use a flexible sealant.

Settlement Cracks in poured Concrete Slabs

We discuss the recognition and significance of settlement cracks in poured concrete slabs in detail at Settlement Cracks in Slabs. Just below you can read a summary of this topic.

Photograph of a cracked concrete slab, cracks around a Lally column

Settlement cracks in a conventional concrete floor slab which has been poured inside a separate foundation wall (and often resting at its edges on the building's foundation wall footings) are usually not connected to the foundation wall and are not supporting any structure [except possibly Lally columns, discussed next].

These cracks may not be a structural concern, but there are cases where a serious hazard can be present, such as garage floor cracking when the floor was poured over soft, loose, inadequately-compacted fill and where the floor slab was not pinned to the garage foundation walls. Soil settlement under a garage floor, perhaps aggravated by groundwater which can increase soil settlement, can lead to first hollowing-out of space below the floor and second, sudden collapse of the floor structure.

We have used a heavy chain, dragging it across the garage floor and listening to changes in the sound it produces, to find areas of significant soil voids below the floor. The pitch of the chain noise drops significantly when passing over a void below the concrete.]

Settlement cracks in a concrete floor around a supporting Lally column might be indicative of a serious problem such as building settlement if the columns are settling. Independent footings may have been provided supporting Lally columns in the building interior and those may be settling independently of the floor slab which may have been poured around and even over them (See photo above). But beware, where slab thickness and local building codes allow, supporting columns may bear directly on a poured floor slab without their own (deeper) pier or footing. In that case floor slab cracking and settling can cause column movement and may be a structural concern.

Settlement cracks in a monolithic slab or floating slab floor may be more serious, depending on their extent since in this case the edges and other portions of the slab are, unlike the cases above) expected to support the upper portions of the building structure.

A monolithic concrete slab is one which includes the building footing as part of the slab, created in a single continuous pour of concrete.

A floating concrete slab is one which is poured at a (generally) uniform thickness on the ground without a separate footing. [Beware, in areas of wet soils, expansive clays, freezing climates, or unstable soils, floating slabs may be exposed to extra stresses and may tip or crack. Proper site work and drainage are important as is proper engineering design of such structures.

Frost Heaves or Expansive Soil Cracks in Poured Concrete Slabs

We discuss the recognition and significance of frost heaving damage and cracks in poured concrete slabs in detail at Frost Heave/Expansive Soil Cracks in Slabs. Just below you can read a summary of this topic.

Photograph of a cracked concrete slab from frost damage

Frost heaves or expansive soils damage to building floor slabs can range from minor to extensive in buildings depending on soil and weather conditions, site preparation, and slab construction details, as we elaborate here.

The photograph above shows a rather straight crack across a garage slab near the garage entry door. What is happening here and why is this particular crack straight if it's a frost or soil heave crack?

In freezing climates building foundations include a footing which extends below the frost line. This is true for both the occupied space as well as garages. When a concrete slab is poured either abutting the top of such a foundation, or poured extending over the edges of such a foundation, there is risk of cracking across the concrete at the interior edge of the buried footing.

The combination of water under a garage floor (watch out for driveways and sites that slope towards the garage or home) and freezing can cause the portion of the slab which rests directly on the soil to move up and down during freeze/thaw cycles. Since a garage is often colder near the garage entry door than in other areas, there is extra risk of these cracks occurring there, but they can occur anywhere. When there is freezing and heaving of a slab, particularly one which omitted reinforcing steel, or did not extend the steel over the footing, these garage floor slab cracks may appear during freeze/thaw cycles.

Similar floor slab damage might occur in areas of expansive clay soils if the proper moisture level is not maintained.

Basement floor heave patterns - frozen floor drains: Basement floors can be frost heaved in other patterns in buildings which are unheated or which lose heat. We have found basement floor slabs broken and heaved above buried drain lines which ran below the basement floor of a home which remained unheated during freezing weather.

A clogged drain sitting full of liquid combined with prolonged freezing weather was the culprit in most of these cases. The heaved concrete was raised following exactly the path of the frozen (and burst) buried, clogged drain line. This problem can be epidemic in older homes which were constructed using a downspout drain line extending below the basement slab.

Basement and garage floor random heave and crack patterns:

Cracked and heaved concrete or settled concrete can occur in more random patterns in any concrete floor where there has been frost heaving, soil contraction/expansion, or simple soil settlement, as shown in this photograph.

Garage or basement floor sloped or semi-uniform settlement may also produce a tipped floor even if the concrete is not cracked, or the floor may settle uniformly. This condition occurs if the concrete was reinforced by steel or fiber cement, but was poured inside of a separate concrete or masonry block foundation. We see this condition more often in garages in which the slab was reinforced but poured on poorly-compacted soil. The problem may be worst if in addition to poor compaction, water runs under the slab, causing additional or more rapid soil settlement.

My first construction job (for pay) was to rake level the backfill soil that the contractor had dumped inside of the newly-completed garage foundation in a series of homes. No compaction of any kind was performed. When a lot of fill, several feet or more in depth, was required to bring the slab to the desired height, there was a good chance that the slab would settle or tip in the future.

Garage slabs which were poured inside of the foundation walls but which were pinned to the foundation sides (typically using re-bar set into holes punched into the masonry block foundation), the slab was resistant to settlement or movement even if there was modest soil settlement below.

In a garage where the slab has settled you can often spot the original level of the slab and thus can measure the amount of settlement. Look for a concrete line above the level of the top of the slab and found along the masonry block or poured concrete foundation wall. we have seen this line ranging from a fraction of an inch to six to eight inches above the current level of the slab!
