Causes of mold growth in HVAC ducts: This article expalins the cause, detection, and hazards of mold growth in fiberglass insulation in residential
and light-commercial building and gives advice about dealing with moldy building insulation or ductwork. We describe the types (genera/species) of mold most often found in HVAC ducts and the relationship between mold in ductwork and indoor air quality complaints by building occupants. We include authoritative citations for key research on mold contamination in HVAC ductwork.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Where and Why Does Mold Grow in HVAC Ductwork?
Mold growth & Mold Contamination are Common in HVAC Systems
This website discusses health hazards associated with moldy fiberglass in buildings, with focus on fiberglass insulation, fiberglass fragments, fiberglass in heating and air conditioning duct work, and invisible but toxic mold growth in fiberglass which has been wet, exposed to high humidity, or exposed to other moldy conditions.
Mold is often found in basement fiberglass insulation, crawl space fiberglass insulation, fiberglass wall insulation, heating or cooling duct fiberglass insulation, and attic or roof insulation in buildings which have either been
wet or have been exposed to high levels of mold from other sources.
It is common for a careful inspection of air handlers and HVAC ductwork to find mold contamination on the duct interior as well as in the air handler on the blower assembly squirrel cage fan blades and other components.
In our experience as both field and lab investigators, several genera/species of mold are quite common in these environments (as well as in fiberglass and possibly some other building insulation products).
|
 Our photo of a moldy air handler interior in a Florida home (left) is provided by home inspector & educator Mark Cramer.[3]
Where conditions support mold growth within the HVAC system air handler and ductwork, we also may find significant mold colonization of the surfaces of air supply registers or the ceilings around them. (Next photo, below).
HVAC Studies for Mold Contamation - Methodological Error Risks
Tests for mold in HVAC systems are vulnerable to methodology errors, particularly in the selection of sampling sites.
Variations in moisture and uneven distribution of organic debris and dust through the system are very important effects on what mold is found where.
For example, sampling immediately downstream from the blower assembly we are more likely to find more water-tolerant fungi (Cladosporium spp.) associated with condensate blow-off spun into that area by the blower fan.
Sampling further into the duct system may discover Aspergillus spp. that prefers somewhat drier surfaces. Ducts exposed to special conditions (flooding, greases or organics from cooking, etc) may support additional or different-dominant mold genera/species.
|
 Fungal growth on fiberglass appears to be supported by the normal organic debris (skin cells that dominate house and other building dust), combined with moisture or even condensation and water found in the HVAC system.
But we also find mold contamination even in some clean-looking fiberglass building insulation, possibly supported by a combination of moisture and some organic resins or binders, or at times, simply having been absorbed by insulation that is installed in a very moldy environment whose mold is from another source reservoir. Details are at INSPECTION of INSULATION for MOLD.
Also see BLOWER LEAKS, RUST & MOLD and also PARTICLE & MOLD LEVELS in DUCTWORK.
And see SLAB DUCTWORK for the role of in-slab placement of air ducts in the formation of mold contamination in HVAC systems. |
Common Mold Genera/Species Found in HVAC Systems & Ductwork & Building IAQ Complaints
Experts studying both mold contamination in HVAC ductwork and related building indoor air complaints have confirmed our own lab experience that identifies Cladosporium spp. or C. herbarum, (most common), Aspergillus versicolor (common) A. flavus (common), and A. fumigatis. [5][6][7][8][9]
Those studies also point out that even when apparently modest levels of mold contamination traced to HVAC systems are removed (usually by removing the contaminated or "mold colonized" duct insulation or if that isn't possible, by replacing the ductwork) building IAQ complaints decline significantly.
Dirty HVAC Ducts That Cannot be Cleaned

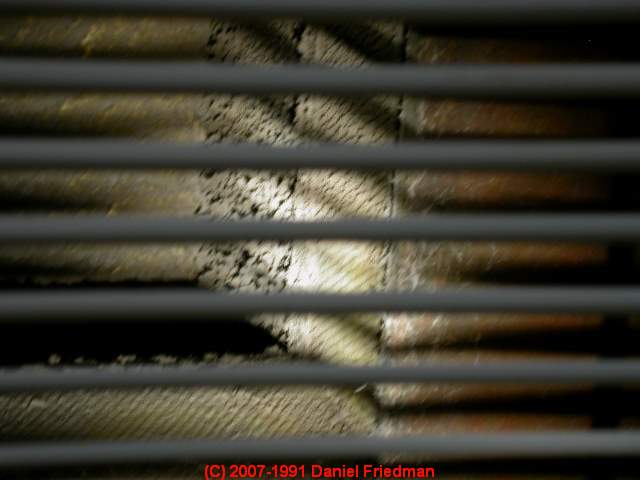

The left photo shows how fragile is the fiberglass insulation in some HVAC ducts. The rough surface attracts and collects organic and other
particulate debris moving through the duct system (unless good filtration is installed at the return air inlets).
The surface of an HVAC duct lined with fiberglass cannot be
mechanically cleaned - you can see what happens when someone tries to brush or vacuum it by looking at this photo. Once disturbed by
improper "cleaning' efforts, the release of airborne asbestos in the building will certainly increase. If this insulation is wet by
leaks or improper condensate handling, or if the building is exposed to high levels of airborne mold from another source, ducts that look
like this are likely to become a problem mold reservoir and will need to be replaced.
The second photo at above right shows typical debris, usually skin cells and fabric fibers, which collects on the rough surface of exposed
fiberglass inside ductwork. A return opening filter would have helped keep this duct clean and thus extend its life.
Water or condensate leaks into an HVAC duct system such as those shown by the above photographs of stains on the interior of this rooftop mounted commercial HVAC duct (left) and
indoor residential air handler unit (right), are an invitation
to mold or bacterial contamination in the system.
DF-OPINION: it is more (or less) likely that problematic mold will be found growing in or present in building insulation at a level sufficient
to be a potential problem for building occupants in these conditions:
- Low-risk insulation: Mold requires moisture and organic material for nourishment, as well as other growing requirements that vary by mold genera and species.
So perfectly clean, dry fiberglass or other building insulation is unlikely to harbor a problem mold reservoir.
- Wet or "dirty" building insulation: often is found to be moldy, either on the kraft paper or foil/paper insulation backing or in the insulation itself.
Insulation which is old and has become populated or "soiled" with organic debris such as animal dander (a home housing animals, especially dogs)
or insect fragments (an old house with old insulation) contains plenty of organic debris which can support fungal growth. When such insulation
is wet by a single event such as a roof leak or basement flood or when it is exposed to recurrent high interior moisture conditions, the growth of
problem mold is a real risk. If there are building occupant IAQ complaints, investigation of the insulation may be in order in this case.
- Clean fiberglass insulation exposed to moldy air: I have found very high levels of mold contamination in otherwise apparently clean
fiberglass insulation in cases where the insulation has been exposed to high levels of moldy air.
Aspergillus sp. and on less frequent
occasions, Penicillium sp. or even basidiomycetes are found in insulation which may be rather new and which may appear perfectly clean to the
naked eye. A typical scenario producing this condition is the presence of un-protected, exposed fiberglass insulation in the ceiling of a basement where
there has been a significant mold contamination, perhaps even a mold remediation project. High airborne mold levels readily move small spores
such as those in the Aspergillus/Penicillium group through building insulation by ordinary indoor air and convection currents.
Advice for Suspected or Known Mold-Contamination in HVAC Ductwork (Air ducts, heating ducts, air conditioning ducts)
If you think the heating or air conditioning (HVAC) system may be contaminated with
mold, read the EPA's guide "Should You Have the Air Ducts in Your Home Cleaned?"
before taking further action. Visit www.epa.gov/iaq/pubs/airduct.html, or call (800) 438-
4318 for a free copy.
The U.S. Environmental Protection Agency recommends:
“Do not run the HVAC system if you know or
suspect that it is contaminated with mold - it could spread mold throughout the building”. [1]
buildings in areas where high humidity and high use of air conditioning such as Florida and Louisiana in the U.S. experience very high levels of condensate produced by the air conditioning system, so high that condensate sometimes blows into the ductwork itself rather than all draining successfully into the condensate drain system. According to the Florida Department of Health:
Unfortunately, it is thought that most, if not all, heating and air conditioning systems in
Florida will support mold growth at some point. Stopping the use of an air conditioning
system due to suspected mold growth would make most Florida buildings very
uncomfortable during hot and humid weather.
Should you turn off an air conditioner if a
mold problem in the system is found? Ideally, yes. The system should be shut down
while cleaning or mold removal is performed. If the water and/or mold damage was
caused by sewage or other contaminated water, then call a professional who has
experience cleaning and fixing buildings damaged by contaminated water. [2]
Watch out: the U.S. EPA and other sources recommend: [among other details found in the articles listed in our references] that
Have your air ducts cleaned if they are
visibly contaminated with substantial mold
growth, pests or vermin, or are clogged with
substantial deposits of dust or debris
But fiberglass lined ductwork may be seriously damaged by mechanical cleaning, increasing the subsequent release of irritating airborne fiberglass particles into building air and actually reducing the resistance of such ductwork to future debris and moisture and even mold accumulation. In our opinion mold-contaminated ductwork that is metal lined can be cleaned successfully. Other ductwork should be replaced. And in any case you should address the cause of mold growth and correct that as well or the problem will simply repeat itself.
Readers concerned with mold contamination in heating and air conditioning air handlers and ductwork should see BLOWER LEAKS, RUST & MOLD and PARTICLE & MOLD LEVELS in DUCTWORK where we describe how to test HVAC systems and ductwork for mold. Mold in HVAC ductwork is also discussed at WHY DOES MOLD GROW in INSULATION?.
Frequently Asked Questions (FAQs)
...
Ask a Question or Search InspectApedia
Questions & answers or comments about Mold in Air Ducts: cause, detection, cure, & prevention of moldy HVAC ductwork.
Ask a Question or Enter Search Terms in the InspectApedia search box just below.
