 How Fiberglass from HVAC Ducts Can Appear in Indoor Air
- How to recognize fiberglass heating and cooling ducts and air handler insulation materials
- Sources and detection of airborne fiberglass in buildings
- Possible air quality or health issues with fiberglass ducts and other HVAC components
- Questions & Answers about possible sources of small fiberglass fragments found in indoor air & dust samples
- References
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
HVAC duct damage as a source of airborne fiberglass fragments: This document provides information about fiberglass hazards in heating and air conditioning ductwork in residential and light-commercial buildings.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Recognizing Fiberglass Duct Insulation
Readers should see Fiberglass Detection in Building Air.
Readers should also see FIBERGLASS HAZARDS and also see FIBERGLASS DUCT, RIGID CONSTRUCTION.
Fiberglass insulation material appears in several forms in heating and air conditioning systems in both ducts and air handlers themselves.
The most common uses of fiberglass insulating material in HVAC systems includes the cases listed below.
The annotated duct system photographs below show the most common types of fiberglass HVAC duct materials.
We provide these © protected photographs of fiberglass insulated ducts and HVAC components to aid in recognition of these materials.
Flex Duct using fiberglass insulation
Flex duct with fiberglass insulation sandwiched between a plastic inner and outer wrap.
Flex duct may be used for both supply air (shown here at left, poorly installed and crimped) and return air (second photo) in buildings.

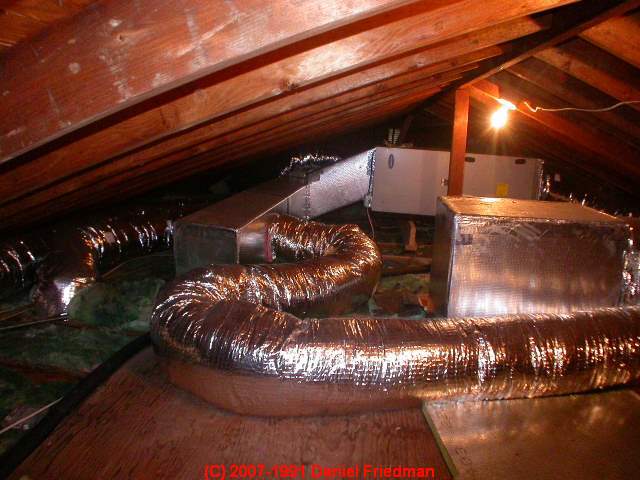

The flex duct shown at left is a newly-installed foil-faced flex duct product. The photograph at
right shows foil-faced smaller-diameter high-velocity HVAC ducts as well as the main trunk line which
has also been covered with foil-faced fiberglass insulation.

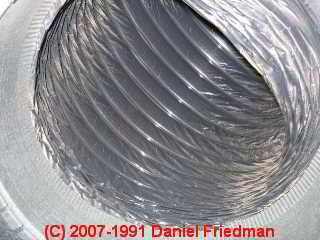

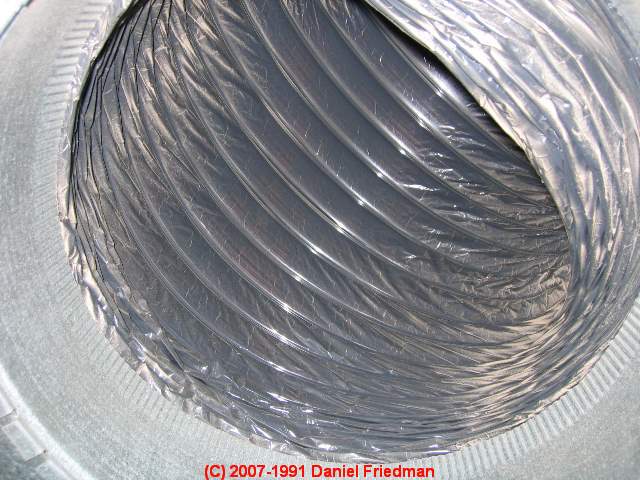

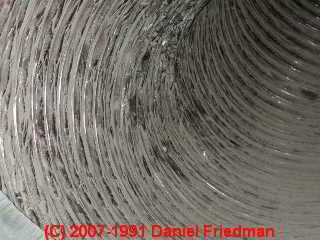

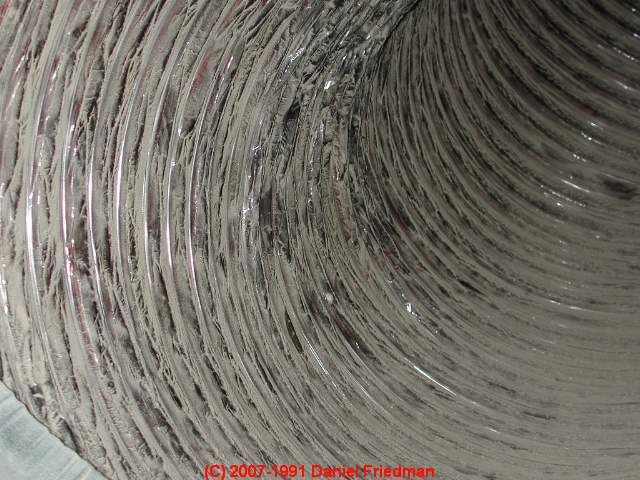

The flex duct in these photos shows at left, a clean, newly installed duct line, and at
right, the typical debris we observe inside of most duct systems. This debris could have been
prevented inside the duct system by better filtration at return air inlets. In a home without
mold or allergen or similar indoor air quality complaints, usually we find in the lab that
this gray dusty debris is comprised principally of skin cells and fabric fibers.
This photo shows white paint over sprayed into a ceiling supply duct - not to be mistaken
for duct contamination, but an indicator of hasty workmanship.
|

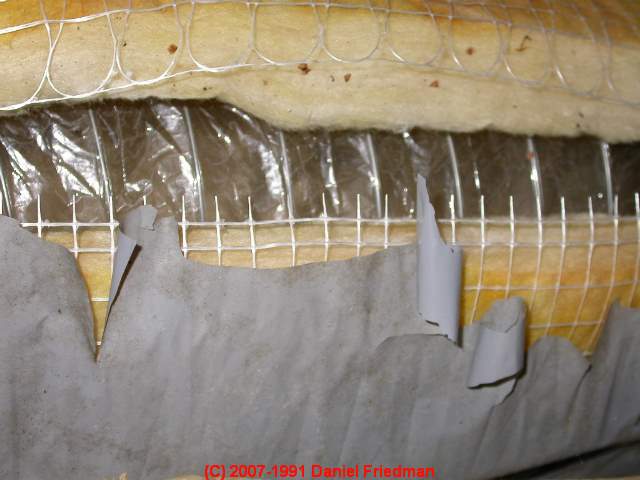

Goodman™ gray flex duct has failed in the first photo above.

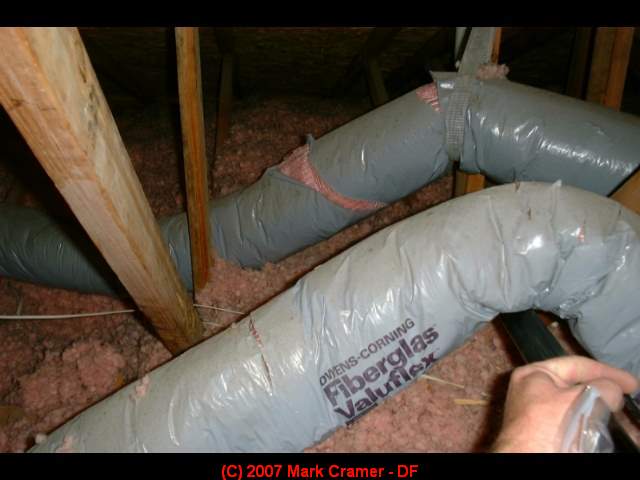

Owens Corning ValuFlex™ gray flex duct can also show this failure as shown in the
second photo where, like the Goodman flex duct, the plastic exterior duct
wrap has failed [second photo by Mark Cramer, Tampa Florida].

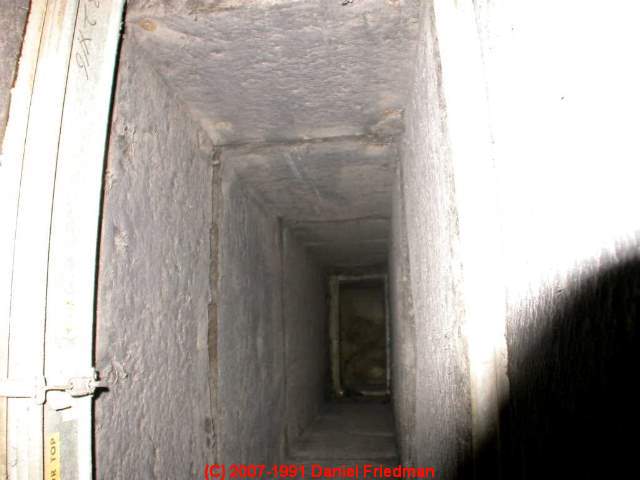

Rigid rectangular fiberglass duct work
Rigid rectangular fiberglass duct work is visible as the return air plenum in the
right of the first photo above. This material is usually used for HVAC trunk lines and a variant of it is
often found inside of air handlers (right hand photo).

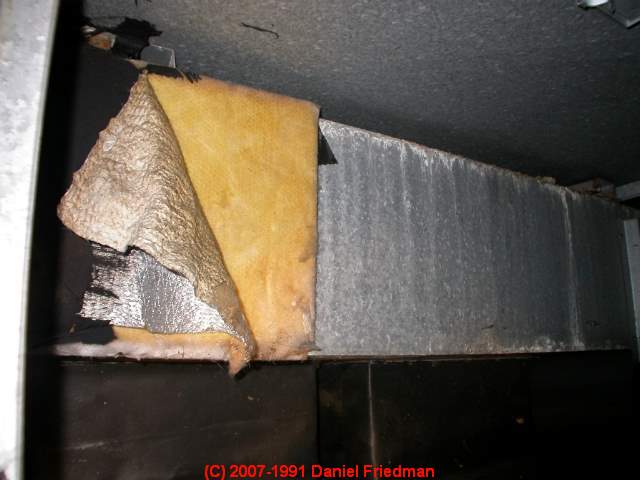

Fiberglass insulating mats and duct linings
Fiberglass insulating mats and duct linings are used inside air handlers and on the interior of metal HVAC ducts both
inside buildings and in exterior roof-mounted duct systems.
Fiberglass insulating wrap
Fiberglass insulating wrap installed on the outside of metal duct work or air handling equipment is shown in the
left photo above.

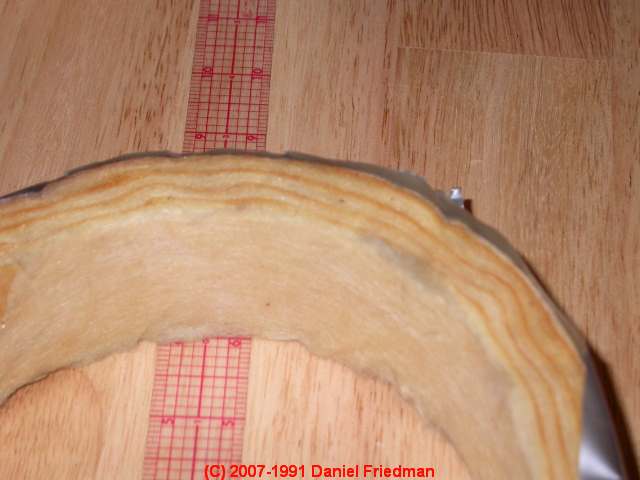

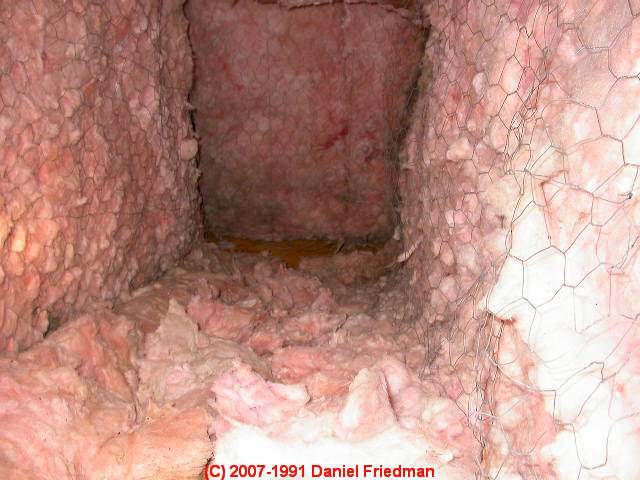

Building insulation is not designed for use inside of HVAC ducts and lacks the binding resin that is applied to minimize airborne fiberglass particle release into the building. The above-right photo shows home-made air handler and return plenum insulation liner using fiberglass
batts, resulting in a higher risk of release of unusual levels of fiberglass into the indoor air of the building.
More examples of damage to ductwork due to physical events or mechanical activity or cleaning are found at DUCT DAMAGE, MECHANICAL.

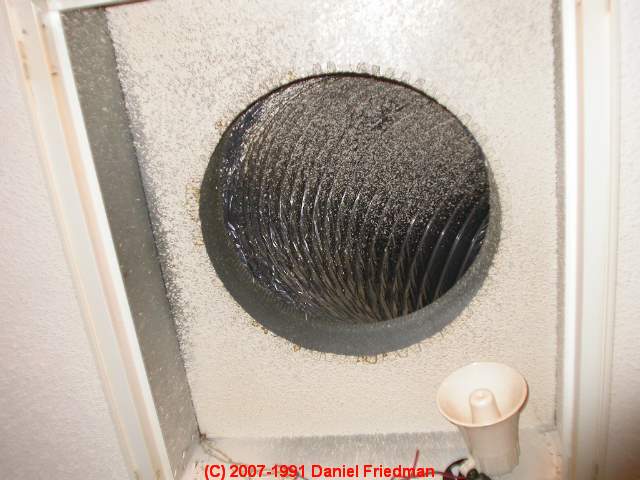

Round rigid fiberglass HVAC ducts

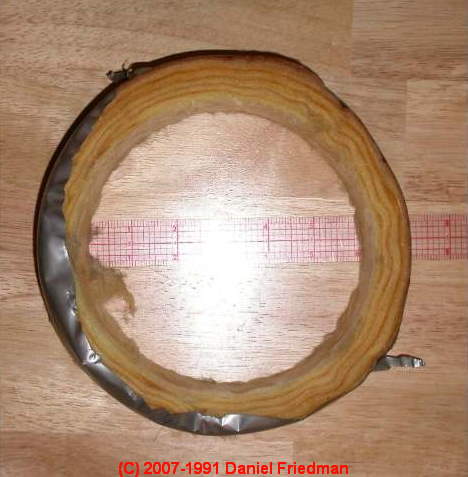

Rigid round fiberglass duct work is sometimes used for distribution of heated or cooled air through building walls or ceilings.
Notice that the fiberglass is fully exposed on the interior of this product, making it impossible to clean and providing a surface
which easily traps debris.
Fiberglass insulating mats

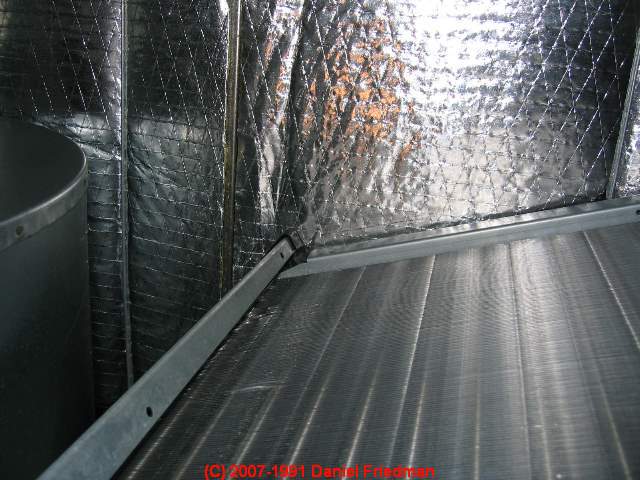

Fiberglass insulating mats inside of furnaces and boilers, usually enclosed within a steel jacket surrounding
the system but possibly also present within the air handler of furnaces and central air conditioning blowers.

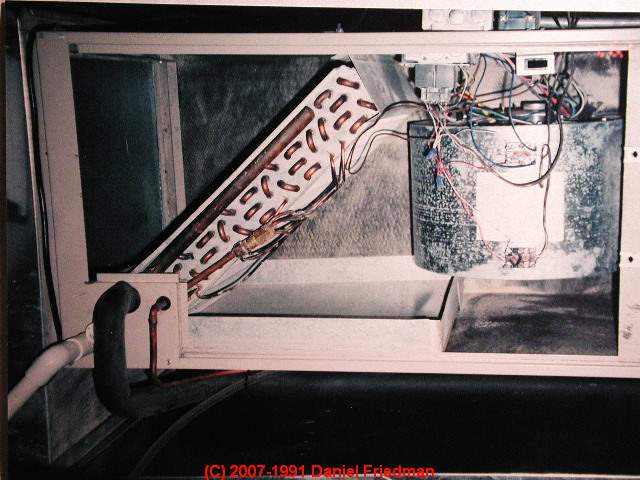

The insulation shown in these photos has been subject to condensate or external leaks, risking a mold
contamination problem in the system. In the second or right hand photo fiberglass materials have been used
inside the air handler sides and top in a foil-faced form (unlikely to release many fibers into the duct system) and
a binder-coated mat on the air handler bottom.
