Congoleum Nairn Vinyl-Asbestos Floor Tiles & Sheet Flooring Identification Photo Guide
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
Congoleum asbestos flooring identification: this article provides a guide to identifying Congoleum-Nairn asphalt-asbestos, vinyl asbestos floor tiles, linoleum, and sheet flooring (resilient flooring) materials that are reported to contain asbestos, or that have been confirmed as containing asbestos in asbestos fiber or asbestos powder-filler form.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Styles, & Pictures of Congoleum-Nairn Vinyl-Asbestos Floor Tiles & Congoleum Linoleum Sheet Flooring: Resilient Floors
Asbestos is safe and legal to remain in homes or public buildings as long as the asbestos
materials are in good condition and the asbestos can not be released into the air.
|
 Congoleum Nairn, was established in 1886, and presently headquartered in Mercerville, NJ, U.S., produced resilient sheet flooring, vinyl asbestos floor tiles in patterns such as their Congoleum-Nairn Romanaire pattern
Details about the history of Congoleum Nairn flooring are at Congoleum Flooring History and at FLOOR TILE HISTORY & INGREDIENTS.
Additional Images of Congoleum linoleum sheet flooring products are at LINOLEUM & Other Sheet Flooring.
Sequin Pattern for Congoleum resilient flooring is shown at left.
Watch out: the backing on some of these vinyl flooring or linoleum products may also contain asbestos.
For a detailed photo guide to all brands of vinyl-asbestos floor tile & resilient flooring patterns, sizes, and years of manufacture, see ASBESTOS FLOOR TILE PHOTO ID GUIDE. Readers should see ASBESTOS FLOORING HAZARD REDUCTION and also see FLOOR TILE HISTORY & INGREDIENTS for a discussion of the ingredients and production of asbestos-containing flooring. And see ASBESTOS FLOOR TILE IDENTIFICATION for detailed advice on handling and identifying vinyl-asbestos floor tiles or flooring products that probably do or don't contain asbestos. For a strategy for collecting building dust samples, when, where, how many samples to collect, see DUST SAMPLING PROCEDURE. |

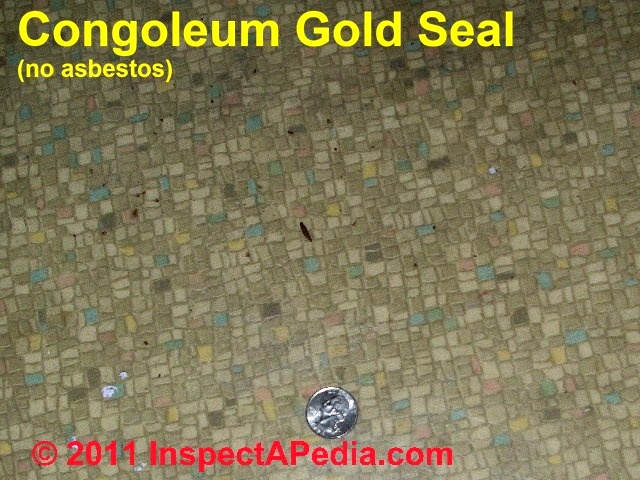

Congoleum Vinylbest vinyl asbestos floor tiles were produced in the 1950s along with Congoleum Gold Seal inlaid linoleum flooring shown at above left from a Life magazine advertisement, and the Congoleum sheet linoleum shown in a Florida Home (left) provided a scattershot or color fleck pattern.
The Congoleum linoleum photograph (left) of Congoleum sheet flooring installed in a 1949 Tampa Florida home is provided courtesy of M.B.
M.B. placed a U.S. quarter on the flooring to provide a pattern size scale reference. [Click image for a larger view]. [We think the flooring itself may date from the 1960's.]
Other Congoleum products included Vinylfloor, Vinyltop (countertops), Congoleum, CongoWall, Ranchtile, Cork tile, Linoleum tile, Vinyl tile, Rubber tile, and Asphalt tile marketed under the Congoleum Gold Seal trademark.
Congoleum Nairn tile flooring and resilient flooring or linoleum flooring photos wanted - CONTACT US to contribute to InspectAPedia.com
Below we show three more interesting Congoleum Narin sheet flooring designs from the mid 1950's (excerpted from Life Magazine advertisements).
|
Don't Mix Up Congoleum Nairn Resilient Flooring with Armstrong Floors
This photograph of sheet flooring was identified by a reader in a 1964 home. She found remnants in the bottom of a kitchen cabinet on which was imprinted "Armstrong".
While the reader referred to this as "Armstrong Congoleum sheet flooring", Armstrong and Congoleum are separate individual companies.
This is identified as an Armstrong resilient flooring product. |
Congoleum Sheet Flooring Products Resembling Individual Floor Tiles
At above left is a continuous resilient Congoleum Nairn sheet flooring product that was colored to resemble individual floor tiles in red, black,and white The Congoleum-Nairn company advertised that this approach was less costly and quicker to install than tiles, and permitted better control over tile color consistency.
Above right our photograph excerpted from another 1950's flooring advertisement shows a Congoleum sheet floor used in a kitchen and dining area.
Congoleum Gold Seal Rugs and Nairn Linoleum
This Congoleum flooring advertisement, also from the 1950's, demonstrated use of sheet flooring to provide a border and carpet image in a bedroom.
Congoleum Gold Seal Rugs along with Nairn Linoleum were marketed from the 1920's into the 1950's when Congoleum-Nairn was producing 12-foot wide sheet vinyl-based flooring. |
We discuss the history and manufacture of asphalt-asbestos floor tiles in our Age of House articles at Flooring Materials.
We discuss the inspection, diagnosis, and repair of various flooring products at FLOOR TYPES & DEFECTS.Also see ASBESTOS DUCTS, HVAC a field identification guide to
visual detection of asbestos in and on heating and cooling system ducts and flue vents
Also see Micro-Photographs of Dust from the World Trade Center collapse following the
9/11/01 attack. Links to U.S. government and other authoritative research and advice are included.
Frequently Asked Questions (FAQs) about how to identify vinyl asbestos floor tiles, linoleum, or sheet flooring made by Congoleum
...
Ask a Question or Search InspectApedia
Questions & answers or comments about asbestos hazards in older Congoleum - Nairn flooring & sheet flooring products. .
Ask a Question or Enter Search Terms in the InspectApedia search box just below.
