5-3. LOADING & DYE TEST How to Perform a Home Buyer's Septic Loading & Dye Test
|
Pre Purchase Septic Testing (A good idea, essential in some circumstances.)
Most home sales are contingent upon a home Inspection. But home inspections do not
usually include a test of the existing septic system.
Septic Tests are beyond the scope of a professional home inspection
but these septic tests are offered as an additional for-fee service by many home inspectors who
serve areas where private systems are common.

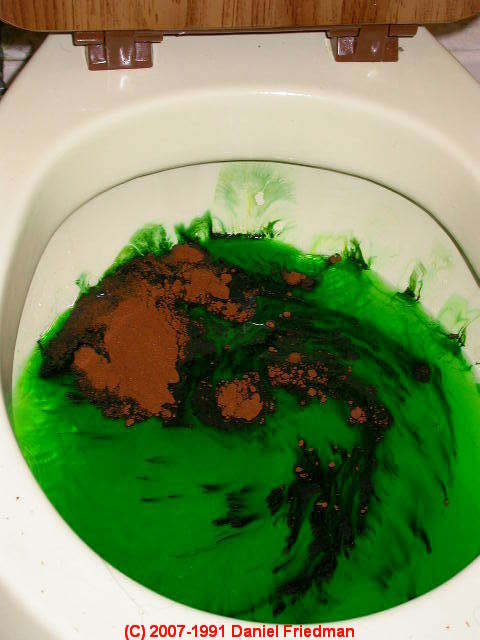

The photo at above left shows septic dye being measured into a toilet
to begin a septic loading and dye test. |
Hire your own septic test consultant who
has experience with and is familiar with septic loading and dye testing standards,
a licensed septic inspector (in states which license this specialty such as MA), or a licensed
septic system installer, who performs a great deal of work in the particular
town. They can give you advice as to the condition of the soils and septic
systems In the area and what might be expected (especially pertaining to costs)
if/when you find problems with the existing system.
This photo shows a small property bordering on a river. We
were told that a "new septic system" was installed but I could not see where a conventional tank and drainfield could
possibly fit except below the driveway.
Because of the nearly overwhelming temptation at such sites to pipe septic
effluent directly into the river, we performed a septic loading and dye test to see if the river would turn red.
The river did not quickly turn red but after less than 100 gallons of water had been run into the septic system our
red septic dye appeared at the basement entry platform at the edge of the driveway, as shown in the photo used at the top of this page.
|
A septic loading and dye test is essential if nothing is known about the septic system,
if the system is more than 4 years old, if there is already evidence of a problem such as odors, soggy areas,
or a history of frequent pumping.
Your consultant should tell you his or her level of concern and can tell you
if the loading/dye test seems like a good idea or an unnecessary expense.
If there is no indication of a septic system problem, and if the system is just a few years old, and if the system has
received proper maintenance, the risk level is less and you may elect to skip this test.
Warning: even a "new"
system may be defective and can fail this test. The photograph shows septic dye being flushed down the toilet to begin the
test. Water must be run at fixtures which drain into the septic system to continue this procedure. |
Warning:: Unfortunately many of the
people performing these tests perform only a perfunctory test such as a low-water volume test (50 gallons is meaningless)
or use an insufficient
amount of tracer septic dye.
Therefore, the conclusions reached from these tests are often
misleading. Be sure your test is performed by an expert and that an adequate volume of water is used.
We specify no less than 50 gallons per bedroom or 250 gallons, whichever is greater.
Warning: if you hire a separate consultant only to perform the septic inspection and dye test
you're at risk of getting a bad deal. It takes time to get enough water into the system to perform
a reasonably aggressive test. It's economical to do this test when it is overlapped with other work at the
site (like a home inspection).
But someone coming to the site just to do the septic test is not
going to wait around for 2+ hours for water to run into the system - you're likely to get an
inadequate test. If you must use a third party just for this test be sure to review the test parameters
and agree on them ahead of time.
Warning: Do not pump the septic tank before the loading and dye test.
Depending on its size an empty septic tank could require 2-3
days' worth of water to re-fill the tank. An empty tank means that the "loading water" run into the
system during the dye test procedure is simply filling the tank rather than testing the ability of the
drain field to absorb effluent.
5-3a WHAT'S A DYE TEST? What is a Septic Dye Test?
This procedure puts a test volume of water into the
system to look for evidence of a blocked pipe or for breakout of septic effluent at the yard surface - indications of the need for repair.
If you are looking at a completely new home and septic system you might omit this test but don't assume that new systems are immune to
failures.
Pipes settle and break or systems can be improperly installed. If the tank was pumped immediately before your inspection
you should be suspicious, and you might defer the loading and dye test as it may be unable to put enough water into the system to
test the drain fields. The dye itself is just a coloring agent to identify water that may appear at the yard surface. It's the test volume
of water that's important.
If the septic dye appears on the
ground or appears in a brook or catch basin the septic system is in failure.
Further investigation will be needed to determine the extent of septic repairs needed, though an informed inspector
can often make a reasonable guess about what will be needed: a complete septic field replacement or more limited repairs.
The common septic testing dyes used are green or red depending on
the environment.
We have seen dye breakout in as little as 15-30 minutes in many instances where there
was no pre-existing wet spot but where subsequent excavation confirmed that
the system was either damaged or in failure. In unusual cases septic dye may appear at nearby
waterways as much as five days after the test has been performed.
The first or left-hand photograph shows green septic dye appearing on a leafy yard surface near the
drainfield during a septic loading and dye test.
The second photo shows red septic dye appearing up through a modest snow cover during a winter
test of a septic system using septic dye.
Use of florescent dyes permits detection of
even very dilute concentrations of dye, but usually the color and sheen of the dye are
unmistakable without requiring UV lighting.
See Performing a Septic Loading and Dye Test,
for complete details of the septic loading and dye test procedure, test data forms, septic loading
test water volumes, septic tracer dye quantities, critical observations.
5-3b TEST LIMITATIONS Septic Dye Test Limitations
Warning: if dyed effluent or water does not break out on the property
surface, this does not necessarily mean the system
is functioning or will function properly in the future. There
are certainly cases in which effluent does not appear at the surface for some time,
possibly up to five days, and there are other defects which predict upcoming expensive repair
or replacement of the system but which are not detected by loading the drain field.
National data collected among professional home inspectors between
1985 and 1995 indicated that a significant number of inspectors performing dye
tests discovered total failure of the septic system within 20 to 30 minutes of
beginning testing.
We agree that a dye test is by no means a complete test of a
system, that the other measures suggested here are extremely valuable, and that
the volume of water used is critical: too little or too much can both be
serious mistakes.
If a wet area or soggy area is present, dye has been found to
appear in the short time indicated. However beware: NYS DEC has found dye
appearing in nearby streams as late as five days following a septic dye test in
cases where effluent migrates through considerable ground area before entering
a stream.
5-3c FLOODING TESTS What Are Septic "Flooding Tests"?
Some authors describe an attempt to "FLOOD" THE SEPTIC SYSTEM WITH 1000 GALLONS OF WATER TO ATTEMPT to force a
sign of system failure to manifest itself. A typical home with a private well and pressure tank should be able
to deliver 5 gallons per minute. If this test were performed overlapped with a home inspection (a 2 1/2 to 4 hour procedure)
one could obtain this test volume.
|
Warning this test should not normally be attempted. Placing 1000 gallons
of water into a septic system in two hours is likely to exceed its design parameters, and in the case of certain
systems, it could actually damage the system. While all inspections and tests should aggressively seek to protect
the interests of the parties involved by being thorough, a test which exceeds system design parameters would be improper.
5-3d PROBE TESTS of Septic Fields & Locating Septic Components
Probing is a procedure whereby the Inspector attempts to locate
the "KEY" ELEMENTS OF THE SYSTEM (SEPTIC TANKS AND LEACH FIELDS) and determine
if they are experiencing hydraulic distress (meaning the septic tank and fields
are flooded).
If a probe in a leach field produces a
hole which fills rapidly with water this test indeed indicates a problem with the system.
But if a probe does not produce this condition, the test has been unreliable since
it may be during a time of dry soils or a day when
very little water was used by the homeowner or the home in fact may have been vacant.
This test, if performed, must be done by an expert, with caution, and is inconclusive
if it does not detect a problem.
The photo here is not really a probe test, rather our septic pumping contractor is exploring the condition
of the septic tank after it has already been located.
WARNING: probing can damage buried equipment such as fiberglass
septic tanks or tank covers or plastic septic drain lines. Further, there is little assurance that the probing is
done in the area where a problem is present.
|
