Septic system inspection field data checklist & worksheets - part 3: here are three detailed septic system field inspection and test worksheets to assist in inspecting and documenting the condition of septic systems. This article is part of our series: Septic Systems Online Book procedures, defects in onsite waste disposal systems, septic tank problems, septic drainfield problems, checklists of system components and things to ask. Septic system maintenance and pumping schedules.
Green links show where you are. © Copyright 2014 InspectApedia.com, All Rights Reserved.
Here we provide the third of series of field worksheets for septic systems: useful during the conduct of septic system inspections for investigations of the condition of a septic system using level 0, 1, and 2 septic inspections.
Septic Inspection & Test Worksheet for Level 1 - Intermediate Septic Inspection

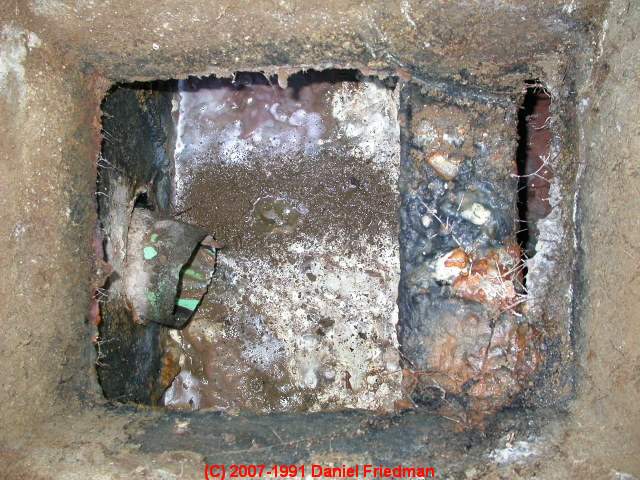

SEPTIC TANK INSPECTION: (Tank is located and main access is opened if accessible.) TANK LOCATION: (Provide site plan showing tank and other components.) Depth of Tank below grade: __________ TANK CONSTRUCTION: Concrete/Steel/FRP/Site-Built:_________________(describe) Dimensions:______________________________________________ TANK CAPACITY:__________________________ From records; from permit; computed; TANK TOP: Visible Y/N Damaged Y/N Suspect Y/N INLET BAFFLE: Visible Y/N Damaged Y/N Suspect Y/N OUTLET BAFFLE: Visible Y/N Damaged Y/N Suspect Y/N LIQUID LEVEL: Satisfactory Unsatisfactory SCUM THICKNESS: ____ Satisfactory Unsatisfactory (risking exiting outlet baffle) ____ Distance from top of scum to top of outlet tee or baffle SCUM THICKNESS: ____ Satisfactory Unsatisfactory (risking exiting outlet baffle) ____ Distance from bottom of scum to base of outlet tee or baffle SLUDGE DEPTH: ____ Satisfactory Unsatisfactory ____ Distance from top of sludge to bottom of tank outlet baffle For AEROBIC TANKS: operation of compressor, propeller, motor, timer, alarm, and electrical components: Operation: Satisfactory Unsatisfactory Support and Wiring: Satisfactory Unsatisfactory LINE FROM TANK TO ABSORPTION SYSTEM Visible Y/N Satisfactory/Unsatisfactory:_____________________________ DISTRIBUTION BOX: (locate on site plan) ____ depth of liquid level above outlet invert Y/N liquid flow uniform into each outlet opening Y/N evidence of solids carryover in from tank Y/N evidence of solids carryover out to absorption system ABSORPTION SYSTEM: Located Y/N Holding water Y/N (do not pump) COMMENTS:____________________________________________________________ TANK PUMPING: If tank has not been pumped within past two years and/or if sludge and scum levels exceed 20% of total tank depth, the tank should be cleaned. When cleaned, observe if the absorption system runs back into the tank. [General rule. See details at Tank Maintenance Chapter ...] WARNING: A Level-1 inspection is not a warranty or guarantee that the system will properly function for any period of time in the future; It is not associated, certified, endorsed, by any government agency; it is not an assurance that the soil is adequately treating effluent or that it will continue to do so in the future.
