How to DOCUMENT the SEPTIC TANK LOCATION - How to Measure and Document the Septic Tank Location
When the septic tank needs to be pumped, a regular
maintenance task, the cost of that service will be less if the property owner found the septic tank location and perhaps even uncovered the
septic tank pumping access cover. Other reasons to make a drawing of the the septic tank and drainfield location include enabling the inspecting and testing septic systems
when buying a home or for safety, to assure that the septic tank cover is in good condition.
Use of this information at other websites, in books or pamphlets for sale is reserved
to the author. Reviewers and content suggestions are welcome and are credited at "References."
This article is part of our series: Inspecting, Testing, & Maintaining Residential Septic Systems an online book on septic systems.
|
To remember the tank location in the future and to help future owners of the property, you should:
- Mark the tank location with a flat stone or slate

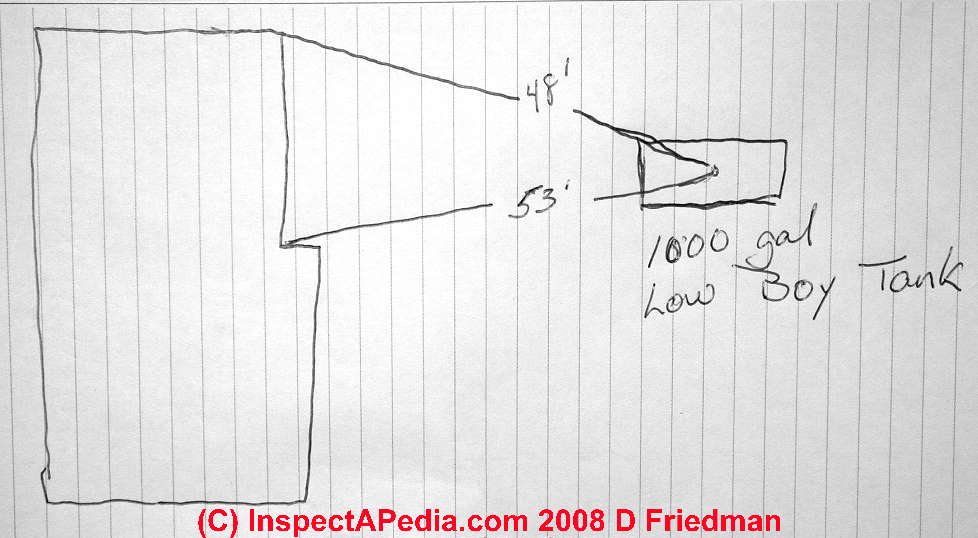

- Make a sketch Measure the exact location of the septic tank cleanout opening relative to the building: using "triangulation" you need to make only two
measurements.
- From the tank cleanout, measure the distance to a permanent site feature such as the left corner of the building.
- Then measure
the distance to a second permanent site feature such as the right corner of the building.
- These two distances can be set off in the future, even
if the tank is hidden from view.
- Where the two points meet will be the tank cover.
|
Recording Septic Tank Location in our
"Septic Tank Pumping Guide" includes a nice example of how to take measurements to document the exact location of
a septic system component.
When you find your septic tank, if other clues helped you do so, please forward them to me by email
so we can help others. Photos are very welcome too.
For complete details on how to find a septic tank or drainfield, see these full text articles and videos
- Septic Tank Location - Detailed Step by Step Procedure Explaining Exactly How to Find the Septic Tank, how deep will the cover be, how to document its location. The steps in this article include
- SEPTIC DRAINFIELD LOCATION - a detailed procedure on how to find the septic drain field or leaching bed.
- Table of recommended distances from the septic tank or drainfield to other site features, buildings, lakes etc.
- SEPTIC VIDEOS - our videos show how to walk a homesite to find where septic components are likely to be and where they should not be found.
