Evaporation - Transpiration septic system design & regulation: this document uses the New York State wastewater treatment standard for individual household septic systems
(Appendix 75-A) to provide an example of state regulated design and installation of evaportion-transpiration septic systems.
Green links show where you are. © Copyright 2015 InspectApedia.com, All Rights Reserved.

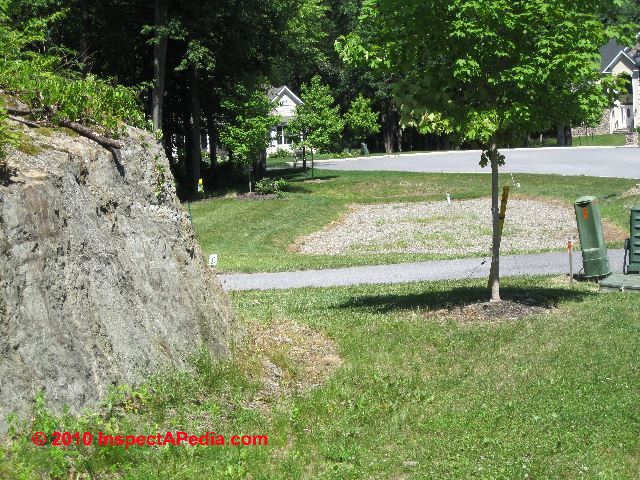

Design Regulations for Evaporation-Transpiration (ET) and Evapo-Transpiration Absorption (ETA)
Septic Systems Design Criteria
For details about evaporation / transpiration septic system design, construction, and repair, see EVAPORATION-TRANSPIRATION SEPTIC SYSTEMS. Citation of this article by reference to this website and brief quotation for the sole purpose of review are permitted. Use of this information at other websites, in books or pamphlets for sale is reserved
to the author.
[Regulation and System Design Criteria for Raised Septic Systems,
Septic Mound Systems, Intermittent Sand Filter Bed Systems,
Evaporation-Transpiration Septic Systems,
Evaporation-Transpiration Absorption Septic Systems, and
Other Alternative Septic Systems]
Effective Date: 12/01/1990
(1) Evaporation/Transpiration/Absorption Septic Systems - General
ET systems rely on the upward movement of moisture through the
soil, surface vegetation and into the air rather than absorption into the soil.
ETA systems also use the absorptive capabilities of the soil and are less
dependent on evaporation and transpiration.
(2) Site Requirements for Evaporation, Transpiration-Absorption Type Septic Systems
(i) All systems previously discussed, except
intermittent sand filters, have been determined to be unacceptable for the
planned building site.
(ii) An expansion area equal to or greater than 50% of the required basal area
shall be available on the site.
(iii) All minimum vertical and horizontal separation distances can be maintained
as described in Table 2 from both the edges of the basal area and the designated
(iv) An environmental assessment determines that the development of the site
with this system is consistent with the overall development of the area and will
cause no adverse environmental impacts.
(3) Design Criteria for Evaporation, Transpiration-Absorption Type Septic Systems
(i) The designer must consider all of the items listed below and be able to
document from reliable sources (i.e., National Weather Service, Soil
Conservation Service) the parameters used and show that the net outflow from the
system exceeds the inflow without the exposure of sewage or partially treated
sewage on the surface of the ground:
- Total rainfall and snowfall.
- The percentage of the rainfall and snowfall that will infiltrate into the soil
and the percentage that can be expected to runoff the system.
- The annual land evaporation rate of the area.
- The vertical rise of water than can be expected in the soil due to capillary
- The amount of transpiration expected from the surface vegetation.
- The permeability of the underlying soil and the impact the system will have on
the groundwater level.
- (ii) The design must provide for a trench depth that is not greater than 30
inches below the surface.
- (iii) Pressure distribution of effluent throughout the system is required.
Continue reading at EVAPORATION-TRANSPIRATION SEPTIC SYSTEMS or select a topic from the More Reading links shown below.
