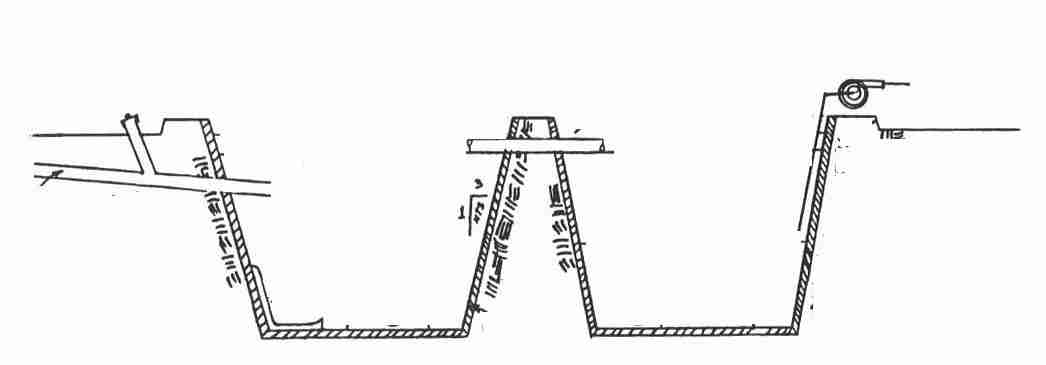

sketch of a two-pond lagoon system for animal waste - UTAH SMALL ANIMAL WASTE LAGOONS AND PONDSSewage Lagoons for Onsite Wastewater Treatment

Guide to lagoon systems for septic wastewater treatment: design, use, maintenance, life, effectivenes. Lagoon septic systems: also known as "pond septic systems" for onsite wastewater treatment are less often found in use for single family residential wastewater treatment.

A residential lagoon system may use a conventional septic tank, but effluent from the tank flows to a storage pond or lagoon for further treatment. The illustration at page top is from "Utah Small Animal Waste Lagoons and Ponds" published by the Utah state government.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.

Sewage Lagoons or Ponds for Onsite Waste and Wastewater Treatment

Constructed Wetlands, San Miguel de Allende, Guanajuato Mexico, from el Charco del Ingenio botanical garden, by the author, August 2006What is a Lagoon Septic System for Onsite Waste or Wastewater Treatment?

Lagoon systems: also known as "pond systems" for onsite wastewater treatment are less often found in use for single family residential wastewater treatment.

A residential lagoon system may use a conventional septic tank, but effluent from the tank flows to a storage pond or lagoon for further treatment. (Some states such as Missouri may permit a lagoon without a septic tank.)

Lagoon systems require comparatively large land areas and are more likely to be found therefore in rural areas or where a common wastewater treatment system has been designed to serve multiple dwellings.

For example lagoons are used for effluent disposal on small farms and for animal waste treatment/disposal on small and large farms or livestock operations.

[Click to enlarge any image]

Aerobic Lagoon Wastewater Treatment System Design

The lagoon or pond holds septic effluent where treatment may be enhanced by using an aerobic design to a shallow pond of effluent (adding air to the water, perhaps by an air pump or a fountain system).

Anaerobic Lagoon or Pond Septic System Designs

Anaerobic lagoon or pond designs are deeper and work more like a conventional septic tank, processing waste into settled sludge and treated effluent, and not making use of oxygen-requiring microbes nor of sunlight to treat the effluent.

Effluent from a pond septic system, except for its portion which is removed by evaporation, is commonly permitted to flow through a wetlands for further treatment before discharge to the environment.

The site and construction requirements for a lagoon septic system will require additional clearance distances from wells, property lines, etc. Lagoons are constructed in high clay soils (or lined) so that effluent does not drain into the soil directly from the lagoon.

A Typical Residential Wastewater Lagoon Design Specifications

Septic Lagoon Size

Mexico city septic lagoon wastewater treatment system (C) Daniel Friedman at InspectApedia.com

The enormous wastewater treatment lagoon shown above is part of the wastewater treatment system serving Mexico City and is adjacent to MEX, the Benito Juarez Airport, serving the Zona Metropolitana del Valle de México, an area of more than 19 million people.

North Dakota State University offers some basic design specifications for a lagoon system for treating wastewater: "The lagoon surface area should be sized at about 500 square feet per person.

A lagoon serving a four-person household would then have a surface area of about 2,000 square feet. The lagoon should have a depth of 3 feet with a minimum freeboard of 2 feet.

Nebraska Title 124 Ch. 18.008 provides these septic lagoon sizing specifications

008.01 The size of a lagoon shall be based on the design flow for the dwelling or non-dwelling facility, the seepage rate of the wastewater into the soil below the lagoon, and the average evaporation and precipitation using the appropriate location on the state evaporation and precipitation maps (Figures 18.1 and 18.2).

008.01A For a dwelling, the minimum wastewater flow for design of the onsite system shall be based on the number of bedrooms in the dwelling using the following: 150 gpd + ((Number of Bedrooms - 1) x 75 gpd), where gpd is gallons per day.

008.01B For a non-dwelling structure or other wastewater source, the wastewater flow shall be based on the highest daily wastewater flow.

008.02 The lagoon water surface area at the maximum operating level shall be determined by the following water balance equation:

Maximum Water Surface Area = (flow) x 976 / ((evap.-precip.)x1.67) + OOD) + (seepage x .608)

Where:

flow = daily design flow or inflow, gallons per day

evap. = annual lake evaporation for location from Fig. 18.1(This is a state map showing necessary data)

precip. = annual precipitation for location from Fig. 18.2 (This is a state map showing necessary data)

OD = difference between maximum and minimum operating depths for the lagoon (typically three feet which is also the maximum allowed)

Note that assumptions such as evporation rate and precipitation rate vary widely seaonally and by geographic area while seepage rates or soil percolation rates vary widely by soil properties as well.

Where septic lagoon wastewater treatment systems are permitted and regulated by code, most authorities also describe the soil percolation rate or seepage rate test procedure to be sued in evaluating the site for lagoon operation.

Septic Lagoon Shape

Shape the sides of the lagoon to a 3:1 slope. A 2,000 square foot lagoon with 3 feet working depth and 3:1 side slopes would have a 50-foot diameter at its working depth and a 62-foot diameter at the top of the dike.

The lagoon may also be square or rectangular. A 2,000 square foot lagoon would be 45 feet square at its working depth and 57 feet square at the top of the dike." --quoted from North Dakota State University - www.ag.ndsu.edu/pubs/ageng/structu/ae892-3.htm#Lagoons.

The design specifications for a lagoon septic system will vary widely depending on its use and the effluent flow rate involved. However the basic concepts of lagoon system operation and protection will be consistent.

Septic Lagoon Construction Details

Nebraska Title 124 Ch. 18 septic lagoon construction details

provides a crisp desription

001 A site for a lagoon shall permit the unobstructed wind to sweep across the lagoon to provide mixing action and to add oxygen to the water. Timber must be removed for a horizontal distance of at least 50 feet as measured from the high water mark for the maximum operating depth of the lagoon, but not less than 10 feet horizontal distance from the outer dike toe of the lagoon.

002 The lagoon shall be located and constructed so it will not receive surface runoff water.

003 A lagoon shall not be installed on a lot less than three acres in size. For the purpose of this chapter, “lot size” means the area of a lot excluding all area below the normal high water level of any surface water feature and all area within the right-of-way or easement of a street, road, or access easement.

004 The lagoon shall be designed for complete retention.

005 The floor of the lagoon shall be located at least two feet above the seasonal high groundwater level, bedrock, or other barrier layer.

006 The top of the dike shall be at least one foot above the 100 year flood elevation.

007 Testing of the final seepage rate shall be completed based on soil permeability.

The maximum allowable seepage rate is one-eighth inch per day after sealing and compaction. This may be determined by an independent soils laboratory performing a hydraulic conductivity test on an undisturbed soil sample taken at the site, or the two barrel method prior to filling, or a comparison test after prefilling with clean water but before introduction of wastewater.

007.01 The two barrel method may be used for soil sealed lagoons before the lagoon is filled.

Two similar 55 gallon drums are required, one a control drum with one end removed and the other drum (seepage drum) with both ends removed. One end of the seepage drum is pressed into the sealed soil layer, and a bead of polymer treated sodium bentonite clay is packed around the inside edge of the drum.

The seepage drum is carefully filled with water and kept filled for two or more days to saturate the soil. The test begins with filling each drum equally.

Each day the difference in levels is recorded, and the barrels filled to the beginning level. The control drum measures the weather effects while the seepage drum records seepage plus weather effects. The test should continue for at least seven days.

007.02 The comparison test method may also be used after the lagoon is prefilled

Isolate the lagoon and record the water level changes as a result of seepage and weather effects. The changes resulting from weather effects alone may be measured separately in a nearly full white plastic five gallon bucket partially buried near the shore. The test should continue for at least seven days.

Nebraska Title 124 Ch. 18.012 further specifies:

009 Septic Lagoon Construction

009.01 The floor of the lagoon shall be level. A difference of plus (+) or minus (-) three inches is permitted. All vegetation shall be removed from the floor of the lagoon. This organic material shall not be used in the construction of the lagoon.

009.02 The soil material of the lagoon floor shall be designed so that it shall not seep more than one-eighth inch per day. If soil borings and tests indicate that the existing soils are not conducive to compaction to meet this requirement, then sodium bentonite clay or a synthetic liner may be used to restrict seepage.

009.03 The inside slope of the dikes shall not be steeper than three horizontal to one vertical. The exterior slope of the dikes shall not be steeper than four horizontal to one vertical. The minimum width of the top of the dike shall be four feet.

010 The minimum operating depth of the lagoon shall be two feet. The maximum operating depth shall be five feet. The dikes shall provide a minimum freeboard of 12 inches.

Site clearance distances for septic lagoon systems

Table of Typical Lagoon Septic or Sewage Lagoon Clearance Distances

Site Feature Minimum Distance to Lagoon Minimum Distance to Septic Tank
Basement 100 ft. 15 ft.
Building Foundation, on-site 100 ft. 5 ft.
Building Foundation, neighouring site 200 ft.
Cistern 25 25
Impoundment 4 100 50
Interceptor drain - runoff control up-slope 10
Interceptor drain - runoff control down-slope 25
Lake 4 100 50
Property boundary or line 75 10
Property line to lagoon overflow drain 9 100 n/a
Septic drainfield, soil absorption system 5 20
Sinkhole, nearest edge, surficial 6 500 50
Spring used for water supply 100 50
Stream - waterway 4 100 50
Stream, open drainage ditch 25 25
Swimming pool - in ground? 100 15
Tall grasses, tall weeds 50
Trees 7 50
Water supply pipe or line, pressurized 10 10
Water supply pipe or line, suction (jet pump) 100 50
Well: private 100 50
Well: public water supply 300 300

Notes to the table above:

These distances are from the lagoon to the feature listed, are not the same as clearance distances from the septic tank itself. Our table gives example distances for both.

Setback distances from a lagoon septic to other site features are similar to setbacks from other septic system designs and are elaborated in detail by Schultheis (1997) from which we excerpt some examples. Additional details are from the University of Missouri Exension ctied below.

  1. Includes sewage tanks, intermittent sand filters and dosing chambers
  2. Unplugged abandoned wells, or wells with less than 80 feet of casing depth shall have 150 feet minimum setback distance from all above.
  3. A classified stream is any stream that maintains permanent flow or permanent pools during drought periods and supports aquatic life.
  4. Sewage tanks and soil absorption systems should never be located in the drainage area of a sinkhole.
  5. Soil absorption system distance excludes repair area or reserved area
  6. In our opinion lagoon septics should not be constructed at all in areas known to be close to sinkhole formations
  7. Trees should be 50 ft. or more from the edge of the lagoon water

    Trees and high weeds should be located at least 50 feet from the water's edge. This will allow the lagoon to receive direct sunlight, let breezes help stir oxygen into the water as they blow across the lagoon, and keep leaves from falling into the water, causing sludge buildup. [MO DOH]
  8. Site slope: Sites with more than 5 to 7 percent slope (5 to 7 feet of elevation drop per 100 feet of horizontal distance) should generally be avoided for lagoon construction. [MO DOH]
  9. To allow for future development in the area, carefully select the location of the lagoon overflow so that it will be of the least nuisance to both the owner and to neighbors or nearby public properties. [MO DOH]
  10. See SEPTIC CLEARANCE DISTANCES for a more complete list of septic system clearance distances

Safety Barriers & Fencing at Septic Lagoons

Sewage lagoon security fencing required for safety (C) InspectApedia.com adapated from  Johnson County MO DOH cited in detail in this articleLagoon Wastewater System Safety and Protection: Fencing

For safety the edges of a lagoon should be fenced to protect children and animals.

Protection may also be needed to keep burrowing animals such as groundhogs from digging holes which inadvertently drain the pond.

Also see GOPHER HOLE DAMAGE

The lagoon shall be fenced with a four foot high woven wire, welded wire, or seven strand barbed wire with the first strand starting three inches from the ground and the following strands spaced evenly.

The fence shall be equipped with a standard main gate that is kept locked.

The fence shall be placed on the outside edge of the top of the dike or four feet outside the toe of the dike.

A sign no less than 12 inches by 24 inches bearing the clearly-readable words

NO TRESPASSING - WASTEWATER LAGOON

shall be located on the gate. - NE Title 124 Ch. 18.012

Other specifications require the following additional details:

The septic or sewage lagoon fencing access gate must be kept intact and locked.

The following tect and illustration above are adapted from the sewage or septic lagoon fencing specification described by the Johnson County MO department of health, cited in detail below,

THE FENCE MUST BE IN PLACE PRIOR TO USE OF THE LAGOON!

The fence must be at least 4 feet in height, be welded, woven or chain link material with no smaller than fourteen gauge wire.

Cattle or hog panels can be substituted with tee post being used for a line post. Fence post shall be pressure-treated wood, galvanized and or painted steel. Line posts should be at least 18 inches deep and not spaced more than 10 feet apart.

Corner posts should be at least 24 inches deep and properly braced.

The gate may be substituted with a cattle or hog panel that is allowed to open for mowing and maintenance, but must be secured with an effective latching device.

The fence shall be no closer than the center of the berm to the water’s edge. The fence shall be of sound construction with no gaps or openings along the bottom. - MO DOH cited below

Sewage Lagoon Overflow Regulation

Sewage lagoon overflow contaminates local drinking water - Australia Department of Health adapted at Inspectapedia.comSome authorities specify the handling of sewage lagoon overflows, either prohibiting lagoon overflow by design specifications, or by specifying where overflow is permitted.

The following is adapted from Australia's Department of Health Sewage Lagoon regulations (2011) cited below.

Where there is only one lagoon in the sewage disposal system, it will have an overflow situated directly opposite where the pipe carrying the sewage or effluent enters the lagoon.

If there is more than one lagoon in the system, the overflow will be in the last lagoon.

The overflow releases water from the lagoon system which has not been removed by evaporation.

New lagoon systems are required to be designed so disposal occurs by evaporation only.

They should not rely on overflow, except during very heavy rainfall periods.

However, where an existing lagoon system uses an overflow method, the overflow should not create a flooded or swampy area suitable for mosquito breeding, or where it may contaminate drinking water or the environment. (AU DOH 2011)

Watch out: The Australian DOH illustration shown here explains how sewage lagoon overflow can contaminate a community drinking water supply. Don't do this.
