Stone roof in Molde Norway (C) Daniel Friedman

Stone Roofing Design Details - Photo Guide
InspectAPedia^® -

Stone roof inspection, failures, repair, product defects
Stone roofing compared with slate roofing
Questions & answers about stone roofs: the historic & current use of stone on building roofs, inspection, diagnosis, installation, mantenance, & repair of stone roofing

Stone roofs: here we illustrate and discuss stone roofing in historic and contemporary use.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Stone Roofing Examples, Ancient and Old Stone Roof Designs

Our page top rooftop photo may look like slates, but this is a stone roof, not slate. We mean literally, stone, cut either in giant slabs or stone cut into tiles that might be mistaken for gray slate, but are of different mineral composition. These are stone roofs, not slate roofs.

This website provides un-biased articles about many common roofing materials, installations, inspection, defects, roofing repairs, and products. Also see SLATE ROOF INSPECTION & REPAIR - slate is the most common type of "stone" roofing used in Europe & North America.

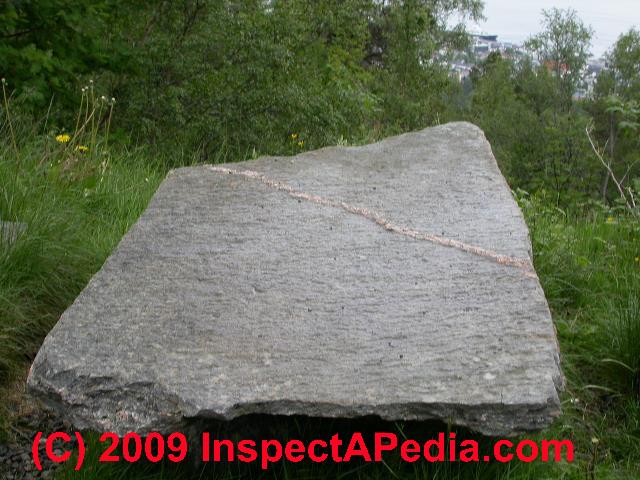

While our page top photograph shows a modern cut stone roof, our photo at above left points out that the earliest stone roofs used a single huge stone slab (photo at left), set atop a stone or wood structure.

Where particular geology made it easy to split stones into large slabs or where such flat stones were produced by nature, they formed a natural building material. In this photo the stone roof slab is no longer in use but has been preserved along a hiking trail above Molde, Norway.

Our photo of a stone tower roof (above right) represents the transition between the megalith stone slab roof used (we guess) from Paleolithic times to modern cut stone roofing. Large stone slabs, many several feet across, but split thinner than the slab at above left, were used to form a random stone slab-tile roof on this antique building tower.

Modern Stone Roof Tile Details

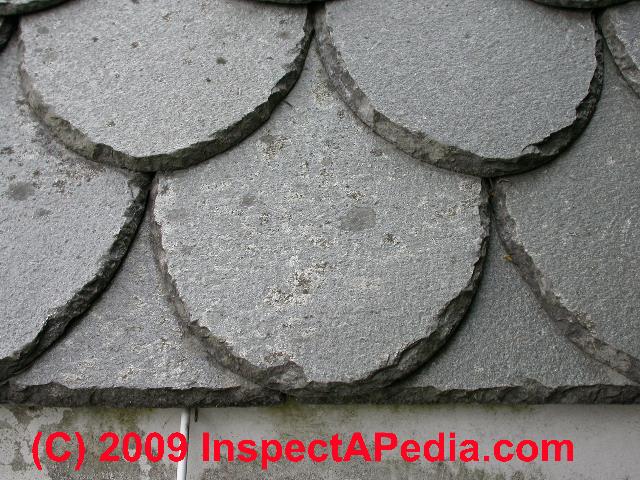

Our photo (above left) shows a typical modern stone roof design. Flat stones are quarried and cut into scalloped, diamond, rectangular, and other regular shapes and applied using methods similar to slate roofing. However as our photo of stone roof tile thickness suggest above, these roofs are usually even heavier than slate and require a substantial supporting structure.

$Stone roof tile delamination (C) DanieL Friedman\$ $Stone roof tile delamination (C) DanieL Friedman\$

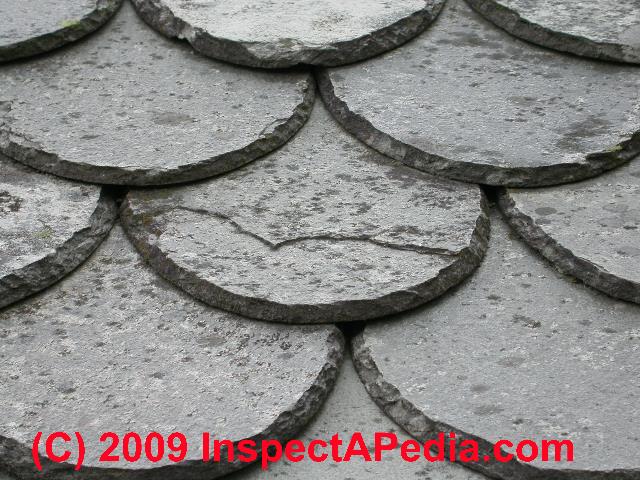

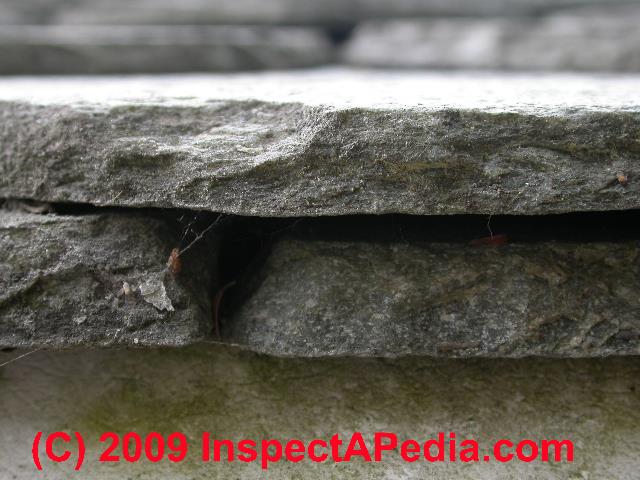

Our photos above show a minor surface delamination of a stone roofing tile (above left) and a chipped stone roof tile (above right). These are cosmetic defects. Provided the fasteners and supporting structure remain intact, this roof may last for 100 years. About that black fungus, lichens, or algae on the stone roofing in our photos above? See STONE CLEANING METHODS.
