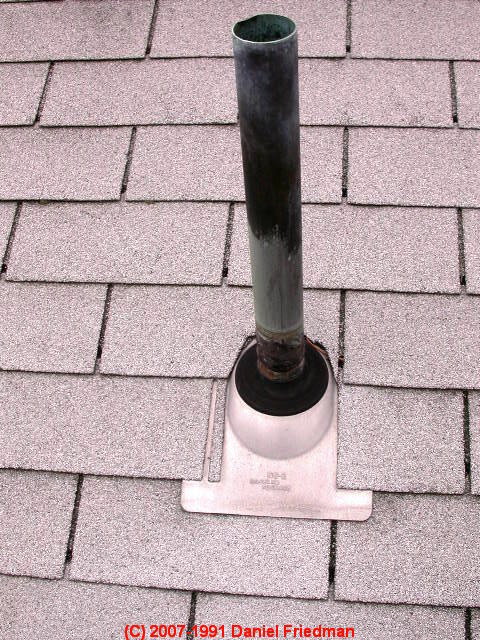

Mechanical Damage to Roof Surfaces

A roof surface can be damaged resulting in leaks, reduced life, or other troubles by events other than normal sun, wind, and weather exposure. Examples include walking on fragile roof surfaces, walking or twisting and turning while stepping on hot asphalt or modified bitumen roof surfaces, stomping around on slates, wood shakes, wood shingles, cement asbestos or fibe cement shingles, and chopping ice to try to stop an ice dam leak.

Case Study of Damaged Asphalt Roof Shingles

Here we present a series of photographs of asphalt roof damage. A professional investigator documented these conditions and joined in a discussion of the apparent cause of damage shown in each photo. All of these pictures were taken on the North slope of an asphalt shingle Firehalt brand roof.

A windstorm adjuster for TWIA (Texas) inspected an insured's roof with a large amount of granular loss. The roof is in these photos is 10/12 pitch (hip with build ups) and was 11 years old at the time of inspection. The roof is vented by turtle vents (4) and (1) turbine vent only (no ridge vent). The shingles are Firehalt Brand (Certain Teed®) - 30 year shingles. In our opinion the damage was not, however, related to the brand. Roof consultants, manufacturers, suppliers, and building inspectors are invited to Contact Us to offer further diagnostic comments about this case.

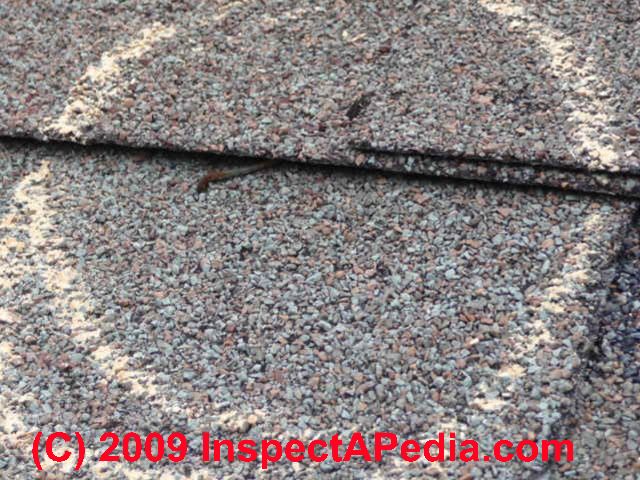

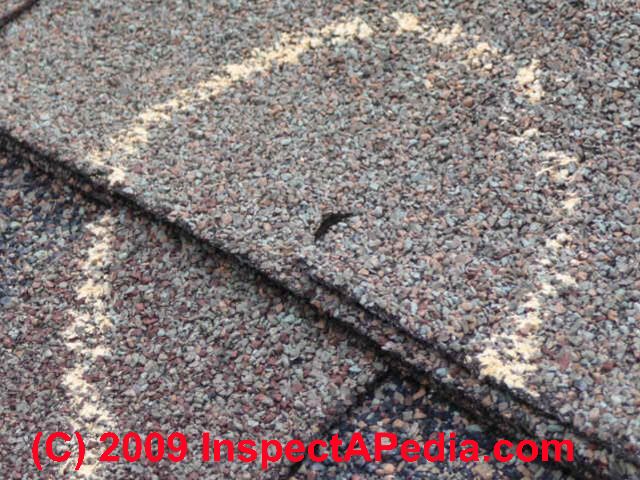

Damage due to improper installation - staple exposed, askew, not flush, wrong location & mis-nailed.

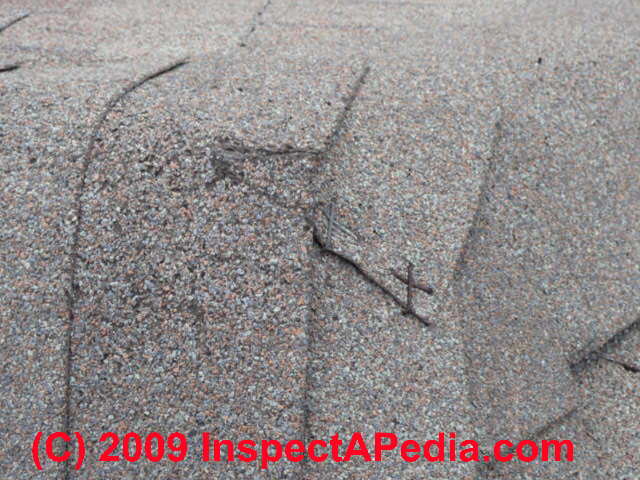

Looks like same type of damage as the prior shingle photo, due to improper installation - staple exposed, askew, not flush, wrong location & mis-nailed, but in this photo the staple itself is not visible.

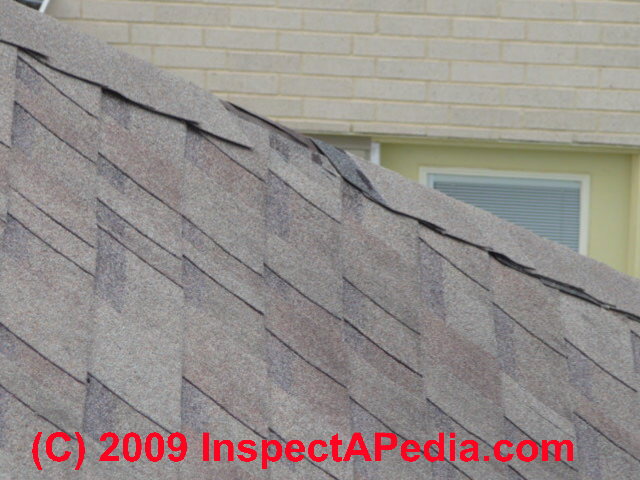

Damage due to blown off hip shingle, improper nailing is most likely, possibly wind and failure to seal.

See WORKMANSHIP & WIND DAMAGE for details.

Damage due to improper installation - surface nailed broken shingle over excessive bend fracture - maybe installed in cold weather; granule loss on exposed top of hip/ridge intersection, weather or foot traffic.

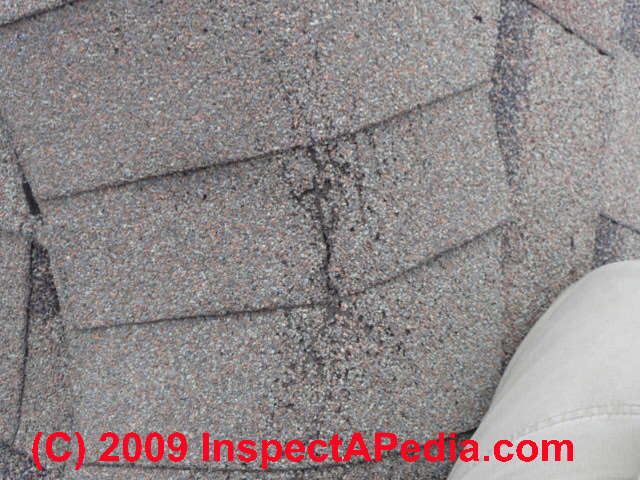

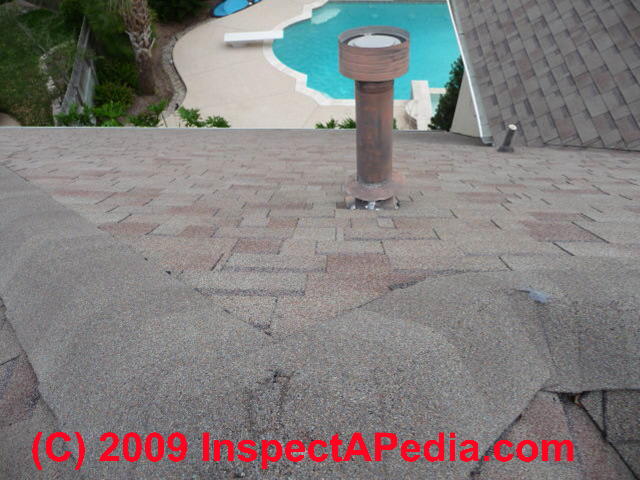

Damage due to cracked hip shingle, weather-damage granule loss around fracture - moisture penetration of shingle contributes to granule loss due to the fracture

Damage due to same as the previous photograph: people often step right on this spot on roofs.

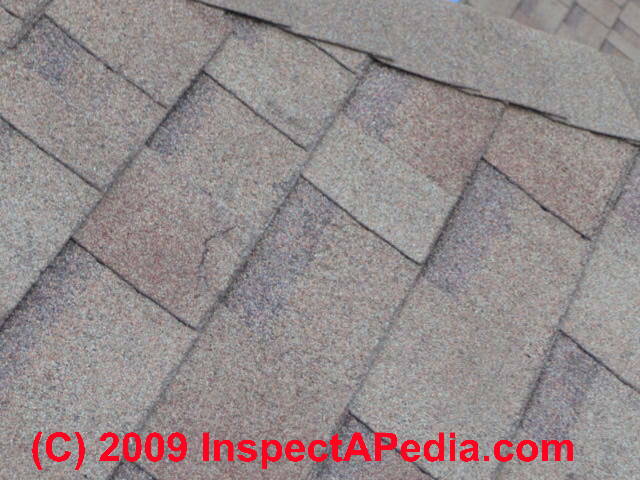

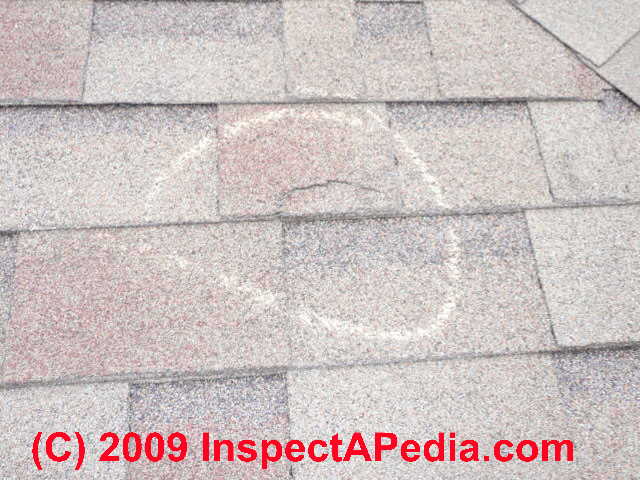

Photo not sharp, but this looks like a cracked shingle tab, defective product or mechanical damage (someone tried to lift the tab after it was sealed??

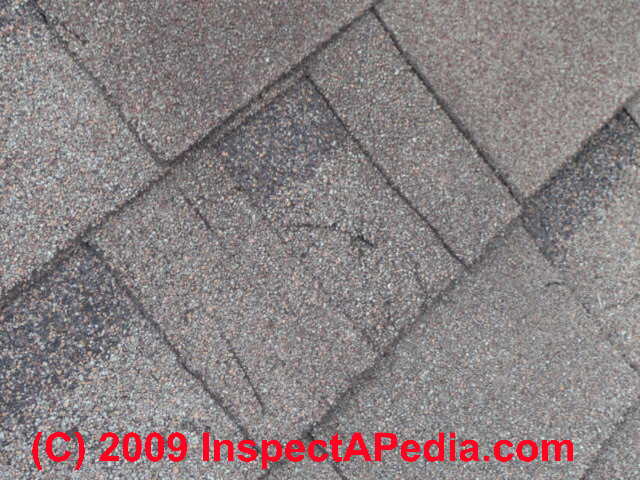

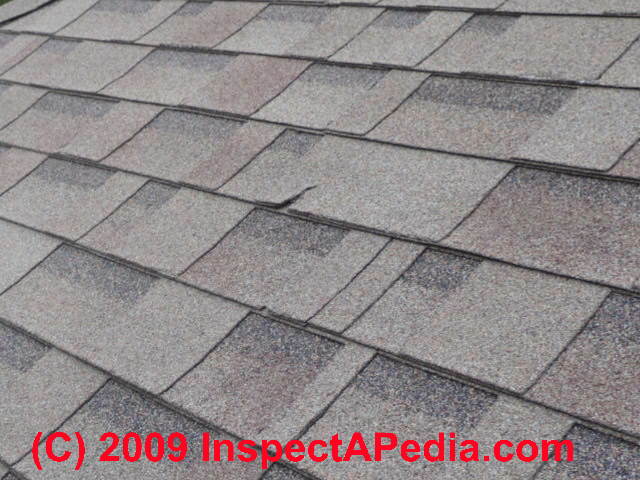

Damage due to diagonal tear in single, mechanical damage is most likely. See my article on thermal splitting but as this tear is not over a butt joint it is more likely due to tear during installation or tear if someone tried to lift the tab (less likely)

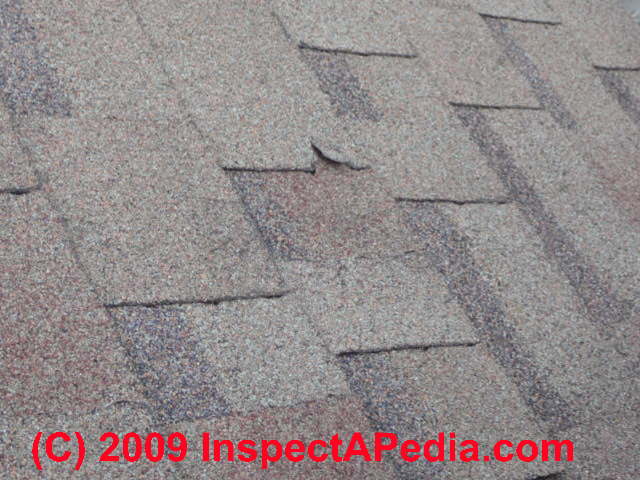

Damage due to vertical tear in shingle tab - IF this tear is over a butt joint (which it appears) this could be thermal splitting - if so the number and extent of these will increase on the roof; COULD be also torn due to application over a raised staple - you need to investigate this further

Damage due to shingle edge injury due to walking on the roof - note the wear on the very edge of most of the shingle tabs - looks like foot traffic wear

Damage due to torn shingle tab, appears depressed as if broken by foot traffic at low temp; if left side of tear originates at a butt joint, could be thermal splitting.

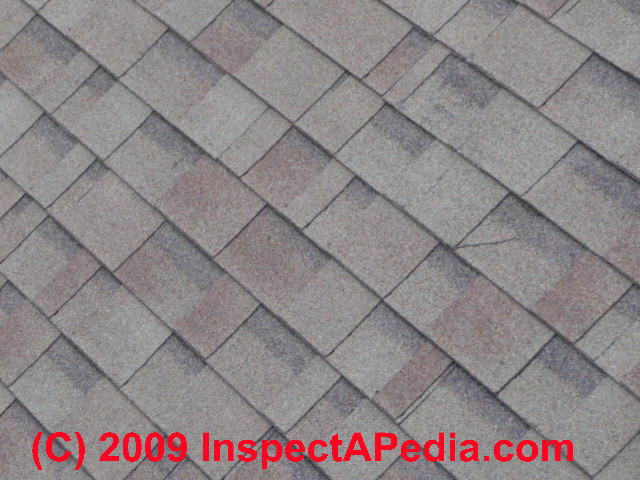

Damage due to what appears to be classic defective product, curling and thermal splitting, split runs through at least 3 shingle tabs in the photo.

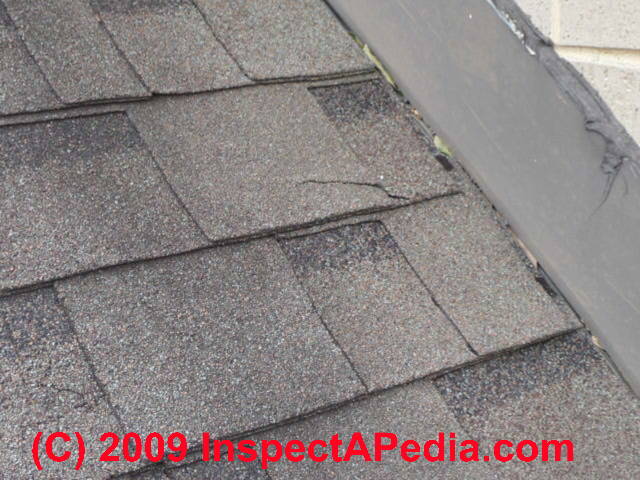

Damage due to diagonal tar near wall flashing, foot traffic or damage during installation.

Also the wall flashing may be improper and leak prone - single long counter flashing caulked to brick is unreliable, and step flashing may be absent (investigate further - possible clue of improper workmanship, look for step flashing at every shingle along this juncture by carefully lifting the counter flashing, or by carefully lifting some shingle tabs) - a second cracking torn shingle may be present at lower left of photo.

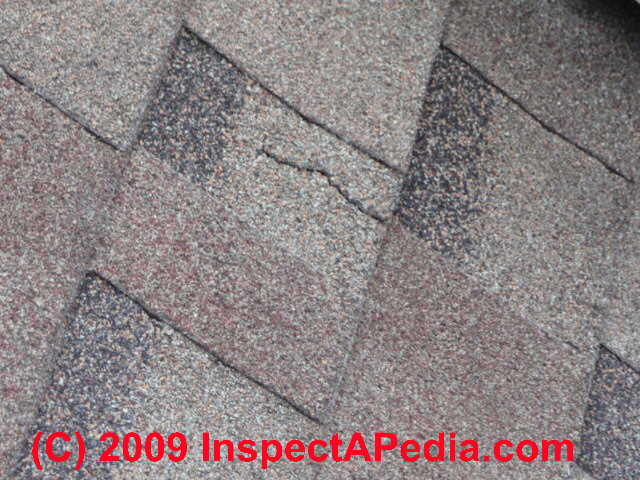

Damage due to cracked or torn shingle, note evidence of mechanical damage including the very straight cut to the left of the diagonal tear. Some granule loss to left of the straight cut at photo lower left - foot traffic looks likely as well as possible tool damage)

Damage due lifting, torn shingle tab at photo center, not over a butt joint, looks like mechanical damage or tear during installation

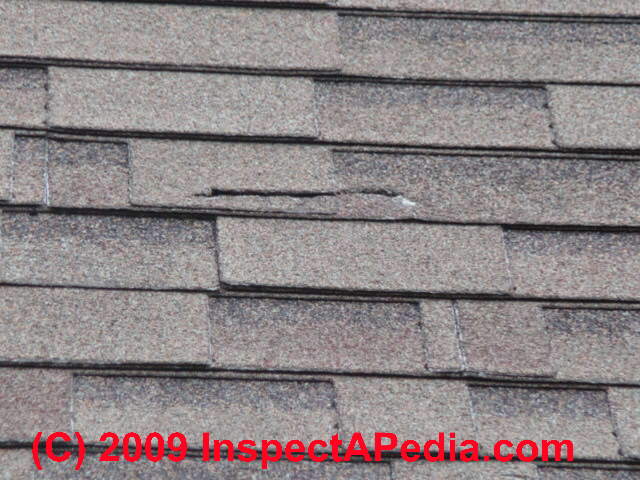

Damage due horizontal weathered tear across center of two laminated single tabs, exposed substrate, appears to be defective product or mechanical damage in storage, transport, or installation that later appears as a cut or tear. This does not look like a splice shingle but the wear is similar. See SPLICE DEFECTS on ASPHALT SHINGLES.

Conclusions About These Contributors to Asphalt Shingle Damage & Mineral Granule Loss on This Roof

Primarily, questionable or perhaps even poor workmanship, use of staples, mis-located, staples askew, high raised-corner staples, mis-stapled on top of shingles, foot traffic, mechanical damage, possibly excessive bending in cold weather at the hip/ridge appear to be the problems on this roof. We also saw some minor mis-nailing or inadequate nailing leading to a single blow off at the roof hip.
Secondarily: a few of the cuts and damage could be defective product - see CRACKS in FIBERGLASS SHINGLES. At least one cut was made by a tool or implement.
Weather does not appear to be a root cause of this roof damage, though once a shingle has been worn by walking or mechanical damage the exposure of the shingle substrate accelerates wear and granule loss.
We would not characterize the prime problem of this roof as "granule loss" which was the original owner's concern. GRANULE LOSS from SHINGLES provides more details.

In our opinion the roof damage was not, however, related to the brand. Roof consultants, manufacturers, suppliers, and building inspectors are invited to Contact Us to offer further diagnostic comments about this case.

Walking on an Asphalt Shingle or Roll Roofing Roof can Cause Damage to the Roof

Walking on a roof can damage shingles in several conditions.

Asphalt Shingle Roof Damage from Walking on Fragile Roof Surface

Granule loss or actual shingle damage may occur on a roof being walked-on: walking on any asphalt shingle roof loosens some of the mineral granules from their attachment embedded in the asphalt used to impregnate and coat the shingle.

Walking on shingles that are brittle, cupped, curled, can damage them at any time, perhaps more so if the inspector steps on a raised, curled, or otherwise damaged portion of the shingle, or if the asphalt shingles are simply old, brittle, and fragile, even if flat.

We investigated a complaint against a home inspector charged with damaging a roof that we learned he had been smart enough to stay off of - inspecting from the roof edge by ladder. But a contractor, called to bid on roofing repairs, stomped around inspecting the roof to make his repair bid. The result was conversion from a roof that needed replacement soon to one that needed immediate replacement. We could virtually see the footprints of the contractor, in a trail of broken shingles across the roof.

Asphalt Shingle Roof Damage during Other Repair Work

On roof repair work of other components, for example around a chimney, involving standing, moving, turning, placing repair materials on the roof surface without first protecting that surface from damage.

If there is a lot of roof traffic, such as when work is being done on a chimney, you may see "bald" areas of shingles with lost granules where people have been walking. This is damage caused by workers and is not a product defect.

Walking on fragile roof shingles. See CUPPING ASPHALT SHINGLES and CURLING ASPHALT SHINGLES.

Roof Damage from Walking on very Hot, soft Asphalt Roofing

We think it's subjective, and we don't have a specific number, but the variables underlying roof damage during an on-roof walking inspection include:

outdoor air temperature at the time of the roof inspection
sun exposure on different roof slopes - a shaded slope may be cooler and safe to walk-on even on a hot day
number of hours the roof has been exposed at various temperatures - longer roof exposure to sun and high temperature on a given day, walking on a roof in the last half of a very hot day, for example, is more likely to lead to damage
the nature of the foot traffic - walking carefully vs. standing in one place and spinning on your heels - the latter will certainly damage a hot soft asphalt shingle or roll roofing.

Alone no single number answers the questions raised by these factors. But certainly we've both seen damage to roofs when walked on during a hot day - when someone was careless.

Thanks to home inspector Charlie Gallagher for suggesting this added detail.

Frequently Asked Questions (FAQs) about causes of damage to roof shingles from mechanical events: walking, punctures, tree limbs, chopping ice, brushing off moss, etc.

...

Ask a Question or Search InspectApedia

Questions & answers or comments about how roof shingles may be damaged, leak, or wear out not from natural means but from events or misuse or abuse..

Ask a Question or Enter Search Terms in the InspectApedia search box just below.

Technical Reviewers & References

Related Topics, found near the top of this page suggest articles closely related to this one.

Randy LeBlanc, a Windstorm Adjuster for TWIA (Texas), provided photographs and assisted in technical assessment of this material 4/12/09.
