Asphalt Shingles Nailed in a Ladder Pattern
InspectAPedia^® -

Ladder pattern application of asphalt roof shingles, appearance and wear issues
What is shingle laddering
Does ladder pattern shingle installation affect roof life?
Types & photographs of organic felt asphalt roof shingle defects & failures

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.

This article explains how to identify & evaluate shingles installed in a "ladder pattern" and describes roof leak, wear, and cosmetic issues caused by shingle laddering as an example of something a bit less than the "best" roof installation workmanship.

These defects occur on organic-mat or fiberglass-mat asphalt roof shingles. Readers are also invited contribute roof failure information to the web author for research purposes. web author for research purposes. Readers should also see ASPHALT SHINGLE INSTALLATION.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Laddering and stair-stepping of roof shingles

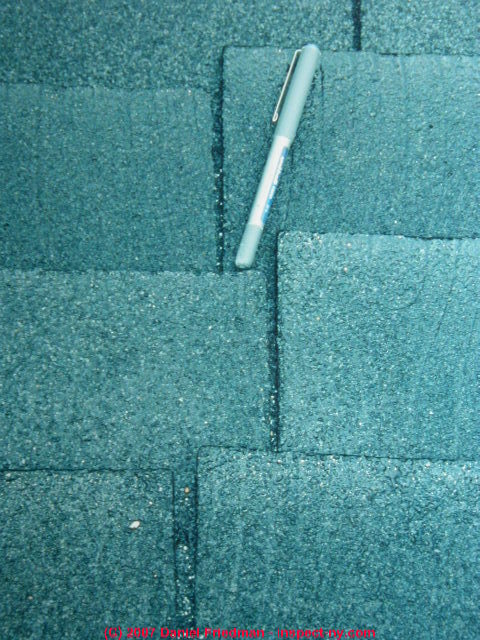

The first photograph here shows a sloppy "ladder pattern" installation of strip-type asphalt shingles. While opinions (and expertise) vary among roofers, this ladder pattern shingle application may not be as durable a roof installation as one which staggered the shingle offsets more than a single six inches (or in this case only 3") left and right with each shingle course.

Photo of fishmouthed/laddered shingles at above-right right is courtesy of ASHI home inspector Carl Gerosa, New Rochelle, NY.

On other asphalt shingle roofs, particularly older ones, you may notice that the pattern of fishmouth occurrence on an asphalt shingle roof follows a fairly regular or stair-stepped pattern, or it may follow a regular "ladder" like pattern up the roof such as is shown in these photographs.

That's because the fishmouthing is occurring at the butt joints of the shingles where more moisture is passing out of the roof structure into the back side of the shingle above each butt joint.

You can thus determine the actual pattern in which the shingles were applied to the roof. "Laddering," while permitted by some manufacturers and standards, is a less workmanlike shingle installation and may result in a localized early wear area on a roof. Ladder-pattern shingle application shows that the roofer liked to work up the roof from one position for as long as possible before moving.

Shingle Laddering is Not Recommended

As reported in Best Practices Guide to Residential Construction: For ease of installation some roofers install shingles straight up the roof, staggering shingles 6 inches or 18 inches back and forth (Figure 2-9).

Since this lines up butt joints every other course, this is considered a less watertight roof and may leak under extreme situations, such as windblown rain on a low pitch.

It is not recommended by any roofing manufacturers. Manufacturers also claim that shingle color patterns may create splotches or stripes if laid this way.

A Forensic Engineer's Comments on Shingle Laddering and Asphalt Roof Shingle Wind Damage

Nail Omissions - leaving out some nails - is at fault in laddered shingle blow-offs

James A. Skees, PE

On the photo of the laddering problem submitted by Carl Gerosa of New Rochelle, NY: I have found that the loose corners are most often associated with the installer neglecting to place the nails at the ends of the shingles when installing the subsequent rows.

It is not necessarily the result of installing the shingles in a straight line up the roof. The same problem will occur diagonally when the nails are neglected (the common term is "three-nailing"). If the nails are all in the right place, the corners generally stay down either way.

Also see Mr. Skees' comments about nailing errors & asphalt shingle cellophane strip removal at WIND DAMAGE to ROOFS
