leaks at a tankless coil on a heating boilerHow to Diagnose, Evaluate & Repair Leaks at a Tankless Coil on a Heating Boiler
InspectAPedia®  -

  • Leaks at Tankless Coils on heating boilers: a guide to recognizing and evaluating leaky boilers
  • How to evaluate the severity of leaks at a hot water tankless coil
  • Why leaks at a tankless coil can ruin a heating boiler
  • How to inspect repair leaks at tankless coils on heating boilers
  • When is a tankless coil leak repairable?
  • Leaks at the tankless coil mounting plate can often be repaired if caught early
  • Severe rust at a tankless coil mounting plate means tankless coil replacement is impossible and the boiler may be ruined. When is boiler replacement necessary?
  • How to diagnose a tankless coil that leaks into the heating boiler.
  • Questions & answers about the types of leaks that occur on tankless coils, where they are found, what problems the leaks cause, and a leaky tankless coil can be repaired, or if necessary, replaced.

Tankless hot water coil leaks, corrosion, & repair procedures: This article explains leaks at Tankless Coils on heating boilers: a guide diagnosis, evaluation, & repair of leaks at tankless coils used for making hot water. Leaks can occur at a tankless coil where it is mounted to the top or side of a heating boiler.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Find, Diagnose, Fix Leaks at Tankless Coils

Leaks at pipe connect on a tankless coil (C) Daniel FriedmanWe introduce tankless coils as a source for domestic hot water, and we explain how they work at TANKLESS COILS. We discuss how to improve hot water quantity at HOT WATER IMPROVEMENT. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.

Leaks at tankless coils on heating boilers can seep away for a long time before anyone notices. But if you wait too long, the boiler may be beyond repair.

Leaks at or around tankless coils on the heating boiler that leak out of the coil or boiler

Boiler leaks out at a tankless coil mounting plate or at the pipe fittings that pass through the coil mounting plate are a common defect on heating boilers, both steel and cast iron units. You may not see water (the boiler is hot, after all) but you'll see mineral deposits and crud or even crud and rust build-up at the leak source and below it.

Caught and repaired early these leaks at a tankless coil can be repaired without serious damage to the heating boiler. Left alone these same leaks, particularly at the tankless coil mounting plate can completely destroy the heating boiler. Deciding how badly a heating boiler has been damaged by leaks is tricky, controversial, and important since both safety and big cost concerns are involved.

  1. At the tankless coil face tapping for mounting a temperature sensor (bottom center pipe shown in this photo, leading to a boiler combination control).

  2. At the tankless coil face tapping for the incoming cold water or outgoing hot water pipe (the two copper pipes shown in this photo)

  3. At the tankless coil mounting plate where it is bolted to the face of the heating boiler (the round and rusty steel face shown in this photo).

A leak at any of these points will not normally show up as water on the boiler or on the floor around the boiler.

That's because the boiler is normally hot all of the time. Water leaking at any of these locations will rapidly evaporate.

Leaks from a tankless coil into the heating boiler will raise boiler pressure

Pile of leaky tankless coils found at a home tell a story (C) Daniel FriedmanWatch out for this second and more tricky to spot tankless coil leak. Corrosive water, usage, repeated acid cleanout of a mineral-clogged tankless coil, or other wear and tear can cause the finned copper tubing of the tankless coil to leak water at house pressure into the interior of the heating boiler itself.

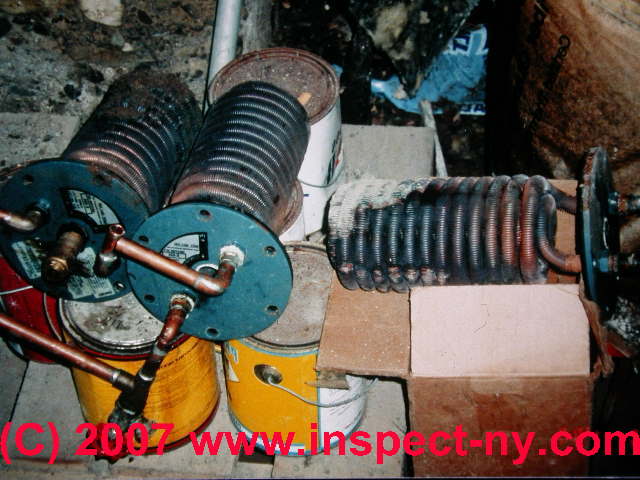

Take a look at that pile of tankless coils in our photo (left). When we found all three of these near the heating boiler in a home we knew that there had been a history of trouble with leaky tankless coils. You can see in the photo (click to enlarge) that there is virtually no rust or corrosion around the coil mounting plate.

You would never spot this leak by just looking at the boiler externally. But each of the three coils has some funny-looking brass-colored discoloration around the finned tubing near the mounting plate, in the first three coil turns. That's just where you might find thin coil tubing and perforations due to one of the causes we list below.

Causes of internal leaks in a tankless coil - leaks into the boiler

  • Building water supply that has a high corrosive index
  • Building water supply high in minerals, leading to clogging of the tankless coil, combined with repeated acid washings to try to clear the blocked coil
  • (Rare) mechanical damage to the coil itself during shipment, storage, or installation

How to spot and diagnose a tankless coil that is leaking into the heating boiler

  • You may see a dripping or actually spilling of boiler water at the boiler's temperature/pressure relief valve. Now more than one problem can cause the relief valve to spill (see RELIEF VALVES - TP Valves on Boilers ). But if the cause is due to a perforated tankless coil you will also see

    Watch out: a dripping pressure/temperature relief valve on any tank or vessel means that a competent diagnosis and repair are needed to avoid the potential of dangerous BLEVE EXPLOSIONS
  • Abnormally high pressure inside the heating boiler. Typically a residential heating boiler runs between 12 psi cold and under 30 psi hot. More than one thing can cause abnormal boiler pressure, such as setting the temperature higher than 200 degF or a control that is malfunctioning, or a water feeder / pressure reducer that is failing, or someone manually over-feeding the boiler. But if the problem is caused by a tankless coil leak into the heater you can often prove that cause by:
  • Turn off the boiler, let it cool down to room temperature, and then drain water out of the boiler drain sufficient to drop the boiler to its usual cold operating pressure. For taller homes the cold pressure may be higher than 12 psi. For this test it doesn't matter where you stop as long as the cold boiler pressure is set to below the incoming building water supply pressure.
  • Now turn off water supply that feeds the boiler. This will rule out a bad water feeder/pressure reducer valve.
  • Leave the boiler off overnight, or longer if you can. Obviously you can't do this procedure if weather is so cold you can't leave the heat off for a while. At the end of your observation period, 12-24 hours, or sooner if it occurs, look for increasing pressure inside the boiler. With the boiler off and its own water supply turned off, if you see boiler pressure increasing you can bet the problem is most likely a leaky tankless coil. (Typical building water supply pressure is 40-75 psi, higher than the normal internal operating pressure of a residential heating boiler. That's high enough to force water out of a perforated tankless coil and into the boiler itself.)
  • When you turn the boiler back on, don't forget to turn on its own water supply as well.

We continue below with photographs and details about finding and evaluating and fixing leaks out of the coil.

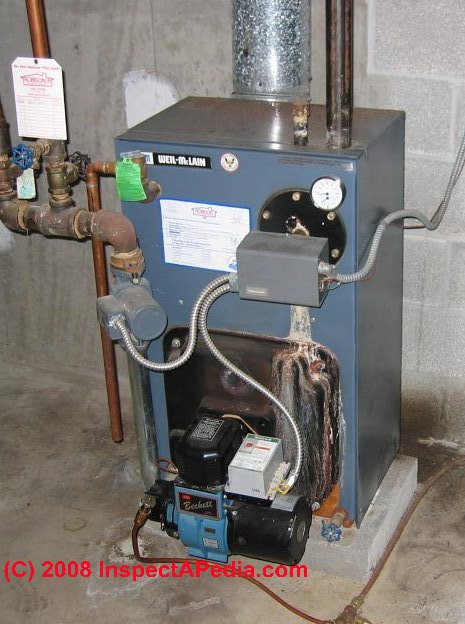

What evidence of leaks will we observe at a boiler with leaks at the tankless coil?

White or other mineral salts left behind from evaporating leaky water, at and below the point of leakage, often staining the face of the boiler, such as we show in the photograph above. Even without close inspection one can observe white leak stains below the round black tankless coil plate and running down the face of the boiler in this installation.

Severe rust at a tankless coil mounting plate

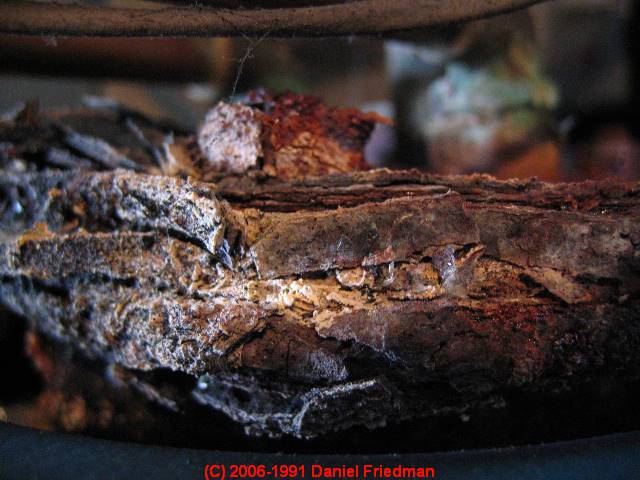

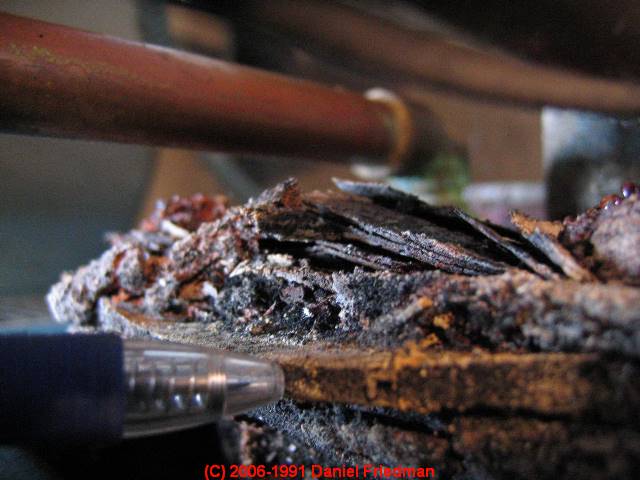

Rust or corrosion at the point of leak, such as the flaking exfoliating and badly rusted tankless coil we show in our photograph at left. .

A leak that has produced rust like this might mean that the tankless coil unit needs to be replaced, or worse, that the boiler has been so damaged by rust that it is beyond repair.

In the next section of this article we discuss how to evaluate leaks on heating boilers at a tankless coil

How to Evaluate a Leak at a Tankless Coil on a Heating Boiler

Young leaks at a tankless coil can be repaired

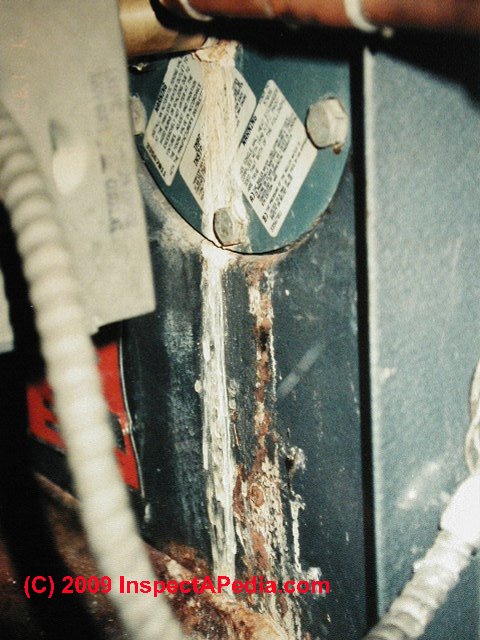

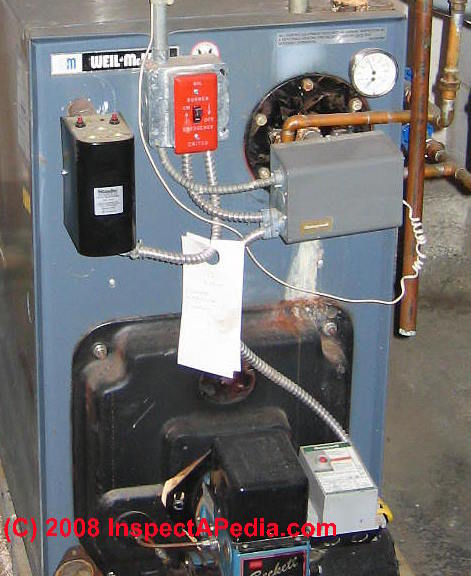

Young leak at a tankless coilIf a leak is found in time, that is, before severe rusting and exfoliating or flaking rust have occurred, it should be possible to disassemble, clean, seal, and re-assemble the parts.

In our photo at left we'd probably call this a "middle-aged" leak rather than a "young leak" because the white mineral salt deposit you see below the tankless coil on the face of the boiler is pretty thick. But it's possible that this tankless coil leak can be repaired. A closer inspection is needed.

Leaks at piping connections on the tankless coil itself can be repaired without removing the whole coil assembly from the boiler.

Leaks at the tankless coil mounting plate will require that the boiler be shut down, drained, and water piping connections cut or opened at the coil so that the coil assembly can be removed. If inspection shows that the coil face and boiler mating face are un-damaged, the mounting gasket is replaced, sealed, and the coil reassembled to the boiler.

This may seem an odious task, since it means you'll need to shut down the boiler and also domestic hot water, and boiler water and piping water may need to be drained or partly drained in order to make this repair.

But you should make this repair as soon as possible.

Old leaks at a tankless coil may require boiler replacement

If a leak is not found in time, or if no one was willing to repair a young leak, the cost is likely to be very high.

Leaks at pipe connect on a tankless coil (C) Daniel Friedman



The white deposits on the face of this tankless coil appear to originate at a pipe connection at the coil face (top center of the photo); but notice that second leak trace at the bottom of the tankless coil mounting plate and to the right of the larger white leak stain?

This tankless coil appears to also be leaking at its gasket.

Our next photos show how prolonged leaks at the coil face plate mounting gasket can destroy a heating boiler.

Photo Guide to Severe Tankless Coil Leak & Rust Damage

Leaks at piping connections through the face plate of the tankless coil, if they have progressed for a long time, will have caused so much corrosion that disassembly and repair of the coil is impossible. The good news is that leaks at this location only destroy the tankless coil itself and are less likely to destroy the whole heating boiler. The coil will need to be removed and replaced.

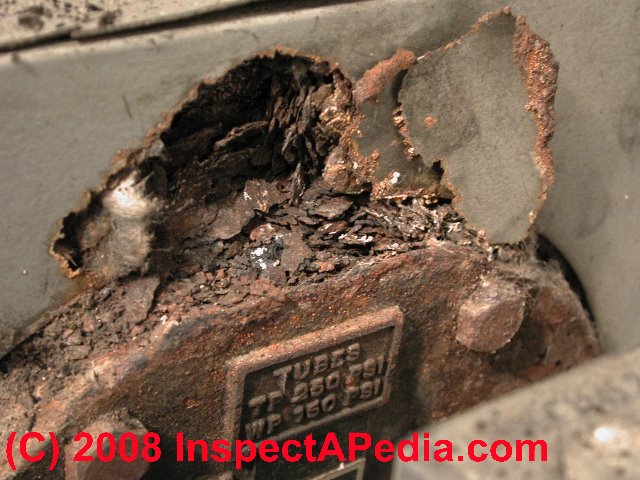

Rusty tankless coil mounting plate

Leaks at the tankless coil mounting plate, if they have progressed for a long time, will have caused damage to the coil mounting plate.

But much worse, the mounting surface on the boiler will also be damaged. If the boiler surface has been damaged it may be impossible to mount a replacement tankless coil without continuing leakage.

It is technically possible to perform a repair to such a boiler by welding on a new coil mounting surface, but the welder is not going to be very interested in performing such a small but time consuming repair, and knowing that the alternative to her welding service is a whole boiler replacement, the price for the welding job may be rather high.

Which Tankless Coil Leaks & Boiler Leaks Can Be Repaired and When is the Boiler Ruined?

Boiler ruined by leak at tankless coil

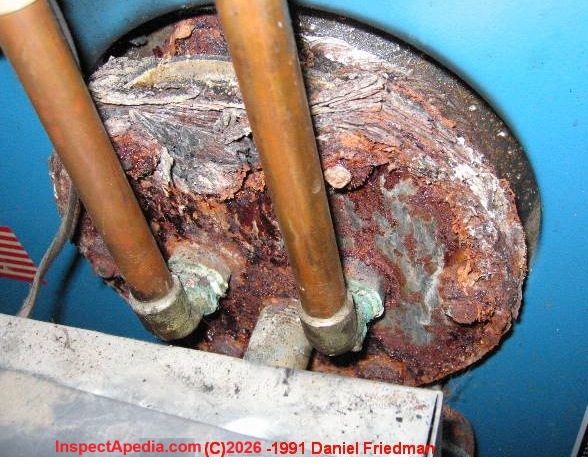

Rusty tankless coil face plate and boiler surface: Look closely at the coil mounting plate and the boiler mating surface to see just where the rust and exfoliating have occurred.

In our photo at left, this boiler, in Wappingers Falls, NY, was beyond repair. Leaks at the tankless coil had badly rusted the coil face plate, the boiler face, and even the boiler jacket.

In most cases a leak at the coil mounting plate, left unattended, will have badly rusted both surfaces and the boiler is likely to be beyond repair.

Rusty tankless coil face plate, possibly salvageable: But in some cases the rust and flaking may be occurring on the outer face of the tankless coil mounting plate, and there is a chance that the coil can be removed and replaced. In the photo above we show here we see severe flaking exfoliating rust on the outer face of the tankless coil face plate.

Boiler mounting surface for tankless coil

In this photo we can see that the inner mating surface of the boiler, the surface to which the tankless coil face plate has to mate, looks as if it might be ok.

In this case it seems worth trying to remove the tankless coil to see just what the situation really is.

Replacement of the coil and saving the boiler might be possible in this case.

Rusty tankless coil mounting plate


Rusty tankless coil bolts & Studs: Of course a related problem is that the coil mounting bolts and studs may be so badly rusted that they will be broken during removal of the coil. It's possible to drill, tap, and restore broken coil mounting studs, but lots of work and cost are involved.

That's why your plumber will be reluctant to promise that a boiler can be saved even when it appears worth making an attempt to do so.

Questions & Answers regarding this article

Questions & answers about the types of leaks that occur on tankless coils, where they are found, what problems the leaks cause, and a leaky tankless coil can be repaired, or if necessary, replaced. .

Ask a Question or Search InspectAPedia

HTML Comment Box is loading comments...

Recommend / Share this Article

...

Technical Reviewers & References

  • InspectAPedia.com® - Daniel Friedman - Publisher & Editor.
  • InspectAPedia Bookstore lists recommended books, organized by topic & available for purchase. Most of our articles also include a list of recommended books for the specific article topic as well as other references, and information sources.
  • Critique, contributions wanted: Contact Us to suggest corrections or additions to articles at this website, and if you wish, to receive online listing and credit as a contributor. Particular thanks are due to the many experts and also consumers who read and critique technical articles at InspectAPedia.com.
  • Additional technical contributors & reference sources for this article are listed below.

Use links just below or at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.


TANKLESS COILS
  AQUASTAT CONTROL Functions
  Clogged Pipes / Tankless Coil De-Scale
  MIXING / ANTI-SCALD VALVES
  Tankless Coil Conversions
  Tankless Coil Leaks
  Tankless Coil Hot Water Increase

MIXING / ANTI-SCALD VALVES on tankless coils, why and how
BOILER LEAKS CORROSION STAINS for a discussion of leaks on heating boilers.
HOT WATER IMPROVEMENT for a discussion of how to get more hot water from a tankless coil.
WATER SOFTENERS & CONDITIONERS for a discussion of how to install and use a water softener to avoid mineral clogging of the hot water supply piping and equipment

  • Carson, Dunlop & Associates Ltd., 120 Carlton Street Suite 407, Toronto ON M5A 4K2. (416) 964-9415 1-800-268-7070 info@carsondunlop.com. Thanks to Alan Carson and Bob Dunlop, for permission to use illustrations from their publication, The Illustrated Home which illustrates construction details and building components. Carson Dunlop provides home inspection education including the ASHI-adopted Home Inspection Training Program (home study course), publications such as the Home Reference Book, report writing materials including the Horizon report writer, and home inspection services. Alan Carson is a past president of ASHI, the American Society of Home Inspectors.

Books & Articles on Building & Environmental Inspection, Testing, Diagnosis, & Repair

  • Our recommended books about building & mechanical systems design, inspection, problem diagnosis, and repair, and about indoor environment and IAQ testing, diagnosis, and cleanup are at the InspectAPedia Bookstore. Also see our Book Reviews - InspectAPedia.
  • Home Reference Book - Carson Dunlop The Home Reference Book - the Encyclopedia of Homes, Carson Dunlop & Associates, Toronto, Ontario, 2010, $69.00 U.S., is available from Carson Dunlop. The Home Reference Book is a bound volume of more than 450 illustrated pages that assist home inspectors and home owners in the inspection and detection of problems on buildings. The text is intended as a reference guide to help building owners operate and maintain their home effectively. InspectAPedia.com ® author/editor Daniel Friedman is a contributing author. Field inspection worksheets are included at the back of the volume.
  • Carbon Monoxide Gas Toxicity, exposure limits, poisoning symptoms, and inspecting buildings for CO hazards
  • ...

Home About Us Accuracy Contact Us Content Use Policy Printing Tips Privacy Website Description © 2012 Copyright InspectAPedia.com
