Plumbing Noise Checklist: sources of plumbing system noises
InspectAPedia® -
List of sources of noises in building plumbing systems
Sources of water supply pipe noises
Sources of building drain pipe noises
Sources of building plumbing fixture noises
Sources of water main piping or well and pump system noises
How to find and identify the cause of various plumbing noises
House Noises - Building Noises, lists of causes, cures, and detection methods for indoor noise pollution
Questions & answers about plumbing system noise causes & cures
This article provides a plumbing noise diagnosis checklist useful for plumbing system noise control, starting with a list of sources of plumbing system noises in buildings: water supply piping noise, drain pipe noise, plumbing fixture noises, water main pipe noise, well pump and piping noises, and water heater noises.
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.
Plumbing Noise Checklist: Plumbing System Noises in buildings, Causes, Cures
For the broad topic of controlling plumbing noises in buildings see Sound Control for Plumbing. Separately at SOUND CONTROL in buildings we provide a series of detailed articles on reducing unwanted building noise levels through building design, insulation, sound isolation, and noise barriers.
In the article series about building noises NOISE / SOUND DIAGNOSIS & CURE we discuss how to locate the source of, identify and correct various building sounds and noises indoors or on occasion, noises from outside that penetrate indoors at annoying levels. Our page top photo of a plumbing drain chase in new construction (and before sound insulation was added) is provided courtesy of Galow Homes.
As we explain in more detail at PLUMBING DRAIN NOISE REPAIR, we divide plumbing drain and fixture noises into two groups:
Normal (but annoying) plumbing system noises that will be corrected by noise transmission control or sound insulation are discussed at SOUND CONTROL for PLUMBING, a section of SOUND CONTROL in buildings where we describe controlling the transmission of noises in buildings.
Plumbing System Noises in buildings include these sources & cures
Drips at plumbing fixtures may make an obvious drip or splash sound. But dripping water can be tricky to track down. Don't forget to consider
A small supply leak inside of a building cavity can produce a noise that is hard to track down. Supply pipe leaks may be continuous (and thus are eventually discovered by water stains or mold) or intermittent, such as a leak around a tub or shower control that drips into the wall cavity only when the valve is turned "on".
A drain piping leak inside of a building cavity can also produce a noise that is hard to track down. But a drain drip noise should not be present when no fixtures have water running into them. But don't forget that a quietly running toilet can also produce a drip or other plumbing problems downstream from the toilet in the building drain piping.
Plumbing water supply piping noises include these structure-borne or direct-contact vibration noise conduction:
Leaks in water pipes outside of the building but in water supply piping coming to the building from a municipal water main or city water piping can produce a humming, hissing, or ringing sound in the building. If you turn off the main water shutoff at the building and listen with a mechanic's stethoscope to the water pipes on the street side of the shutoff valve, comparing this sound to pipes in the building you can identify this problem. See Water Supply/Drain Pipe Leak Types and see WELL PIPING LEAK DIAGNOSIS.
Running water in the building that is unanticipated, such as a running toilet or intermittent cycling water pump (private well systems) will produce intermittent water pipe noises. See Toilet Runs Continuously and see INTERMITTENT CYCLING WATER PUMPS.
Plumbing Supply piping noises: hiss, whistle, whine: Plumbing noise that include a high-pitched hissing or whistling sound may be heard as water runs through building supply piping. This sound should stop immediately when you turn off any fixture that is running water in the building. You may be able to stop or reduce plumbing supply piping noise by changing the water system pressure at a municipal water supply valve. Try first just slightly reducing the incoming water pressure.
Plumbing Supply Piping Noise: vibration, buzz, hum: vibration from a well pump or other pumps (such as a hot water circulating pump) are readily transmitted through metal and even some plastic plumbing pipes. Wherever water piping is attached to the building such as to wall studs or floor/ceiling joists, the vibration is readily transmitted to the wall or floor structure in a manner that makes that whole assembly act as a giant loud speaker.
Use sound-isolating plumbing pipe mounting clamps, foam pipe wrap under clamps, neoprene pipe clamps (less effective) or similar resilient pipe support products to isolate the water piping from the structure itself at each attachment point. The use of sound-isolating resilient supports for plumbing piping is key in reducing plumbing noises from piping.
According to the Canadian CNRC, "Noise reductions up to about 15 dBA can be obtained relative to systems where no resilient mounts are used for pipes."
At Technical Reviewers we list some sources of resilient pipe clamps and plumbing support systems. CONTACT us to add to that list (no fees involved).

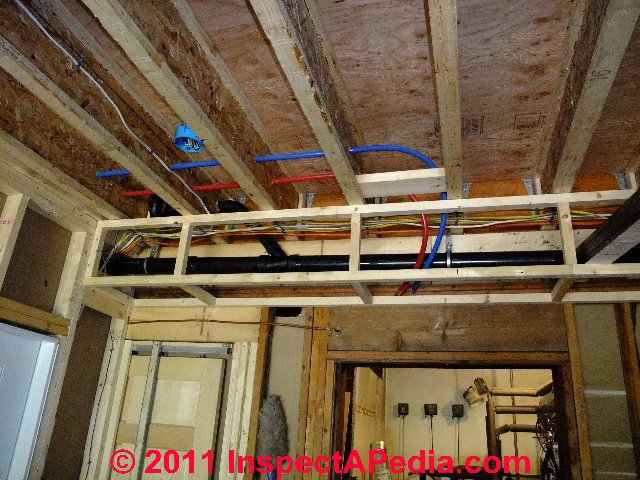

In new construction route plumbing pipes on a path that keeps them away from bedrooms and dining or sitting areas. If a plumbing drain must be run through one of these areas, especially when using plastic drain piping (noiser than cast-iron) you will need to sound-insulate the pipe chase.
SOLAR ENERGY SYSTEMS may include pumps that produce noise in the building - see Pump Noises above.
Plumbing vent piping-caused plumbing system noises and odors - At PLUMBING DRAIN VENTS we explain the basics of proper plumbing vent piping and how errors cause trap siphonage, odors, and noises.
See NOISE CONTROL for PLUMBING for a discussion about insulation and sound proofing of building plumbing
Also see WINTERIZE A BUILDING - how to protect a building and its plumbing and mechanical systems from freeze damage, how to shut down a building to minimize damage; how to de-winterize a building.
Toilet noises:
If a toilet is running there may be rippling water sounds, drip sounds (into the main drain waste vent line), and occasional cycling of a water pump if the building is connected to a private well system. Fix the running toilet. See Toilet Runs Continuously.
Toilet flush noises in drain piping: are avoided by routing drain lines out of bedrooms or other quiet areas or by sound isolation of the pipe chase.
Airborne toilet noises such as toilet flushing need to be controlled by building sound isolation methods discussed beginning at SOUND CONTROL in buildings.
Other advice about controlling plumbing noises in buildings is at SOUND CONTROL for PLUMBING. At Developments in Noise Control, an NRCC document, you will find other suggestions for building noise control discussing block wall noise transmission, plumbing noises, and some general theory.
Pump Noises: Water & Well Pumps
Water pump noises: at water pumps or well pumps. Water pumps can be quite noisy, depending on the pump type and model, and the pump location. If the well pump is a submersible unit located inside the well, normally the only noise you'll observe in the building is the clicking of the pump control relay(s) that turn the pump on or off, and possibly a modest sound of water entering the water pressure tank or building piping.
Water pump noises change from loud and rattling to a more quiet hum if a pump has lost prime (contains air instead of water) and then regains its prime (contains water). Running a pump "dry" can also destroy it. See WATER PUMP TYPES & LIFE EXPECTANCY.
But if your well pump is located indoors the pump motor sound can be loud and disturbing. We do not recommend simply surrounding the pump or covering it with fiberglass insulation in contact with the pump or water tank, because condensation can lead to a mold problem. But enclosing a well pump in a utility room that has benefited from sound control insulation can make a big reduction in pump noise heard in the rest of the structure. See SOUND CONTROL in buildings.
Plumbing noises from water pumps: vibration from a well pump or other pumps is transmitted into a building by two routes: by air as pump noise moves through building air and into other building areas, and by direct physical contact among the vibrating pump, pipes, and the building structure, as we discussed just above.
Plumbing noises such as from a well pump are also transmitted into the building through metal piping - wherever pipes are secured to the building framing, such as framing joists for a floor overhead, the whole floor can act as a loudspeaker cone. We separate the water pump noise problem into two components:
What is actually making the water pump noise:
- is it loose components or mounts that can be tightened
- is it vibration in an electric pump impeller or motor that has a bad bearing (and short remaining life)
- is it electric motor noise
- and if so is it characteristic of this particular motor (in which case the fix involves either going to a quieter pump motor or using sound isolation)
If the pump noise is unavoidable, how best should we stop sound transmission from the pump to the rest of the building? (see air transmission below)
- Structure-borne pump or plumbing noises: use rubber or foam mounts for securing piping at the pump to nearby building framing
- Airborne pump or plumbing noises: use other building noise isolating or sound insulation techniques to keep sound from leaving the pump room or utility area. See SOUND CONTROL in buildings.
Airborne noise transmission: For air transmission of water pump or other pump noises, reduce plumbing noise transmission, depending on the noise type by these methods:
Abnormal pump noises: check that the pump motor and pump assembly bearings and mounts are in good condition and replace these if they are worn. Other abnormal "pump" noises may be caused by air cavitation in the pump impeller assembly, by a damaged impeller, by mineral or other debris in the pump impeller, or by air in the well piping or water supply piping.
Normal pump noises: all electric motors make some noise when operating. If your motor or pump assembly is a noisy unit and you don't want to change it out for a more quite unit, use the indoor sound isolation methods discussed at SOUND CONTROL in buildings to isolate the utility room or area where the pump is located.
Water or well pump clunk or thunk noises around the water tank, piping, or control switches: A "thunk" or "clunk" sound heard around the water pressure tank or water pressure tank controls, especially if the sound occurs at the start of a well pump "on" cycle, may be due to a failing pump relay switch (used on submersible well pump systems), possibly due to a failing check valve, or perhaps loose piping that moves or shakes when the shock of sudden application of water pressure causes the piping (or even a water tank) to move.
Questions & Answers regarding this article
Questions & answers about plumbing system noise causes & cures
Question: My pump pressure control switch melted. The repairman said it was due to bugs. Now my well pump is noisy. Did the pressure switch meltdown make my pump get loud? Can I replace it with a quieter pump?
I must confess that I don't know much about well systems. Unfortunately, a well is where my water comes from for my house. I say unfortunately because it seems I’m always having problems and never had such hassles when having had city water.
The system is almost 10 years old and the upkeep seems to be constant and expensive.
Recently, one evening, while I was out of my house for a few hours, the system's pressure switch literally melted. I turned off the well system when I got home and waited 'till next morning to call the company who services the system.They came out and replaced the switch box.
They said it was likely caused by some bugs getting inside it which makes it malfunction. I have been told to make sure to place moth balls around this box and to spray bug spray. They tell me this unfortunately is a common problem and that there doesn’t seem to be any remedy available. Well, this strikes me as an expensive situation.
Since the melt down and replacement, my system seems extra loud. Every time the pump goes on (I have a 7 gallon draw down) I can hear it all throughout the house and it’s especially loud in the room that the system is closest to. I doubt anyone could sleep in that room because of the noise.
I don’t remember the system being so loud before this happened.
Do you have any thoughts about this scenario? And do you know of any pumps (submersible) that are not loud, and do you know what they would cost??
- E., North Port FL
Reply: A shorted electrical circuit or switch might damage a pump; a damaged pump or a well with limited water capacity might lead to a burned-up the pressure control switch
A competent onsite inspection by an expert usually finds additional clues that help accurately diagnose a problem.
That said, here are some things to consider:
it's possible that the same conditions that caused the pump control switch to have a melt-down damaged the pump. Bugs in the switch are not the only possible cause of switch failure. Frequent pump cycling, burned switch contacts, improper switch adjustment, a pump or well that lost capacity to satisfy the cut-out pressure and left the pump running toolong, and other events could damage the pump switch.
If one of those other conditions occurred as part or even all of the original problem, the pump may have been damaged not by the switch but by the event that showed up as a switch melt-down.
signifcantly noisy well pumps may be due to a wearing bearing or damaged pump internal parts that move water - the impeller, as we discuss in the article above, beginning at Pump Noises, Water & Well
even if the root problem was something peculiar to the pressure control switch itself, depending on how it failed it could have shorted pump wiring, potentially damaging the pump before the circuit breaker tripped or fuse blew.
It might be diagnostic to think back to
what were the pressure control switch cut in and cut out pressure settings before the problme
what problem signs had been observed about the well or the well pump such as short-cycling on and off frequently, hard stating, occasional loss of water pressure
You can replace a noisy above ground pump with a quieter model, and if your pump motor or the actual impeller assembly are loud due to damage or wear, it's a good time to think about that step.
If you convert an above-ground well pump to a submersible pump sysem you won't hear the pump motor at all, just a little click when the pump relay switch turns the pump on or off. In fact you might notice previously masked (by pump noise) sounds of water entering the pressure tank.
