Plumbing cross connections: this article gives a definition of a plumbing system cross connection and explains why plumbing or piping cross connections can be unsanitary or even dangerous.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Plumbing CROSS CONNECTIONS - Health Risks from Plumbing Cross Connections
Any physical connection or arrangement between potable water and any
source of contamination. A cross connection risks contamination of building water piping or municipal water supply with bacteria. As Carson Dunlop's Home Reference Book points out, a cross connection is a dangerous situation where waste water may enter and contaminate the supply water.

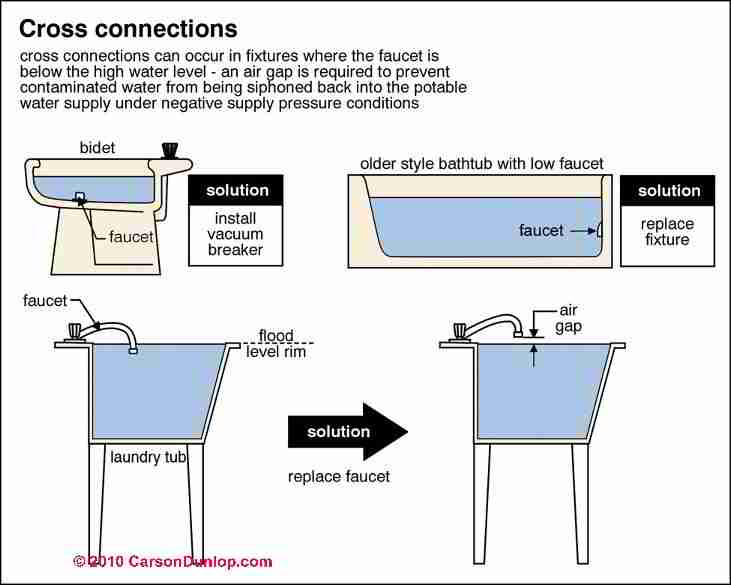

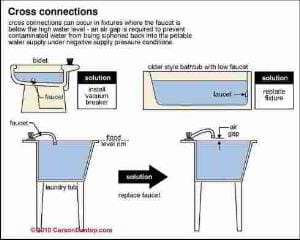

A cross connection can occur in many places. One example is where a laundry tub has a faucet below the top of the laundry tub. If the faucet enters the tub through the wall, it is possible that when the tub is filled, the faucet will be submerged.
If this happens, the waste water in the tub may back up into the drinking water through the faucet if the supply piping is being drained.
The solution to plumbing cross connections is to raise the faucets above the top of a tub or basin, creating an air gap between the faucet and water in the tub. Cross connections are avoided through the use of an overflow.
In bathtubs, for example, where the faucets may enter through the wall of the tub below the top, an overflow provided below the faucets will prevent a cross connection.
Other examples of cross connections in buildings include water softeners (see HEALTH RISKS & WATER SOFTENERS), washing machines, and dishwashers connected to a building drain without an air gap and water powered backup sump pump systems that use municipal water pressure and a venturi to evacuate water from a building or its sump pit (see Sump Pump Types).

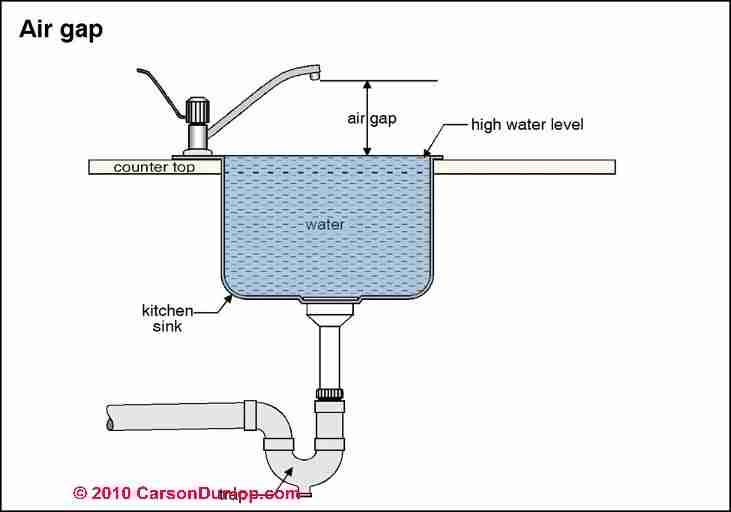

Carson Dunlop's sketch (left) shows how an air gap at a typical sink protects against cross connections. |
Bathroom fixture cross connections

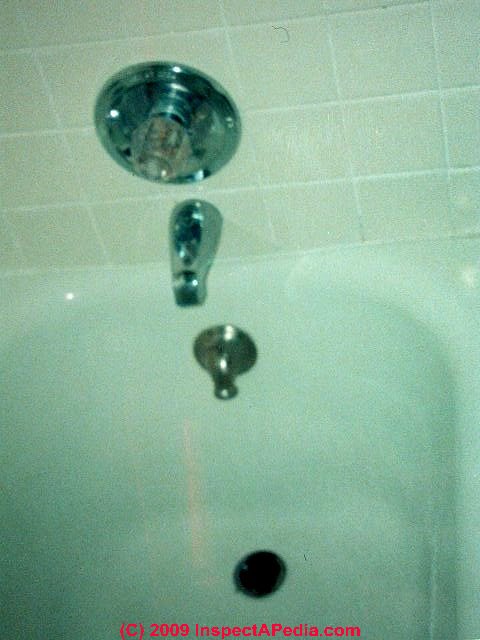

Older bath sinks and bath tubs (photo at left) may also form a cross connection if the tub spout is below the flood rim of the fixture.
In our photo at left the original tub spout is below the top edge of the bath tub (the fixture flood rim).
(A newer water spout has been installed through the tile tub surround wall.)
|

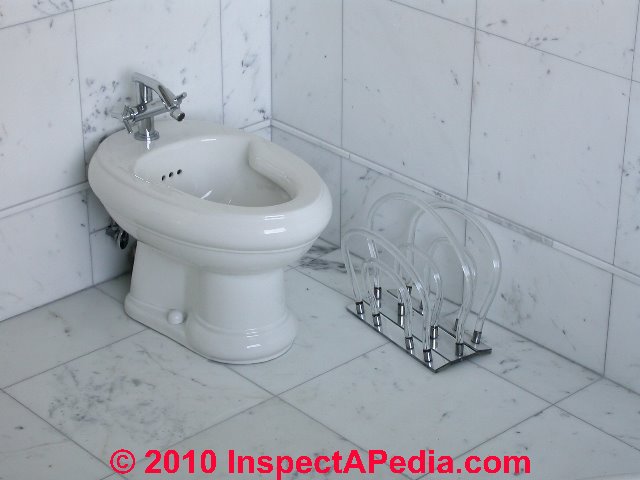

Bidets Cross Connections - Vacuum Breakers
Some plumbing fixtures necessarily create a situation which
could lead to a cross connection.
A bidet is a good example of
this
A bidet has a water supply
at the bottom of the bowl. This
allows water to be directed up
in a spray from the bottom
center of the bowl.
There is, of
course, the potential for waste
water in the bowl to get into
this supply water.

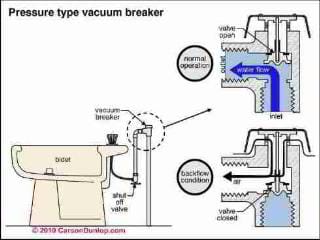

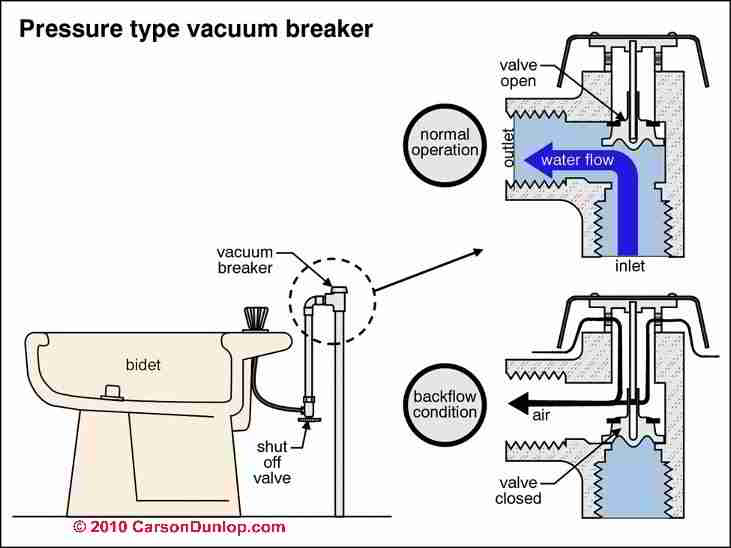

A special
device (vacuum breaker) prevents
water from flowing back
into the supply plumbing.
Dishwasher Cross Connections & Air Gap Devices

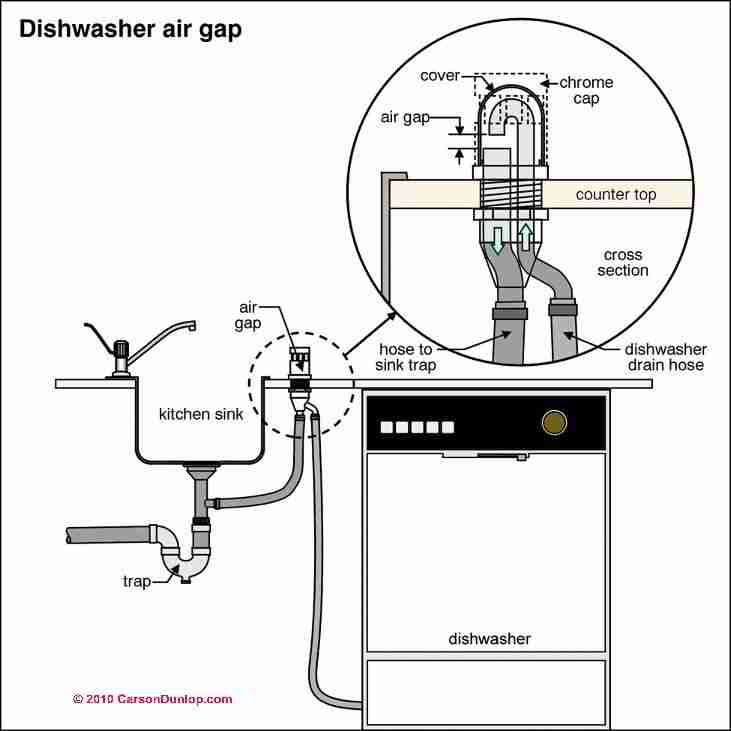

The air gap device shown in the sketch (below-left) demonstrates how we avoid a plumbing cross connection at dishwashers. The dishwasher in our photograph (below right) was installed with no air gap device and forms a potential cross-connection in this home.
Garden Hose Cross Connections
While cross connections are normally avoided during original
plumbing work, home handy
man changes can create them.
Careless use of the house
plumbing system can also create
a cross connection.
Care
should be taken, for example, to
avoid placing a garden hose in
a position to allow waste water
to flow back into the supply
plumbing system. For example,
if the hose is left in a pail of
water, it is possible for the
contaminated water to
flow back through the hose into the drinking water. This may happen if the house water
supply is shut off and partially drained for some reason, while the hose is in the pail. Back-flow

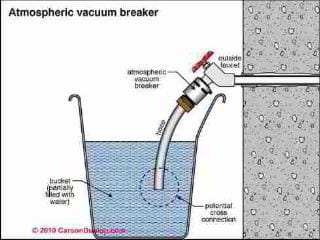

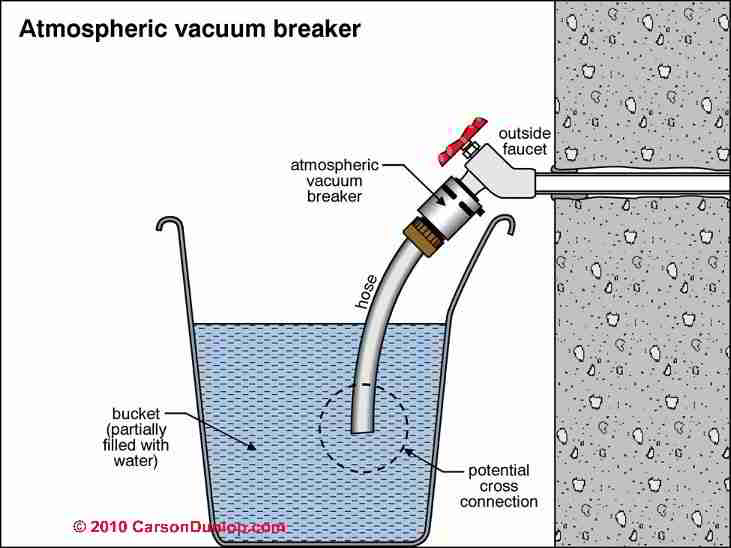

preventers (like the atmospheric vacuum breaker in the illustration) on the hose bib can
prevent this.
Cross connections by garden-hose plumbing also occur when someone improperly connects a garden hose directly to a sewage waste pipe for any reason (photo, below right). We have found garden hoses connected in this fashion as building piping drains, water softener drains, boiler drains, etc.
Back-flow
preventers (like the atmospheric vacuum breaker in the illustration at above-left) on the hose bib can
prevent this. We show an example of a garden hose backflow preventer at FAUCETS, OUTDOOR HOSE BIBBS and another back flow preventer at Plumbing Cross Connections at Heating Boilers
- Adapted with permission from Carson Dunlop's Home Reference Book
Clothes Washer Plumbing Cross Connection leads to Sewage Backup into Washing Machine
It's not just technical theory. Sewage backups
into appliances do occur. One of our clients in Cold Spring NY awoke at 2AM to hear their basement clothes washer running unattended.

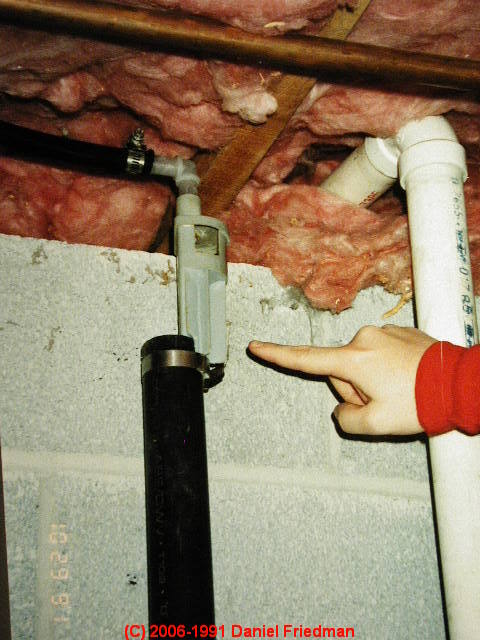

A washing machine drain hose in our photo (left) had been connected directly to the sewer line without an air gap. We pointed out the cross connection and risk of sewage backup into the washing machine, potentially providing a path of bacterial contamination back through the washing machine into the house water supply piping.
Our client thought that the risk of sewage backup into the washing machine was not a concern. The new homeowner called us two weeks later with an amazing house noise and sewage backup story.
The home occupants woke at 2: AM, hearing a noise in their basement. Walking downstairs into the basement the occupants found that mysteriously the clothes washing machine had begun to agitate. This was an old washing machine that would start agitating when a sensor determined that the liquid level in the washer had reached a sufficient level.
|
During the night a municipal sewer backup had occurred in the street, forcing raw sewage back into the house sewer line, and upwards into the tightly-connected washing machine hose, filling the washing machine with sewage. The washing machine had been cross-connected by a tight plumbing connection to the building main drain line.
A sewer line backup had pushed waste into the washer where its pressure switch started the agitator.
Plumbing cross connections are unsanitary and is a health risk. The clothes washer was merrily agitating away its full load, not of laundry, but of sewage.

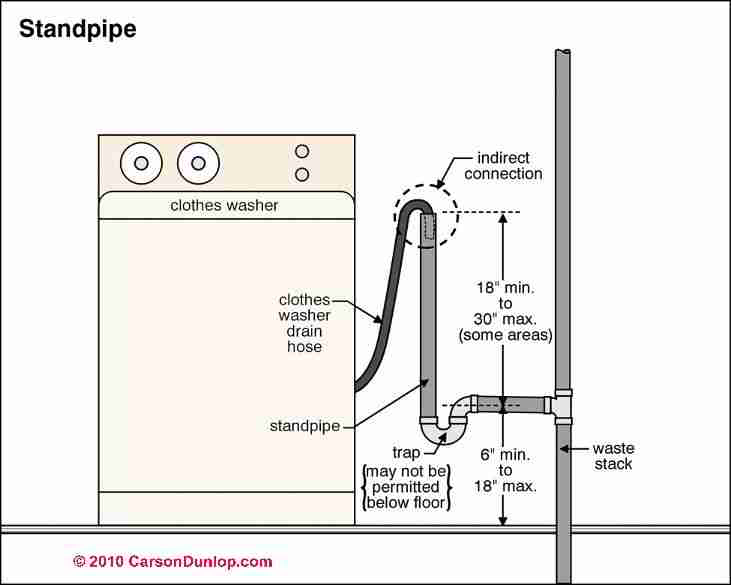

Carson Dunlop Associates' sketch (left) shows a proper indirect-connection washing machine drain hookup. |
Water Softener Cross Connections Between Drains and Water Supply Piping
Plumbing cross Connections such as those we show in our water softener backwash/recharge drain tube connections at page top and just at left deserve a mention
while we're discussing water softeners. A "cross connection" is
a direct physical connection between a building water supply pipe and a drain pipe.
This may sound like an unlikely event in buildings
but in fact it is common in a few instances: installers often make a tight connection between the water softener backwash/discharge drain
(usually a small diameter plastic tube) and a building drain. While it is not unique to water softener installations, this plumbing error
is often made when these devices are installed. It is unsanitary and is a health risk.
What's the problem? In the unlikely event of a sewer line backup, sewage may be forced backwards up the drain and into the supply fixture,
in this case the water softener - a very unsanitary event. There is also a possible bacterial growth path up such drains even when a
sewer backup is not occurring.
|
The proper way to make this connection is with a plumbing drain which provides
an air gap between the water discharge line and the drain line [photo].
You can review this detail with your plumber or, if installing a new
water softener, with the installer. Also see HEALTH RISKS & WATER SOFTENERS for details.
While they are not unique to water softener installations, cross connections are a plumbing error
which is often made when water softeners are installed.
|
Plumbing Cross Connections at Heating Boilers
|
[ILLUSTRATION DUE]
On hot water heating systems,
the plumbing is connected to the boiler so that water can be added to the boiler. Modern installations have a back-flow preventer to prevent the boiler water from coming back into the drinking water. This is another potential cross connection. Older systems may not have back-flow preventers to protect against this. |
Sump Pump Plumbing Cross Connections
|
Water powered sump pumps can form an unsanitary cross connection between ground water or basement water leaks and the building municipal water supply piping - and thus are illegal in some plumbing jurisdictions.
See Sump Pump Types for details about water powered sump pumps. |
Cross connections are defined with further examples at Home Inspection Definitions & Terms.
- Adapted with permission from Carson Dunlop's Home Reference Book
