How to Use Indoor Wall or Ceiling Stains to Diagnose Indoor Air Quality Problems
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
This article describes How to Use Indoor Wall or Ceiling Thermal Tracking & Other Indoor Stains to Diagnose Indoor Air Quality Problems and discusses
other interior wall and ceiling stains,

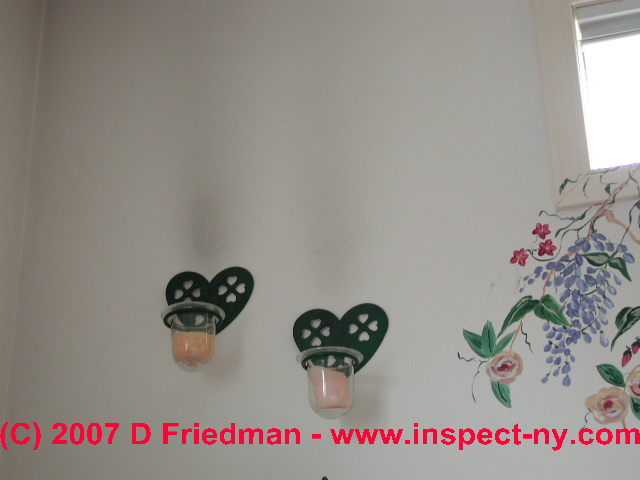

building air leaks, and building insulation defects. Often these stains are mistaken for toxic indoor mold. The black stains in the photo at page top are not mold, they are candle soot.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
How to Use Indoor Stains Like Thermal Tracking to Diagnose Building Air Leaks, Insulation Defects, and Indoor Air Quality Problems
Readers should see HEAT LOSS in BUILDINGS. Also see AIR SEALING STRATEGIES and AIR LEAK DETECTION TOOLS as well as AIR LEAK MINIMIZATION. For photos of snow melt on rooftops that also show points of building heat transfer and loss, see STAIN DIAGNOSIS on BUILDING EXTERIORS.
Significance of Other Indoor Stains and Marks for Building Framing Location or Defects in Heating & Cooling System Operation
 The short explanation: thermal tracking and soot stains are not mold. But indoor stains may still indicate indoor health or air quality problems.
Many building stains, thermal tracking, thermal bridging, ghosting, stains at heating or air conditioning registers, and even mineral salts left behind by evaporating water at a foundation wall are all very easily recognized as "not mold". Review the stain patterns shown in these articles before ordering a costly building mold test or investigation.
While mold growth in buildings indeed follows the location of leaks or moisture, mold growth does not usually occur on building surfaces in the same regular pattern described by thermal tracking.
When investigating a building for a mold problem, you can save mold test costs by learning
how to recognize Stuff that is Not Mold or is only Harmless Mold but may be mistaken for more serious contamination. In addition to a study of the stain patterns of Thermal Tracking (this series of articles) readers should also see both WHAT MOLD LOOKS LIKE and STUFF THAT IS NOT MOLD.
Mold, Safety, & Health Warning:
Your building might have a separate mold problem:
However, because indoor moisture is an important factor in the cause of thermal tracking or soot ghosting, the same building that has lots of thermal tracking stains might also have a serious mold problem due to leaks, water entry, or high indoor moisture. But where we find this to be the case, the location of the most serious building mold is often not at all the same as the location of the thermal tracking stains. See MOLD EXPERT, WHEN TO HIRE for help in deciding when it is appropriate to hire a mold inspector.
Your building might have unsafe heating equipment:
both oil and gas fired equipment can produce soot when they are not working properly. Soot from a gas fired appliance is a very dangerous sign, often indicating that dangerous carbon monoxide (CO) gas is being produced - which can be fatal. Be sure your home has working smoke detectors and CO detectors. See CARBON MONOXIDE WARNING.
|
 This black stuff is not mold. Since thermal tracking, or soot marking, or "thermal bridging" always tell us about missing or openings in building insulation or about air leaks,
we can learn other facts about a building such as those listed in this article on thermal tracking, soot stains, and other indoor building stains.
But don't assume that any stain on a building wall is due to poor insulation, moisture, mold, or thermal tracking. In the page top photograph we see
candle soot - sometimes a source of indoor air quality complaints or even lead poisoning if a poor quality or perfumed candle is used to excess.
In the photo at left we see thermal tracking soot or house dust or cigarette smoke stains on a ceiling - but high building moisture that was a factor in this staining could also have been a factor in development of a mold problem somewhere in the home.
Indoor stains can also tell us of other conditions that should not be confused with mold or indoor air quality complaints: |
How "Read" Indoor Stains to Identify Indoor Air Quality Concerns
A careful examination of the location of indoor stains permits the observer to use thermal tracking or soot marks on building walls or ceilings as an indicator of possible excessive (seasonal) interior moisture or other potential indoor air quality concerns.
Dark stains on building interior walls may appear in other patterns and could be from other causes - we provide photographs, description, diagnosis, and advice for many of these
indoor stains in this article.
- Location & spacing of building framing members. Indoor stains can help find the location and spacing of wall studs or ceiling joists: use thermal tracking marks on building interior surfaces to spot the location of wall studs or ceiling joists when we need to find those members (for placing a picture nail, for example). Observing the spacing between these stains can tell us how a building has been framed.
- Location of areas of missing building insulation or areas where more air is moving across a surface
- Building areas where high moisture is present - which could be the cause or contributor to a mold or other indoor air quality issue
- Watch out: Potentially dangerous problems with heating equipment may be indicated by stains around HVAC air supply registers. See Stains HVAC Supply Registers for details. So indoor stains may identify unsafe heating equipment or poorly-functioning fireplaces: use thermal tracking marks on interior building walls and ceilings, particularly where they vary from room to room, to diagnose poorly-vented chimneys such as fireplaces that do not work well (also look for soot stains at the hearth face). Such marks may also indicate poor and even unsafe operation of central heating systems since a poorly maintained oil burner will often leak soot into a building interior, and a dangerously un-vented gas appliance may also produce both soot and potentially fatal carbon monoxide gas.
- Some floor stains may indicate contamination by animal urine, feces, or mold on carpet or floors. See CARPET MOLD CONTAMINATION.
- Identify sources of irritating or harmful indoor particles and soot, such as excessive use of scented candles.
Usually soot marks, thermal bridging, or thermal tracking stains appear, if at all, in the building interior locations discussed
in the other sections of this article.
