How to Evaluate Heating Boiler Leaks & Corrosion

Readers should also see BOILER LEAKS, HOW TO LOCATE.

Our photograph at page top shows severe rust at the tankless coil on a steel heating boiler - this boiler may be beyond repair even though the rest of the unit looks pretty good. When a tankless coil-mounting surface on the boiler itself is severely rusted it may be impossible to get an adequate seal when bolting on a new hot water coil, making it necessary to replace the entire heating boiler. See TANKLESS COILS for more about this device.

It is important to recognize and accurately report the significance of rust like this on any heating boiler. We continue to add to and update this text as new details are provided. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.

Even significant boiler water leaks at a tankless coil (left and at page top) may never show up on the building floor as a wet spot, leading an owner to ignore a condition that can lead to very expensive damage. When observing evidence of leaks on a heating boiler, keep these points in mind:

Even serious leaks may never show up as "wet" spots: A boiler may be leaking but you may see no actual water: during the heating season the boiler may always be hot, causing small leaks on the boiler or on heating piping to simply evaporate. But such leaks will usually be visually very evident: look for a build-up of corrosion, green or white or other colored mineral salts, or look for rust or water stains on the equipment.
Surface rust, light, superficial rusting, is generally repairable. Clean the area and fix the leak when the boiler is next serviced and monitor for any future leaks.
Exfoliation, or thick flaking rust on any boiler but particularly on a steel heating boiler is very serious, possibly not repairable, and risks loss of the boiler as well as sudden loss of heat in the building. The boiler shown at left might be repairable. The boiler shown at page top was so badly rusted that simply replacing the coil and its mounting plate might not possible - the boiler might have been ruined by this unattended leak.

Warning about corroded leaky heating system and plumbing parts: Don't Poke at Leaks and Corrosion on heating equipment.

Heating service technicians may be more daring, if they are prepared to immediately replace a ruined boiler or a catastrophic leaking part. We watched a heating company rep poke his pencil right through a badly rusted boiler.

But a home owner or home inspector should look but don't touch corroded leaky parts on a boiler. Too often the mineral build up from corrosion is all that's holding back a serious leak that could, by chipping away the deposited gunk, result in a rapid leak so severe that the heating equipment has to be immediately shut down - not a good idea in freezing weather.

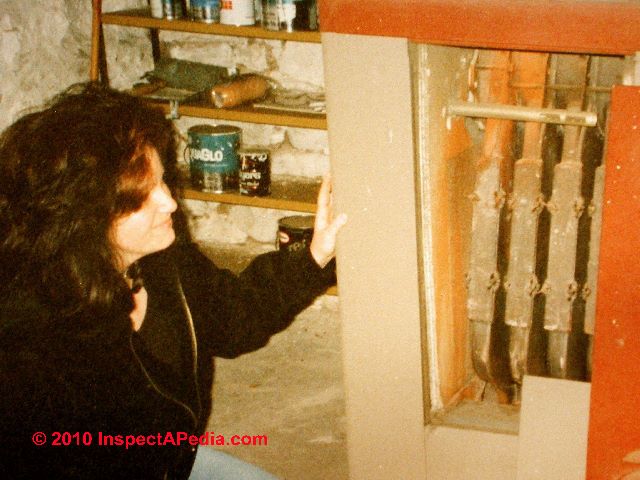

Internal heating boiler leaks: Some critical heating boiler leaks may be internal and not visible by simple inspection, such as a leak inside the boiler heat exchanger (photo at left) which may pass water into the combustion chamber.

A service technician or a skilled home inspector should be able to spot evidence of these leaks by inspecting for subtle clues (rust at the bottom of the boiler jacket) or by removing the boiler external covers (as in our photo).
Leaks related to temperature or pressure: Some leaks occur only at peak operating temperature: e.g. at relief valve.

On some heating boilers such as some cast-iron units, leaks may occur between boiler sections when the system is cold - on these models some technicians prefer to keep a little heat in the boiler year-round to avoid this problem. Leaks between boiler sections may be repairable but if left unattended can destroy the equipment.
Leaks anywhere in the hot water heating system can cause more than pressure loss in the heating system. Leaks can also allow air back into the heating system as it cools, leading to excess air, even abnormally high pressure (less common), or noisy heat piping or circulator pumps.

A Catalog of Common Heating System Leak Points - Where to Watch for Heating System Leaks

Tankless Coil mounting plate - see rust stains below and around plate. See Tankless Coil Leaks and TANKLESS COILS for a guide to diagnosing, evaluating, and repairing leaks at the tankless coil.
Pipe fittings at face of coil plate - mineral salts and rust stains - See Tankless Coil Leaks for photos of this type of leak stain
Leaks around bolt openings - suspect hidden damage - See Tankless Coil Leaks for an example of severely rusted coil mounting bolts that are probably beyond repair
Leaks between cast iron boiler sections of a cast iron boiler, possibly occurring where the nipples or seals join the water passages of individual cast iron boiler sections together. A photo showing cast iron boiler sections is just above at Internal heating boiler leaks.
Leaks at a crack or split in a cast iron boiler section, also leaks at a crack, split, or rust perforation of a steel boiler.
Leaks at the circulating pump mounting flanges - see Circulator Pumps & Relays. Our photo (left) shows a closeup of an active leak at a heating system circulator pump.
Leaks at the boiler temperature/pressure relief valve. This leak may be very dangerous as corrosion from water passing through the valve may prevent its safe operation in an emergency. The boiler pressure/temperature relief valve may be leaking because the system pressure or temperature is too high - it's working properly; or the relief valve may be leaking because its internal gasket has failed or because it has become jammed partly open by corrosion and mineral debris build-up.

Prompt expert inspection and repair are needed. Watch for leaks below the valve's mouth or discharge pipe (a pipe should extend from the relief valve to a few inches from the floor) or watch for corrosion at the tip of the discharge pipe. Gently feel inside the tip of this pipe to see if it's wet. DO NOT TRY TO TEST or open or operate the relief valve itself. See RELIEF VALVES - TP VALVES
Leaks at air bleeder valves - at the boiler or remote where such bleeders are placed on heating piping or baseboards or radiators. See Air Bleeder Valves and see Air Scoops Purgers Separators.
Leaks due to improperly-set boiler controls - temperature set too high - see Limit Switches, Boilers
Leaks at boiler control valves, boiler drains, zone service valves, zone drain valves, & radiator control valves - see LEAKS at BASEBOARD, CONVECTOR, RADIATOR
Leaks at poorly-soldered copper pipe fittings on finned copper baseboard heating systems
Leaks due to frozen and burst piping or in extreme cases, frozen and burst heating boilers themselves. See Find & Fix Water Pipe Freeze-Up Points.
Leaks due to water-logged expansion tanks - see Expansion Tanks

Continue reading at BOILER LEAKS, HOW TO LOCATE.
